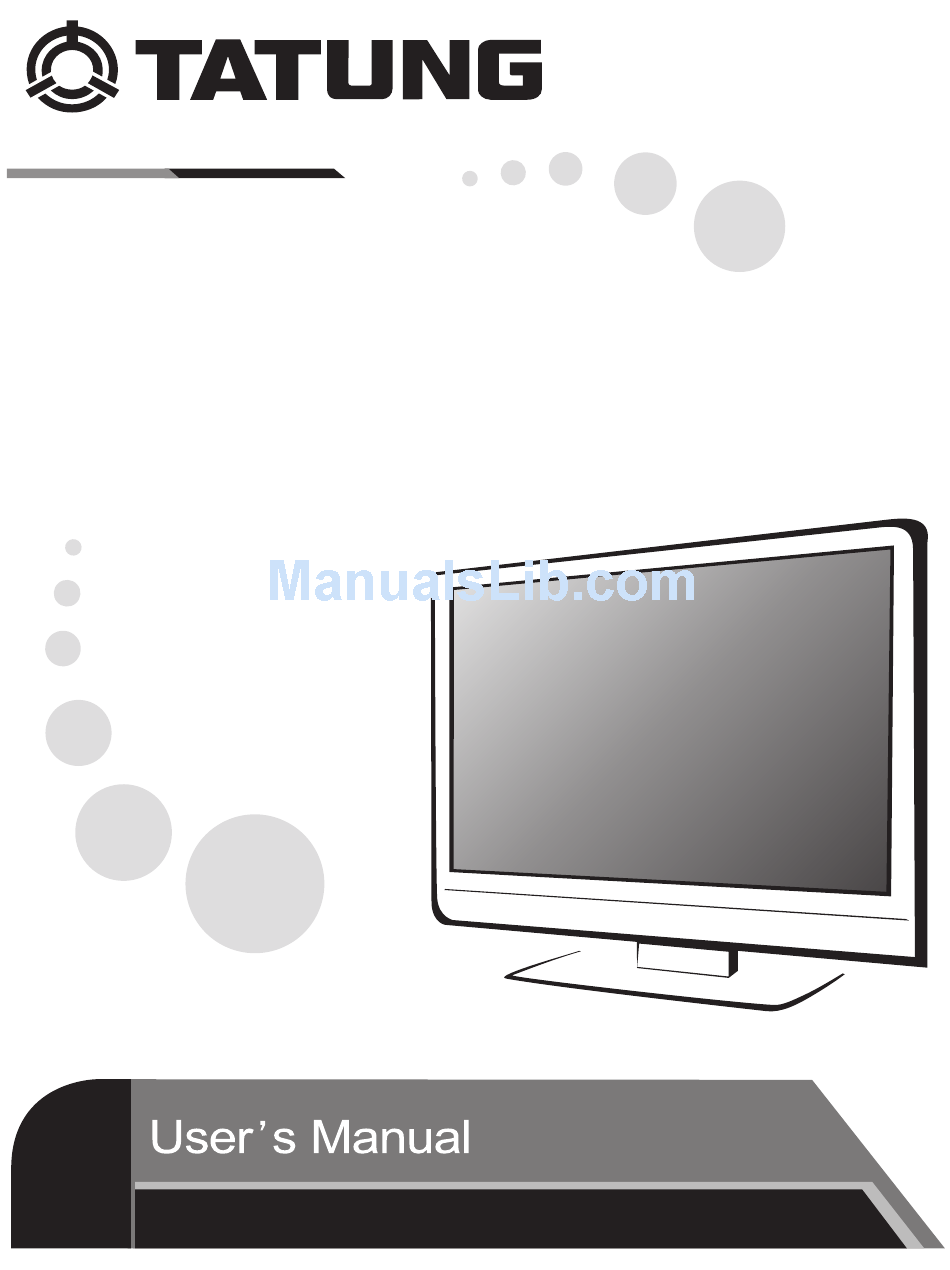

Page 1: Lcd Monitor
TME42 LCD MONITOR With FHD LED 1920 x 1080 pixel resolution panel Please read this manual carefully for proper usage before installation and use.It is recommended to keep this manual properly for future check. -
Page 2: Table Of Contents
Contents Features……………………………………………1 Basic Operations…………………………………8 Safety warning and notice………………………1 Turning on/Standby……………………………8 Mounting and Connecting………………………3 Signal source selection………………………8 Packing list……………………………………3 Menu operation description……………………8 Mounting the Monitor set……………………………3 Menu setting list………………………………9 Connecting peripheral equipment…………………4 USB multimedia function……………………10 Panel Control Keys………………………………7 Troubleshooting…………………………………12 Remote Control……………………………………7 Technical Specifications………………………13 Features 1. - Page 3 Safety warning and notice Under Following Conditions Turn off the Monitor set immediately, ● Power failure or unstable voltage. unplug the power cord from the ● Abnormal sound or smell from the device. power outlet, and contact ● AC power cord is damaged. authorized maintenance ●...
-
Page 4: Mounting And Connecting
Safety warning and notice Attention ● Do not let children climb onto the Monitor set. ● Keep the small accessories away from children's reach to avoid swallowing. ● If the Monitor set won't be used for a long time, please turn off the device and unplug the power cord. ●... -
Page 5: Connecting Peripheral Equipment
Mounting and Connecting Screw The base ● The Monitor set should be mounted near the AC power socket for easy plugging and unplugging. ● For your safety, please select appropriate wall mount bracket or base. ● To avoid hurt, it is required to place the set on stable plane, or fix on firm wall. Monitor ●... - Page 6 Mounting and Connecting ▲/▼" source will be displayed on the screen. Press the " key to select the input signal, and press " OK key to " confirm. The connecting mode is shown in the figure. Connecting power supply USB 1 interface To power socket Power cord (100-240VAC 60/50Hz)
- Page 7 Mounting and Connecting Y Yellow (VIDEO signal cable) W White(AUDIO-L signal cable) R Red (AUDIO-R signal cable) Audio cable Video cable VGA input connection Connect to the devices with AV Connect to the devices with AV output input interface (e.g. Monitor) interface (e.g.
-
Page 8: Panel Control Keys
Panel Control Keys 1) Power LED indicator and remote receiving window. 2) SOURCE: Press this key to enter the menu of signal source and choose signal source. 3) UP/DOWN: In OSD menu, press the two keys to adjust the items, which have the same functions as ▲/▼... -
Page 9: Basic Operations
Remote Control Installing battery Remove the battery cover, and insert two AAA (1.5V) batteries; make sure that the polarity of the battery is consistent with the marks "+/-" in the battery slot. Precautions of remote control usage ● Point the remote control to the receiver window. The objects between remote control and the receiver window may disturb the normal operation. -
Page 10: Menu Setting List
Basic Operations The control panel to adjust the value or setting. 5. When the main menu appears on the screen, press "MENU" key to exit; when submenu appears on the screen, press "MENU" key to return to previous menu; press "SOURCE" key to show the signal source selection menu, and press it again to exit from the menu. -
Page 11: Usb Multimedia Function
Basic Operations USB multimedia function Connect the USB storage device to the USB interface in the Monitor set, press "SOURCE" key to select the USB signal source and press "OK" key to confirm. Remark: 1. Compatible USB media files: video, audio, picture, and text. The nonstandard USB storage devices may be incompatible;... - Page 12 Basic Operations Rotate CW: Press " " key to select this function, and press "OK" key to rotate the picture clockwise. Rotate CCW: Press " " key to select this function, and press "OK" key to rotate the picture counterclockwise.
-
Page 13: Troubleshooting
Troubleshooting Problem Reason Solution Monitor Monitor image is good, but Enter “ " setting menu and reset the sound Monitor sound setting is improper. there is noise. system. Power plug is loose, or power 1.Check if the power cord is connected properly. No screen display, no sound, supply isn't connected. -
Page 14: Technical Specifications
Technical Specifications Master unit Panel size 42" Max. Resolution 1920×1080 Best Resolution 1920×1080@60Hz Pixel Pitch 0.4845mm×0.4845mm Active Area 930.24mm×523.26mm Power Supply 100-240VAC 60/50Hz Power Consumption of Speaker 8W+8W Excluding base Unpacking: 972×583×72(mm) Dimension(L×H×W)and Unpacking: 972×634×72(mm) Net Weight: 11.5kg Weight Includingbase Packing: 1165×687×160(mm) Gross Weight: 14kg Operating environment: temperature: 5℃~40℃;...
