Instruction Manual
SERVICE MANUAL
R

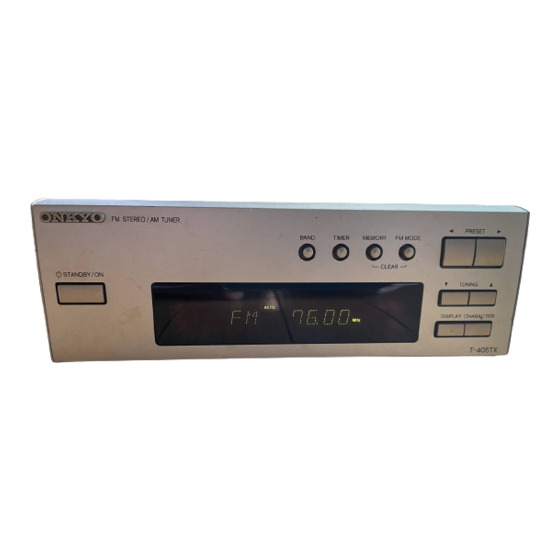

STEREO TUNER
MODEL T-405TX
FM STEREO TUNER
STANDBY/ ON
ACCUCLOCK
Silver models
SUPT
SUDT
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBER APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
PRESET
TIMER
MEMORY
FM MODE
CLEAR
TUNING
DISPLAY
CHARACTER
T-405TX
230V AC,50Hz
120V AC,60Hz
ON THE
T-405TX
3680
Ref. No .
052001
Advertisement
Table of Contents
Related Manuals for Onkyo T-405TX
Summary of Contents for Onkyo T-405TX
- Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBER APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE CURRENT OR RESISTANCE...
-
Page 2: Specifications
T-405TX SPECIFICATIONS T uning Range: T uning Range : 87.90 - 107.90 MHz, 200 kHz steps 530 - 1,710 kHz, 10 kHz steps (U.S. & Canadian models) Usable Sensitivity : 30 µV 87.50 - 108.00 MHz, 50 kHz steps Image Rejection Ratio : 30 dB... -
Page 3: Block Diagram
T-405TX BLOCK DIAGRAM L103 L101.L102 L.P.F Right FM IF Q105 TRANSFORMER MUTE SWITCH MIXER RF AMP ANTENNA Q103 TUNED Q107 TANK Q101.Q102 FM IF SYSTEM/MPX AND AM RADIO SYSTEM CIRCUIT GATE CIRCUIT FM IF AMP CIRCUIT LA1837 FM LOCAL Left... -
Page 4: Exploded View
T-405TX EXPLODED VIEW P901 T901 F901 REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION NARF-6130-4C,Main circuit PC board ass'y <P> Chassis 1A907530-4C 27100337 NARF-6130-4D,Main circuit PC board ass'y <D> Front bracket 1A907530-4D 27111039B NADIS-6131-4C,Display PC board ass'y <P> Rear panel <P>... -
Page 5: Schematic Diagram
T-405TX SCHEMATIC DIAGRAM N A R F - 6 1 3 0 U J J T Y P E O T H E R T Y P E R 1 0 1 3 3 K 3 . 3 K R 1 0 2 6 . - Page 6 T-405TX SCHEMATIC DIAGRAM N A R F - 6 1 3 0 U J J T Y P E O T H E R T Y P E R 1 0 1 3 3 K 3 . 3 K R 1 0 2 6 .
- Page 7 T-405TX PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE AS MARKED -REPLACE FUSE RISK FIRE AC-H R901 AC-G JL901b R909 R908 D910 R919 Q107 C902 C108 D903 R142 D911 5.6V J106 C915 R911 J102 R129 C914 L107 X106 C147 J111 C903...
- Page 8 T-405TX PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE R759 DISPLAY PC BOARD (NADIS-6131) R761 R762 Q754 J719 J717 J716 R765 R754 R753 R756 R755 D753 R752 Q753 J712 D752 J711 C757 C760 J701 C759 C758 R774 R775 JL901a 25136133 NCPS-6133...
-
Page 9: Printed Circuit Board-Parts List
T-405TX PRINTED CIRCUIT BOARD-PARTS LIST CIRCUIT NO. PART NO. DESCRIPTION MAIN CIUCUIT PC BOARD(NARF-6130-4C/4D) CIRCUIT NO. PART NO. DESCRIPTION Resistors R902,R903 453530104 Front end TU001 240102 FE417-G02 R904 453530474 R905 443524704 Q103 22241151 LA1837 R906 443621024 Q701 22241076 LM7001J Sockets... - Page 10 T-405TX CONTROL POSITIONS AND NAME PRESET button FM MODE button MEMORY button TIMER button STANDBY/ON button FM STEREO TUNER PRESET TIMER MEMORY FM MODE CLEAR STANDBY/ ON TUNING DISPLAY CHARACTER ACCUCLOCK ACCUCLOCK T-405TX DISPLAY button DISPLAY CHARACTER button TUNING button...
-
