Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS
These 18V cordless circular saws have been developed for wood
works, metal works and siding works equipped with
165mm (6-1/2") and 160mm (6-1/4") carbide tipped saw blade.
Brief benefits and features are
* Electric brake for quick stop
* Lock off switch to prevent an accidental switch-on.
The colours of dust boxes showing the purposes, and variations
are as follows.
S
pecifications
Motor
Rated Voltage
Battery
No load speed (rpm)
Diameter
Saw blade
Hole Diameter 20mm (13/16") 15.88mm (5/8") for USA and Canada
Max cutting depth
Net weight (inc. battery)
S
tandard equipment
Rip fence (guide rule)
Carbide tipped saw blade
Hex wrench
Batter cover
Safety goggles (only for Mod.5046D series)
Plastic carrying case
The standard equipment for the machine may differ from country to country.
O
ptional accessories
Carbide tipped saw blade 160mm(6-1/4") for siding and plaster boards
Carbide tipped saw blade 160mm(6-1/4") for metal cutting
Carbide tipped saw blade 160mm(6-1/4") for thin metal plate
Carbide tipped saw blade 165mm(6-1/2") for wood

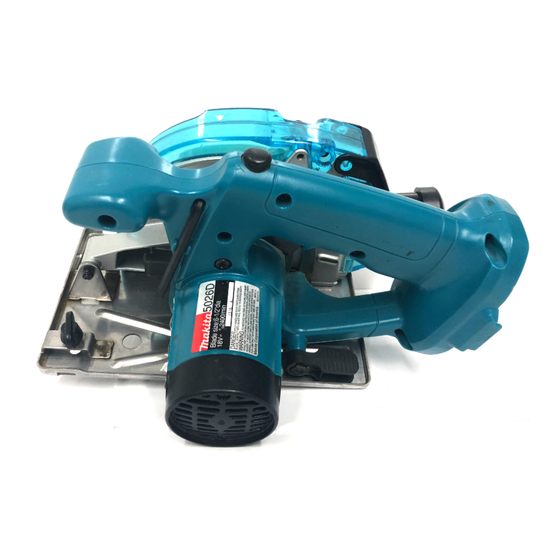

5026D, 5036D, 5046D
Cordless Circular Saws
with Dust Collection
The colours of dust covers, purpose
and variations
Colour of
Dust box
Purpose
Blue
Wood
Purple
Siding
Orange
Metal
Magnet DC motor D35
DC 18 V
NiCd 18 V / 2.0 Ah, NiMH 18 V / 2.2 Ah
2,4000
165mm(6-1/2") for 5026D series.
160mm(6-1/4') for 5036D and 5046D series
5026D : 55mm(2-3/16")
5036D and 5046D: 53mm(2-1/16")
3.8 Kg. (8.4 lbs)
Battery
Model No.
1822
1 pc.
5026DWA
5026DWAE
1822
2 pcs.
5026DWB
1833
1 pc.
5026DWBE
1833
2 pcs.
1822
1 pc.
5036DWA
1822
2 pcs.
5036DWAE
5036DWB
1833
1 pc.
5036DWBE
1833
2 pcs.
1822
1 pc.
5046DWA
1822
2 pcs.
5046DWAE
5046DWB
1833
1 pc.
5046DWBE
1833
2 pcs.
Saw blades
Charger
Diameter
Hole Diameter
165mm
(6-1/2")
DC1811
160mm
(6-1/4")
160mm
(6-1/4")
Battery 1822
Battery 1833
Charger 1801
Safety goggle
PRODUCT
20mm
(13/16")
*15.88mm
(5/8") for
USA and
Canada
Advertisement
Related Manuals for Makita 5026D
Summary of Contents for Makita 5026D
- Page 1 NiCd 18 V / 2.0 Ah, NiMH 18 V / 2.2 Ah Battery 2,4000 No load speed (rpm) 165mm(6-1/2") for 5026D series. Diameter Saw blade 160mm(6-1/4') for 5036D and 5046D series Hole Diameter 20mm (13/16") 15.88mm (5/8") for USA and Canada 5026D : 55mm(2-3/16")
- Page 2 5026D, 5036D, 5046D High dust collecting rate Coloured dust box with enough space even without connecting with for dust collecting vacuum cleaner The collectable dust volume in the box, corresponds to In case of Mod.5036D approx. over 10 cuts in cutting ceramic siding board 455mm x 12mm 80% cutting in ceramic siding board 12mm thick approx.
- Page 3 Capacity with one full charged battery Slow Fast Many Wood works 2 x 10 Material (3.1 sec.) (51 pcs.) Makita 5026D Model A Plywood (Width:900mm x Thickness:12mm) (54pcs.) (4.3 sec.) Makita 5026D Model A Siding works Ceramic siding (Width:455mm x Thickness:12mm) (122pcs.)
- Page 4 epair < 1 > Removing gear housing complete from base Gear housing can be removed from base by loosening pan hd. screw M5 and cap square bolt M6x90. See Fig.1 (Note) Pay attention not to lose hex nut M5-8 when removing gear housing.
- Page 5 < 3 > The cut section of retaining ring 38 has to be located within the following compass. Cut of retaining ring S-38 Retaining ring S-38 The cut section of retaining ring 38 has to be located within this compass. <...
- Page 6 (3) Armature is drawn with magnetic force of yoke unit strongly. So, pay attention to prevent pinching of your finger. Slit of yoke unit Yoke unit < 7 > Lubrication Apply MAKITA grease No.1 in gear housing by 7 g.
-
Page 7: Circuit Diagram
ircuit diagram Brush holder Black Battery holder Switch Brush holder onnection diagram Fix lead wires with lead holders. Fix lead wires with lead holders.
