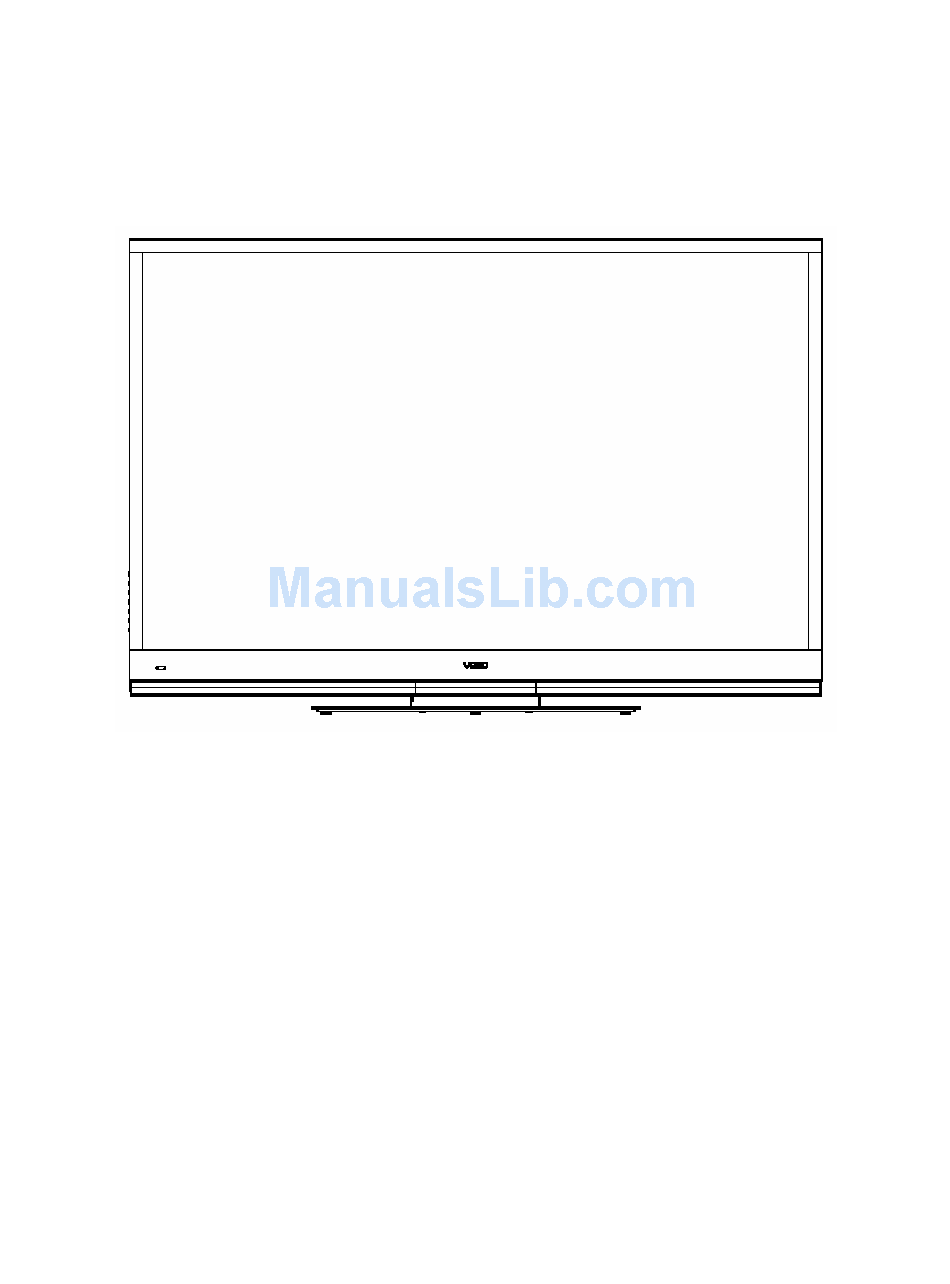

Service Manual Model #: VIZIO VM60P HDTV10A V, Inc 320A Kalmus Drive Costa Mesa, CA 92626 TEL : +714-668-0588 FAX :+714-668-9099 Top Confidential...
9. Trouble Shooting 10. Block Diagram 10-1 11. Spare parts list 11-1 12. Complete Parts List 12-1 Appendix 1. Main Board Circuit Diagram 2. Main Board PCB Layout 3. Assembly Explosion Drawing Block Diagram VIZIO VM60P HDTV10A HDTV Service Manual...
Page 3
Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL); Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric Appliance Control Act); or an AC cord that meets the local safety standards. VIZIO VM60P HDTV10A HDTV Service Manual...
Chapter 1 Features Wall-mountable New WIDE HD Plasma Panel:1366 x 768 (H x V) TruSurround XT sound system and DCDi by Faroujia video image High definition digital interface – HDMI HDCP supportive Multiple-screen display (picture-on-picture/picture-in-picture) Selectable picture mode 3-language On Screen Display 2 S-video and Composite video inputs 2 Component video inputs 4 HDMI inputs...
Chapter 2 Specification 1. Optical Characteristics Item Specification Note Display Pixels 1366 (H) x 768 (V) pixels Display Cells 1319.6 (H) x 741.9 (V) cells Pixel Pitch 0.966 mm (H) X 0.966 mm (V) Pixel Type RGB Closed type Color Depth 256 (R) x 256 (G) x 256 (B) colors Active Display Area 1319.6 mm (H) x 741.9 mm ±0.5 (V)
Page 6
2. INPUT SOURCE RF Connector RGB Connector a. Type: Analog b. Frequency: H: 30-80KHz V: 60-85Hz c. Signal level: 0.7Vp-p d. Impedance: e. Synchronization H/V separate sync: TTL H/V composite sync: Sync on Green TTL Video bandwidth: 135MHz g. Connector type: 15-pin D-Sub, female CONFIDENTIAL –...
Page 7
Pin Assignment Pin Assignment Red video input Green video input Ground Blue video input No connection Ground (SDA) Ground Horizontal sync (Composite sync) Red video ground Vertical sync Green video ground (SCL) Blue video ground HDMI Connector a. Frequency: H: 15.734KHz V: 60Hz H: 31KHz V: 60Hz...
Page 9
RCA-type (Yellow) Composite Video Connector a. Frequency: H: 15.734KHz RCA jack (NTSC) b. Signal level: 1Vp-p V: 60Hz 0.3V below Video (Y+C) c. Impedance: 75 Sync (H+V): d. Connector type: RCA jack S-Video Connector 1, 2 = GND 3 = Luminance (Y) 4 = Chrominance(C) a.
Page 10
Y-Cb/Pb-Cr/Pr Component video signal a. Frequency: H: 15.734KHz V: 60Hz (NTSC-480i) H: 31KHz V: 60Hz (NTSC-480p) H: 45KHz V: 60Hz (NTSC-720p) H: 33KHz V: 60Hz (NTSC-1080i) H: 67.50KHz V: 60Hz (NTSC-1080p) b. Signal level: Y: 1Vp-p Pb: 0.350Vp-p 0.350Vp-p c. Impedance: d.
Page 11
3. INPUT CONNECTORS Wording on Inputs I/Os the input OSD Wording on the rear AV1 (1x Composite Video (1x RCA) + 1x S-Video (1x 6-Pin DIN)+ 1x Stereo AV1 (S-VIDEO)/AV1 Audio (RCA L/R) ) (VIDEO) AV2 (1x Composite Video (1x RCA) +1x S-Video (1x 6-Pin DIN) + 1x Stereo Audio AV2 (S-VIDEO)/AV2 (RCA L/R) )
Chapter 3 On Screen Display Main unit button Buttons Name MENU CH+/ CH-/ VOL+/ VOL-/ INPUT OSD Adjustment Main OSD Tree Mode Video Settings Picture Mode(Custom, Vivid, Movie, Game, Sport) Brightness(O~100) Contrast(O~100) Saturation(O 100) Hue(-50~50) Sharpness(O~24) Advanced Noise Reduction Motion(High, Medium, Low, OFF, Adaptive) Digital(O~64)
Page 14
Mode Medium, High) Dynamic Contrast(0, 1, 2, 3, 4) Color Temp Warm Standard Cool Custom Red(0~100) Green(0 100) Blue(0~100) Auto Adjustment Image Position(-100~+100hor izontal, -31~+31vertical) Phase (0~100) Clocks / Line(0~100) ColorTemp Warm Standard Cool CONFIDENTIAL – DO NOT COPY Page 3-2 File No.
Page 15
Mode User Red(0~100) Green(0 100) Blue(0~100) Power saving(ON/OFF) Reset Audio Settings Bass(O~20) Treble(O~20) Balance(-10~10) SRSTSXT(On,Off) Auto Volume(On,Off) Audio Out(Fixed Volume Variable Volume) Speakers(On Off) Reset Parental Controls Parental Lock Enable (No, Yes) TV Rating TV Youth TV Youth 7 CONFIDENTIAL – DO NOT COPY Page 3-3 File No.
Page 16
Mode TV G TV PG TV 14 TV MA Movie Rating Movie G Movie PG Movie PG-13 Movie R Movie NC-17 Movie X Blocked Unrated(Yes,No) Change Password Please enter new password Please re-enter new password Tuner Settings Cable/Air(Cable, Air) Scan Channel Skip MTS(Mono, Stereo, SAP) CONFIDENTIAL –...
Page 18
Mode Image Cleaner DTV Menu LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 DTV Tuner Setup Time Zone Hawaii Eastern Time Indiana Central Time Mountain Time Arizona Pacific Time Alaska Cable/Air/Auto Cable Auto Scan CONFIDENTIAL – DO NOT COPY Page 3-6 File No.
Page 19
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 Manual Scan Scan Mode Add-on Mode Range Mode From Channel To Channel Channel Skip Digital Audio Dolby Digital Closed Caption CC1~CC4 Analog Closed Caption Service Digital Closed 1~Service Caption 6 OFF Digital Caption CONFIDENTIAL –...
Page 20
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 Style Broadcaster Custom Font Size Lagrge Small Medium Font Color Black White Green Blue Cyan Yellow Magenta Font Opacity Solid Translucent Transparent Background CONFIDENTIAL – DO NOT COPY Page 3-8 File No.
Page 21
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 Color Black White Green Blue Cyan Yellow Magenta Background Opacity Solid Translucent Transparent Window Color Black White Green Blue Cyan Yellow CONFIDENTIAL – DO NOT COPY Page 3-9 File No. SG-0214...
Page 22
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 Magenta Window Opacity Solid Translucent Transparent * HDMI and Component 720p/1080i/1080p inputs do not support Panoramic. CONFIDENTIAL – DO NOT COPY Page 3-10 File No. SG-0214...
Page 23
DTV Menu DTV Menu A.DTV Tuner Setup a.Time Zone 1.Hawall 2.Eastern Time 3.Indiana 4.Central Time 5.Mountain Time 6.Arizona 7.Pacific Time 8.Alaska b.Cable/Air/Auto c.Scan**** d.Manual Scan**** Scan mode Add-on Mode Range Mode From Channel To Channel e.Channel Skip f.Digital Audio Out CONFIDENTIAL –...
Page 24
DTV Menu 1.PCM 2.OFF 3.Dolby Digital B.Closed Caption a.Analog Closed Caption CC1~CC4 OFF b.Digital Closed Service1~Servic CAPTION e6 OFF c.Digital Closed Style 1.As Broadcaster 2.Custom (1)Font Size Large Small Medium (2)Font Color Black White Green Blue CONFIDENTIAL – DO NOT COPY Page 3-12 File No.
Page 25
DTV Menu Cyan Yellow Magenta (3)Font Opacity Solid Translucent Transparent (4)Background Color Black White Green Blue Cyan Yellow Magenta (5)Background Opacity Solid Translucent Transparent (6)Window Color CONFIDENTIAL – DO NOT COPY Page 3-13 File No. SG-0214...
Page 26
DTV Menu Black White Green Blue Cyan Yellow Magenta (7)Window Opacity Solid Translucent Transparent Parental control C. Password Channel Block * HDMI and Component 720P/1080i inputs do not support Panoramic. **See below for detailed information regarding the PIP sources. CONFIDENTIAL – DO NOT COPY Page 3-14 File No.
Page 27
Component 1 Component 2 HDMI 1 HDMI 2 MAIN Component 1 Component 2 HDMI 1 HDMI 2 Remark (1) “ ” – Indicates which inputs are available for PIP and POP modes. (2) For AV1 and AV2, S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1 Video simultaneously, then S-Video will be the only choice for AV1.
Chapter 4 Factory preset timings This timing chart is already preset for this plasma monitor. PC analog preset modes Horizonta Vertical Refresh Horizontal Vertical Pixel Mode l Sync Sync Resolution Rate Frequency Frequency Rate Remark Polarity Polarity (Hz) (KHz) (Hz) (MHz) (TTL) (TTL)
Page 29
HD video digital preset modes at HDMI Mode No. Resolution 480i 480p 720p 1080i 1080p HDMI digital preset modes at DVI through HDMI interface by an optional interface cable below video input. Video input Mode No. Resolution 480i 480p 720p 1080i 1080p CONFIDENTIAL –...
Chapter 5 Pin Assignment RF Connector RGB Connector a. Type: Analog b. Frequency: H: 30-80KHz V: 60-85Hz c. Signal level: 0.7Vp-p d. Impedance: e. Synchronization H/V separate sync: TTL H/V composite sync: Sync on Green TTL Video bandwidth: 135MHz g. Connector type: 15-pin D-Sub, female CONFIDENTIAL –...
Page 31
Pin Assignment Pin Assignment Red video input Green video input Ground Blue video input No connection Ground (SDA) Ground Horizontal sync (Composite sync) Red video ground Vertical sync Green video ground (SCL) Blue video ground HDMI Connector a. Frequency: H: 15.734KHz V: 60Hz H: 31KHz V: 60Hz...
Page 33
(4) RCA-type (Yellow) Composite Video Connector a. Frequency: H: 15.734KHz RCA jack (NTSC) b. Signal level: 1Vp-p V: 60Hz 0.3V below Video (Y+C) c. Impedance: Sync (H+V): d. Connector type: RCA jack S-Video Connector 1, 2 = GND 3 = Luminance (Y) 4 = Chrominance(C) a.
Page 34
b. Signal level: Y: 1Vp-p Pb: 0.350Vp-p Pr: 0.350Vp-p c. Impedance: d. Connector type: RCA jack PC audio in a. Signal level: 1Vrms b. Impedance: c. Connector type: 3.5 mini jack Video audio in a. Signal level: 0.7Vrms b. Impedance: c.
Chapter 8 Theory of Circuit Operation The operation of user interface The following diagram provides a brief overview of the user-interactive components of the firmware. Figure 8-1 User Interface Block Diagram The operation of keypad There are 7 keys to control and select the function. They are “Power, MENU, SET+, SET-, VOL+, VOL-, INPUT”...
Page 47
The operation of video processor FLI8668 The Genesis Microchip FLI8668 offers high integration for advanced, dual-channel applications of Picture-in-Picture (PiP) and Picture-by-Picture (PBP). Two video decoders with 3D comb filters and two channels of DCDi processing provide the highest quality picture for a two-channel application.
Page 48
Clock Generation The FLI8668 features six clock inputs. All additional clocks are internal clocks derived from one or more of these: 1.Crystal Input Clock (TCLK and XTAL). This is the input pair to an internal crystal oscillator and corresponding logic. A 19.6608MHz TV crystal is recommended for best noise immunity with the 3D decoder.
Page 49
Analog Front End (AFE) The FLI8668 chip has a flexible Analog Front End (AFE) with 13 configurable inputs. These 13 inputs can be shared across two configurable paths: V1 and V2. Either of these paths can be used as Main or PIP channels. The 13 configurable inputs can be routed through an analog multiplexer before the Analog to Digital Converters (ADCs) and decoders in V1 and V2.
Page 50
Digital input port The Digital Input Port is a 48-bit data input with flexible configuration to support a wide range of digital sources. It consists of two 24-bit ports (PORTA and PORTB), two sets of control signals (VS, HS, ODD, etc.), and 4 input clocks. Up to 4 different inputs are supported as long as at least 2 of these inputs are 8-bit CCIR656.
Page 51
Digital input port configuration The Digital Input Port offers flexible mapping of the input busses for PORTA and PORTB and allows individual Bus Flipping (MSB to LSB) for each group of 8- or 10-bit inputs. The purpose of this flexible mapping is to ease the circuit board design when interfacing to other devices. Figure 8-5 Input DATA bus assignment CONFIDENTIAL –...
Page 52
LVDS Transmitter Two LVDS channels (A and B) are available on the output of the FLI8668 to transmit data and timing information to the display device. FLI8668 directly drives the standard LVDS interface panels, supporting all standard data formats—single and dual bus, 18- or 24-bit data output. The 24-bit data may be mapped as either standard receiver formats.
Page 53
On Chip Microcontroller (OCM) The FLI8668 on-chip microcontroller (OCM) serves as the system microcontroller. It programs the FLI8668 and manages other devices in the system such as the keypad and non-volatile RAM (NVRAM) using general-purpose input/output (GPIO) pins. The OCM can address a 22-bit address space to utilize 4 MB external ROM.
Page 54
Figure 8-9 Programming The OCM CONFIDENTIAL – DO NOT COPY Page 8-9 File No. SG-0214...
Page 55
master serial protocol Two-Wire The two-wire protocol consists of a serial clock MSTR_SCL and bi-directional serial data line MSTR_SDA. The FLI8668 acts as bus master and drives MSTR_SCL and either the master or slave can drive the MSTR_SDA line (open drain) depending on whether a read or write operation is being performed.
Page 56
ADC capture window In the horizontal direction, the capture window is defined in IP_CLKs (equivalent to a pixel count). In the vertical direction, it is defined in lines. All the parameters beginning with “Source” are programmed FLI8668 registers values. Note that the Input Vertical Total is determined solely by the input and is not a programmable parameter.
Page 57
DCDI by faroudja video processing The FLI8668 dual zoom/shrink scalers use an advanced scaling technique proprietary to Genesis Microchip Inc. They provide simultaneous high-quality scaling of real-time video and graphics images on both channels. An input field/frame is scalable arbitrarily in both the vertical and horizontal dimensions.
Page 58
Display output interface The Display Output Port provides data and control signals that permit the FLI8668 to connect to a variety of display devices using a TTL or LVDS interface. The output interface is configurable for single wide LVDS in 18, 24, or 30-bit RGB pixel format in single or double-wide formats.
Page 59
Display timing programming Display timing signals provide timing information so the Display Port can be connected to an external display device via a TTL or LVDS interface. Based on values programmed in registers, the Display Timing Generator produces the horizontal sync (DHS), vertical sync (DVS), and data enable (DEN) control signals.
Page 60
The operation of HDMI Sil9025 The SiI9025 provides a complete solution for receiving HDMI compliant digital audio and video. Specialized audio and video processing is available within the SiI9025 to easily and cost effectively add HDMI capability to consumer electronics devices such as Digital TVs, plasma displays, LCD TVs and projectors.
Page 61
TMDS digital core The two TMDS cores perform 10-to-8-bit TMDS decoding on the audio and video data received from the three TMDS differential data lines along with a TMDS differential clock. The TMDS cores can sense a stopped clock or stopped video and put the receiver into power-down mode.
Page 62
Data Input and Conversion Mode control logic The mode control logic determines if the decrypted data is video, audio or auxiliary information, and directs it to the appropriate logic block. Video data conversion and video output The SiI9025 can output video in many different formats (see examples in Table 1). The receiver can also process the video data before it is output, as shown in Figure 8-15 Each of the processing blocks may be bypassed by setting the appropriate register bits.
Chapter 10 Trouble shooting PDP display nothing (Component/ AC on/ off default) START Check internal CN5 cable Check fuse open? LED backlight Pin 1 PDP_+5Vsb PDP_+5Vsb Check AC power cord is amber? Panel power fail Check internal CN3 cable Pin 1,2,3 Check fuse open? LED backlight Pin 7,8...
Page 91
PDP display nothing (Component1, 2 without Pb signal) Block1 Check component (Pb signal) Trace component from input to U9 circuit Is YPbPr C165,C171 Check R575, C392, R217 Is there sync? Check R582, C395, R235 signal on ? Use GProbe connect from main to PC Does scaler detect the signal? U9 fail PDP display nothing (Component1, 2 without Pr signal)
Page 92
PDP display nothing (AV1<CVBS1> without screen) Block1 Check internal cable? Check U18 pin 6 (CVBS1) Is composite Connect (CN9) cable is there signal? signal on? Check Connect Board Check Q1 base is there signal? Q1 fail Check collector voltage +5V Check: 1.C3 (signal AC coupled) 2.R1...
Page 93
PDP display nothing (AV1<S-Video1> without screen) Block1 Check internal cable? Check U18 pin 5 (LUMA1) Is composite Connect (CN9) cable is there signal? signal on? Check Connect Board Check Q3 base is there signal? Q3 fail Check collector voltage +5V Check: 1.C12 (signal AC coupled) 2.R19...
Page 94
PDP display nothing (AV2<S-Video2> without screen) Block1 Check internal cable? Check U18 pin 3 (LUMA2) Is composite Connect (CN9) cable is there signal? signal on? Check Connect Board Check Q6 base is there signal? Q6 fail Check collector voltage +5V Check: 1.C24 (signal AC coupled) 2.R25...
Page 95
PDP display nothing (HDMI1, 2, 3, 4) Block1 Is HDMI signal Check input source Check I2C bus Check schottky diode U34, U36, U37, U39 1.D30, D31 Check power 2.D33, D34 pin 6 U34, U36, U37, U39 3.D36, D37 pin 8 pin 5 4.D39, D40 1.D30 or D31 fail...
Page 97
PDP display nothing (TV, DTV) Block1 Check internal CN20 FFC cable connect correctly Is picture on between J1 (ATSC Board) and M/B? screen? If power off, U1-2 high Is TV, DTV U1-2 low U1 fail signal on? Check pin 7,8 +12V_SW ONFIDENTIAL –...
