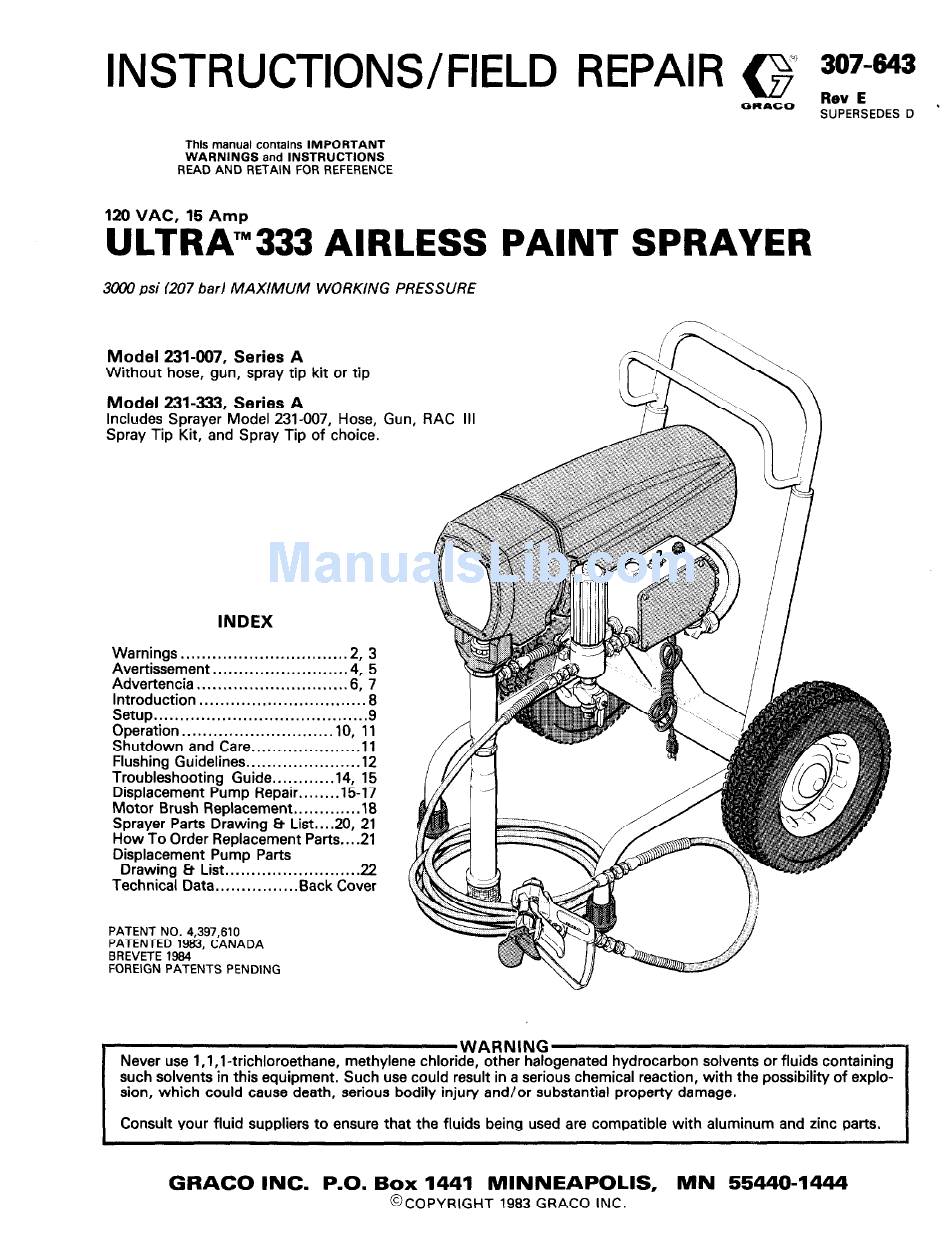

INSTRUCTIONS/FIELD REPAIR e 307-643
ORACO
Rev E
SUPERSEDES D '
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
120 VAC, 15 Amp

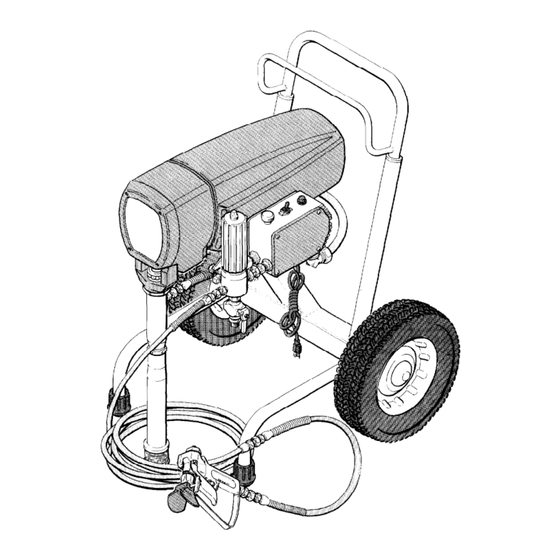

ULTRA'"333 AIRLESS PAINT SPRAYER
3ooo psi (207 bad MAXIMUM WORKING PRESSURE
Model 231-007, Series A
Without hose, gun, spray tip kit
Model 231433, Series A
Includes Soraver Model 231-007.
or tip
Hose.
GI
Spray Tip Kit, and Spray Tip of 'choice.
INDEX
Warnings ................................ 2, 3
Avertissement
......................... .4, 5
Advertencia
............................ .6, 7
Introduction..
.............................
.8
Setup ........................................ .9
Operation
............................. 10,
11
Shutdown and Care.. .................. .11
Flushing Guidelines..
...................
.12
Troubleshooting Guide.. ......... .14, 15
Displacement Pump Repair ...... ..15-17
Motor Brush Replacement ............ .18
Sprayer Parts Drawing 8 List....20, 21
How To Order Replacement Parts ... .21
Displacement Pump Parts
Drawing 8 List ........................ ..22
Technical Data .............. ..Bac k Cover
PATENT NO. 4,397,610
PATENTED 1963, CANADA
BREVETE 1964
FOREIGN PATENTS PENDING
Never use l,l, 1 -trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing
such solvents in this equipment. Such use could result in a serious chemical reaction, with the possibility of explo-
property damage.
Consult your fluid suppliers to ensure that the fluids being used are compatible with aluminum and zinc parts.
GRACO INC. P.O. Box 1441 MINNEAPOLIS, MN 55440-1444
@COPYRIGHT 1983 GRACO INC.
