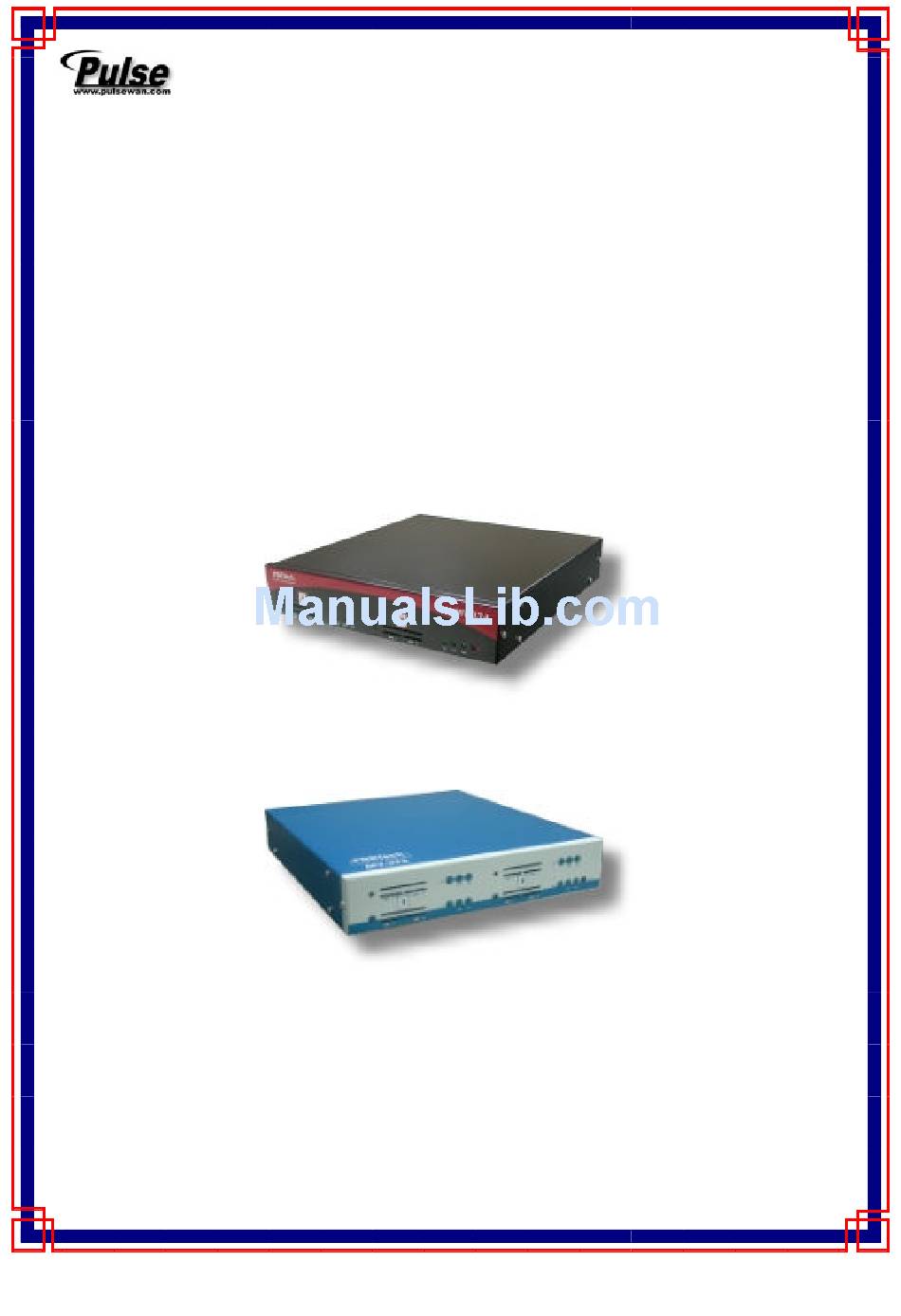

Page 1: User Manual
MV-374 / MV-378 VoIP GSM Gateway User Manual MV-374 MV-378... -
Page 2: Table Of Contents
【Content】 1.Introduction......................1 2.Function description ..................... 1 3.Parts list ......................... 1 4.Dimension : 30x28x4 cm ..................2 5.Chart of the device ....................3 6.Web Page Setting ....................4 7.System Information....................5 8. Route ........................5 8.1 Mobile TO LAN Settings ....................6 8.2 Call Back Service (50 sets) .................. - Page 3 16.Reboot ........................ 52 17.Specification ...................... 53 17.1 Protocols ........................53 17.2 TCP/IP ........................53 17.3 Codec ......................... 53 17.4 Voice Quality ......................53 17.5 GSM (MV-374/MV-378)................... 54 18. Simple Steps ..................... 55 19. Appendix: Setup MV-37x with Asterisk ............56...
-
Page 5: Introduction
1.Introduction MV-374/MV-378 is a 4 / 8 channels VoIP GSM Gateway for call termination (VoIP to GSM ) and origination (GSM to VoIP). It is SIP based and compatible with Asterisk. It can enable to make 4 / 8 calls simultaneously from IP phones to GSM networks and GSM network to IP phone. -
Page 6: Dimension : 30X28X4 Cm
(3.1) (3.1) MV-378 MV-374 (3.2) MV-378 (3.2) MV-374 (3.4) (3.3) (3.5) option 4.Dimension : 30x28x4 cm... -
Page 7: Chart Of The Device
5.Chart of the device 5.5 5.6 5.7 5.1 Antenna：Antenna connector. 5.2 WAN: RJ-45 internet connector，standard RJ-45 socket，connect to HUB. 5.3 DC 12V：Power input. 5.4 SIM Card 5.5 LINK Indicator：Light up when network is connected. 5.6 CH3：an indicator light of VoIP3 5.7 CH4：an indicator light of VoIP4 5.8 PWR (Power LED)：Light up when power is normal. -
Page 8: Web
6.Web Page Setting When the IP setting is done, the operator may setup all the rest parameters via web page. Browse the IP address from Internet Explorer (e.g. http://192.168.0.100)。The following page shows up： Enter the username and password for authentication. (default username=voip, password=1234). -
Page 9: System Information
7.System Information. 7.1 When you login the web page, you can see the demo system current system information like firmware version, company… etc in this page. 7.2 Also you can see the function lists in the left side. You can use mouse to click the function you want to set up. -
Page 10: Mobile To Lan Settings
8.1 Mobile TO LAN Settings The operator may assign 50 sets of routing rule to transfer the call incoming from MOBILE to LAN. The MV-374/MV-378 will transfer to the URL according to the caller ID of the Mobile. *CID： (1) may enter the whole number, e.g. 0911111111 (2) only part of the number (prefix) e.g. - Page 11 (1) Mobile to Lan: 0932*,0911123456 MV-374/MV-378 have register proxy server/Asterisk The proxy server/Asterisk have the route “09” When the caller’s prefix number is 0932,MV-374/MV-378 will connect 0911123456 automaticlly (2) Mobile to Lan: *,* Any caller call the MV-374/MV-378’s sim,MV-374/MV-378 will prompt dial tone.Caller can enter IP or sip extension or phone number.
-
Page 12: Call Back Service (50 Sets)
Application: a. Call MV-374/MV-378 b. MV-374/MV-378 will detect the phone number is in call back list or not c. If yes, MV-374/MV-378 will reject the call, and call it back d. You will receive the call from MV-374/MV-378, and prompt a dial tone... -
Page 13: Mobile To Lan Speed Dial Settings
8.3 Mobile to LAN Speed Dial Settings When you set Mobile to LAN Speed Dial Settings and Mobile to LAN at the same time,MV-374/MV-378 will give priority to Mobile to LAN Speed Dial Settings. *The call will be answered and prompt dial tone again. When the caller may enter the “Num”, system will connect the “URL”... -
Page 14: Lan To Mobile Settings
8.4 LAN to Mobile Settings The operator may assign 50 sets of routing rule to transfer the call incoming from LAN to MOBILE. The MV-374/MV-378 will transfer to the mobile number according to the incoming URL *URL：The IP address of the incoming call. - Page 15 (3)When you dial any destination phone number from lan phone,MV-374/MV-378 will connect this call auto. Example of Application: When you call the ch.1 MV-374/MV-378 gsm number,it will provide dial tone and you enter a destination number. Then ch.2 MV-374/MV-378 will dial this number and connect.
-
Page 16: Dial Peer Status
8.5 Dial Peer Status You can check Dial Peer Status here All the information will be shown on this page. Default: Ch1: 5064 Ch2: 5066 Ch3: 5068 Ch4:5070….… You can change the ports on SIP Settings/Ports settings State status: INIT/0 : GSM module is initialing IDLE/0: GSM module not register IDLE/1: GSM module resisted BUSY: Call is online. -
Page 17: Mobile
9.Mobile 9.1 Mobile Status (1)Choose Mobile 1,2,3 or 4 (MV-378: Mobile 1,2,3,4,5,6,7,8) (2)Network Registration：The telecom carrier which the SIM card been registered. (3)SIM Card ID：SIM card ID. (4)Signal Quality：Signal quality. (5)GSM S/N : IMEI Number (6)Incoming IP：The IP address of the last incoming call from LAN. (7)Incoming IP Name: proxy server name (8)Outgoing IP：The IP address of the last outgoing call to LAN. -
Page 18: Mobile Setting
Only change “mobile” into “on” or “off”,just click “submit”, no 9.2 Mobile Setting need to click “save change” (10) (11) (12) (13) Mobile 1: (6)Rx VoIP Codec (5) Tx DTMF Mobile 2: (1)VoIP Tx Gain Codec (2) VoIP Rx Gain DTMF (1) VoIP Tx Gain: To adjust the volume of LAN side. - Page 19 LAN, please refer 21.How to setup Asterisk to receive Caller ID from MV-374/MV-378 (page 42) MV-374/MV-378 will send the message as follows in the Packet. From: " caller number " <sip:3001@192.168.0.228>;tag=51088abb User/User(Standard): If you need to register to Asterisk and proxy server, please choose this option.
- Page 20 (9)Presentation CLIR : If you need to block the Caller Id for call termination, please choose Suppression (10)Mobile PIN Code: If you need to unlock pin code via MV-374/MV-378,you can click “On” and enter pin code. (11)LAN Answer Mode: Answered : when mobile answer,then connect the call...
-
Page 21: Mobile / Forward Setting
9.3 Mobile / Forward Setting : When the first route are busying, SIP can transfer phone call to another free route. When the device are busying, the phone call can be transfer to another device (external equipments). "Forward Enable" is not motivate on Defualt value. So please, mark "Forward Enable"... - Page 22 Name URL:Port 192.168.0.100:5060 Fwd to Mobile1: 192.168.0.100:5062 Fwd to Mobile2: Fwd to External: The Explanation of Picture: Fwd to Mobile1:192.168.0.100 : 5060, it means when 5062 Port are busying, SJ Phone can transfer the call to 5060 Port (192.168.0.100). Fwd to Mobile2:192.168.0.100 : 5062, it means when 5060 Port are busying, SJ Phone can transfer the call to 5062 Port (192.168.0.100).
-
Page 23: Mobile / Sms Agent
9.4 Mobile / SMS Agent : Read received SMS 2 mode: ASC7(ASCII 7 bit) UCS2(Unicode 16 bit) (1) Rx List: Read received SMS (2) Dest Num: the Receiver’s phone number (3) Message: Please fill the message that want to send to receiver. When you click Rx List, you can view all received SMS as follows. - Page 24 Click the serial no,you can view message as follows. -20-...
-
Page 25: Send Bulk Of Sms Via Microsoft Excel
9.5 Send Bulk of SMS via Microsoft Excel First of all, please open a new Excel file. Step 1 Format Cells Here, we need you to format cells to “Text” first. Please click mouse right key, and choose “Format Cells” Blank A -21-... - Page 26 Blank B Step 2 In the Format Cells, please select “Text” Please do this action for Blank A and B both. -22-...
- Page 27 Step 3 Blank A: is for you to key “phone numbers” Blank B: is for you to key “text” Step 4 Save the file -23-...
- Page 28 Save the type as “Unicode Text” Step 5 Open MVsms_exe - MV-SMS (Configuration Settings) -24-...
- Page 29 Step 6 Please do the configuration as following: MV-378 MV-374 -25-...
- Page 30 MV-372 & MV-370 Step 7 Run MV-SMS program -26-...
- Page 31 Step 8 1. Open File 2. Open the “Excel file” that you just saved -27-...
- Page 32 Step 9 Sending Step 10 Send SMS Complete -28-...
-
Page 33: Use At Command Via Telnet Or Your Program
9.6 use AT Command via Telnet or your program Allows your program or Telnet Send/receive SMS with AT Command available in PCB194A (approximately after April , 2008) Telnet PORT Corresponding port as follows: SLAVE 1 :8023 SLAVE 2 :8123 SLAVE 3 :8223 SLAVE 4 :8323 Please enter account and password... -
Page 34: Network
10.Network In Network you can check the Network status, configure the WLAN Settings , LAN Setting and SNTP settings. 10.1 Network Status: You can check the current Network setting in this page. -30-... - Page 35 10.2 WAN Settings: WAN IP (Master) Default: 192.168.0.100 Slaver1 : Master ip:8080 Slaver2 : Master ip:8180 Slaver3 : Master ip:8280 Slaver4: Master ip:8380 WAN IP Corresponding port 5064 5066 5068 5070 5072 5074 5076 5078 (1) The TCP/IP Configuration item is to setup the WAN port’s network environment.
- Page 36 10.3 SNTP Settings: SNTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again.
-
Page 37: Sip Setting
11.SIP Setting In SIP Setting you can setup the Service Domain,Port Settings,Codec Settings,RTP setting,RPort Setting and Other SettingS. If the VoIP service is provided by ISP,you need to setup the related informations correctly then you can register to SIP Proxy Server correctly. 11.1 Service Domain Setting In Servcie Domain Function you need to input the account and the related informations in this page, please refer to your ISP Provider. - Page 38 (1) Choose Mobile 1 , 2, 3 or 4 (2) Display name: you can input the name you want to display. (3) User name: you need to input the User Name get from your ISP. (4) Register Name: you need to input the Register Name get from your ISP.
-
Page 39: Ports Setting
11.2 Ports Setting In Ports Setting, you can change dialpeer port, SIP port, and RTP port. Internal Dial Peer Port: default = 5060 (*important* this port number can’t coincide with SIP port or RTP port) SIP port: default = ch1:5064 ch2:5066 ch3:5068…etc (*important* this port number can’t coincide with dialpeer port or RTP port) You can only change the port number on Ch1, other Channels will be changed automatically... -
Page 40: Codec Settings
11.3 Codec Settings: You can setup the Codec priority, RTP packet length in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. -36-... -
Page 41: Codec Id Setting
11.4 Codec ID Setting You can setup the Codec ID in this page. -37-... -
Page 42: Dtmf Setting
11.5 DTMF Setting You can setup the DTMF Setting in this page. -38-... -
Page 43: Rport Function
11.6 RPort Function: You can setup the RPort Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. -39-... -
Page 44: Sip Responses
11.7 SIP Responses Dial Peer Configuration Table corresponding IP (please read next page) *** If you have dial peer server, Sip server/Asterisk set GSM route,please set Dial Peer server’s IP** 11.7.1 486(busy here), 503(Service unavailable): When Device is busy, you can select 486 or 505 to response to SIP. 11.7.2 180 Ring on/off: LAN TO MOBILE two stage dialing can be turn off, therefore there will be no the Ring Back Tone, all the phone call will be transferred to prompt... -
Page 45: Dial Peer
E.g SIP Server send call to MV-378 IP: 5060 When the first port is busy, MV-378 will use the second port to dail out…and so forth. External MV-378/MV-374 will be controlled by external dialpeer program. External URL External dialpeer program’s IP address and port number. - Page 46 Edit DialPeer.ini ( External Dial Peer) [Window] 14=5070 Xpos=512 15=5072 The second Ypos=252 16=5074 MV-378 Width=471 Total ip / port [RtpPort] Height=399 1=60000 [Info] 2=60002 Total=16 3=60004 [VoipIP] 4=60006 1=192.168.0.100 The first 5=60008 2=192.168.0.100 MV-378 6=60010 3=192.168.0.100 The first 7=60012 4=192.168.0.100 8=60014 MV-378...
- Page 47 -43-...
- Page 48 Status The first MV-378 doesn’t register dial peer software The 2,3ch of Second MV-378 idle The 1,4-8ch of Second MV-378 turn off -44-...
-
Page 49: Other Settings
11.8 Other Settings Other Settings: you can setup the Hold by RFC and QoS in this page. To change these settings. please following your ISP information. When you finished the setting, please click the Submit button. The QoS setting is to set the voice packets’... -
Page 50: Stun Setting
ISP information. When you finished the setting, please click the Submit button. Public STUN OFF Default is OFF, While MV-374/MV-378’s WAN Setting is in Static IP or Private IP, please select Public STUN OFF. Public STUN ON While MV-374/MV-378 is working under Firewall or behind NAT, It will cause SIP can’t register, or one side... -
Page 51: System Authority
13.System Authority In System Authority you can change your login name and password. -47-... -
Page 52: Update
14.1 Update firmware You can down load new firmware from here: https://www.portech.com.tw/p3-HowtoupdateMV-374.asp Please update firmware by to following steps. 14.1.1 MV-374 Need to update firmware for 3 times (Master, Slave1 and Slave2) Step 1: MASTER: 192.168.0.100 please update this firmware nat_portech_XXX Step 2: Slave 1 : 192.168.0.100:8080 please update this firmware... - Page 53 (1) In New Firmware function you can update new firmware via HTTP in this page. You can upgrade the firmware by the following steps: (2)Select the firmware code type, Risc code. (3)Click the “Browse” button in the right side of the File Location or you can type the correct path and the filename in File Location blank.
- Page 54 14.2 Restore Default Settings In this page: Update/ Default Settings, you could restore the factory default settings to the system. All setting will restore default setting. IP will retain original IP as usual not default IP. Factory all: all setting include ip will restore default setting. -50-...
-
Page 55: Save Change
15.Save Change In Save Change you can save the changes you have done. If you want to use new setting in the VoIP system, You have to click the Save button. After you click the Save button, the system will automatically restart and the new setting will effect. -
Page 56: Reboot
16.Reboot Reboot function you can restart the system. If you want to restart the system, you can just click the Reboor button, then the system will automatically. -52-... -
Page 57: Specification
17.Specification 17.1 Protocols SIP (RFC2543,RFC3261) 17.2 TCP/IP IP/TCP/UDP/RTP/RTCP/ CMP/ARP/RARP/SNTP DHCP/DNS Client IEEE802.1P/Q ToS/DiffServ NAT Traversal STUN uPnP IP Assignment Static IP DHCP PPPoE 17.3 Codec G.711 u-Law G.711 a-Law G.723.1 (5.3k) G.723.1 (6.3k) G.729A G.729A/B 17.4 Voice Quality -53-... -
Page 58: Gsm (Mv-374/Mv-378)
AEC, LEC Packet loss 17.5 GSM (MV-374/MV-378) Quad Band:900/1800/1900/850MHZ 3G/UMTS: for all world and Japan (SoftBank Mobile,Docomo) 3G:EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 1900, 2100 MHz CDMA 2000(800MHZ/1900MHZ) **Please note** Most CDMA operators don't offer Polarity reversing . So VoIP to Mobile, MV-370 will connect soon. -
Page 59: Simple Steps
18. Simple Steps Step 1. Change the Network setting as you need (Network/network setting) Step 2. Register SIP proxy Server or Asterisk or VoipBuster as you need (sip setting/service domain) Step 3. Set Mobile setting –adjust your gain as you need Step 4. -
Page 60: Appendix: Setup Mv-37X With Asterisk
19. Appendix: Setup MV-37x with Asterisk MV-37x Settings Asterisk want to transfer CLID,please choose Tel/Tel (Not Reg) Can register Asterisk or not -56-... - Page 61 Set your Asterisk IP or extension or * As Asterisk GSM Route -57-...
- Page 62 -58-...
- Page 63 Don't forget to Save changes and then reboot -59-...
- Page 64 Asterisk / Trixbox setting Add SIP Trunk: Type your mobile number MV-374: 4 MV-378: 8 -60-...
- Page 65 Type MV-37X’s ip and port -61-...
- Page 66 Set GSM Route that dial out via MV-37X After change , please press “Sumbit changes” and “apply configuration changes” The prefix of route : 09XXXXXXXX Choose SIP Trunk -62-...
- Page 67 15.21 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
- Page 68 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. -64- Pulse, Inc. - www.pulsewan.com Toll Free: 1-888-785-7393 - Int'l: 1-951-694-1173 voip@pulsewan.com...
