Rear Blades
RBT55120
753124
Table of Contents
301-172M
Operator's Manual
!
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2007 Printed

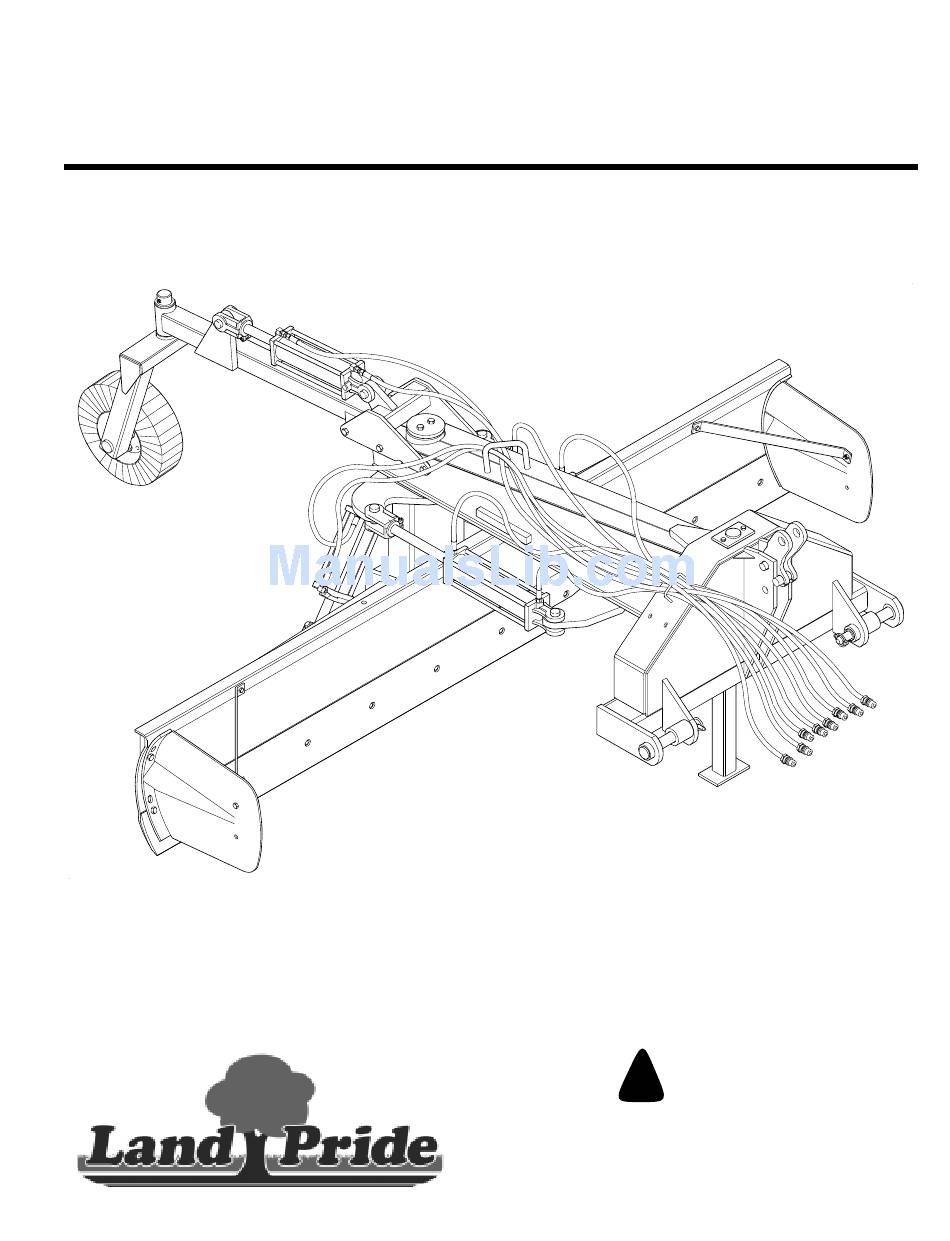

Cover photo may show optional equipment
not supplied with standard unit.
5/21/07
Advertisement
Table of Contents
Related Manuals for Land Pride REAR BLADES RBT55120
Summary of Contents for Land Pride REAR BLADES RBT55120
- Page 1 Rear Blades RBT55120 753124 Table of Contents Cover photo may show optional equipment not supplied with standard unit. 301-172M Operator’s Manual Read the Operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.
-
Page 2: Table Of Contents
Copyright 2007 All rights Reserved Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. -
Page 3: Important Safety Information
Land Pride Important Safety Information Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label”... - Page 4 Allow implement to cool completely. Do not grease or oil implement while it is in operation. Land Pride Use the following maximum speed - tow load weight ratios as a guideline: 20 mph when weight is less than or equal to the weight of tractor.
- Page 5 Land Pride Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Prepare for Emergencies Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy.
-
Page 6: Safety Labels
Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest Land Pride dealer or visit our dealer locator at landpride.com. Some new equipment installed during repair requires... - Page 7 Land Pride Important Safety Information 5/21/07 Table of Contents 17837 17837 17837 818-230C Red Reflector (Both sides) 818-491C Warning Pinch/Shear 838-075C Caution Falling Moldboard RBT55120 Rear Blades 301-172M...
-
Page 8: Introduction
Introduction Introduction Land Pride welcomes you to the growing family of new product owners. This 3-Way Rear Blade has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance and safe operating practices will help you get years of satisfactory use from the machine. -
Page 9: Section 1: Assembly & Set-Up
A Selector Valve Kit may be purchased through your local Land Pride dealer if your tractor does not have the required number of duplex outlets. This kit provides a way to operate 2 cylinders with one outlet, thereby reducing the number of outlets at the tractor by one. -
Page 10: Hitch, Frame & Blade
The moldboard will fall off if 3/4" bolts (#6) and/or 1/2" bolts (#12) are missing Figure 1-1 SHIPPING BLOCK DO NOT REMOVE UNTIL AFTER ALL HYDRAULIC CYLINDERS AND/OR RATCHET JACK AND MANUAL LINKS HAVE BEEN INSTALLED. 12888 Land Pride 5/21/07... -
Page 11: Tractor Hook-Up
Land Pride Section 1: Assembly & Set-Up Tractor Hook-Up Refer to Figure 1-2 & Figure 1-3: DANGER! Tractor hook-up to equipment is dangerous and can result in serious injury or death. Do not allow anyone to stand between the blade and tractor during hook-up operations. Do not operate the hydraulic 3-point lift controls while someone is directly behind the tractor or near the blade. -
Page 12: Section 2: Options, Assembly & Set-Up
5. Secure clevis pins with hair pin cotters (#2). 6. Route hoses through hose bracket located on the right side of the front hitch. Connect hoses to tractor's hydraulic system. 25503 Hydraulic Blade Angling Land Pride Figure 2-2 5/21/07... -
Page 13: Blade Tilting Cylinder
Land Pride Section 2: Options, Assembly & Set-Up Blade Tilting Cylinder Refer to Figure 2-3: IMPORTANT: Do not remove shipping block from the blade tilt housing until all cylinders and/or ratchet jack and manual links have been installed. IMPORTANT: Assemble base end of cylinder to the lug located on the blade pivot as shown. -
Page 14: Manual Offset, Angling And Tilting
Reposition ratchet lock and pump lever back and forth to tilt blade in the opposite direction. 3. Remove shipping block after ratchet jack (#6) has been installed. Blade Offset Blade Tilting Manual Offset, Angling and Tilting Figure 2-4 Land Pride Blade Angling 25508 5/21/07... -
Page 15: Gauge Wheel
Land Pride Section 2: Options, Assembly & Set-Up Gauge Wheel Kit Bundles 301-149A HYDRAULIC SINGLE GAUGE WHEEL 301-150A HYDRAULIC DUAL GAUGE WHEEL 301-283A MANUAL SINGLE GAUGE WHEEL 301-248A MANUAL DUAL GAUGE WHEEL Refer to Figure 2-5: 1. Attach gauge wheel mounting bracket (#11) to Rear Blade frame with two 3/4”-10 x 10 1/2”... -
Page 16: Hydraulic Selector Valve
9. Attach tractor connected hydraulic hoses (#2) to the top elbows. 10. Thread hydraulic adapters (#3) (couplings supplied by customer) onto hydraulic hoses (#2) and tighten. Hydraulic Selector Valve Assembly Figure 2-6 Land Pride 25509 5/21/07... -
Page 17: Skid Shoe
Land Pride Section 2: Options, Assembly & Set-Up Skid Shoe Refer to Figure 2-7: The skid shoes are attached to both ends of the blade to help prevent damage to the surface of the ground by the blade. Kit Bundle... -
Page 18: Section 3: Adjustments
1. Set ratchet lock and pump lever back and forth to raise one end of the blade higher than the other end. 2. Reposition ratchet lock and pump lever back and forth to tilt blade in the opposite direction. Hydraulic Tilt Adjustment Land Pride 5/21/07... -
Page 19: Manual Gauge Wheel Adjustment
Land Pride Section 3: Adjustments Refer to Figure 2-3 on page 11: The blade end can be tilted hydraulically with the tilt cylinder by as much as 30 degrees. 1. If the tilting cylinder is attached to the selector valve, make certain the valve lever is set to operate that cylinder. -
Page 20: Section 4: Operating Procedures
See “Avoid High Pressure Fluids Replace damaged and worn hoses Hazard” on page 3. with genuine Land Pride parts. Transporting CAUTION! When traveling on public roads at night or during the day, use accessory lights and devices for adequate warning to operators of other vehicles. -
Page 21: General Operating Instructions
The RBT55 Series Rear Blades were designed and built by Land Pride for category lI and lII three-point hitch and Quick Hitch attachment for 90 to 180 hp tractors equipped with remote hydraulic outlets and two wheel drive capability. -
Page 22: Section 5: Maintenance & Lubrication
After using your 3-Way Rear Blade for several hours, check all bolts to be sure they are tight. Replace any worn, damaged or illegible safety labels by obtaining new labels from your Land Pride Dealer WARNING! Do not alter the 3-Way Rear Blade. Altering the Rear Blade can adversely affect its performance and reliability causing damage to the blade, tractor and/or bodily injury. -
Page 23: Front Pivot Shaft
Land Pride Section 5: Maintenance & Lubrication 12513 12889 5/21/07 Table of Contents Front Pivot Shaft Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges Moldboard and Blade Grease moldboard and blade when storing for an extended period of time. -
Page 24: Gauge Wheel Front Pivot
Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges Gauge Wheel Caster Tube Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges Gauge Wheel Hub Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges Land Pride Hours Hours Hours 5/21/07... -
Page 25: Section 6: Specifications & Capacities
1753 90-180 15,000 Cat. 2 & 3 (Fits Land Pride Quick Hitch) 15 positions up to 45 degrees clockwise and counter clockwise forward and same for reverse. (Center, 7 clockwise and 7 counter clockwise) Infinite number of positions up to 45 degrees clockwise and counterclockwise froward and same for reverse. -
Page 26: Section 7: Features & Benefits
Bushing provided to go from Cat. 2 to Cat. 3 enables a wider variety of tractors to be used. Quick hitch compatible Compatible with Land Pride Quick hitch for easy attachment and removal. Increases productivity. Angle up to 45 degrees Various angles to move the desired amount of material. -
Page 27: Section 8: Appendix
Land Pride Section 8: Appendix Appendix Section 8: Bolt Head Identification Bolt Size (Inches) Grade 2 Grade 5 in-tpi N · m ft-lb N · m ft-lb N · m ft-lb 1/4" - 20 1/4" - 28 5/16" - 18 5/16"... -
Page 28: Notes
Table of Contents Land Pride Section 8: Appendix Notes RBT55120 Rear Blades 301-172M 5/21/07... -
Page 29: Warranty
This Warranty does not apply to any part or product which in Land Pride’s judgment shall have been misused or damaged by accident or lack of normal... - Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
