Summary of Contents for Sennheiser URBANITE XL

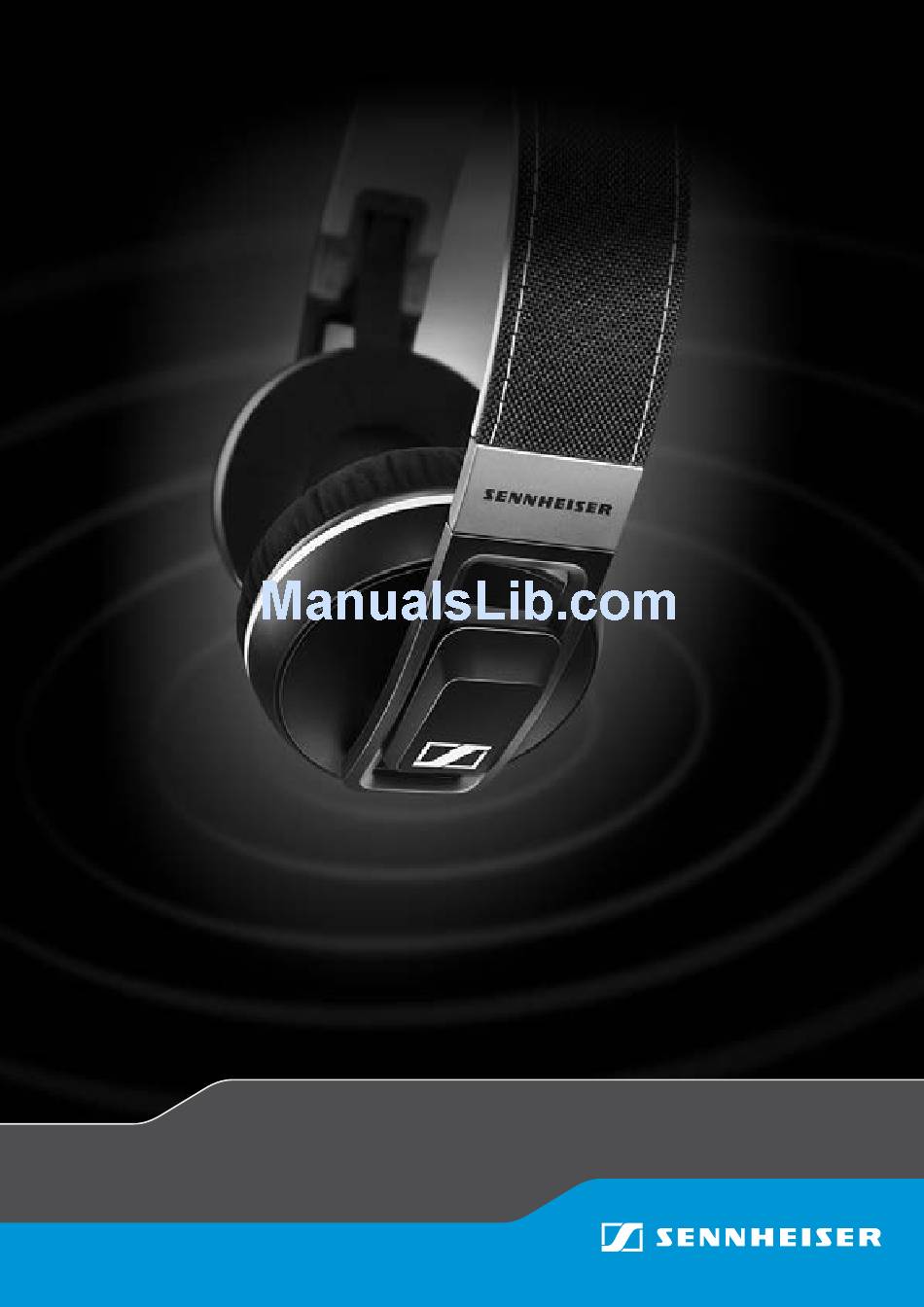

- Page 1 URBANITE XL WIRELESS Bluetooth headset Instruction manual...
-
Page 2: Table Of Contents
Cleaning and maintaining the headset ..............18 Replacing the ear pads .....................18 Replacing/removing the rechargeable battery ...........18 If a problem occurs ....................19 Specifications ......................20 Valuable information – aptX audio coding ............21 Manufacturer Declarations ..................22 URBANITE XL WIRELESS - Bluetooth headset... -
Page 3: Important Safety Instructions
The risk is to be borne by the user. Sennheiser is not liable for damages to USB devices that are not consistent with the USB specifications. Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged rechargeable batteries or exceeding the Bluetooth transmission range. -
Page 4: Introduction
Bluetooth 4.0 and NFC offer supreme ease of use, allowing “at a touch” wireless pairing and multi-connectivity for simultaneous connections to two devices at once. The URBANITE XL WIRELESS is built to last in every sense, with long lasting battery life, and robust yet stylish foldable design that can take on a life on the street. -
Page 5: Package Contents
2.5 mm and 3.5 mm jack plug Carry bag Quick Quick Guide Guide Safety Safety Guide Guide A list of accessories can be found at www.sennheiser.com. For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > “Sales Partner“. URBANITE XL WIRELESS - Bluetooth headset... -
Page 6: Product Overview
Audio socket Touch control panel On/off switch Ear cups NFC antenna with ear pads Overview of the remote control Multi-function button 3.5 mm jack plug 2.5 mm jack plug Volume control Remote control with microphone URBANITE XL WIRELESS - Bluetooth headset... -
Page 7: Overview Of Pictograms
The headset is in idle mode and not yet connected to a Bluetooth device. The headset is successfully connected to a Bluetooth device. The headset switches off. The headset is in pairing mode. Meaning during calls Meaning Incoming call Incoming call + rechargeable battery is weak URBANITE XL WIRELESS - Bluetooth headset... -
Page 8: Overview Of Buttons
These functions are not supported by all connected Bluetooth devices. On/off switch Pairs the headset with a Bluetooth device (see page 9) Switches the headset on (see page 12) Switches the headset off (see page 12) URBANITE XL WIRELESS - Bluetooth headset... -
Page 9: Getting Started
When the battery is almost empty, the LED flashes red and Use the audio cable to continue to listen to music or the voice prompt “Recharge headset“ is announced. When make and receive phone calls. the battery is flat, the headset switches off automatically. URBANITE XL WIRELESS - Bluetooth headset... -
Page 10: Pairing The Headset
If you want to re-establish a connection following profiles: HFP (Hands-Free Profile), HSP (Headset with this Bluetooth device, you have to pair the headset Profile), AVRCP (Audio Video Remote Control Profile) and again. A2DP (Advanced Audio Distribution Profile). URBANITE XL WIRELESS - Bluetooth headset... -
Page 11: Pairing Using Near Field Communication (Nfc)
Hold the Bluetooth device close to the left ear cup. Once the headset is paired with the Bluetooth device, the LED flashes 3 times blue and then goes off. The voice prompt “Connected“ is announced. 10 | URBANITE XL WIRELESS - Bluetooth headset... - Page 12 Keyword: 0000 ”Connected“ Select “Sennheiser Urbanite” to pair the headset with Once the headset is paired with the Bluetooth device, the Bluetooth device. If necessary, enter the default PIN the LED flashes 3 times blue and then goes off. The voice code “0000”.
-
Page 13: Using The Headset
The headset switches off. If the headset has not been used for more than 60 minutes and no devices are connected, the headset automatically switches off to conserve battery power. 12 | URBANITE XL WIRELESS - Bluetooth headset... -
Page 14: Using The Audio Cable
– downwards to reduce the volume. – to increase the volume or – – to reduce the volume. When the minimum or maximum volume is reached, you hear a beep in the headset (Bluetooth connection only). URBANITE XL WIRELESS - Bluetooth headset | 13... -
Page 15: Listening To Music Using The Headset
If your mobile phone does not automatically transfer the call to the headset: Touch the control panel on the headset or press the corresponding button on your mobile phone (see the in- struction manual of your mobile phone). PQRS 14 | URBANITE XL WIRELESS - Bluetooth headset... - Page 16 Once a connection is established, you can transfer the call to/from the headset. Touch the control panel on the headset: Transfers a call from the headset to the mobile phone Transfers a call from the mobile phone to the headset URBANITE XL WIRELESS - Bluetooth headset | 15...
-
Page 17: Managing Two Calls
(phone dependent) Redialing The redialing function is only supported by Bluetooth devices with HFP (Hands-Free Profile). Touch the control panel: Redials the last number ”Redialing“ Cancels redialing ”Redial cancelled“ 16 | URBANITE XL WIRELESS - Bluetooth headset... -
Page 18: Storing And Transporting The Headset
5 minutes, the connection is automatically re-established Once the connection is successfully re-established, the and the voice prompt “Connected” is announced in the voice prompt “Connected” is announced in the headset. headset. URBANITE XL WIRELESS - Bluetooth headset | 17... -
Page 19: Cleaning And Maintaining The Headset
Contact your Sennheiser service center if the rechargeable batteries need to be replaced or removed. Outside the war- ranty period, the rechargeable batteries may be replaced or removed by any qualified service center in an appropriate manner. -
Page 20: Troubleshooting
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com. URBANITE XL WIRELESS - Bluetooth headset... -
Page 21: Specifications
4.0/class 1 Range up to 25 m (device-dependent) Transmission frequency 2402 MHz to 2480 MHz Profiles HSP (v1.2), HFP (v1.6), A2DP (v1.2), AVRCP (v1.4) Output power 9 dBm/7.90 mW Typical sensitivity –89 dBm 20 | URBANITE XL WIRELESS - Bluetooth headset... -
Page 22: Valuable Information - Aptx Audio Coding
Northern Ireland. The technology was first brought to market for radio automation applications to store CD quality audio on computer hard drives for direct playout during radio shows, hence automating the process of the disc jockey. URBANITE XL WIRELESS - Bluetooth headset | 21... -
Page 23: Manufacturer Declarations
Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Blue- tooth SIG, Inc. and any use of such marks by Sennheiser Communications A/S is under license. iPhone® and iPod® are registered trademarks of Apple Inc, registered in the U.S. - Page 24 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not ex- pressly approved by Sennheiser electronic Corp. may void FCC authorization to operate this equipment. This device complies with Part 15 of the FCC Rules. Opera-...
- Page 25 Manufacturer Declarations Sennheiser Communications A/S Industriparken 27, DK-2750, Denmark www.sennheiser.com Publ. 12/14, A01 24 | URBANITE XL WIRELESS - Bluetooth headset...
