Summary of Contents for Datalogic Gryphon GFS41XX

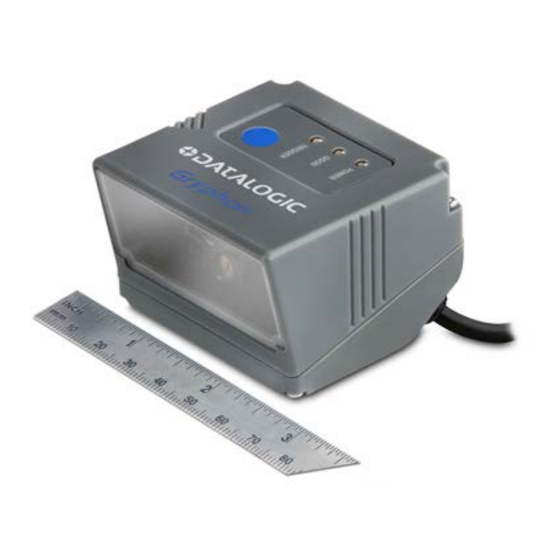

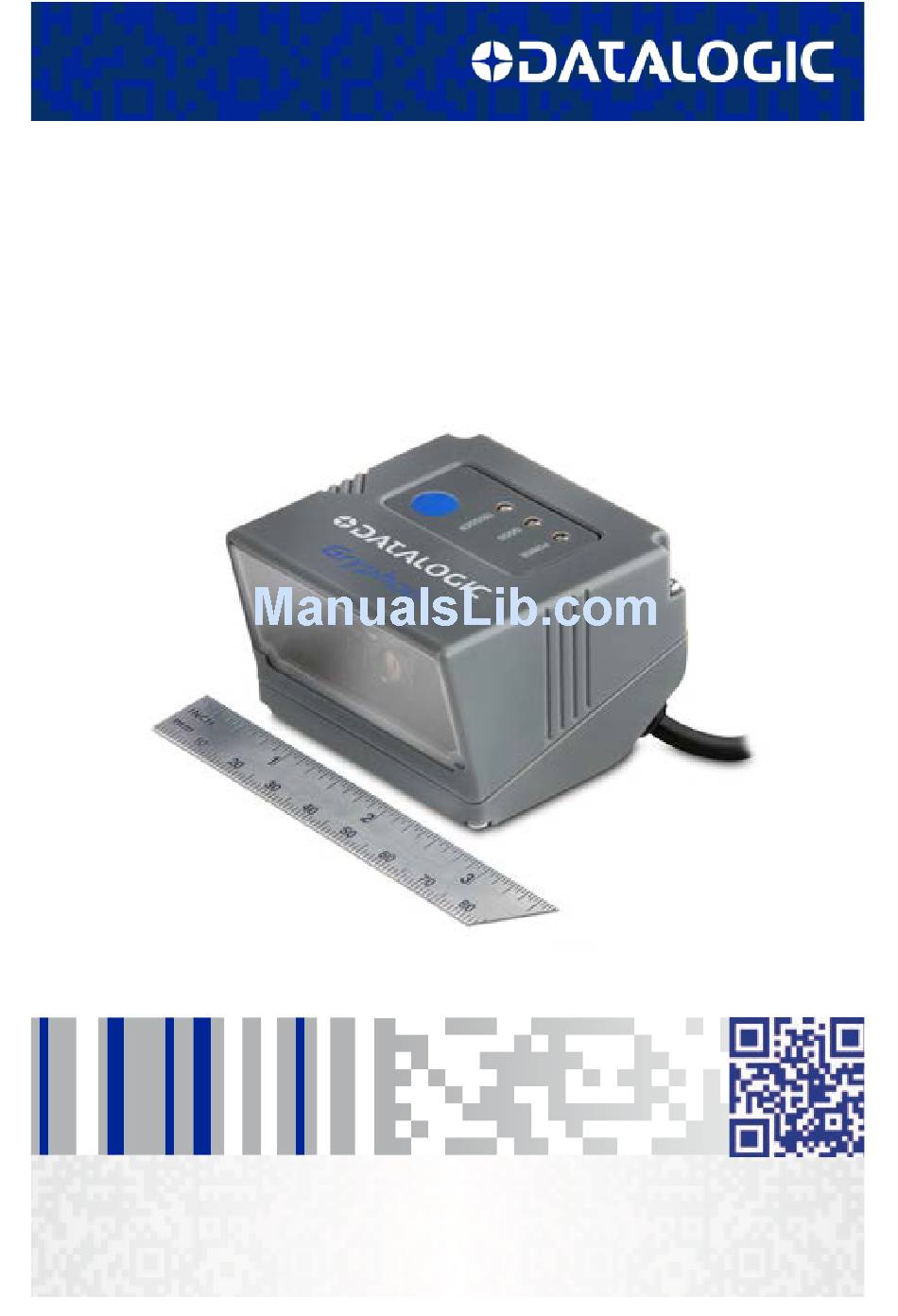

- Page 1 Gryphon™ GFS41XX Fixed Mount Linear Imager Bar Code Reader Quick Reference Guide...
- Page 2 Disclaimer Datalogic has taken reasonable measures to provide information in this man- ual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.
-
Page 3: Table Of Contents
Button and LED Status .................... 17 Ergonomic Recommendations ..................18 Regulatory Information ..................... 19 Reader Labeling ........................19 China RoHS Statement ................20 WEEE Statement ....................... 21 Datalogic ADC Limited Factory Warranty ............22 Ergonomic Recommendations ..................24 Services and Support ......................25... - Page 4 NOTES...
- Page 5 Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
-
Page 6: Limited Warranty
Software is protected by intellectual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of Datalogic's or its third party licensors' copyrights, patents, trademarks, service marks, trade secrets, or other intellectual prop- erty rights and End User shall have no right to commence any legal actions to obtain such rights. -
Page 7: Limitation Of Liability
2) Datalogic controls the defense or settlement of the claim, and 3) End User cooper- ates fully with Datalogic in such defense or settlement. All notices of a claim should be sent to Datalogic ADC, Inc., Legal Department, 959 Terry Street, Eugene, OR 97402. - Page 8 This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.
- Page 9 Unlike currently available products, the GFS4XXX uses the latest and fastest imaging technology and offers Datalogic’s Green Spot for targeting and good read feedback. The scanning technology is essentially the same as the Gryphon I 4100 family of linear imagers, with some adjustments made for read range and improved motion tolerance.
-
Page 10: Setting Up The Reader
To simulate a Keyboard, scan the bar code below: Interface Selection: USB-KBD (GFS4170 model only ) To simulate an RS-232 Standard Interface scan the bar code below: Interface Selection: USB-COM (GFS4170 Model only) Download the correct USB COM driver from: http://www.datalogic.com. IMPORTANT Gryphon™ GFS4XXX... - Page 11 Setting Up the Reader Select USB Keyboard with alternate key encoding: USB Alternate Keyboard Select USB Keyboard for Apple computers: USB-KBD-APPLE Select RS-232 Wincor-Nixdorf: RS-232 Wincor-Nixdorf Quick Reference Guide...
-
Page 12: Mounting Bracket
Setting Up the Reader Mounting Bracket The GFS4XXX can be mounted to a stationary surface using a bracket as shown below. Just attach to the bottom of the reader using screws, as shown in the next two figures. Figure 1. Mounting the bracket Gryphon™... - Page 13 Setting Up the Reader Figure 2. Bracket Attached Quick Reference Guide...
-
Page 14: Programming
Programming Programming For your convenience, this guide includes the programming bar codes re- quired to configure the reader. If you aren't sure what programming options are in your reader, or you've changed some options and want the factory settings restored, scan the bar code below: Restore Default Settings Operating Modes... -
Page 15: Exposure Modes
Programming Operating Modes (continued) Operating Mode = On Line Operating Mode = Automatic Operating Mode = Automatic (Object Sense) Exposure Modes Continuous Strobed Quick Reference Guide... -
Page 16: Technical Features
Technical Features Technical Features Item Description Physical Characteristics Color Grey Height 1.54" / 39mm Dimensions Length 2.24" / 57mm Width 2.28" / 58 mm USB model - Approx. 5.0 ounces/140 g Weight (without brackets) RS-232 model - approx. 6.0 ounces/170 g Electrical Characteristics Input Voltage 5 VDC ±... - Page 17 Technical Features Item Description Performance Characteristics Scan rate 320 scans/s (max) Light Source Dual LEDs (Red Light, =620 nm) Roll Angle Tolerance ± 35° Pitch Angle Tolerance ± 65° (Avoid zero angle, ± 6°) Skew Angle Tolerance ± 65° 5 mil - 2" to 6.3" (5cm to 16cm) 8 mil - 1.2"...
- Page 18 Technical Features Item Description User Environment Operative Temperature 32° to 122° F (0° to 50° C) Storage Temperature -13° to 158° F (-25° to 70° C) Humidity Operating: 5% to 90% relative humidity, non condensing Drop specifications 5 drops from 30 inches (0.76 mt.) to concrete Ambient Light immunity Up to 100,000 Lux Contaminants...
-
Page 19: Rs-232 Electrical Connections
Technical Features RS-232 Electrical Connections 9-pin connector Trigger Trigger signal input (see on next page) Figure 4 Figure 5 Transmit Data Receive Data Not connected Ground +5Vdc Clear To Send Request To Send Output signal (see Figure 3 Default configuration RS-232: 9600, 8, N, 1, no handshaking, ACK/NAK disabled. - Page 20 Technical Features Figure 4. Using GFS4150-9 Power GFS4150-9 EXT TRIGGER TRIGGER Figure 5. Using External Power Supply GFS4150-9 EXT TRIGGER Vext 30Vdc TRIGGER Gryphon™ GFS4XXX...
-
Page 21: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications Button and LED Status The top of the product has a button and three indicator LEDs: ON = Power ON POWER OFF = Power OFF or standby (only (yellow LED) USB model) ON = Good Read GOOD Blinks = USB enumeration or inter-... -
Page 22: Ergonomic Recommendations
Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. CAUTION •... -
Page 23: Regulatory Information
Any changes or modifications to equipment not expressly approved by Datalogic could void the user's authority to operate the equipment. Reader Labeling Sample labels are shown for illustrative purposes only. Please view the la- bels on your product for actual details, as they may vary. -
Page 24: China Rohs Statement
Reader Labeling China RoHS Statement Gryphon™ GFS4XXX... -
Page 25: Weee Statement
(WEEE), visite la página Web www.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web www.datalogic.com. Chinese 有关处理废弃电气电子设备 (WEEE) 的信息， 请参考 Datalogic 公 /。... -
Page 26: Datalogic Adc Limited Factory Warranty
Customer will allow Datalogic to scrap all parts removed from the repaired product. The warranty period shall extend from the date of shipment from Datalogic for the duration published by Datalogic for the prod- uct at the time of purchase (Warranty period). Datalogic warrants repaired hardware... -
Page 27: Warranty Exclusions
Reader Labeling the country in which the Datalogic service center is located. Customer shall be re- sponsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. Failure to follow the applicable RMA pol- icy, may result in a processing fee. -
Page 28: Ergonomic Recommendations
Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalog- ic shall assume risk of loss or damage for product in Datalogic’s possession. In the ab- sence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connec- tion with the return shipment. -
Page 29: Services And Support
Services and Support Services and Support Datalogic provides several services as well as technical support through its website. www.datalogic.com Log on to and click on the links indicated for further infor- mation. Products Search through the links to arrive at your product page where you can download... - Page 30 Services and Support NOTES Gryphon™ GFS4XXX...
-
Page 31: Declaration Of Conformity
Lippo di Calderara di Reno (BO) 40012 Italy Pag.: 1 di 1 La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di Datalogic ADC Srl per: This Declaration of Conformity is issued under the sole responsibility of Datalogic ADC Srl for: Cette déclaration de conformité... - Page 32 ©2010-2014 Datalogic ADC, Inc. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
