Bionaire BW2300 Instruction Leaflet

T R O U B L E S H O O T I N G
TROUBLESHOOTING GUIDE
Issue Potential Cause Potential Solution
✔ Adjust the airflow direction switches to intake, exhaust, or
• The air is not moving ☛ Airflow direction switches
air exchange.
in the direction that I are not in the correct
want it to. position.
• Fan will not operate ☛ Fan is not plugged in. ✔ Plug the cord into a 120V AC outlet.
even though I am
☛ The fan is plugged in and is ✔ Turn the fan on using the speed button. Refer to
turning on the fan with
set to the Off position. Manual or Automatic Operating Instructions.
the speed control
☛ Preset temperature on the ✔ Set the temperature on the fan so that it is lower
button.
than the room temperature. Refer to Automatic
fan is set too high.
Operating Instructions.
• Fan is not secure in my ☛ Fan may not be set in the ✔ Ensure that the bottom edge of the window sash fits
into the groove along the top of the fan. Close the
window and moves window properly.
sash completely on top of the window so it is
during operation.
secure. Refer to the Window Fan Installation section.
✔ Window fans can be installed either vertically or
• My window fan will ☛ Fan may need to be
not fit horizontally in installed vertically. horizontally. Please note that when installing vertically,
the window. the internal adjustable extender panel must be located
on the top of the window fan and never on the
bottom. Refer to the Window Fan Installation section.
• My window fan has ☛ Long term or continued ✔ First unplug the fan from the outlet. The outside of
become dirty. use. This is normal when the fan can be wiped down with a damp cloth. Use a
circulating unfiltered air. vacuum cleaner with a dust brush attachment. Refer
to the Cleaning/Maintenance Instructions section.
If you have any questions regarding your product or would like to learn more about other Bionaire
please contact our Consumer Service Department at 1-800-253-2764 or visit our website at www.bionaire.com.
BW2300_13EM1.indd 1
WA R R A N T Y I N F O R M AT I O N
5 YEAR LIMITED WARRANTY
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of five years from
the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair
or replace this product or any component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT
attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for
a particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
® state to state or jurisdiction to jurisdiction.
products,
How to Obtain Warranty Service
In the U.S.A.
If you have any questions regarding this warranty or would like to obtain warranty service, please call
1-800-253-2764 and a convenient service center address will be provided to you.
In Canada
If you have any questions regarding this warranty or would like to obtain warranty service, please call
1-800-253-2764 and a convenient service center address will be provided to you.
WA R R A N T Y I N F O R M AT I O N
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located
in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any
other problem or claim in connection with this product, please write our Consumer Service Department. PLEASE DO
NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
© 2013 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved.
Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
153607/9100010013083 BW2300_13EM1
GCDS-BIO28341-JC
pure indoor living

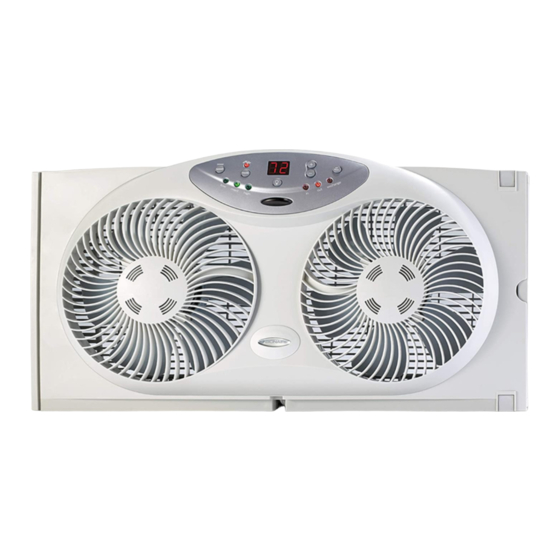

REMOTE CONTROL TWIN
WINDOW FAN
MODEL: BW2300
Instruction Leaflet
Read instructions before operating. Retain for future reference.
Questions? Comments? Call 1-800-253-2764 in North America
Printed in China
or visit our website at www.bionaire.com.
12/21/12 10:15 AM
