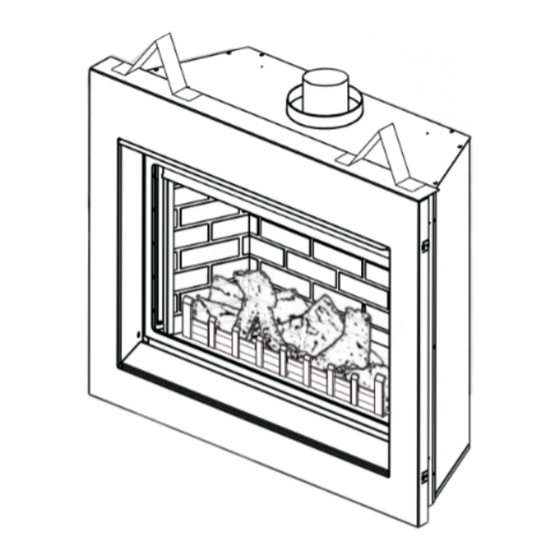

Napoleon BGD36CFNTR Installation And Operating Instructions Manual
Hide thumbs
Also See for BGD36CFNTR:
- Installation and operating instructions manual (136 pages) ,
- Installation and operation manual (120 pages) ,
- Installation and operating instructions manual (44 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
BGD36CFNTR &
BGD36CFGN
NATURAL GAS MODEL
BGD36CFPTR &
BGD36CFGP
PROPANE GAS MODEL
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1.2
W415-0785 / A / 07.23.09
1
Advertisement
Table of Contents
Related Manuals for Napoleon BGD36CFNTR
Summary of Contents for Napoleon BGD36CFNTR
-
Page 1: Safety Information
- Installation and service must be performed by a qualifi ed installer, service agency or the supplier. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca $10.00... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION WARRANTY DIMENSIONS INSTALLATION OVERVIEW GENERAL INSTRUCTIONS GENERAL INFORMATION CARE OF GLASS VENTING VENTING LENGTHS AND COMPONENTS TYPICAL VENT INSTALLATIONS SPECIAL VENT INSTALLATIONS 2.3.1 PERISCOPE TERMINATION 2.3.2 CORNER TERMINATION MINIMUM AIR TERMINAL LOCATION CLEARANCES VENT APPLICATION FLOW CHART DEFINITIONS ELBOW VENT LENGTH VALUES TOP EXIT HORIZONTAL TERMINATION... -
Page 3: Introduction
1.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •... -
Page 4: Warranty
NAPOLEON® warrants its stainless steel burners against defects in workmanship and material for life, subject to the following conditions: During the fi rst 10 years NAPOLEON® will replace or repair the defective parts at our option free of charge. From 10 years to life, NAPOLEON®... -
Page 5: Dimensions
DIMENSIONS " " 27" 33" " 4" DIA. 7" DIA. 34" " INLET 17" 15" 10" " 3" RATING PLATE 40" ELECTRICAL INLET " LOCATION LEFT SIDE INSTALLATION OVERVIEW See the sections “MINIMUM ENCLOSURE CLEARANCES” for drywall (or other combustible material) See the section “MINIMUM MANTEL AND ENCLOSURE See the section... -
Page 6: General Instructions
GENERAL INSTRUCTIONS WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPENED OR REMOVED. PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”... -
Page 7: General Information
If the optional fan or blower is installed, the junction box must be electrically connected and grounded in accor- dance with local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70 National Electrical Code in the United States. All sections with BGD36CF(G) are common to both the BGD36CF and the BGD36CFG. -
Page 8: Venting
2.0 VENTING WARNING RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE. THIS APPLIANCE USES A 4” EXHAUST / 7” AIR INTAKE VENT PIPE SYSTEM. Refer to the section applicable to your installation. For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the minimum vertical vent length can create diffi... -
Page 9: Typical Vent Installations
REQUIRED RISE ON HORIZONTAL VENTING BGD36CF(G) REAR VENT RIGID VENTING 0" / FT FLEXIBLE VENTING 0" / FT TOP VENT RIGID VENTING 0" / FT FLEXIBLE VENTING 0" / FT CORNER VENT RIGID VENTING 0" FLEXIBLE VENTING 6" For optimum performance, it is recommended that all horizontal runs have a 1" rise per foot. TYPICAL VENT INSTALLATIONS 16"... - Page 10 16" MINIMUM 40 FT MAXIMUM 3 FT MINIMUM 24" MAXIMUM 10" MINIMUM 42 3/8" MINIMUM PLUS RISE* 34" 34" TOP VENT * See "VENTING" section. W415-0785 / A / 07.23.09...
-
Page 11: Special Vent Installations
SPECIAL VENT INSTALLATIONS 2.3.1 PERISCOPE TERMINATION Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when fi nal grading is completed, the bottom air slot is located a minimum 12” above grade. The maximum allowable vent length is 10’. -
Page 12: Minimum Air Terminal Location Clearances
MINIMUM AIR TERMINAL LOCATION CLEARANCES INSTALLATIONS CANADA U.S.A. 12” 12” Clearance above grade, veranda porch, deck or balcony. 12” 9” Clearance to windows or doors that open. 12” * 12” * Clearance to permanently closed windows. Vertical clearance to ventilated soffi ts located above the terminal within a horizontal distance of 2’ from 18”... -
Page 13: Vent Application Flow Chart
VENT APPLICATION FLOW CHART TOP EXIT Horizontal Termination Vertical Termination Vertical rise is equal Vertical rise is equal Vertical rise is less Vertical rise is less to or greater than to or greater than than horizontal run than horizontal run the horizontal run the horizontal run Horizontal run +... -
Page 14: Elbow Vent Length Values
ELBOW VENT LENGTH VALUES FEET INCHES 1° 0.03 15° 0.45 30° 11.0 45° 1.35 16.0 90°* 32.0 * The fi rst 90° offset has a zero value and is shown in the formula as - 90° 15.1 TOP EXIT HORIZONTAL TERMINATION ) <... - Page 15 ) > (V Simple venting configuration See graph to determine the required vertical rise V for the required horizontal run H (only one 90° elbow) 147” REQUIRED VERTICAL RISE IN INCHES V 57” 10” 2’ 12.5’ 19.5’ HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V For vent configurations requiring more than one 90°...
-
Page 16: Rear Exit Horizontal Termination
REAR EXIT HORIZONTAL TERMINATION ) < (V Simple venting configuration See graph to determine the required vertical rise V for the required (only two 90° elbows) horizontal run H 38.3 REQUIRED VERTICAL RISE IN FEET V 12.5 17.5 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H 90°... - Page 17 ) > (V Simple venting configuration See graph to determine the required vertical rise V for the (only two 90° elbows) required horizontal run H REQUIRED VERTICAL RISE IN INCHES V 12.5 17.5 19.25 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H...
-
Page 18: Top Or Rear Exit Vertical Termination
2.10 TOP OR REAR EXIT VERTICAL TERMINATION ) < (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H... - Page 19 ) > (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H For vent configurations requiring more than two 90°...
- Page 20 Example 8: = 1.5 FT = 5 FT = 1.5 + 1 + 5 = 6.5 FT = 1 FT = 1 FT = 10.75 FT = 1 + 1 + 10.75 = 12.75 FT = .03 (four 90° elbows + one 45° elbow - 90°) 90°...
-
Page 21: Pre-Installation Preparation
3.0 PRE-INSTALLATION PREPARATION For optimum performance, it is recommended that all horizontal runs have a 1" rise per foot. REMOVING THE VALVE ACCESS DOOR 3.1.1 The valve access door rotates on the pins attached to the side frame. Lift the valve access door off the pins to operate the main glass door. -
Page 22: Installation
4.0 INSTALLATION WARNING FOLLOW THE VENTING INSTRUCTIONS EXACTLY. ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST BE SEALED USING MILL PAC. -
Page 23: Horizontal Installation
HORIZONTAL INSTALLATION WARNING THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP. TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE RETURN FLANGE OF THE MOUNTING PLATE. This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal VENT location, cut and frame a hole in the exterior wall as... -
Page 24: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS WARNING DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS. KEEP IT PULLED TIGHT. SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER FLEX PIPE. -
Page 25: Vertical Air Terminal Installation
4.4.2 VERTICAL AIR TERMINAL INSTALLATION WARNING IF USING CLAMPS TO CONNECT VENT COMPONENTS, 3 SCREWS MUST ALSO BE USED TO EN- SURE THE CONNECTION CANNOT SLIP OFF. DO NOT CLAMP THE FLEXIBLE VENT PIPE. MAINTAIN A MINIMUM 2" SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR. RISK OF FIRE, EXPLOSION OR ASPHYXIATION. -
Page 26: Appliance Vent Connection
4.4.3 APPLIANCE VENT CONNECTION Install the inner fl ex pipe to the appliance. Secure with 3 screws #8 X 1/2” and fl at washers. Seal the joint and screw holes using the high SELF temperature sealant W573-0007 (not supplied). DRILLING SCREWS 2”... -
Page 27: Extended Horizontal And Corner Terminal Installation
4.5.2 EXTENDED HORIZONTAL AND CORNER TERMINAL INSTALLATION A 45° corner installation can have 0” rise between the appliance combustion AIR TERMINAL air collar and the air terminal. In this case, vent lengths must be kept to a TELESCOPIC SLEEVE maximum of 24”. For longer vent lengths, a minimum vertical rise of 24” is required. -
Page 28: Vertical Air Terminal Installation
4.5.3 VERTICAL AIR TERMINAL INSTALLATION NOTE: Before attaching elbows to the collars on the back of the appliance, 1 1/2” will need to be trimmed off the 4” collar. REAR VENT APPLICATION: Attach 4” and 7” elbows to the appliance. Secure with 3 screws and seal the joints and screw heads using high temperature sealant. -
Page 29: Mobile Home Installation
MOBILE HOME INSTALLATION This appliance is certifi ed to be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. -
Page 30: Optional Wall Switch Excluding Bgd36Cfg
Installation and servicing to be done by a qualifi ed installer. Do not use open fl ame. • 4.7.1 Move the appliance into position and secure. 4.7.2 • If equipped with a fl ex connector the appliance is designed to accept a 1/2” gas supply. Without the connector it is designed to accept a 3/8”... -
Page 31: Framing
5.0 FRAMING WARNING IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI- ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY OTHER OUTSIDE WALL OF A HOME. -
Page 32: Installing Stand-Offs
INSTALLING STAND-OFFS These appliances are supplied with two standoffs. For conve- nience, the standoffs have been shipped fl at and located on the top at the front. Before framing ensure the standoffs are bent up and screwed into place ensuring a height of 4.5". NOTE: The information and dimensions in this section repre- sent the minimum clearances to combustible material. -
Page 33: Minimum Mantel Clearances
WARNING MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD COULD RESULT. WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COMBINATION THEREOF ARE SUITABLE. -
Page 34: Minimum Enclosure Clearances
MINIMUM ENCLOSURE CLEARANCES WARNING RISK OF FIRE! THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS SUCH AS BRICK, MARBLE, GRANITE, ETC., AS LONG AS THE FINISHING MATERIAL DOES NOT GO BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. AS AN ALTERNATIVE, YOU CAN FINISH THE APPLIANCE WITH DRYWALL, SEE DIAGRAM BELOW FOR DETAILS. -
Page 35: Clean Face Surround Minimum Enclosure Clearances
CLEAN FACE SURROUND MINIMUM ENCLOSURE CLEARANCES WARNING NON-COMBUSTIBLE FINISHING MATERIALS REQUIRED SUCH AS BRICK AND TILE CAN BE EX- TENDED OVER THE BLACK FACE OF THE APPLIANCE. USE ONLY NON-COMBUSTIBLE MATERIAL SUCH AS CEMENT BOARD, CERAMIC TILE, MARBLE, ETC. WHEN FINISHING TO THE APPLIANCE. DO NOT USE WOOD OR DRYWALL. STEEL HEADER 6 1/2”... -
Page 36: Door Installation & Removal
DOOR INSTALLATION & REMOVAL WARNING GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED. FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR SERVICE. -
Page 37: Optional Clean Face Surround Installation
OPTIONAL CLEAN FACE SURROUND INSTALLATION CONCAVE WAVE CONVEX S36CCN (BROWN) S36WN (BROWN) S36CVN (BROWN) S36CCP (PEWTER) S36WP (PEWTER) S36CVP (PEWTER) Installation requires a minimum of 6 1/2" non-combustible facing material at the top of the appliance. Refer to illustrations above (depending on your installation) to ensure your appliance has been installed with the proper requirements for this kit. -
Page 38: Hearth Installation
5.8.2 HEARTH INSTALLATION When installing to a hearth the appliance riser must create a minimum clearance of 3 3/8" PLUS the height of the hearth from the fi nished fl oor to the bottom of the appliance. COMBUSTIBLE STEEL STEEL MATERIAL HEADER HEADER... -
Page 39: Clean Face Trim Kit Installation
5.8.4 CLEAN FACE TRIM KIT INSTALLATION The “wave” clean face surround kit is shown in all illustrations. NOTE: The optional cleanface trim kit must be installed before proceeding. From the rear side of the clean face front, insert the weld studs on the top window plate assembly upward through the holes on the underside of the top section of the clean face front. -
Page 40: Bgd36Cf Finishing
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE. PHAZER logs and glowing embers exclusive to Napoleon® Appliances, provide a unique and realistic glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. -
Page 41: Glowing Embers
fl ame. Use only certifi ed "glowing embers" and PHAZER logs available from your Napoleon® dealer. CHARCOAL EMBERS Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner. -
Page 42: Bgd36Cfg Finishing
7.0 BGD36CFG FINISHING GLASS BURNER INSTALLATION WARNING CLEAN THE GLASS EMBERS PRIOR TO INSTALLATION. BEFORE APPLYING THE CLEANED GLASS, ENSURE THAT IT IS DRY. DO NOT CHANGE OR SUBSTITUTE THE GLASS EMBER MATERIAL PROVIDED WITH THIS APPLIANCE. IF REPLACING, USE ONLY THE REPLACEMENT GLASS EMBERS AVAILABLE FROM YOUR AUTHORIZED DEALER / DISTRIBUTOR. -
Page 43: Lens Assembly Replacement
LENS ASSEMBLY REPLACEMENT WARNING THE FRONT OF THE APPLIANCE BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL COMPLETELY BEFORE CONDUCTING SERVICE. 7.3.1 Remove the glass and glass ember tray. 7.3.2 Remove the burner base from the fi rebox. 7.3.3 Compress the retainer fi... -
Page 44: Optional Blower Installation
8.0 OPTIONAL BLOWER INSTALLATION WARNING RISK OF FIRE AND ELECTRICAL SHOCK. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE. USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION. -
Page 45: Wiring Diagram
9.0 WIRING DIAGRAM WARNING DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE ELECTRICAL CIRCUIT. RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE APPLIANCE WALL SWITCH. -
Page 46: Bgd36Cf Light Switch
BGD36CF LIGHT SWITCH A wall switch must be installed in a convenient location for the light operation. The recommended maximum lead length depends on wire size: WIRE SIZE MAX. LENGTH 14 gauge 100 feet 16 gauge 60 feet 18 gauge 40 feet A 20’... -
Page 47: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM W415-0785 / A / 07.23.09... -
Page 48: Operation
10.0 OPERATION 10.1 BGD36CF WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 49: Bgd36Cfg
10.2 BGD36CFG WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 50: Adjustments
11.0 ADJUSTMENTS 11.1 PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn in a clockwise PILOT direction to reduce the gas fl ow. BURNER THERMOPILE Inlet pressure can be checked by turning screw (A) counter- THERMOCOUPLE clockwise until loosened and then placing pressure gauge tubing over the test point. -
Page 51: Bgd36Cfg Venturi Adjustment
11.2.2 BGD36CFG VENTURI ADJUSTMENT WARNING CARBON CAN BE DISTRIBUTED IN SURROUNDING LIVING AREA IF THE AIR SHUTTER IS IMPROP- ERLY ADJUSTED. THE FRONT OF THE APPLIANCE BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL COMPLETELY BEFORE CONDUCTING SERVICE. This appliance has an air shutter that has been factory set open according to the chart below: Closing the air shutter will cause a more yellow fl... -
Page 52: Bgd36Cf Flame Characteristics
11.4 BGD36CF FLAME CHARACTERISTICS It’s important to periodically perform a visual check of the pilot and burner fl ames. Compare them to the illustrations provided. If any fl ames 3/8” - 1/2” appear abnormal call a service person. FLAME MUST ENVELOPE UPPER 3/8"... -
Page 53: Replacements
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.2 COMMON COMPONENTS REF NO. BGD36CF BGD36CFG DESCRIPTION W385-0334 W385-0334 NAPOLEON® LOGO W750-0112 W750-0193 / W750-0194 20FT OF WIRE W361-0016 GLOWING EMBERS W550-0001 CHARCOAL EMBERS W010-1340... - Page 54 COMMON COMPONENTS REF NO. BGD36CF BGD36CFG DESCRIPTION W300-0102 CLEAR GLASS EMBERS W010-1835 GLASS EMBER TRAY W387-0011 HIGH TEMPERATURE LIGHT ASSEMBLY W387-0009 HALOGEN BULB 5W FLEXIBLE VENT KITS REF NO. BGD36CF BGD36CFG DESCRIPTION GD220 (5 FT) W010-0397 W010-0397 4" FLEXIBLE VENT PIPE - (5 FT) C/W SPACERS W410-0017 W410-0017 7"...
- Page 55 COMMON ACCESSORIES REF NO. BGD36CF BGD36CFG DESCRIPTION W175-0001 W175-0001 4" COUPLER W175-0013 W175-0013 7" COUPLER W500-0103 W500-0103 TERMINAL EXTENSION PLATE GD-301 GD-301 HEAT GUARD W010-0370 W010-0370 WALL SUPPORT ASSEMBLY W175-0053 W175-0053 DURA-VENT ZERO CLEARANCE ADAPTOR VS47KT VS47KT VENT SLEEVE W170-0063 W170-0063 VENT PIPE COLLAR W585-0072...
- Page 56 W415-0785 / A / 07.23.09...
-
Page 57: Trouble Shooting
14.0 TROUBLE SHOOTING 14.1 BGD36CF WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. SYMPTOM PROBLEM TEST SOLUTION Main burner goes out; pilot Pilot fl ame is not large Turn up the pilot fl... - Page 58 SYMPTOM PROBLEM TEST SOLUTION Pilot goes out while Gas piping is undersized. Turn on all gas appliances and see if pilot fl ame fl utters, standing; Main burner is in diminishes or extinguishes, especially when main burner ‘OFF’ position. ignites. Monitor appliance supply working pressure. Check if supply piping size is to code.
-
Page 59: Bgd36Cfg
14.2 BGD36CFG WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. SYMPTOM PROBLEM TEST SOLUTION Pilot will not light. Wiring. Verify the “S” wire for the sensor and the “I” wire for the ignitor are connected to the correct terminals (not reverse) on the module and pilot assembly. - Page 60 SYMPTOM PROBLEM TEST SOLUTION Continues to sparks Short or loose Verify all connections. Verify the connections from the and pilot lights, but connection in sensor rod. pilot assembly are tight; also verify these connections main burner will not are not grounding out to any metal. light.
-
Page 61: Service History
15.0 SERVICE HISTORY 43.1 W415-0785 / A / 07.23.09... -
Page 62: Notes
16.0 NOTES 44.1 W415-0785 / A / 07.23.09...
