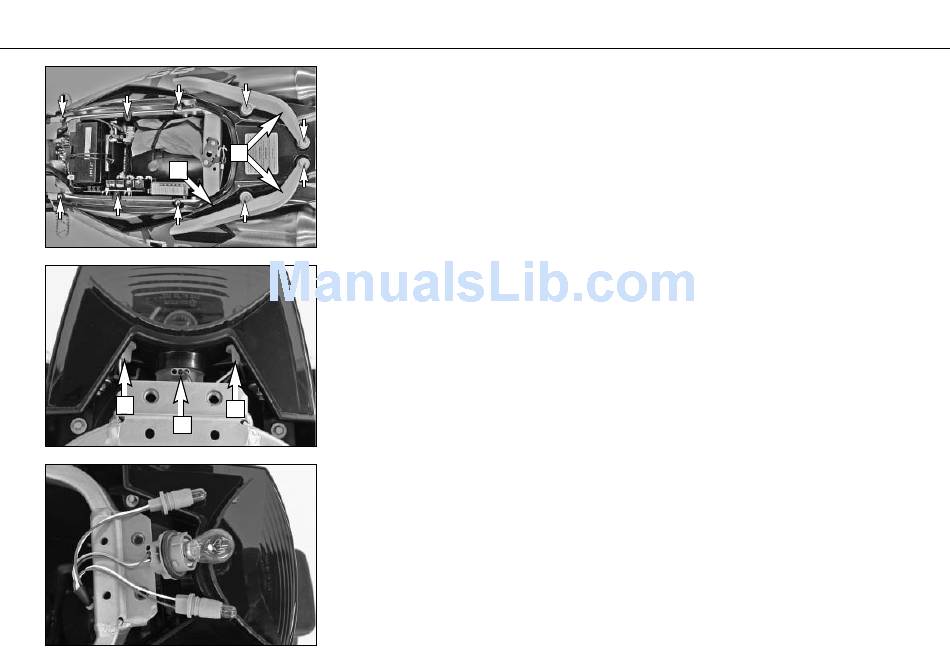

Replacing the brake light and taillight bulbs

Remove the seat. Remove the screws on the grips [1] and the upper rear [2] and take off
the parts.
1
2
BULB FOR BRAKE LIGHT:
Turn the bulb socket [3] approx. 30° in a counterclockwise direction and pull it out of the
taillight housing. Slightly press in the bulb, turn approx. 30° in a counterclockwise direc-
tion and remove it from the socket.
Proceed in the reverse order to mount a new bulb.
4
4
3
BULBS FOR THE TAILLIGHT:
Remove the bulb socket [4] from the housing and pull the bulb out of the socket. Insert a
new bulb and press the bulb socket all the way into the taillight housing.
Mount the upper rear and insert the screws. Mount the grips and tighten the screws to 25
Nm. Tighten the screws on the upper rear to 5 Nm. Mount the seat.
