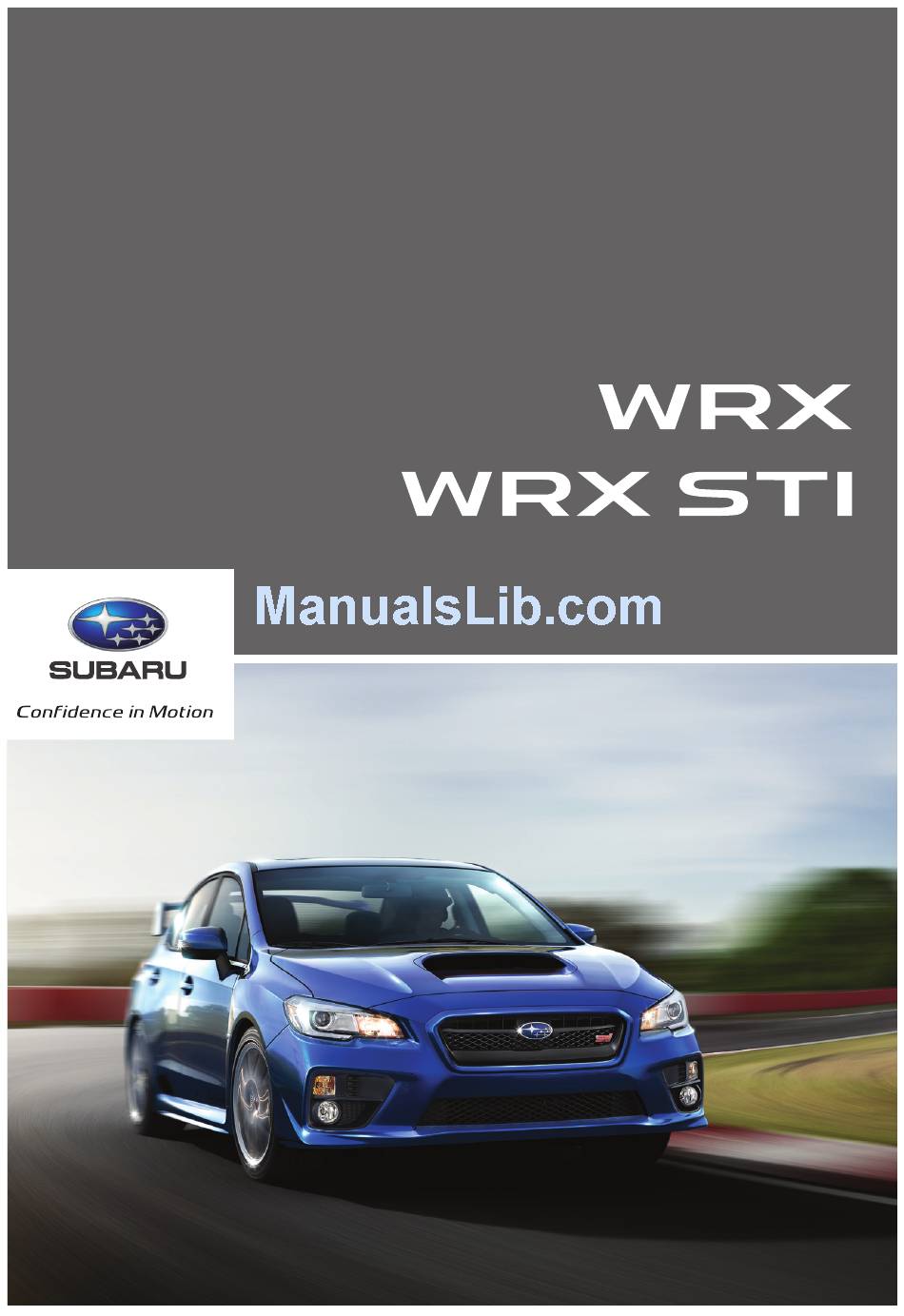

Subaru WRX Quick Reference Manual
2015
Hide thumbs
Also See for WRX:
- Owner's manual (586 pages) ,
- Quick reference manual (21 pages) ,
- Specifications (3 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Subaru WRX
Summary of Contents for Subaru WRX
- Page 1 2015 Quick Reference Guide...
-
Page 2: Basic Operation
BASIC OPERATION Lock / Unlock doors Remote keyless entry system All doors will be locked. The driver’s door will be unlocked. (To unlock all doors, briefly press the button a second time within 5 seconds.) Trunk lid will be opened. Remote Access key The horn will sound and the hazard... -
Page 3: Adjustable Components
Adjustable components Front seat Power seat (Driver’s seat-if equipped) Forward and backward adjustment Seat cushion angle Seat height adjustment Seatback reclining Manual seat (if equipped) Forward and backward adjustment Seat height adjustment (Driver’s seat only) Seatback reclining Tilt / telescopic steering wheel Adjust the seat position and pull the tilt/ telescopic lock lever down. -
Page 4: Start / Stop Engine
Start / Stop Engine Push-button ignition switch (if equipped) Starting engine 1. Carry the access key, and sit in the driver’s seat. 2. Apply the parking brake. 3. Shift the select lever in the P position. The engine can also start when the select lever is in the N position, however, for safety reasons, start in the P position. -
Page 5: Continuously Variable Transmission (If Equipped)
Transmission Continuously variable transmission (if equipped) Select lever button With the brake pedal depressed, shift while pressing the button in Shift while pressing the button in Shift without pressing the button M = Manual mode With the vehicle either moving or stationary, move the Downshift Upshift select lever from the D position to the M position to... -
Page 6: Driver's Area
DRIVER’S AREA Headlights / Turn signal / Fog light (if equipped) Headlights Headlight flasher, High/ low beam change Turn signal Fog lights (if equipped) To turn on, rotate dial to Front fog lights operate only when headlight switch is in: position. -
Page 7: Illumination Brightness Control
Windshield wiper and washer Wiper : Mist (for a single wipe) : Off : Intermittent : Low speed : High speed Intermittent interval Washer Hazard warning flasher To turn on, press the button. Use in emergency conditions. Illumination brightness control To adjust brightness of the instrument panel illumination, turn dial. -
Page 8: Power Windows
To unlock all doors. Seat heater HIGH (HI): Rapid heating. LOW (LO): Normal heating. Type B (WRX STI) Type A (WRX) ◆ Some functions are available on certain models. ◆ For detailed operating and safety information, please consult your Owner’s Manual. -
Page 9: Audio Control Buttons
Fuel filler lid release lever Pull Right side This indicates that the fuel filler door (lid) is located on the right side of the vehicle. Audio control buttons These buttons allow the driver to control audio functions without taking his/her hands off the steering wheel. ☞... - Page 10 VEHICLE PERFORMANCE FUNCTIONS Vehicle Dynamics Control OFF switch Indicator lights on the combination meter. Vehicle Dynamics Vehicle Dynamics Control mode Control OFF mode Traction mode Deactivating the Vehicle Dynamics Control system facilitates the following operations: - a standing start on a steeply sloping road with a slippery surface - extrication of the vehicle when its wheels are stuck in mud or deep snow Deactivation should not be used except when absolutely necessary.
-
