Not intended for use as Primary Power in place of utility or in
!
DEADLY EXHAUST FUMES. OUTDOOR INSTALLATION ONLY!!
Installation and
Owner's Manual
life-support applications.
DANGER

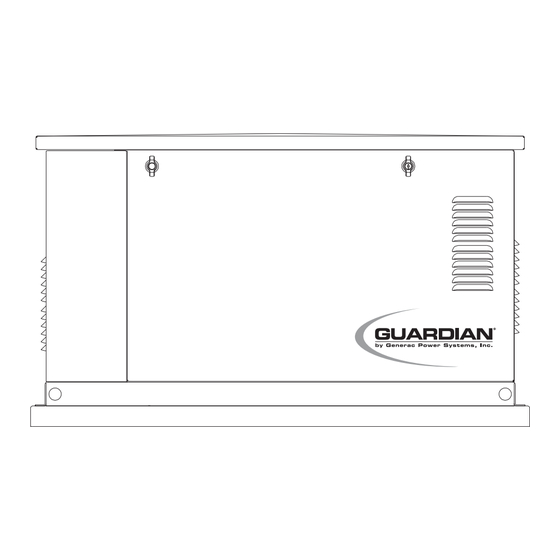

Air-cooled, Prepackaged
Automatic Standby Generators
Models:
04389-1 (6 kW NG, 7 kW LP)
04456-1 (12 kW NG, 12 kW LP)
04390-1 (13 kW NG, 15 kW LP)
GENERAC
R
POWER SYSTEMS, INC.
R
!

Advertisement

Table of Contents
loading

Related Manuals for Guardian 04389-1

Summary of Contents for Guardian 04389-1

  • Page 1 Installation and Owner’s Manual Air-cooled, Prepackaged Automatic Standby Generators Models: 04389-1 (6 kW NG, 7 kW LP) 04456-1 (12 kW NG, 12 kW LP) 04390-1 (13 kW NG, 15 kW LP) GENERAC POWER SYSTEMS, INC. Not intended for use as Primary Power in place of utility or in life-support applications.

  • Page 2: Introduction

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators Enclosure – Drawing No. 0D3416-Q PRE PACKAGED UNITS ONLY 32 Generac ® Power Systems, Inc.

  • Page 3: Table Of Contents

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators Enclosure – Drawing No. 0D3416-Q ITEM PART NO.QTY. DESCRIPTION ITEM PART NO.QTY. DESCRIPTION 0C6140 ASSEMBLY, ENCLOSURE BASE (12KW/15KW) 022097 WASHER LOCK M6-1/4"...

  • Page 4: Safety Rules

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators Control Panel – Drawing No. 0D8503-F 34 Generac ® Power Systems, Inc.

  • Page 5: Standards Index

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators Control Panel – Drawing No. 0D8503-F ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0A9947E CIRCUIT BREAKER 30 X 2 240V SQD...

  • Page 6: Section 1 - General Information

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 7 kW GTS Load Center Assembly – Drawing No. 0D3997-E 36 Generac ® Power Systems, Inc.

  • Page 7: Your Generator

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 7 kW GTS Load Center Assembly – Drawing No. 0D3997-E ITEM PART NO. QTY. DESCRIPTION 0D4801 BOX GTS LOAD CENTER 0D4800 COVER, 8 POSITION GTS LOAD CENTER...

  • Page 8: Specifications

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 12 kW and 15 kW GTS Load Center Assembly – Drawing No. 0D3996-D 38 Generac ® Power Systems, Inc.

  • Page 9: Fuel Requirements And Recommendations

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 12 kW and 15 kW GTS Load Center Assembly – Drawing No. 0D3996-D ITEM PART NO. QTY. DESCRIPTION 0D3086 BOX GTS LOAD CENTER...

  • Page 10: Location

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators GT-990 Engine – Drawing No. 0D8674-E Part 1 40 Generac ® Power Systems, Inc.

  • Page 11: Battery Installation

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators GT-990 Engine – Drawing No. 0D8674-E Part 1 ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0C5729 ASSEMBLY, CRANKCASE HOUSING WITH...

  • Page 12: Section 2 - Post Installation Start-Up And Adjustments

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators GT-990/760 Engine – Drawing No. 0D8674-E Part 2 11 116 42 Generac ® Power Systems, Inc.

  • Page 13: Generator Tests Under Load

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators GT-990/760 Engine – Drawing No. 0D8674-E Part 2 ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0C5136A KNOB, AIR CLEANER...

  • Page 14: Adjusting The Regulator (Natural Gas Only)

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 7 kW Generator – Drawing No. 0D3504-C 44 Generac ® Power Systems, Inc.

  • Page 15: Kw And 15 Kw Units

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 7 kW Generator – Drawing No. 0D3504-C ITEM PART NO. QTY. DESCRIPTION 0C6934 ADAPTOR, ENGINE 0C9935H STATOR 0C9934H ROTOR 0C6043A CARRIER, REAR BEARING 0C8096 FAN, 8"...

  • Page 16: Section 3 - Operation

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 12 kW and 15 kW Generator – Drawing No. 0D3417-D 46 Generac ® Power Systems, Inc.

  • Page 17: Sequence Of Automatic Operation

    Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators 12 kW and 15 kW Generator – Drawing No. 0D3417-D ITEM PART NO. QTY. DESCRIPTION 0C6934 ADAPTOR, ENGINE 0C7930 STATOR 12KW 0D2359...
