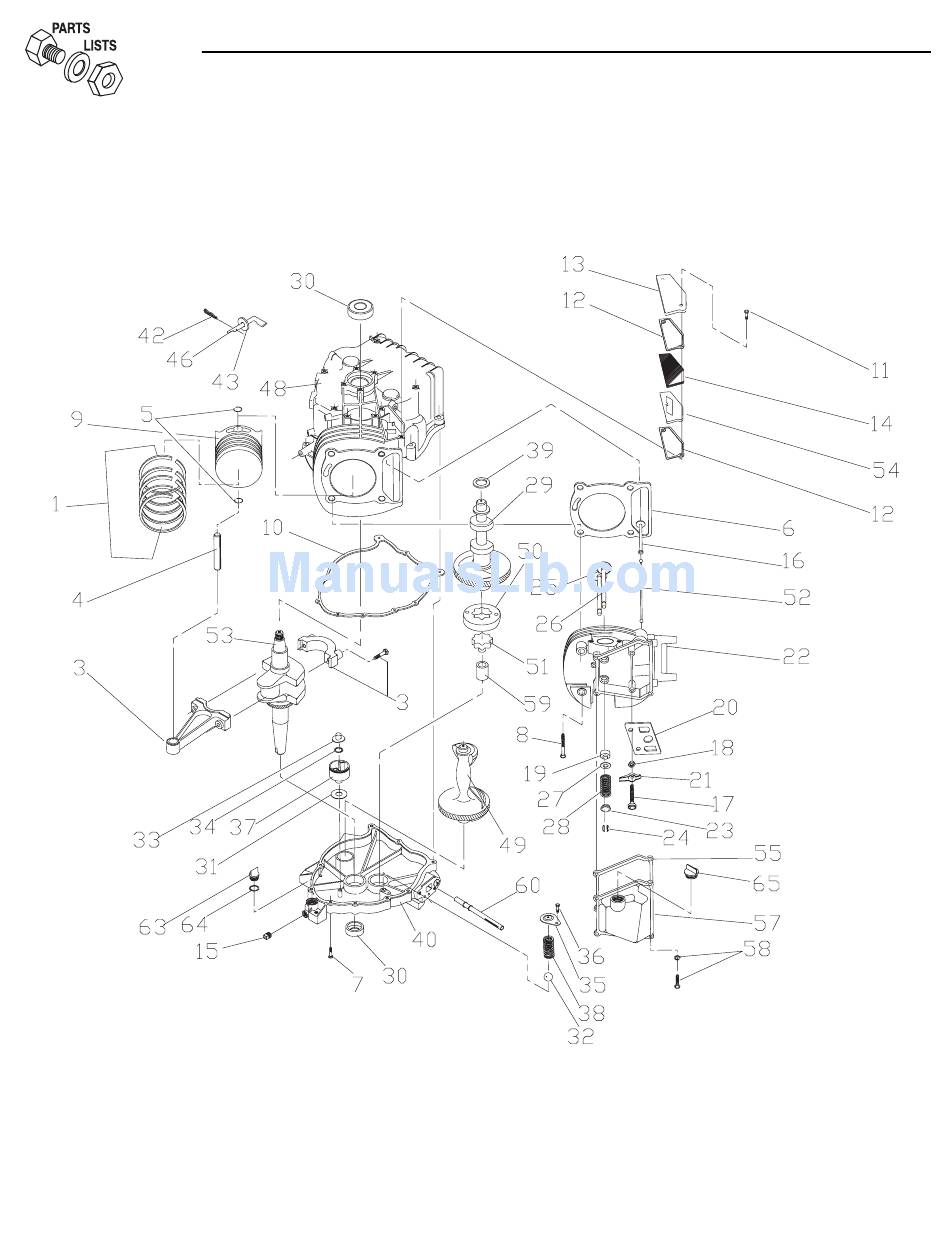

- Page 1 Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 6 kW Generator GN-410 Engine – Drawing No. A7894-C 24 Generac ® Power Systems, Inc.
-
Page 2: Section 7 - Exploded Views And Parts Lists
ITEM PART NO. QTY. DESCRIPTION 21533 PISTON RING SET 71978 CONNECTING ROD WITH CAP AND BOLT 71980 PISTON PIN 71983 PISTON PIN RETAINER 21713B CYLINDER HEAD GASKET A1442 FLANGED HEX HD. CAP- SCREW M8-1.25 x 42 21742 M10 1.5 x 105MM HHFL 96699 PISTON 76701... - Page 4 ITEM PART NO. QTY.DESCRIPTION C1198 GN-724 ENGINE 1 100-C1198 CYLINDER ASSEMBLY 2 101-C1198 BUSHING/SEAL KIT (MAGNETO SIDE) 3 102-C1198 OIL SEAL 4 103-C1198 ENGINE SUMP 5 104-C1198 CYLINDER HEAD (CYLINDER #1) 5A 105-C1198 CYLINDER HEAD (CYLINDER #2) 7 106-C1198 CYLINDER HEAD GASKET 8 107-C1198 BREATHER ASSEMBLY 9 108-C1198...
- Page 6 ITEM PART NO. QTY. DESCRIPTION A6532 MANIFOLD, INTAKE 91039 GASKET, INTAKE ADAPTOR 51753 HHCS-M6-1.0 x 40 LG 72347 SPARK PLUG 89228 GASKET, CARB./MANIFOLD A7336B CARBURETOR 90970 GASKET, AIR CLEANER A6564 BASE, AIR CLEANER 56893 CRIMPTITE-#10-24 x 1/2" LG A6778 SPRING, ANTILASH. 96290 STUD, CARB.
- Page 7 Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 6 kW Generator GN-410 Sheet Metal – Drawing No. C2480- 30 Generac ® Power Systems, Inc.
- Page 8 ITEM PART NO. QTY. DESCRIPTION A4323 SCROLL, FLYWHEEL 45756 SCREW, TAPTITE M6-1.0 x 10 LG 29289 2.5 FT. FOAM TAPE SRV-91222-F 1 FLYWHEEL, MAGNETIZED 67198-N WASHER, BELLVILLE M20 67890 NUT, M20 x 1.5 A4456 3/8" SPECIAL LOCK WASHER 56893 SCREW, CRIMPTITE #10-24 x .5"...
- Page 10 GN-724 Engine Accessories and Sheet Metal – Drawing No. C2371- ITEM PART NO. QTY. DESCRIPTION C1350A WRAPPER, VALLEY C1351A WRAPPER, CYLINDER #1 C1354A STARTER, WRAPPER C1353A WRAPPER, CRANKCASE C1355 10KW COVER, ENGINE C1355A 8KW COVER, ENGINE C1352A WRAPPER, CYLINDER #2-BACK C1468A WRAPPER, CYLINDER #2-FRONT...
- Page 12 ITEM PART NO. QTY. DESCRIPTION A9909 CONTROL PANEL A1801 ASSEMBLY, ENGINE BATTERY CHARGER 83048 ASSEMBLY, VOLTAGE REGULATOR C2174 RELAY, 12V. 25A SPST 75210A TERMINAL BLOCK 40213 PCB SUPPORT, SNAP-IN C1537 ASSEMBLY, PCB CONTROLLER 65795 RECTIFIER, BATTERY CHARGER 32300 HOLDER, FUSE 22676 FUSE, 15 AMP.
- Page 13 Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Alternator – Drawing No. C2374- ITEM PART NO. QTY. DESCRIPTION C2079 6/8KW LOWER BEARING CARRIER A9226 10KW LOWER BEARING CARRIER 31971 BEARING A5649H 6KW ROTOR ASSEMBLY 73163H...
-
Page 14: Fuse Holder
ITEM PART NO. QTY. DESCRIPTION C2259 TRANSFER SWITCH ENCLOSURE 74975 ENCLOSURE COVER C2237 TRANSFER SWITCH 74908 M5-0.8 x 10 TAPTITE 24912 ¼-20 x 5/8" TAPTITE A1658 WASHER ¼ SHAKEPROOF 63617 RELAY-10AMP. 12 VOLTS DC 27628 HEX NUT-3/8"-16 24940 8-32 x ½" TAPTITE A1661 POP RIVET, .156 D x .5 62684... - Page 15 Section 7 — Exploded Views and Parts Lists Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Mounting Base Assembly – Drawing No. C2372- ITEM PART NO. QTY. DESCRIPTION C1753 ALTERNATOR PULLEY A9628 ASSEMBLY, ENCLOSURE BASE C1112 V-BELT 75224D ENGINE PULLEY 38353 RUBBER MOUNT...
- Page 16 ITEM PART NO. QTY. DESCRIPTION A9962 PLATE, INTAKE A9892 ENCLOSURE, ROOF C1199 PANEL, ENCLOSURE-ALT SIDE A9677 RAIL, TOP SUPPORT A9633 ENCLOSURE, DOOR A9651 MUFFLER A9897 SUPPORT, BRACKET MUFFLER A9629 SIDE AND BACK ENCLOSURE A9631 BOX, MUFFLER A9632 COVER, EXHAUST BOX 78115 SELF LOCKING DOME WASHER A9816...
- Page 17 Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Transfer Switch Schematic and Wiring Diagrams – Drawing No. C2381- 18 Generac ® Power Systems, Inc.
-
Page 18: Section 6 - Electrical Data
Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Interconnection Diagram – Drawing No. C2741-A Generac ® Power Systems, Inc. 19... - Page 19 Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Wiring Diagram – Drawing No. C2136-C 20 Generac ® Power Systems, Inc.
- Page 20 Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Wiring Diagram – Drawing No. C2136-C Generac ® Power Systems, Inc. 21...
- Page 21 Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Electrical Schematic – Drawing No. C2666-B 22 Generac ® Power Systems, Inc.
- Page 22 Section 6 — Electrical Data Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators Electrical Schematic – Drawing No. C2666-B Generac ® Power Systems, Inc. 23...
