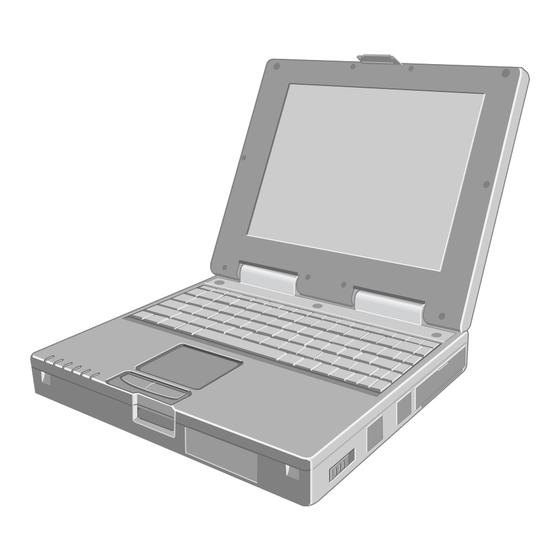

Panasonic CF-17 Operating Instructions Manual

Hide thumbs Also See for CF-17:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
95
[Additional Manual]
Reference Manual
This manual can be accessed on your computer. Please
refer to page 14 on how to access the Reference Manual.
In this manual, descriptions are given us-
ing illustrations not featuring the hand
strap or handle for convenience of expla-
nation.
CF-17 Series
Please read these instructions carefully before using this product and save this manual for future use.

OPERATING INSTRUCTIONS

Model No.
Contents

Getting Started

Operation

Troubleshooting

Appendix
CF-M34 Series
Personal Computer
CF-17/CF-M34
Read Me First..................................................
First-time Operation ........................................
(Basic Operation) ...................................
Reference Manual .........................................
Reference Manual
•
Read Me First
•
Key Combination
•
LED Indicators
•
Touch Pad
(Advanced)
Starting Up/Shutting Down ............................
Reference Manual
•
•
Security Measures
•
Computing On The Road
•
Battery Power
•
PC Cards
•
RAM Module
List of Error Codes .........................................
Reinstalling Software ....................................
Reference Manual
•
Technical Information
•
DMI Viewer
•
Names and Functions of Parts ......................
Specifications ................................................
LIMITED WARRANTY ...................................
Series
•
Touchscreen
•
Panasonic Hand Writing
(Touch Pad)
•
USB Devices
•
Modem
•
Port Replicator
•
Accessories
•
Hard Disk Drive
•
Setup Utility
•
Smart Boot
(Summary) ......................
•
List of Error Codes
•
Dealing With Problems
®
7
9
13
14
15
17
19
21
22
24
25
26

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CF-17

Summary of Contents for Panasonic CF-17

  • Page 1: Table Of Contents

    Touch Pad (Basic Operation) ........Reference Manual ......... Reference Manual • • Read Me First Touchscreen • • Key Combination Panasonic Hand Writing • LED Indicators (Touch Pad) • Touch Pad (Advanced) Operation Starting Up/Shutting Down ......Reference Manual •...
  • Page 2 For the Model No., insert the 11 digit number (for example, CF-M34T42AAM) located on the bottom of the computer. Introduction Thank you for purchasing the Panasonic computer. Please read the operating instructions thoroughly for proper operation of your new computer. Illustrations in this Manual NOTE: NOTE provides a useful fact or helpful information.
  • Page 3 Excessive RENs on the telephone line Consult the Panasonic Service Center or an experienced ra- may result in the devices not ringing in response to an incoming call. In dio/TV technician for help.
  • Page 4 For Canada Industry Canada (IC) Notice for modem RESTRICTIONS CONCERNANT LE RACCORDEMENT DE MATÉRIEL This equipment contains an Industry Canada approved modem unit. The Industry Canada label is affixed on the modem unit. “AVIS: L’étiquette d’Industrie Canada identifie le matériel EQUIPMENT ATTACHEMENT LIMITATIONS homologué.

  • Page 5: Lithium Battery

    Lithium Battery Precautions The CF-17/CF-M34 was developed based on thorough research Lithium Battery! into the real-world portable computing environments. Exhaus- This computer contains a lithium battery to enable the date, time, tive pursuit of usability and reliability under harsh conditions and other data to be stored.
  • Page 6 Precautions ( Battery Pack ) Care should be exercised with regard to the following in If the battery pack will not be used for a long period of time order to avoid the possibility of liquid leakage, overheat- (a month or more), charge or discharge (use) the battery pack ing, or bursting.

  • Page 7: Read Me First

    Read Me First Saving Data on the Hard Disk Do not expose your computer to shock. Please use care when handling your computer, shock may damage your hard disk or make your software applications and data unusable. Do not power off your computer while software applications are running or HDD indicator ( ) is on.
  • Page 8 Read Me First Usage Environment Environment Place the computer on a flat stable surface. In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F} Humidity: 30% to 80% RH (No condensation) Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F} Humidity: 30% to 90% RH (No condensation) Places not to use your computer...

  • Page 9: First-Time Operation

    Confirm the inclusion of all parts Make sure the parts shown in the figure have been supplied. If any of these items are missing or is not working properly, please contact Panasonic Technical Support. AC Adapter ......1 AC Cord ......... 1 Model No.
  • Page 10 First-time Operation Slide the battery pack inward until it is firmly in place. CAUTION Be sure the battery pack is properly connected to the connector. The cover is closed by inserting the hook at the right end (see illustration) into the groove.
  • Page 11 Setup Windows 95 Select settings for your region, then press [Next]. NOTE Moving the cursor ( ) or clicking buttons can be performed with the touch pad, a key or the touchscreen. ( page 13, "Touchscreen") Select your keyboard layout, then press [Next]. (for U.S.A.: United States 101) Enter your name and your company’s name, then press [Next].
  • Page 12 First-time Operation In preparation for trouble When the computer fails to work properly or system files on the hard disk are deleted, the computer can be returned to factory condition by performing the "Reinstallation" procedure. Important: To perform the "Reinstallation" procedure ( page21), it is necessary to create a backup disk prior to any trouble.

  • Page 13: Touch Pad (Basic Operation)

    Touch Pad (Basic Operation) Use the touch pad to move the cursor on the display and perform normal computer operations. Work Surface For instructions on how to operate, refer to "Touch Pad (Advanced)". NOTE The touch pad has been designed to work only when a finger is used. Therefore, do not use any implement on the touch pad.

  • Page 14: Reference Manual

    Setup Utility works and other useful information. Run the Reference Manual Turn your computer on Select [Reference Manual] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals] When the Reference Manual is started up for the first time, the License Agreement will be displayed.

  • Page 15: Starting Up/Shutting Down

    When the CPU temperature rises, the computer may not power on to prevent the CPU from overheating. Should this happen, allow the computer to cool down then switch the power on again. If the computer still does not power on, please contact Panasonic Technical Support. If security indicator ( ) is displayed, you must first enter your password.

  • Page 16: Suspend/Hibernation Functions

    Usage Example CF-17 Series (Model with a handle) The handle can be used as a tilt stand as shown in the illustration. CF-M34 Series (Model with a hand strap) The hand strap is convenient for computing while standing.

  • Page 17: List Of Error Codes

    If your system displays one of except the messages marked below with an asterisk (*), write down the message and contact Panasonic Technical Support. If your system fails after you make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults or correct the error.
  • Page 18 List of Error Codes 02F5: DMA Test Failed ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers. 02F6: Software NMI Failed ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt). 02F7: Fail - Safe Timer NMI Failed ServerBIOS2 test error: Fail-Safe Timer takes too long.

  • Page 19: Dealing With Problems

    Check to see if a fully charged battery is properly installed. tery indicator is not lit Remove the battery pack and disconnect the AC adapter, then connect them again. Please input your password. If you have forgotten it, contact Panasonic Technical Support. is displayed [POST Startup Error(s)] is...
  • Page 20 Dealing With Problems (Summary) Display No display after powering At the time of purchase, the display setting is preset for an external display. If you connect an external display, the screen is displayed on the external display. When there is no display to an external display, •...

  • Page 21: Reinstalling Software

    Reinstalling Software Before Reinstallation Preparing Prepare the following: • BACKUP DISK(s) created in advance ( "Creating BACKUP DISKS") Confirm that there is the following line in the AUTOEXEC.BAT on the FIRSTAID FD. mscdex.exe /D:YOUR_CD /L:L • Product Recovery CD-ROM (included) •...

  • Page 22: Limited Use License Agreement

    LIMITED USE LICENSE AGREEMENT ® THE SOFTWARE PROGRAM(S) ("PROGRAMS") FURNISHED WITH THIS PANASONIC PRODUCT ("PRODUCT") ARE LICENSED ONLY TO THE END-USER ("YOU"), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
  • Page 23 Contrat de licence d'usage limité ® Le(s) logiciel(s) (les "Logiciels") fournis avec ce produit Panasonic (le "Produit") sont exclusivement concédés en licence à l'utilisateur ultime ("vous"), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci- dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi- tions des présentes.

  • Page 24: Names And Functions Of Parts

    Reset Button Numeric Key (NumLk) Caps Lock When resetting your computer, use a dull pointed object. Do not use a pencil. CF-17 Series CF-M34 Series Pencil lead can break off inside the computer and damage the computer. Power Switch POWER...

  • Page 25: Specifications

    ® Operating System Microsoft Windows (FAT32 File System) Software Utility Programs Setup Utility, DMI Viewer, Panasonic Hand Writing, Panasonic Battery Monitor, Smart Boot Battery Pack Li-ion 10.8 V, 3.4 Ah Operating Time Approx. 3.0 - 4.5 h Battery Charging Time Power On Approx.

  • Page 26: Limited Warranty

    God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any Program.
  • Page 27 No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environ- mental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God.
  • Page 28 The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations. Panasonic Personal Computer Company, Panasonic Canada Inc. 50 Meadowlands Parkway, Panazip 2F-5, 5770 Ambler Drive Mississauga,...
