USER MANUAL
rotary
®

Advertisement

loading

Related Manuals for Strymon Lex-rotary

Summary of Contents for Strymon Lex-rotary

  • Page 1 USER MANUAL rotary ®...

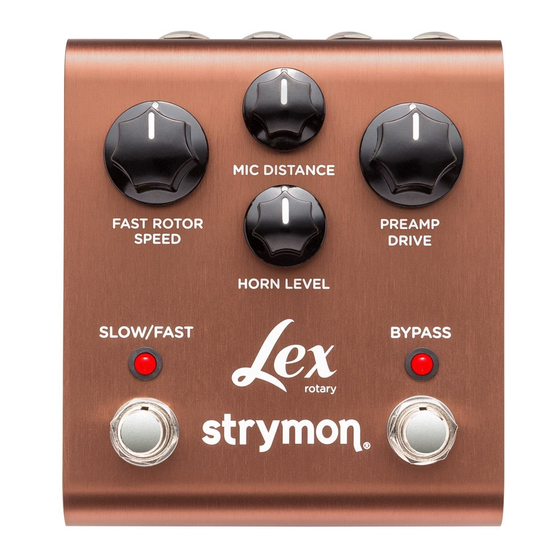

  • Page 2 - rotary User Manual ® Front Panel MIC DISTANCE: Varies the distance of the stereo mics from the horn rotor and the single mic on the woofer rotor. Turn PREAMP DRIVE: Controls the towards minimum for a more drive of the rotary cabinet’s pronounced, aggressive horn FAST ROTOR SPEED: Controls tube preamp and phase inverter...
  • Page 3 - rotary User Manual ® Secondary Functions CAB DIRECTION: Changes the position of the cabinet relative to ACCELERATION: Controls the microphones. In the FRONT how quickly the rotors orientation (counterclockwise) transition from Fast to Slow the sound travels through the and from Slow to Fast speed.

  • Page 4: Rear Panel

    - rotary User Manual ® Rear Panel Standard 9V DC center negative power input. 250 mA required available current. 9VDC INPUT LEFT OUT RIGHT OUT High impedance Stereo outputs. Use LEFT mono input. OUT for mono signal output. ® If using in BI-AMP mode, the Left out is the woofer and the Right out is the horn.
  • Page 5 - rotary User Manual ® Power up settings EXP INPUT ASSIGN: Assigns CAB FILTER: Tailors the cabinet the EXP pedal input jack to filter for best use either in front use an expression pedal or a of a guitar amplifier or a full BI-AMP: While holding both Favorite switch.

  • Page 6: Factory Settings

    - rotary User Manual ® Factory settings Secondary functions: Cab direction set to REAR. All other secondary functions set to 50% EXP input jack: Assigned to use an expression pedal and vary the SPEED from BRAKE to FAST BI-AMP MODE: OFF EXP INPUT ASSIGN: Assigned to use an expression pedal CAB FILTER: Assigned to GUITAR AMP mode (CAB...

  • Page 7: Sample Settings

    - rotary User Manual ® Sample Settings (CAB (CAB DIRECTION) DIRECTION) MIC DISTANCE MIC DISTANCE FAST ROTOR FAST ROTOR PREAMP PREAMP SPEED SPEED DRIVE DRIVE (SLOW ROTOR (SLOW ROTOR (LEVEL) (LEVEL) SPEED) SPEED) HORN LEVEL HORN LEVEL (ACCELERATION) (ACCELERATION) Mellowed Out Rotary Brake SLOW/FAST BYPASS...
  • Page 8 - rotary User Manual ® Features • Hand crafted rotary algorithms for meticulous and nuanced recreations of rotary speaker systems • Ultra Low Noise, high performance A/D and D/A Converters • Premium analog front end and output section • High Performance DSP •...
  • Page 9 In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
