Summary of Contents for Strymon sunset
- Page 1 USER MANUAL...
-

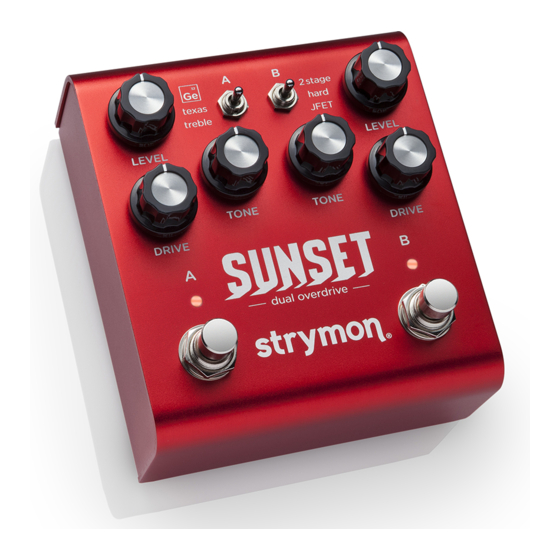

Page 2: Front Panel
Sunset - Dual Overdrive ® Front Panel • A • B Toggles between 3 different Toggles between 3 different Drive circuits for the A effect. Drive circuits for the B effect. Ge - A circuit combining 2stage - The 2stage... - Page 3 Sunset - Dual Overdrive ® Front Panel (cont.) • LEVEL Controls the output volume of each channel. • TONE Adjusts the treble frequencies for each channel. The character • DRIVE and response of the control Adjusts the amount of gain varies with the circuit type.
-
Page 4: Rear Panel
Tailors the highest frequencies of the Selects the effect order for the 2 sides output signal. Try the middle for a of Sunset. Selecting A+B will place the balanced sound with most setups. Try effects in a parallel signal chain. - Page 5 ® Noise Gate Threshold Sunset has a variable-threshold noise gate feature to tame hum and buzz when you’re not playing. A downward expander with advanced signal detection techniques creates a seamless transition to noise gate silence with all types of input signal dynamics, including staccato bursts and slowly sustained notes.
- Page 6 NOTE: Along with the knobs and toggle switches on the face of the pedal, the setting of the BRIGHT and CONFIG switches along with the bypass state of each side of Sunset is stored with the Favorite preset. COMPARE MODE...
- Page 7 - Dual Overdrive ® Power Up Mode – Bypass Mode Selection Setting Sunset to Buffered Bypass mode preserves the high frequency response of your guitar signal through your pedal chain and long cable runs. Press and hold the B footswitch while powering up the pedal.
- Page 8 (See page 10 for more info) Press the A or B footswitch once again to store power up modes and begin using Sunset. NOTE: Power up modes are saved for all future power ups until they are changed again with the steps above.
- Page 9 Sunset - Dual Overdrive ® Expression Mode Use a TRS Expression pedal to control the knobs of Sunset Connect the Expression pedal to the EXP jack of Sunset using a TRS cable. Press and hold both A and B footswitches for a few seconds until both LEDs begin blinking GREEN.
-
Page 10: Volume Mode
Connect the Expression pedal to the EXP jack of Sunset using a TRS cable. NOTE: When Sunset is in Buffered Bypass mode and the Expression Jack is configured for Volume Mode, the pedal will still function as a Volume pedal whether the effect is bypassed or engaged. -
Page 11: Factory Reset
Once the A channel LED stops blinking RED, the reset is complete and Sunset is ready for use. FACTORY SETTINGS • EXP Input Jack: Assigned to work in VOLUME PEDAL mode. -
Page 12: Sample Settings
Sunset - Dual Overdrive ® Sample Settings Heavy Stack Blues Stack Fat Stack Texas Classic Dirty FET Boost Defined Fuzz Thick & Juicy Harmonic Drive pg 12... -
Page 13: Specifications
Sunset - Dual Overdrive ® Features • Two independent effects that can be configured • Selectable noise gate minimizes buzz and hum and controlled separately or blended together as a • Premium analog front end and output section single effect •... - Page 14 In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, expressed or implied. By using the product, the user accepts all terms herein.
