- Page 1 ® dBucket Flanger USER MANUAL...

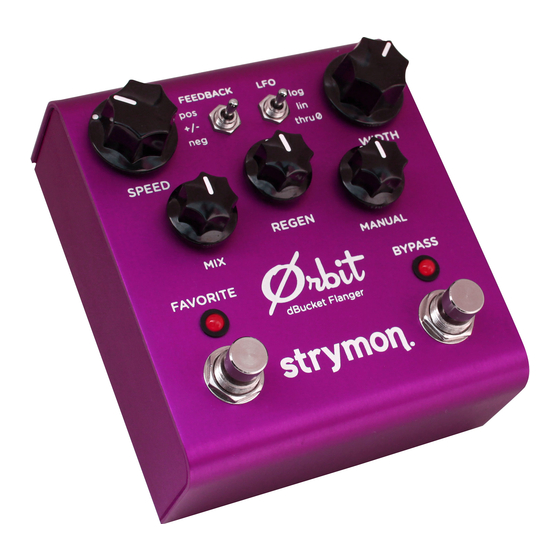

- Page 2 Orbit - dBucket Flanger User Manual ® Front Panel Switches between logarithmic, linear and Switches between positive, negative and through zero LFOs. The LOG setting produces positive/negative feedback. With positive an even-sounding frequency sweep. feedback, the wet and dry signals are in...
-
Page 3: Rear Panel
Orbit - dBucket Flanger User Manual ® Rear Panel 9VDC INPUT LEFT OUT RIGHT OUT Standard 9V DC center negative power input. 200 mA power consumption. High impedance Stereo outputs. mono input. Use LEFT OUT for mono signal output. Connect a standard TRS... -
Page 4: Sample Settings
Orbit - dBucket Flanger User Manual ® Sample Settings FEEDBACK FEEDBACK thru 0 thru 0 SPEED WIDTH SPEED WIDTH REGEN REGEN MANUAL MANUAL Choral Grey Box FEEDBACK FEEDBACK thru 0 thru 0 SPEED WIDTH SPEED WIDTH REGEN REGEN MANUAL MANUAL Thru Zero 70’s Vintage Flanger... - Page 5 Orbit - dBucket Flanger User Manual ® Features • Hand Crafted dBucket Algorithm • Super Low Noise, high performance A/D and D/A Converters • Premium analog front end and output section • High Performance DSP • 3 LFO types (log, lin, through zero) •...
- Page 6 In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
