LENCO DVC-200 Manual

DVC-200 Manual
For information and support, www.lenco.eu
1. Get to know your camera
5.0Mega pixels resolution sensor
HD digital video camcorder - 1280x720 16:9 ratio@30fps
Digital still camera
HDTV component output
2.4"LTPS real color display
SD card support
Driver free for Windows XP/Vista/and MAC 10.4.9 or above Win7
Macro mode

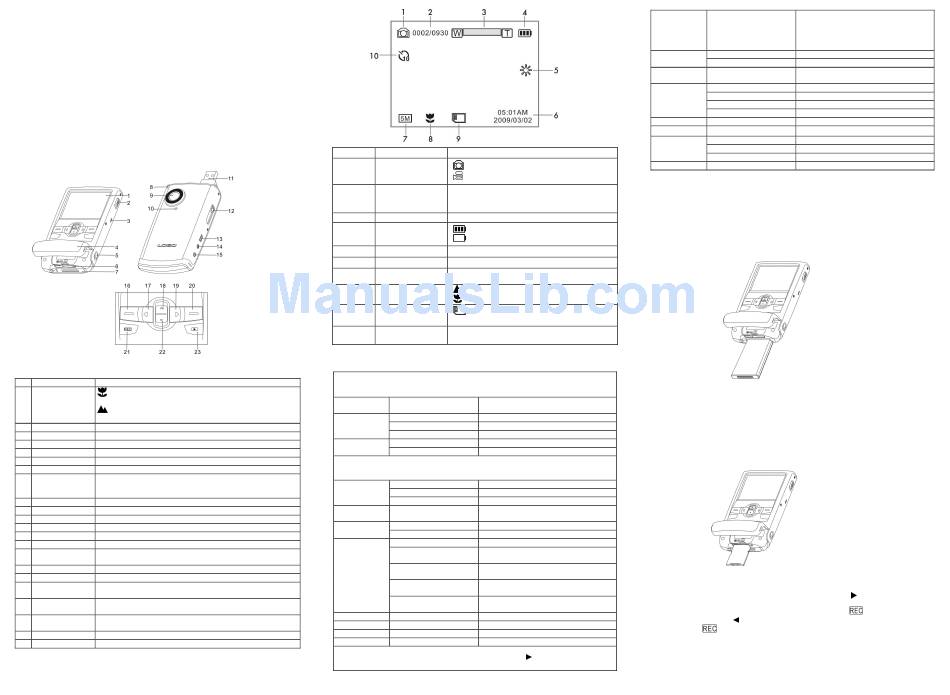

2. Functional parts
1 LCD screen Display photographs, video clips, camera settings and menu.
Macro mode: Select this mode to take close-up photographs
(distance 11cm - 18cm).
2 Macro switch
Normal mode: Select this mode to take photographs from
0.5m - infinity.
3 Speaker Speaker hole.
4 Battery door Door for battery & SD card.
5 Strap hook Hook for attaching the wrist strap to the camera.
6 SD card slot SD card storage location.
7 Battery 3.7V Li-ion battery.
8
LED indicator Illuminates while recharging battery.
Records the image to be taken.
9 Lens Note: Keep the lens clean. Dirt and fingerprints will affect the
quality of the picture.
10 Microphone For voice input.
11 USB interface Download photographs and video clips to a computer,
12 USB switch Slide it to pop-up the USB interface.
13
DC in only Recharge the battery via transformer provided.
14 Video out Connecting the video cable to TV.
15 Audio out Connecting the audio cable to TV.
Press it to select PHOTO or VIDEO mode. For PHOTO or VIDEO
16 Mode / Menu
setting, press and hold it for 2~3 seconds.
17 Left For LEFT selection in menu mode
18 UP For UP selection in menu mode. Digital zoom in.
For RIGHT selection in menu mode . ./ For exposure value set up
19 Right
in photo or video mode.
DELETE / Power Press and hold it for 2 seconds to turn ON/OFF the unit. Press it
20
on or off button to delete file in PLAYBACK mode.
Press this button to take photographs / to start or stop recording a
21 REC
video clip to confirm changes in menu mode.
22 Down For DOWN selection in menu mode. Digital zoom out.
23 Playback Press it to enter PLAYBACK mode.
3. Explanation of the status icons
Item Function
Photograph mode.
1 Recording mode
Video mode.
Show time left in DV mode
2
Counting indicator Show picture left in DC mode
Show recording time during recording
3 Digital zoom Show digital zoom value.
Battery at full charge.
4 Battery indicator
No charge left in battery.
5 White balance White balance selection.
6 Date stamp Date/ Time/ Date and Time / Off
Photo-3M,5M,8M
7 Selected resolution
Video-QVGA,WVGA,720P30
Normal / Macro Normal mode (0.5m – infinity).
8
mode indicator
Macro mode (11cm –18cm).
The SD card is inserted and will be used as
9 SD card indication
storage for PHOTO and VIDEO
10 Self-timer On/Off
4. Details for camera setting
Photo setting
In photo mode, press the （MODE/MENU） button and hold for 2 to 3 sec to enter photo set
up mode.
Super Fine (Default)/ Fine
Quality Picture quality setting
/Normal
3.0M pixel resolution 2048 x 1536
5.0M pixel resolution 2592 x 1944
Size
8.0M pixel resolution 3200 x 2400
On Self-timer selected, 10 sec delay
Self-timer
Off Turn off the self-timer, disable
Video setting
In video mode, press the MODE/MENU button and hold for 2 to 3 sec to enter video set up
mode.
720P30 HD (1280x720), up to 30fps
Resolution
WVGA WVGA (848x480), up to 60fps
QVGA QVGA (320x240), up to 30fps
Super Fine(Default) /Fine
Quality quality setting
/Normal
60Hz Main American electricity frequency
Flicker
50Hz Main European electricity frequency
Auto (Default) Automatic white balance
White balance selected for Sunny
Sunny
surrounding
White balance selected for cloudy
Cloudy
White Balance surrounding
White balance selected for fluorescent
Fluorescent
surrounding
White balance selected for Incandescent
Incandescent
lighting
Contrast Standard / Hard / Soft Contrast setting
sharpness Standard / Hard / Soft Sharpness setting
AE meter Center / Average / Spot AE meter setting
AE ISO Auto/100/200/400 AE ISO setting
Setup
In photo/video set up mode, select SETUP icon by pressing (
up mode.
Language
TV standard
Date / Time
Display
Format
Default
Auto Power-Off
Description
version
Note: The camera will remain the last setting when it is turned off.

5. Using the camera

5.1 Installing the battery
The battery is not fully charged at shipment and must be fully charged before being
used.
1. Open the battery cover .
2. Insert the 3.7V Li-ion rechargeable battery into the camera.
3. Replace the battery cover.
5.2 Inserting a memory card (not included)
Follow the instructions given below to insert the optional SD memory card into the camera.
1. Turn off the camera .
2. Open the battery door.
3. Insert the SD card into the camera by clicking it in.
Note: There is only one right direction to insert the SD memory card into the slot. Do not force
the card into the slot, or else it may damage both the camera and the SD memory card.
Note: The SD memory card must be formatted before taking photographs. See the following
sections for more information.
5.3 Formatting the memory or SD card
1. In photo/video set up mode, select SETUP icon by pressing( ) button to enter basic set
up mode.
2. Select FORMAT icon by pressing the (
YES by pressing the ( ) button.
3. Press the（
) button to enter basic set
5.4 Setting the resolution
The HD DV camera can be set to different resolutions.
English/T-Chinese/
S-Chinese/French/
German/Italian/ Select display language
Spanish/Portuguese/
Nederlands
NTSC American and Japanese video format
PAL European video format
Year/Month/Day/
Date and Time setting
Hour/Minute
Off No display
Date Display the Date
Time Display the time
Date/Time Display the Date and Time
Yes / No Format the SD card
Yes / No Refresh the default setting
Off Auto Power-Off off
3 min Auto power off in 3 mins if no operation
5 mins Auto power off in 5 mins if no operation
▼ ) button and press （ ） button to confirm, select
）button to confirm formatting the SD card.
