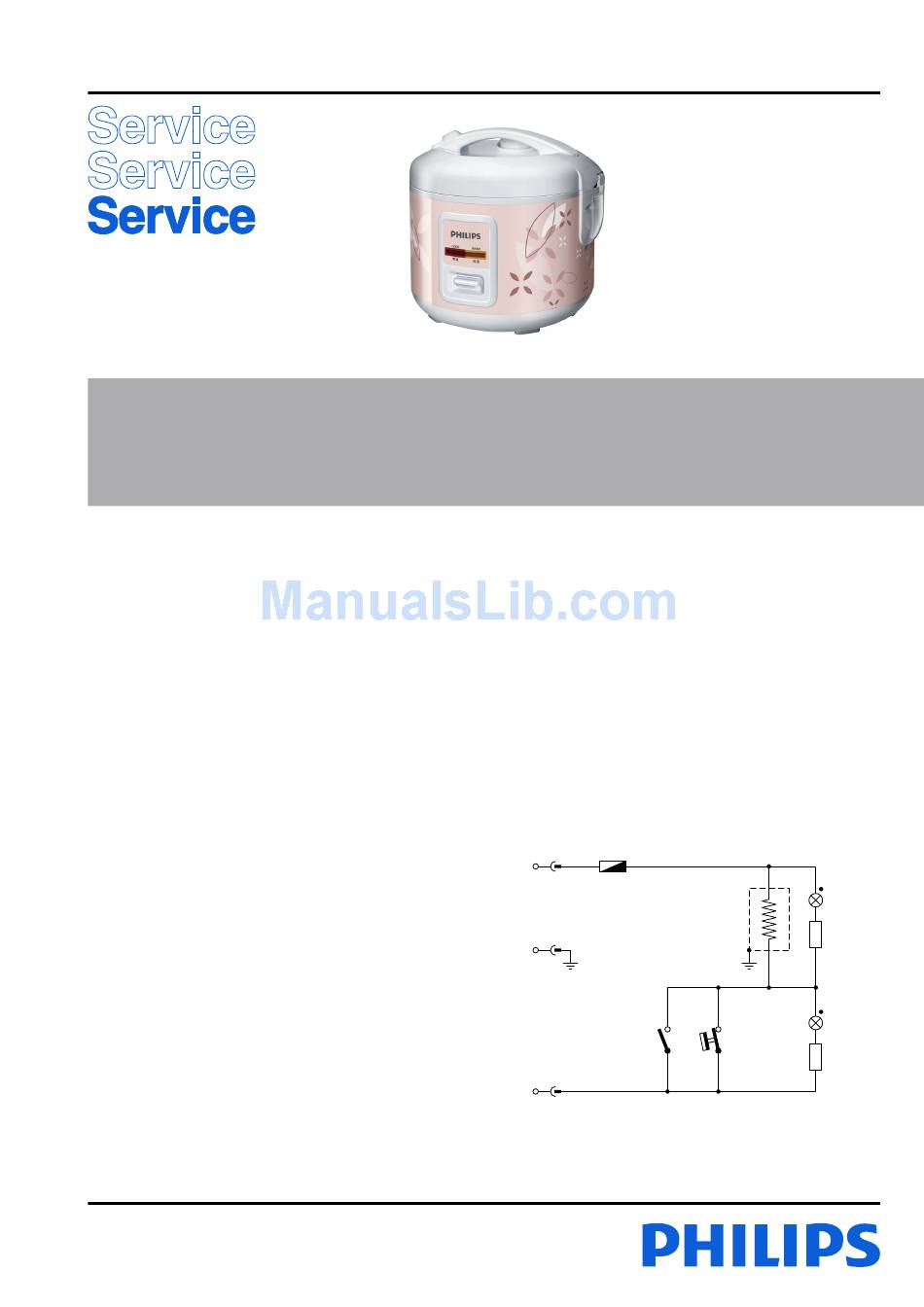

Philips HD4724 Service Manual

Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- Product meets the requirements regarding interference
suppression on radio and television.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as laid
down officially established at this moment.
TECHNICAL INFORMATION
- Voltage : 220 - 240 V
- Frequency : 50 - 60 Hz
- Power consumption : 540 W
- Colour setting : White / with several color prints
- Contents of water : 1000 cc
- Fuse cut-off temp. : 155 °C
- SAP coding : HD4724
Published by Philips Consumer Lifestyle
08/07
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- No specific issues.
REPAIR INSTRUCTION
- No specific issues.
OPTIONAL (accessories)
- Rice scoop, measuring cup, steam tray: see exploded view
for more information.
L
E
N
Printed in the Netherlands
Rice Cooker
Thermal
fuse
Heater
500 W
Microswitch
Thermostat
temp. limiter
© Copyright reserved
HD4724
L2
R
L1
R
Subject to modification
