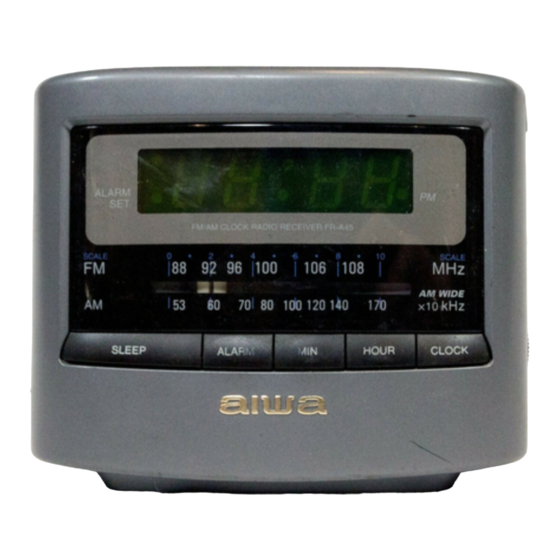

RADIO RECEIVER • This Service Manual contains information about the difference between FR-A45 (EZSC2) and FR-A45 (EZ). If requiring other information, see Service Manual of FR-A45 (EZ), (S/M Code No. 09-972-185-90T). • This Service Manual is for FR-A45 (EZSC2) Silver color.
SPECIFICATIONS Power source: Household current AC 230 V, 50Hz Output: 280 mW (EIAJ)/Max: 400 mW Power consumption: Speaker: 57 mm Frequency range: FM: 87.5 – 108 MHz AM: 530 – 1,605 kHz Antennas: FM wire antenna Ferrite bar antenna for AM Dimensions 141 (W) x 118 (H) x 122 (D) mm (W x H x D):...
