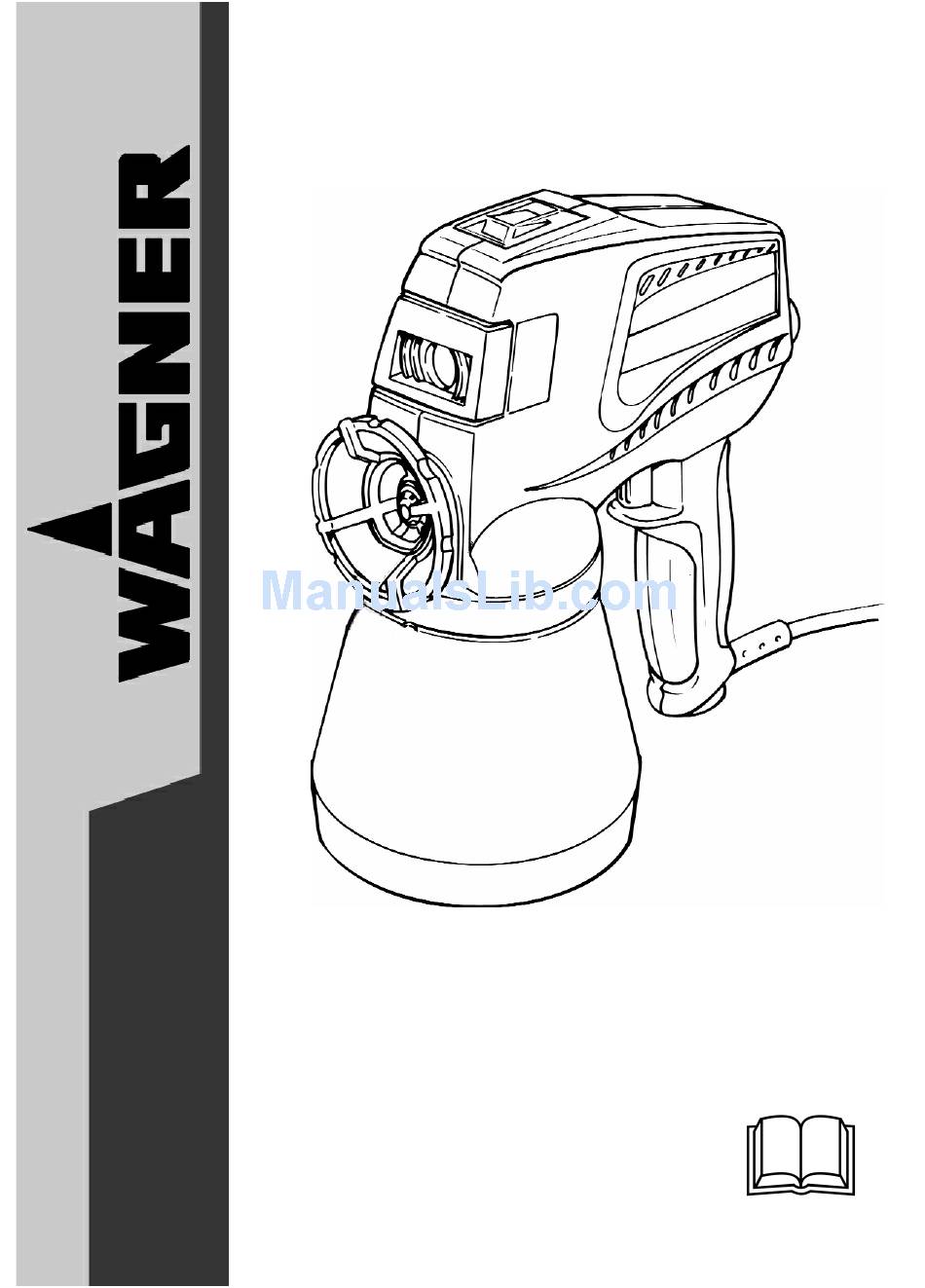

  • Page 1 2 Jahre Garantie 2 years guarantee 2 ans de garantie 2 jaar garantie W 450 SE D/GB/F/NL...
  • Page 2 # 0209058...

  • Page 5: General Safety Instructions

    W 450 SE Congratulations on purchasing your WAGNER spray guns. You have purchased a proprietary device that requires careful cleaning and care to ensure trouble-free functioning. Read the operating instructions carefully before using the tool and observe the safety instructions. Keep the operating instructions in a safe place.
  • Page 6 W 450 SE e) If you work outdoors, use only extension leads that are approved for outdoor use. The use of an extension lead that is suitable for outdoors reduces the risk of an electric shock. 3. Safety of Persons a) Be attentive.
  • Page 7 W 450 SE Remove the plug from the socket before carrying out tool settings, changing accessories or putting the tool away. This precautionary measure prevents unintentional starting of the tool. d) Store unused power tools so that they are inaccessible to children. Do not let persons use the tool who are not familiar with it or who have not read these instructions.

  • Page 8: Safety Instructions For Spray Guns

    ● Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer. ● Do not spray any liquid of unknown hazard potential. Technical Data W 450 SE Max. delivery rate: 20 - 350 g/min Container capacity: 800 ml Max.
  • Page 9 Use of these spray materials can lead to increased wear or corrosion damage in the pump area, which are not covered by the WAGNER-Guarantee. Functional Description of the Spray Gun The spray gun sucks in spray materials. The airless atomisation results when the spray material is pumped at high pressure through the swirl system and the nozzle bore.
  • Page 10 W 450 SE Measuring the Viscosity Dip the viscosity test cup (Illus. ) completely into the spray material. Hold the test cup up and measure the time (in seconds) until the liquid empties out. Compare the measured "runout time" with the handling table for viscosity.

  • Page 11: Spray Technique

    W 450 SE Delivery rate adjustment by 4-step electronic system (Illus. Tapping the electronic pushbuttons reduces the stroke rate by one step at a time, from max. delivery (100 %) in 4 steps to 12 %. With the switch on minimum (12 %), repeated tapping will reset the 100 % stroke rate.

  • Page 12: Cleaning And Maintenance

    Protecting the environment: Paint or solvent remains must not be dumped in drains or pipes. Where waste disposal is carried out by public authorities as a special service free of charge, arrange for collection. Accessories W 450 SE Designation Order No.
  • Page 13 W 450 SE Spare Parts List W 450 SE Name Order No. Paint container with cover 0413 909 Nozzle 0,8 mm 0046 903 Spare valve for lacquers paints 0209 041 for emulsions paints 0209 042 Locking nut 0413 310 Pump housing...

  • Page 14: Important Note Regarding Product Liability

    We expressly reserve the right to fulfil the guarantee. The guarantee expires if the tool is opened up by persons other than Wagner service personnel. Transport damage, maintenance work and loss and damage due to faulty maintenance work are not covered by the guarantee.
  • Page 15 W 450 SE Warning If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, be- cause special purpose tools are required. Warning: Do not connect the blue or brown wire to the earth...
  • Page 16 W 450 SE CE Konformitätserklärung Wir erklären in alleiniger Verantwortung, dass dieses Produkt den folgenden einschlägigen Bestimmungen ent- spricht: 73/23/EWG, 89/336 EWG; 2002/95/EG; 2002/96/EG. Angewandte harmonisierte Normen: EN 60745-1:2003; EN 50144-2-7:2000; EN 55014-1:2002; EN 55014-2:2001; EN 61000-3-2:2005; EN 61000-3-3:2001 CE Declaration of Conformity We declare under sole responsibility that this product conforms to the following relevant stipulations: 73/23/EWG, 89/336 EWG;...
