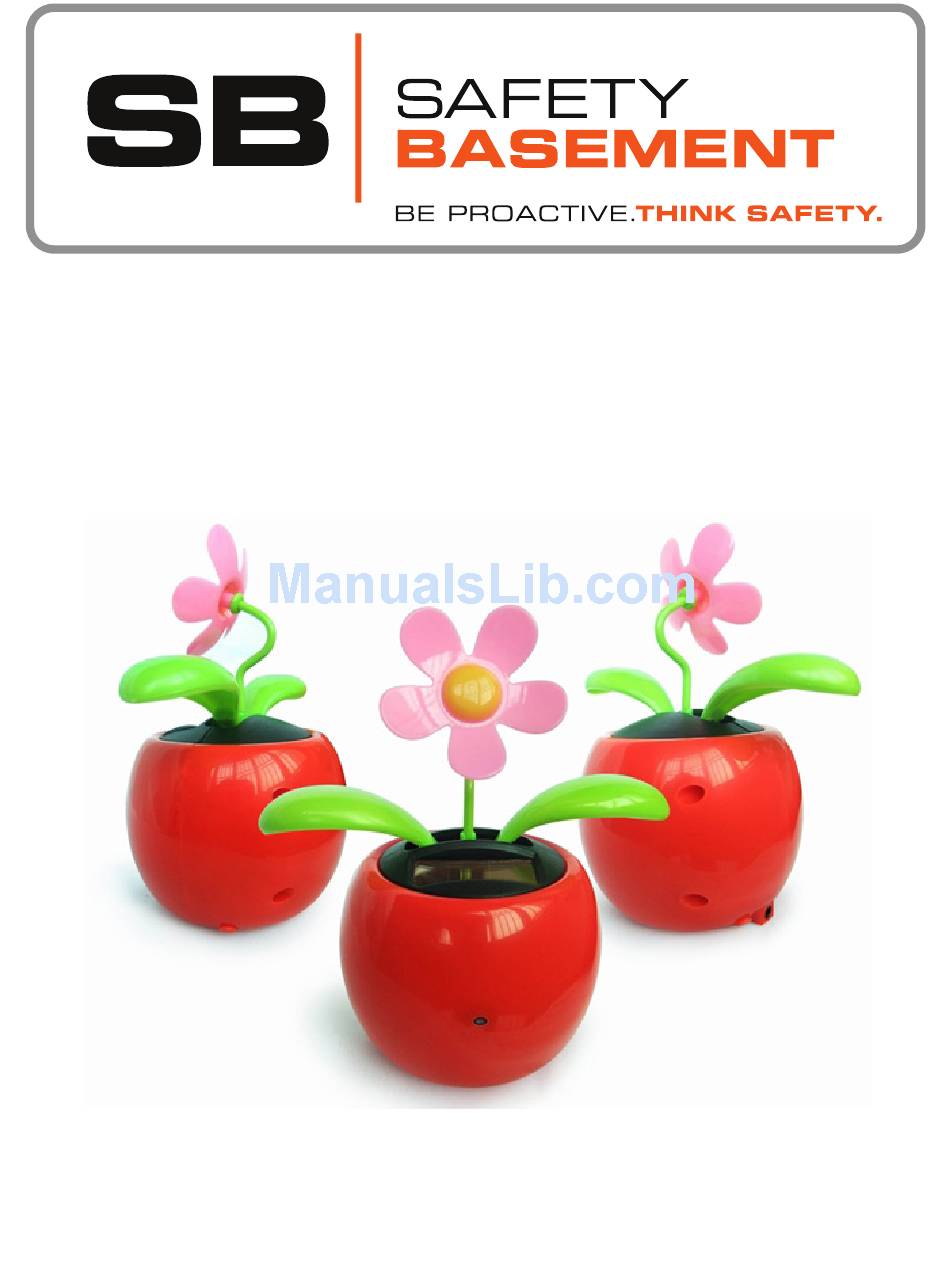

INSTRUCTION MANUAL
ROCKING Flower DVR
SB-MVR0237
Revised: May 29, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement SB-MVR0237
Summary of Contents for Safety Basement SB-MVR0237
- Page 1 INSTRUCTION MANUAL ROCKING Flower DVR SB-MVR0237 Revised: May 29, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com...
-
Page 2: Product Reference
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 PRODUCT REFERENCE RIGHT SIDE VIEW LEFT SIDE VIEW FRONT VIEW USB Port Camera ON/OFF button MODE button SPECIAL FEATURES: 1. Can record in MOTION ACTIVATED mode 2. Can record audio only 3. Can record while plugged in Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... -
Page 3: Before You Start
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 BEFORE YOU START You should fully charge your DVR before first use. Plug in included USB cable. You can then connect it directly to USB port on computer or connect it to wass adapter and plug to wall outlet for faster charging. -
Page 4: Inserting Sd Card
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 INSERTING SD CARD If SD card not in, or you took it out and need to re-insert, please refer to photo below: Insert with gold bars facing up. Card should CLICK in and CLICK out. Please do not FORCE IN or out. -
Page 5: Time Stamp
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 TIME STAMP After charging, the next step is to adjust the time stamp clock. This is the time stamp that is embedded on all videos recorded on this flower DVR. Start by connecting the DATA USB cable to flower THEN to USB PORT on your computer. Please make sure you connect directly to computer and not through USB interfaces. - Page 6 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 TIME STAMP continued 4. You will see a little window after double clicking the DISKTOOL.EXE file. 5. Click ADJUST CLOCK to continue First DOUBLE CLICK Then click this ONCE Page 6 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 7 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 TIME STAMP...continued 6. If time is correct then simply click ADJUST DEVICE. Otherwise click one of the first two options before finally clicking ADJUST DEVICE to confirm time. Click OK to complete time adjust Page 7 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 8 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 PASSWORD You can opt to set password or leave as is. Note that once you set password, YOU MUST REMEMBER IT. There is no way to break into your data. So set it only if you think it is necessary and you will not forget it! 1.
- Page 9 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 PASSWORD 3. Select YES or NO to proceed. 4. Please change password per instructions and close out of all windows. You are now ready for next steps Page 9 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
-
Page 10: Video Recording
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 VIDEO RECORDING This unit records amazing HD video. Begin as follows: 1. Turn unit by pressing and holding ON/OFF button until indicator light turns on. Release. 2. Indicator light will blink briefly and settle on a steady red. 3. -
Page 11: Audio Only Recording
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 AUDIO ONLY RECORDING This unit can record audio only. This will give you a longer battery and memory time. Proceed as follows: 1. Turn unit on to standby mode (steady red) (see instructions above). 2 Press the mode button once. - Page 12 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 PHOTO This unit can take still photos. Proceed as follows: 1. Turn unit on to standby mode (steady red) (see instructions above). 2 Press the mode button twice, slowly. On the second press the indicator light will change to STEADY RED/BLUE.
- Page 13 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 PLAYBACK We suggest that you take out the SD card from the flower DVR and stick it into an SD card adapter to play back! Remove SD card bu PUSHING IN and RELEASING. Card will click out so that you can hold it DO NOT FORCE IT IN OR OUT!!! with fingers and pull out.
- Page 14 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 15: Device Specifications
PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 128 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 128 Kbps WAV Sampling Rate 16 Hz Resolution 1280 x 720 Frame rate 30 fps Page 15 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 16 PRODUCT MANUAL One-Touch Voice Recorder Pen : SB-P640 DEVICE SPECIFICATIONS Memory Built In 4 GB Memory Expansion Battery Type Internal Rechargeable Charger Type via USB port Charge time 6 hours (works while plugged in) Please check our site for the latest available manual for this product. File sizes shown are approximate.
