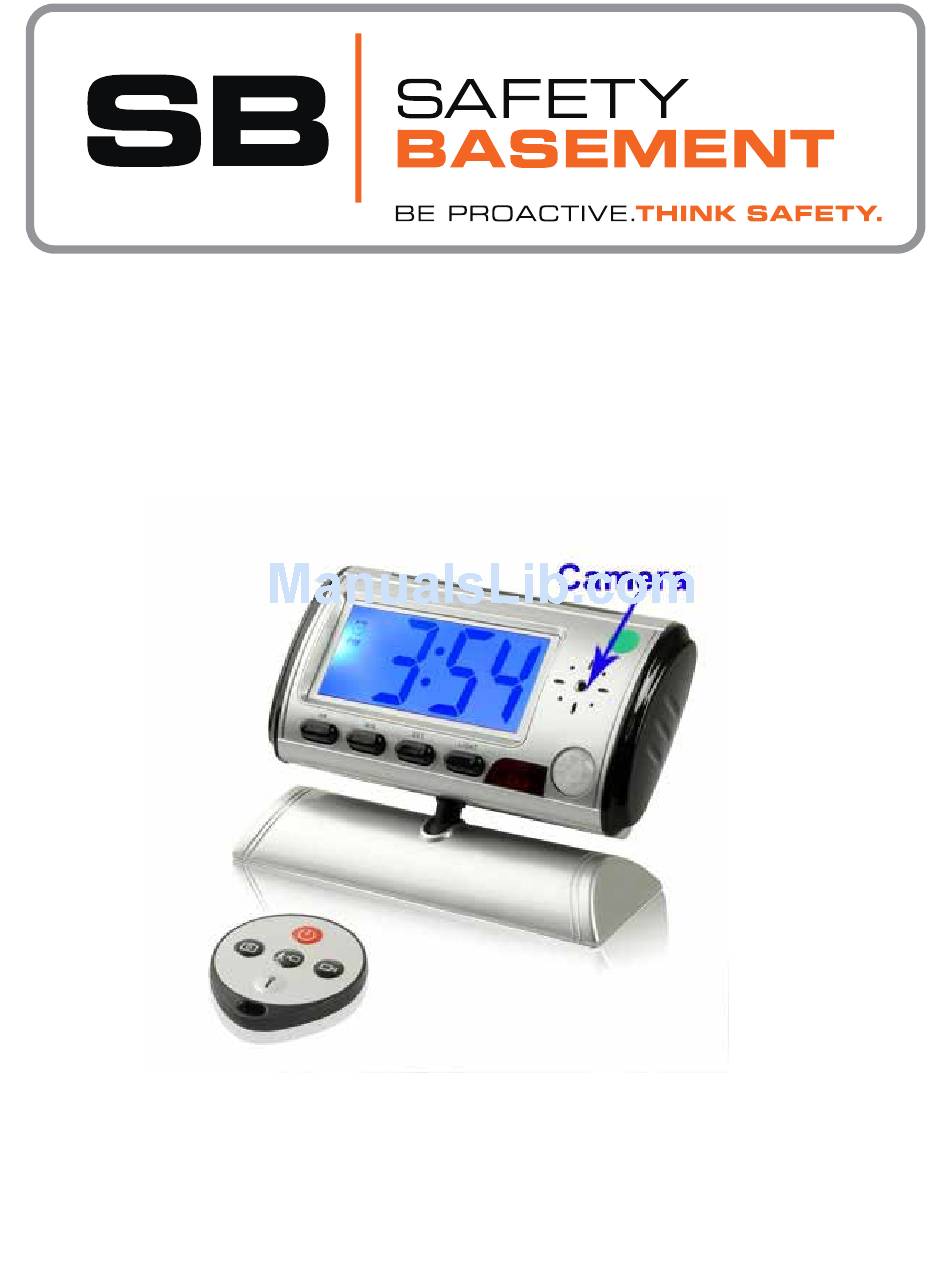

INSTRUCTION MANUAL
Mini HD Clock DVR with Back LCD Screen
SB-CC5210
Revised: NOVEMBER 22, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement SB-CC5210
Summary of Contents for Safety Basement SB-CC5210
-
Page 1: Instruction Manual
INSTRUCTION MANUAL Mini HD Clock DVR with Back LCD Screen SB-CC5210 Revised: NOVEMBER 22, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. -
Page 2: Product Reference
PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 PRODUCT REFERENCE Multi Function clock DVR Wall adapter Remote controller Power adapter/Charger Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... -
Page 3: Installing Sd Card
PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 INSTALLING SD CARD Please ensure that SD card is properly inserted. Read this section fully and carefully! RIGHT WAY! WRONG WAY! Push SD card all the way until you hear a click and SD card disappears inside. Push all the way in and re- Fully inserted lease. -
Page 4: Turning System On
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 BEFORE YOU START - CHARGING Please use reference above to charge your device via computer or wall outlet. Hint. Wall outlet will charge faster. 1. Please charge for 4-6 hours (or overnight the very first time) USB charging and download port TURNING SYSTEM ON... -
Page 5: Clock Time Adjustment
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 CLOCK TIME ADJUSTMENT Press and release the SET button. The numbers on the screen will begin to flash. Start by press- ing the HR button. Each press will change the number. Keep pressing until you get to your current hour. - Page 6 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 TIME & DATE STAMP ADJUSTMENT After adjusting clock, we now recommend that you also adjust the TIME & DATE STAMP, which appears in the video itself. This allows you to know when a video feed was taken. Page 6 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 7 PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 BEFORE YOU START - TIME STAMP Now, use Windows Explorer (the file explorer, not the internet browser), or the Mac Finder to locate your watch. When you plugged it in, your computer automatically connected to it.
- Page 8 PRODUCT MANUAL 5 Coat Hanger DVR with Remote. HDR3002 TIME FILE The TIME.TXT file in proper Your DVR location (drive letter may vary) Save the TIME.TXT to the location shown. Depending on the unit you bought, some might show a DCIM folder, others just VIDEO, or a combination of VIDEO, AUDIO, PHOTO or there might be no folder.
- Page 9 PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 SET THE TIMESTAMP DOUBLE-CLICK (left button) on the TIME.TXT file on your watch. A text editor window will appear. Please adjust the year, month, day, hours, minutes and seconds to your current date and time. Very important that you maintain the format. If you change it by accident, please return it to original format, or just re-save time file if you dont remember! Also note the use of a 24 hour clock format.
-
Page 10: Recording Video
PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 RECORDING VIDEO IR Sensor Indicator lights POWER ON/OFF • Begin by (firmly) pressing POWER button on MOTION DETECTION the remote. Please make sure you point it to Video record the IR sensor. •... -
Page 11: Audio Only Recording
PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 AUDIO ONLY RECORDING Start by having unit in STANDBY mode 1. Press and release the audio record button. Blue light will blink ONCe and turn of. You are now recording audio. 2. To stop audio recording, firmly press and release audio record button. Light will return to steady blue. - Page 12 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RETRIEVING YOUR FILES This unit allows you to retrieve your files without having to remove your SD card, although removing the SD card and plugging direct to computer is the easiest way! METHOD ONE: (Removing SD card) 1.
- Page 13 PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 RETRIEVING YOUR FILES To view your videos and photos, and to listen to your audio recordings, you will need to copy them to your PC first. You may listen to them directly from your DVR, however it may be choppy.
- Page 14 PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 15: Device Specifications
PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 192 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 192 Kbps WAV Sampling Rate 16 Hz Video Format .AVI Codec MJPG Bit Rate 29.8 Mbps Resolution 720x480 pixels (16:9) Frame Rate... - Page 16 PRODUCT MANUAL Coat Hanger DVR with Remote. HDR3002 DEVICE SPECIFICATIONS Memory Built In Memory Expansion 2GB - 32GB Battery Type Internal Rechargeable for camera Charger via USB port or included adapter Please check our site for the latest available manual for this product. File sizes shown are approximate.
