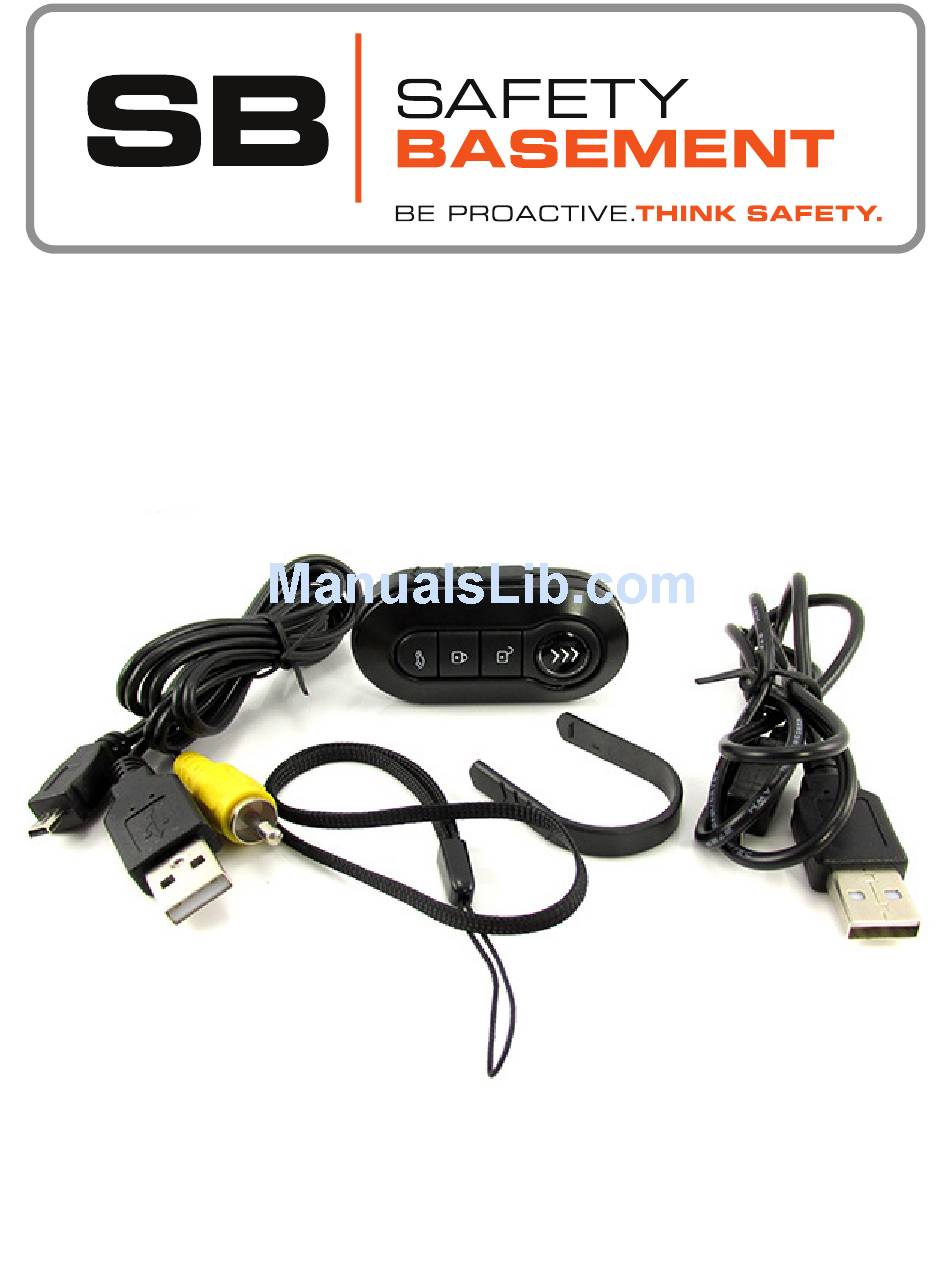

INSTRUCTION MANUAL
ULTRA HD Keychain DVR, 1080P
SB-WKR1400
Revised: October 17th, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com for the latest
available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement SB-WKR1400
Summary of Contents for Safety Basement SB-WKR1400
-
Page 1: Instruction Manual
INSTRUCTION MANUAL ULTRA HD Keychain DVR, 1080P SB-WKR1400 Revised: October 17th, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. -
Page 2: Product Reference
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 PRODUCT REFERENCE NIGHT VISION LAMP ON/OFF, VIDEO Button RIGHT SIDE MODE button Concealment cover Micro SD card LEFT SIDE Night vision LED Camera lens Indicator light USB Port VITAL INFORMATION: Charging time: About 4-6 hours for a full charge. Charge overnight the first time you get it. BATTERY LIFE: About 90 minutes Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 3 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 The ULTRA HD night vision keychain recorder features 1920*1080 resolution video and takes 4032*3024 resolution photos. This unit also records in the dark using the embedded IR lights in Night Vision mode. Memory capacity is about 12 minutes per 1GB of storage. Battery life runs about 90 minutes on a full charge.
- Page 4 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 BEFORE YOU START - CHARGING & TIME You will first need to charge your DVR and to set time. We highly recommend that you set the time stamp after charging unit, so that your recordings are accurately timed from the get You will need to download the time stamp from the same section where you got this manual, TECH SUPPORT tab, to get the time file.
-
Page 5: Setting Time Stamp
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 SETTING TIME STAMP 1. Plug in the keychain DVR into your computers USB port. 2. Locate removable Disk. To to START menu > COMPUTER 3. Right-click in space below DCIM and select NEW>TEXT DOCUMENT Page 5 Page 5 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 6 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 SETTING TIME STAMP continued 4. Open the text document and type in the current time and date. THE FORMAT MUST BE EXACT! Type in the following format: 20131015114500 Y 2013(year)10(month)15(- day)11(hour)45(minutes)00(second)
-
Page 7: Recording Video
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RECORDING VIDEO NIGHT VISION LAMP ON/OFF VIDEO RECORD MODE button LEFT SIDE Concealment cover Indicator light (NOTE: Remove concealment cover so that you can see the indicator light while you get unit ready and see the indicator light. - Page 8 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 RECORDING VIDEO WHILE PLUGGED IN This is one of those few units that will work while plugged in to a power source. This means recording time is infinite, as long as your memory capacity is there. There is a small step you need to take to get it into working mode while plugged in.
-
Page 9: Taking Photos
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 TAKING PHOTOS 1. Turn unit on to standby position (steady red) 2. Press MODE button once. Indicator light (and one vibration) will be steady blue 3. To take one picture, jsut press the ON/OFF button. The blue light will blink ONCE and return to steady blue. -
Page 10: Recording Audio Only
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 RECORDING AUDIO ONLY ON/OFF VIDEO RECORD LEFT SIDE MODE button Indicator light STEADY BLUE while in PICTURE STANDBY MODE. Turn unit on to standby mode 2. Press MODE button ONCE, THEN AGAIN. Unit will now be in a RED/BLUE standby mode (you will need to look carefully to also see the blue light. -
Page 11: Retrieving Files
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 RETRIEVING FILES We recommend that you remove SD card out of device and insert it into a card reader. This will give you best upload time, since the files are really large. Page 11 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 12 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 13: Device Specifications
PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 128 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 128 Kbps WAV Sampling Rate 16 Hz Video Format .AVI Codec MJPG... - Page 14 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Ultra Keychain DVR, 1080P. SB-KR1400 DEVICE SPECIFICATIONS Memory Built In Memory Expansion 2GB - 64GB Battery Type Internal Rechargeable for camera battery is non repleaceable Charger via USB port or included adapter Please check our site for the latest available manual for this product.
