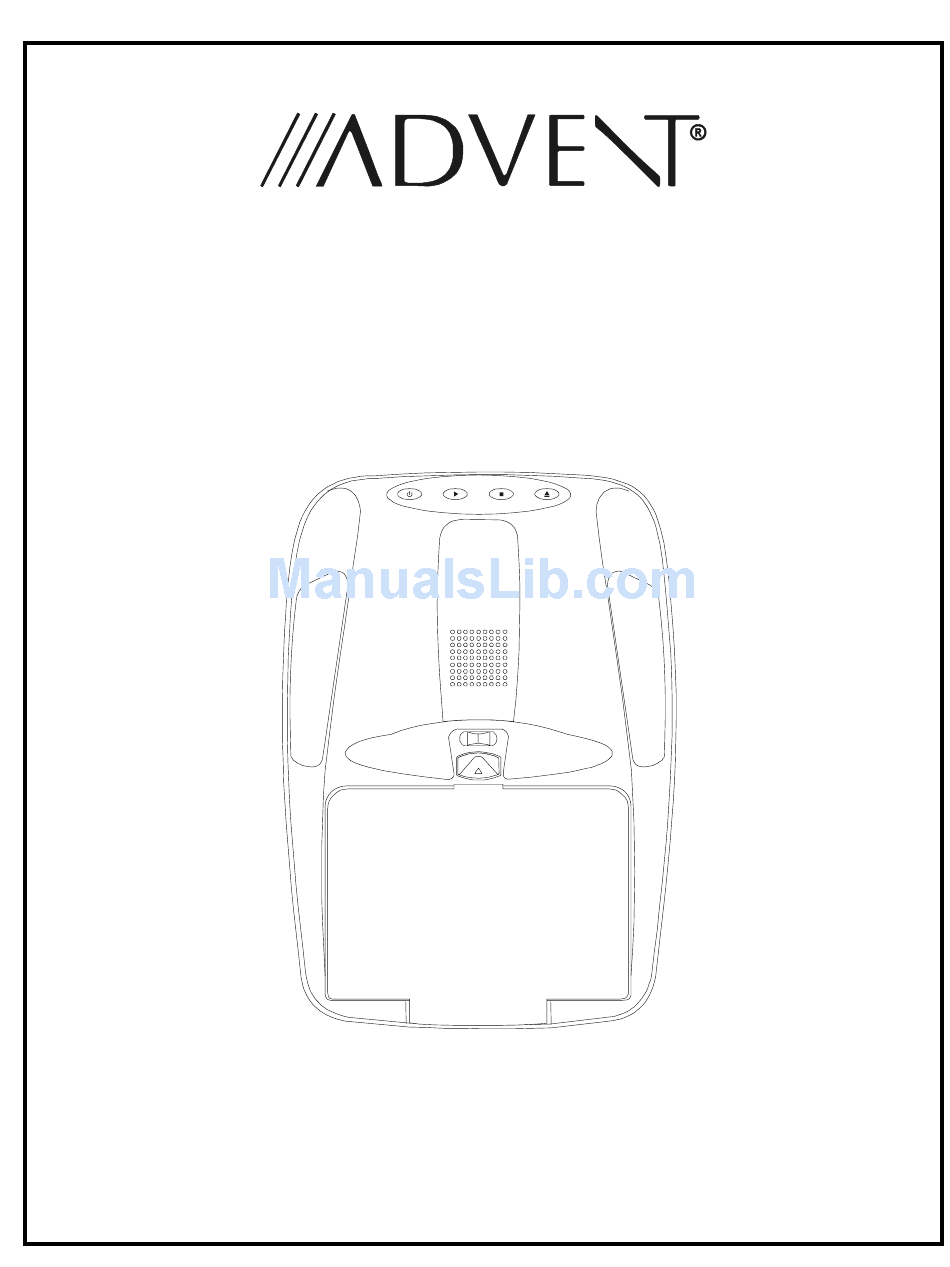

Page 1: Installation Guide
ADV100S/ADV100P Drop Down DVD Video Monitor POWE R PLAY STOP EJE CT OFF AUTO Installation Guide... - Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side ob- servation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in ‘park’...
-
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: ADV100S/ADV100P Video Monitor (1 pc) Trim Ring (1 pc) Hardware Package: ♦ #4 x 5/16” Screws (8 pcs) ♦ #8 x 5/8” Self Drilling Screws (4 pcs) ♦ #8 Washers (4 pcs) Remote Control (P/N 136B3469) (1 pc) - Page 4 GENERAL INSTALLATION APPROACH: 1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Tuner, RF Modulator/external amp, remote headphones, DVD, etc.). 2) Review all manuals to become familiar with electrical requirements and hook ups. 3) Decide upon mounting locations of all components and method of mounting. 4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting wire harnesses will need to be located.
-
Page 5: Vehicle Preparation
VEHICLE PREPARATION: 1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Generally, this wire can be found at the ignition switch or fuse-box. 2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories. - Page 6 MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini-console installation. If the video monitor is to be installed in a vehicle with the mini console, the console may need to be trimmed to fit the contour of the vehicle headliner. In this installation, the video monitor is mounted directly to the overhead cross-member in the roof using the mounting screw bosses.
- Page 7 MOUNTING THE MINI-CONSOLE Roof Roof Support Headliner 12” x 9” x 3/4” Plywood Block Self-Tapping Screws (not supplied) Mini Console Video Unit #8 Flat Washer #8x5/8" Self-Tapping Screws...
- Page 8 ADV100S/ADV100P Dome Light Harness item #5 Red/Black (Lamp On) Violet/Brown (Lamp Auto) Black/Red (Lamp Common) RCA FEMALE CONNECTOR AUDIO OUT RIGHT (RED) RCA FEMALE CONNECTOR AUDIO OUT LEFT (WHITE) RCA FEMALE CONNECTOR VIDEO OUT (YELLOW) Accessory Harness item #2 RCA MALE...
-
Page 9: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply volt- age to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light. -
Page 10: Troubleshooting
