- Page 1 POWER PLAY STOP EJEC T ADV100S/ ADV100P DROP-DOWN VIDEO OFF AUTO MONITOR WITH BUILT-IN DVD 128-7316 128-7316 1 of 26...
- Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function then the vehicle is in ‘park’...
-
Page 3: Safety Precaution

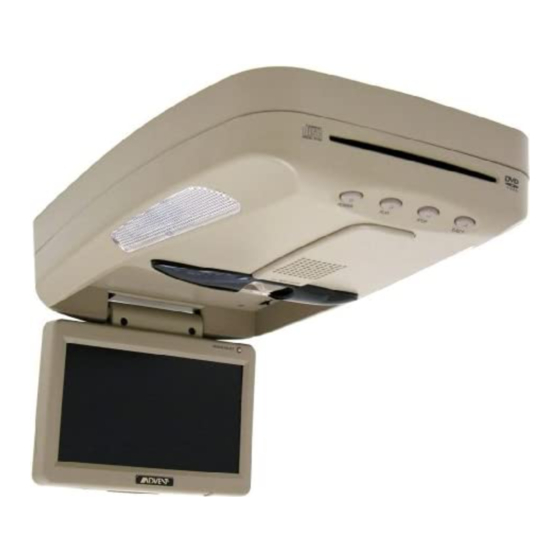

Features Congratulations on your purchase of the Advent • • • • • Slot-In DVD PLayer ADV100S/ADV100P DVD Player with Drop-Down • • • • • 7 Inch TFT (Thin Film Transistor) Active Video Monitor. The ADV100S/ADV100P has been designed to give you and your family many years of Matrix LCD (Liquid Crystal Display) Monitor video entertainment in the mobile environment. -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram POWE R PLAY STOP EJECT POWER PLAY STOP EJECT OFF AUTO OFF AUTO Open Position Closed Position 128-7316 4 of 26... - Page 5 On – Turns on the dome lights. 8. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote control to operate the ADV100S/ADV100P OSD (On Screen Display) and to control other accessories in the system.
-
Page 6: Remote Control Operation
(+ or -) is observed. 3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will only operate the ADV100S/ADV100P. It is not a universal remote control and will not control equipment from other manufacturers... - Page 7 Function control is available on the unit and the remote control. 1. DVD POWER ON/OFF Button* Press this button to turn the ADV100S/ADV100P on. Press the button again to turn the ADV100S/ADV100P off. 2. DISPLAY Button Press to display DVD Disc current information.
- Page 8 5. AUDIO Button Press to display & select AUDIO language & channel. Each time you press the button, the language or channel changes. Note: The languages & channel you can select are vary from disc to disc. 6. ZOOM Button Press this button to zoom the picture.
- Page 9 10. A-B REPEAT Button Allows the user to repeat play of a DVD or CD from point A to point B. 11a. Select Down (-) Button Used this button to make picture adjustments in picture select mode. b. Select Up (+) Button Used this button to make picture adjustments in picture select mode.
- Page 10 13. PIX Button (PICTURE SELECT) Each time this button is pressed, the on screen picture adjustment display the “adjustment bars” for CONTRAST/ BRIGHTNESS, COLOR or TINT. Once the desired adjustment bar is displayed, use the Select up/Select Down buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is depressed.
- Page 11 20. SETUP Button Allows the user to select the DVD player’s options (Display, OSD Language, Defaults, Parental Control, Password, Exit Setup) 21. REPEAT Button Allows the user to repeat various positions of a DVD, CD or MP3. 22. NEXT ( | ) Button Allows the user to skip to the next chapter or track.
-
Page 12: Overhead Dome Lights
PO W ER PL A Y ST O P EJ EC T The lights integrated into the ADV100S/ADV100P are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights on. The OFF AUTO... -
Page 13: Remote Sensor
Accessories Wireless Headphones The ADV100S/ADV100P includes a built-in infrared transmitter for use with Advent wireless headphones (Part Number IRHSN). The volume can then be adjusted using the controls on each headset. The wireless headphones must be used within a line of sight from the transmitter, as infrared transmissions, like visible light, travel only in a straight line. - Page 14 Source button on the remote control until “AV1” is displayed on the screen. Turn the video source component on with its power button or remote control. The ADV100S/ADV100P is now ready to play the audio and video signals from the source connected to the AV1 input.
-
Page 15: Dvd Basics
DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. -
Page 16: Settings And Adjustments
Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Menu Using the setup menu you can do the initial setup and set the various options. You can also select a language for the on-screen display, the setup display, and limit play back by children. - Page 17 Settings for Display Press the SETUP button and select Display. The DISPLAY SETUP allows you to adjust screen setting (aspect ratio) Press and then use the ( )buttons to select the appropriate settings. 4:3 / PS This displays the wide picture on the screen with a portion of the left &...
- Page 18 Settings for Parental (Parental Control) This section of the SETUP Menu allows user to control the content of movie playback from G to NO_PARENTAL. The Parental Control function allows you to limit viewing to your preference. 1. Use the buttons to select G (Children) PG 13 NC-17...
- Page 19 Settings for Password (Parental Control Password) Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental control password. Press and then press Enter. OLD PASSWORD Input the OLD password or the default password (4 digits) using the numeric buttons NEW PASSWORD Input a NEW password (4 digits) CONFIRM PWD...
-
Page 20: Playing Audio Cds
Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track , the total amount of tracks, and the amount of the time for the track playing. Press the DISPLAY button on the remote to change the DISPLAY Banner. -
Page 21: Playing Mp3 Discs
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. - Page 22 Selecting Folders and Songs When an MP3 disc is inserted in the player, the screen appears automatically. You can change folders and songs through the menu. The DVD player plays the songs in order they were burned on to the disc. 1.
-
Page 23: Troubleshooting
Troubleshooting PROBLEM SOLUTION PROBLEM SOLUTION • • Check the condition of the vehicle’s Make sure your DVD is connected Poor in vehicle No sound or radio antenna. properly. Make sure all cables are radio reception distorted sound • Verify that the antenna is fully raised. securely inserted into the appropriate (FM modulator •... - Page 24 SOLUTION PROBLEM Picture is • The disc might be damaged. Try distorted another disc. • It is normal for some distortion to appear during forward or reverse scan. No forward or • Some discs have sections that reverse scan prohibit rapid scanning or title and chapter skip.
-
Page 25: Replacement Parts
Replacement Parts Specifications Remote Control 136B3469 LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336,960 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (20 - 80º C) Backlight life 10,000 Hours Video Display System NTSC/PAL Low Level Audio Output... - Page 26 128-7316 26 of 26...
- Page 27 P r o d u c t s ADVENT (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
- Page 28 128-7316 © 2005 ADVENT, 150 Marcus Blvd., Hauppauge, NY 11788 128-7316 28 of 26...
