Variquest Awards Maker 400 User Manual

Variquest awards maker 400 user's guide
Hide thumbs Also See for Awards Maker 400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

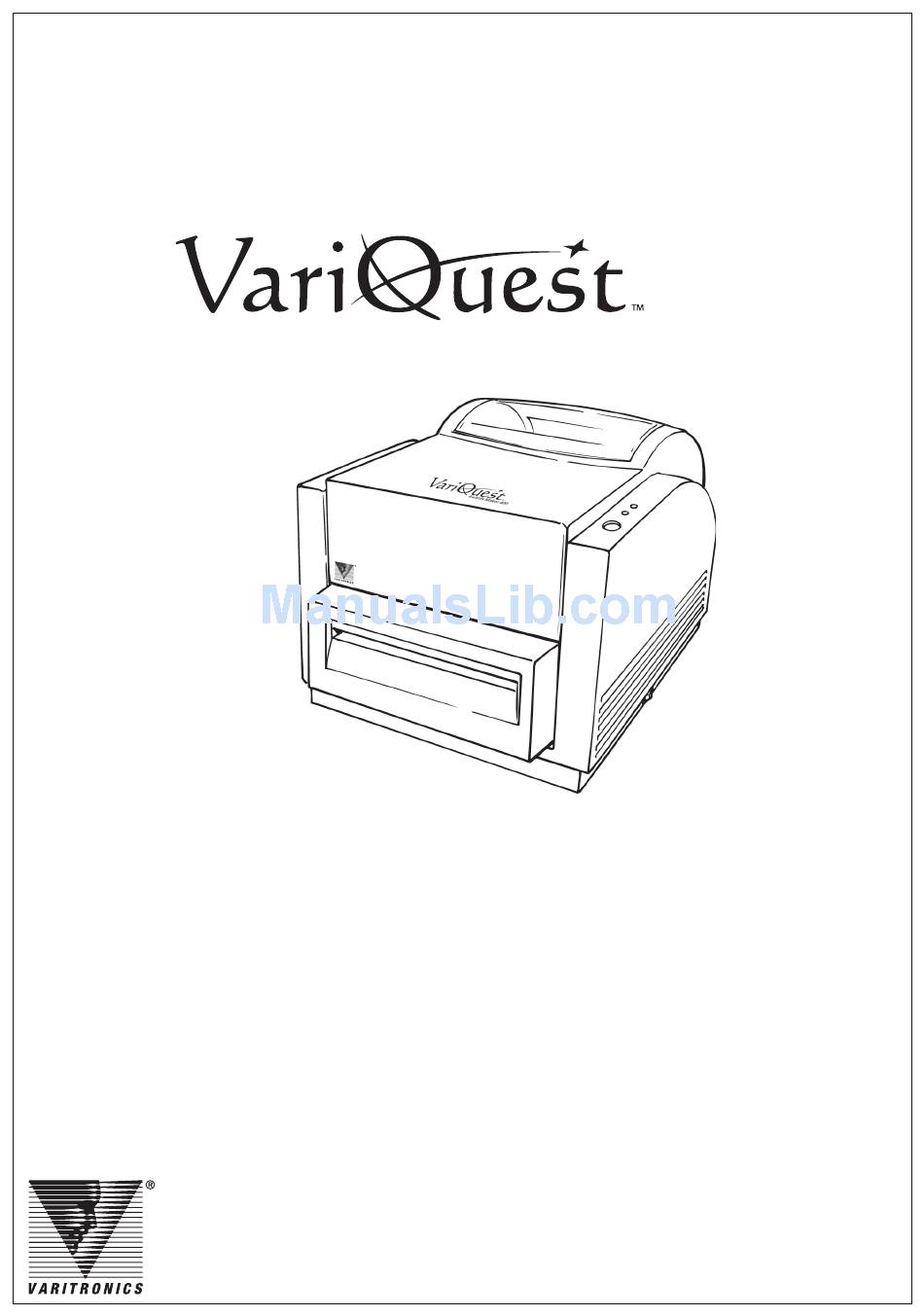

Awards Maker 400
User's Guide
visit www.variquest.com or call 1-800-328-0585

Advertisement

Table of Contents
loading

Related Manuals for Variquest Awards Maker 400

Summary of Contents for Variquest Awards Maker 400

  • Page 1 Awards Maker 400 User’s Guide visit www.variquest.com or call 1-800-328-0585...

  • Page 2: Table Of Contents

    4. Loading the Sticker Media ....................3 5. Loading the Ribbon ......................6 6. Operating Functions ......................8 7. Connecting the Printer to the VariQuest™ Design Center 1000 or PC ......9 8. Troubleshooting ....................... 9 9. Cleaning the Print Head ....................11...

  • Page 3: Copyright

    VariQuest™ Awards Maker 400 will be free from defects in material and workmanship for one (1) year from the date of customer purchase. Original serial number must appear on product. Removal of serial numbers will void this warranty and any equipment and accessories that have been altered or modified in any way and are not as originally purchased will void this warranty.

  • Page 4: License Agreement

    Brady Worldwide, Inc. (hereafter "Brady") hereby grants you a non-exclusive, nontransferable license to use this VARIQUEST™ Software (hereafter “Software”) and the accompanying documentation according to the following terms: LICENSE GRANT: You may 1) install the Software on all computers located at the invoiced site for this Software; 2) use and transmit the Software on a network within this invoiced site;...

  • Page 5: Setting Up The Variquest™ Awards Maker 400

    1. Setting up the VariQuest™ Awards Maker 400 Note: If you have not already unpacked your VariQuest™ Awards Maker 400, please follow the steps in the Unpacking the VariQuest™ Awards Maker 400 document. The Awards Maker 400 is shipped in reusable packaging materials. Save these packaging materials for future use in case you need to ship the Awards Maker 400.

  • Page 6: Variquest™ Awards Maker 400 Parts And Features

    3. VariQuest™ Awards Maker 400 Parts and Features Ready Indicator Power Indicator Top Cover Power Switch Cutter Feed Button Sticker Media Holder Release Levers Ribbon Pick-Up Roll Holder...

  • Page 7: Loading The Sticker Media

    Ribbon Supply Holder Thermal Print Head 4. Loading the Sticker Media 1. Lift the top cover to expose the printing supplies compartment. 2. Remove the sticker media holder.
  • Page 8 3. Load the media roll onto the holder and place the holder back into place. Media Holder Media Compartment 4. Lead the sticker so that it touches the roller. The media guides can be adjusted to fit different sticker sizes. 5.
  • Page 9 6. Close the top cover and turn on the printer or press the Feed button if the printer is already on. Feed Button Note: The Feed button will not drive the printer to cut. The cutter will cut only when the user sends an actual job from the VariQuest™ Design Center Software.

  • Page 10: Loading The Ribbon

    5. Loading the Ribbon 1. Lift the top cover to expose the printing supplies compartment. 2. Unlatch the print head module by pushing the two release levers on the sides. Sticker Media Compartment Release Levers Print Head Module...
  • Page 11 3. Turn over the print head module to expose the ribbon supply holder. Ribbon Supply Holder 4. Unwrap the ribbon roll pack and separate the supply roll from the bare pick-up roll. 5. Roll the clear part of the supply roll onto the pick-up roll until you see the ribbon color. 6.

  • Page 12: Operating Functions

    8. Turn the print head module wheel away from you a few times to ensure the ribbon is tightly wound. Wheel 9. IMPORTANT! Press down the print head module on both sides firmly until you hear a click on each side. Snap in one side at a time to ensure proper closure. Tip.

  • Page 13: Connecting The Printer To The Variquest™ Design Center 1000 Or Pc

    7. Connecting the Printer to the VariQuest™ Design Center 1000 or PC Important! Use the USB cord that is supplied with your printer to connect to the VariQuest™ Design Center 1000 or PC. Do not use a parallel or serial cable.
  • Page 14 To continue your print jobs after the error conditions have been corrected, simply press the Feed button or restart the printer by turning the power off and on. Make sure that the LED is not blinking and remember to resend your files by going into the VariQuest™ Design Center Software and reprinting the job(s).

  • Page 15: Cleaning The Print Head

    Clean the print head with a foam-tipped swab dampened with isopropyl alcohol. Do not touch the heater element with your fingers. Do not soak the foam-tipped swab excessively. 10. Technical Information Specifications VariQuest™ Awards Maker 400 Printing Method Thermal Transfer Printing Resolution...
  • Page 16 Specifications VariQuest™ Awards Maker 400 Agency Listing UL, CUL, FCC Class A Operation 40ºF - 100ºF ; 10-90% non-condensing Environment Cutter Rotary Cutter NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 18 © 2006 Brady Worldwide, Inc. All Rights Reserved 20146-00 12/06...
