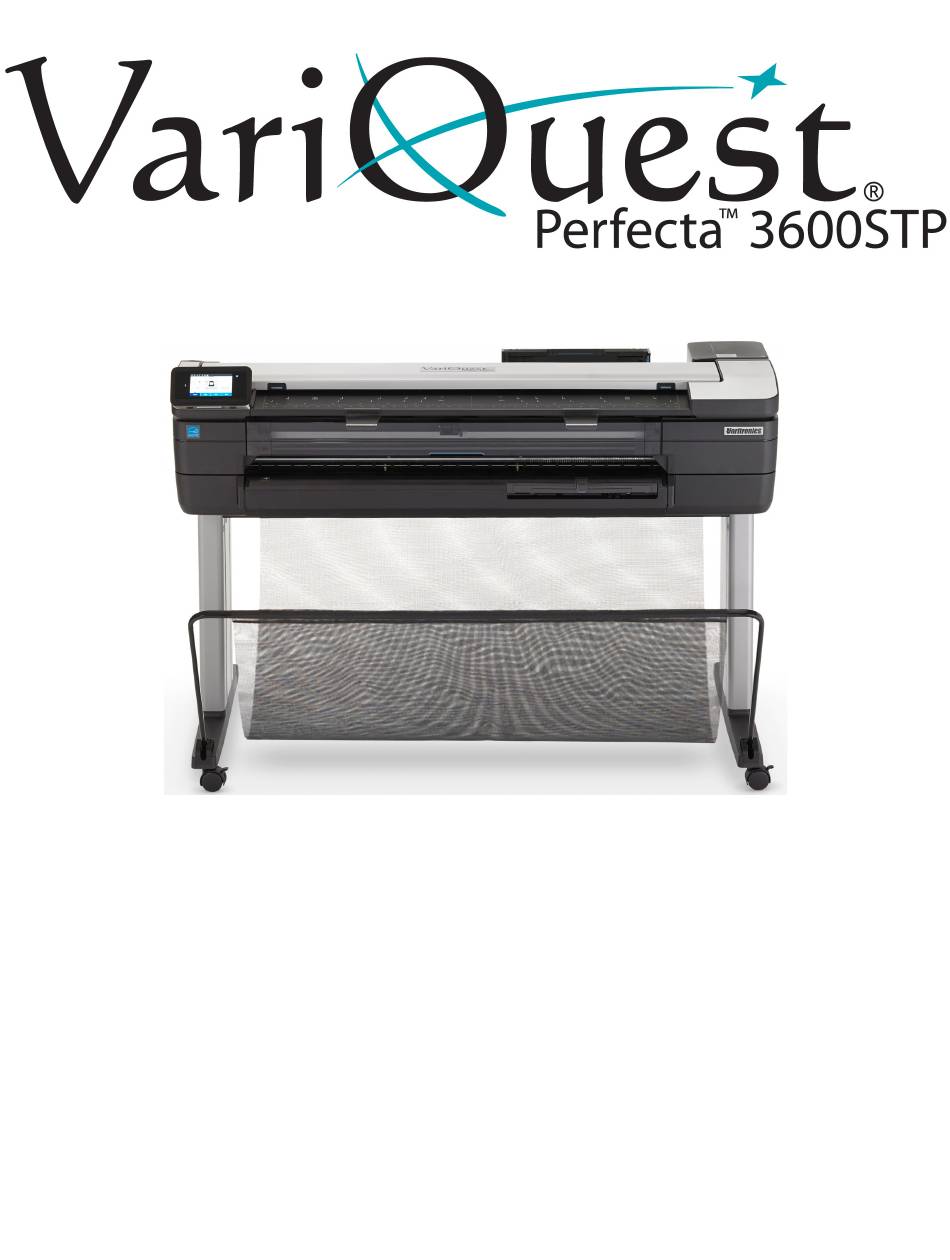

- Page 1 Perfecta™ 3600STP Poster Design System Assembly Instructions...
-
Page 2: Package Contents
Package Contents Unpack Printer Stand The following items are included in the shipping container: 1. Cut the straps and open the box. Important To avoid scratches, install a blanket on the floor. 2. Remove the documentation and carton tray on top of the printer. Notes: •... - Page 3 Assemble Printer Stand 6. Slide foam to the opposite side and place the other leg into the slot on the cross brace. 1. Fix one foot to a leg with 4 screws. Important 2. Repeat the process for the other foot and leg. Make sure the 2 basket supports are on the same side.
- Page 4 9. Attach the outside of leg to the cross-brace with 2 screws. Repeat 13. Locate and unpack the basket frame. with the other leg. 14. Remove tape and unfold the fabric. 10. Fully tighten all of the screws on the stand. 15.
- Page 5 Attach Printer to Stand Remove Printer Packaging 1. Open the printer box. 1. Make sure the stand and printer are in the correct position for 2. Remove tape from film, then remove tray and box. assembly. 2. Look for the marks on the printer for correct installation. 3.
- Page 6 4. Check metal stoppers on back of the stand to ensure printer is in 7. Locate the 4 screw-in blue knobs. the correct position. 8. Attach the printer to the stand from underneath with the 4 screw-in blue knobs. 5. Check alignment of lateral marks on printer for correct positioning. 9.
- Page 7 Install the Re-feed Preventer 4. Remove all transparent tape from the printer. 5. Remove the desiccant bag. 1. Note the mark on the scanner input platen for use as a reference position. 2. While keeping contact against the bottom of input platen, slide re- feed preventer into the slot of the scanner input platen.
- Page 8 8. Open printhead cover and remove protective foam. 11. Open the front window. Important Do not touch the printhead or blue latch. No printhead installation is required. 9. Close printhead door. 12. Rotate and remove the 2 pins. 13. Remove the protective foam. 10.
- Page 9 14. If all protective foams are removed, close all open covers and 17. After all cables are connected, power on the printer. windows. 18. Select and confirm your Language and Country/Region. 15. Connect power cable to the printer and an outlet. 16.
- Page 10 19. At the prompt to add ink cartridges, open the ink cartridge cover 21. Extend the input and output trays. and insert the 4 ink cartridges, clicking them into place. When done, close the cover. 22. When prompted, load an A4/Letter sheet into the multi-sheet tray (1) and adjust tray (2).
-
Page 11: Technical Support
Technical Support Load Paper Rolls 1. Load the paper roll onto the spindle. Be sure paper winds over (in For technical assistance, please contact your authorized VariQuest front of) the roll. dealer or the VariQuest Technical Support team: • Email: techsupport@variquest.com •... - Page 12 Y2900451 Rev A 01/17 ©2017 Varitronics, LLC. All rights reserved.
