INSTALLER/CONSUMER
SAFETY INFORMATION
Read and save
these instructions.
This book contains your installation instructions
and should be kept in a safe place. For you to
realize all the advantages and use of the reli-
able service that has been engineered into your
Temco fireplace, you must carefully follow all of
the instructions contained in this book regarding
installation and operation of the fireplace.
These instructions should be read carefully in
their entirety before beginning installation of the
fireplace.
It is suggested that you wear work gloves and
safety glasses to protect your hands and eyes
when installing your fireplace. NOTE: Authori-
ties having jurisdiction (i.e. building inspectors,
fire marshals, etc.) should be consulted before
installation to determine the need to obtain a
permit.
When installing the Blower Kit, it is necessary to
bring the power source to the fireplace before
walls are enclosed. Refer to Blower Kit instruc-
tions.
These fireboxes are approved as universal
fireboxes and can be paired with any ANSI
Z21.11.2 approved vent-free log set. The vent-
free log manufacturer's instructions - includ-
ing their required dimensional clearances for
firebox size, - must be followed.
Refer to the manual that is packed with the log
set for operating instructions.

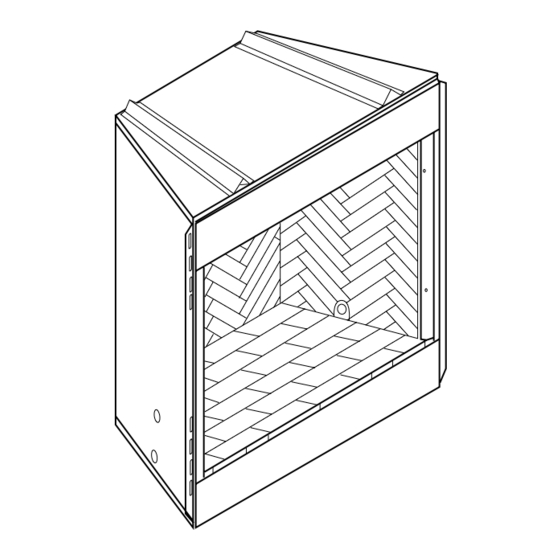

Vent-Free Firebox
Models: UVSRC36A
UVSRC42A
Homeowner's Installation and
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
79006
Operating Manual
ADCH39/45C cover
2/04
20007435 6/06 Rev. 5
Advertisement
Table of Contents
Related Manuals for Majestic fireplaces UVSRC36A
Summary of Contents for Majestic fireplaces UVSRC36A
-
Page 1: Safety Information
Vent-Free Firebox Models: UVSRC36A UVSRC42A INSTALLER/CONSUMER SAFETY INFORMATION Read and save these instructions. This book contains your installation instructions and should be kept in a safe place. For you to realize all the advantages and use of the reli- able service that has been engineered into your Temco fireplace, you must carefully follow all of... -
Page 2: Table Of Contents
Hearth Extension ........................ 7 Pre-Wiring of Junction Box ....................7 Electrical Services ......................7 BL-4 Blower Installation ...................... 8 UVSRC36A Installation ....................... 8 UVSRC42A Installation ....................... 8 Install Optional Outside Air Kit .................... 9 Replacement Parts ........................11 Accessories ..........................12 Servicing ............................. -
Page 3: Fireplace Dimensions
Combustibles not Re- quired at this Point Rough Opening Height 1/2” Clearance Combustibles not Required at this Point Gas Line Access Fig. 1a UVSRC36A and UVSRC42A specifications and framing dimensions. UVSRC36A UVSRC42A 79006 36” 42” ADCH39/45C 27³⁄₄” 27³⁄₄” SPECS 39¹⁄₄”... -
Page 4: Installation Instructions
UVSRCA Vent-Free Fireboxes Installation Instructions If the fireplace is to be installed on a raised wooden Choosing the Location for Your Fireplace platform, the platform must be a continuous level sur- face. The fireplace must be secured in place so it can- Figure 1 shows some of the many ways your fireplace not shift positions. -
Page 5: Installing The Firebox
The width of the framed opening must be 39¹⁄₄" for (4) screws supplied with a Phillips screwdriver. UVSRC36A or 45¹⁄₄" for UVSRC42A. (Fig. 4) Two (2) screws are located across the top of the The entire fireplace can be elevated above the floor fireplace opening approximately 5”... -
Page 6: Nailing Flanges
T226 Insulation of the Fireplace Enclosure T226 When in a chase or an outside wall, the fireplace en- framing dimensions UVSRC36A 39¹⁄₄” 44¹⁄₄” 21” 22” closure should be insulated like any other wall of your 2/04 home. -
Page 7: Finishing The Fireplace
UVSRCA Vent-Free Fireboxes Hearth Extension Finishing Material A hearth extension may be used but is not required for Stud these fireboxes. Noncombustible Material Insulation A raised hearth extension may be used as shown in Caulking or Sealant Figure 8. Hearth Brick Seal with Noncom- Side View bustible Material... -
Page 8: Blower Installation
Code, CSA C22.1. two right panels in the fireplace. Read all the installation instructions for the appli- cable appliance before beginning the installation of the blower. UVSRC36A Blower Installation Blower Ac- Back Firebrick cess Cutout in Hearth Step 1: Carefully unpack the blower assembly and familiarize yourself with the parts. -
Page 9: Install Optional Outside Air Kit
UVSRCA Vent-Free Fireboxes should be caulked around its perimeter to assure a Install Optional Outside Air Kit tight seal. The rain cap opening should be positioned The AKU3 Outside Air Kit can be installed to bring com- downward. (Fig. 15) bustion air to the heated room air. - Page 10 UVSRCA Vent-Free Fireboxes Operating Precautions and Instructions Operation is automatic. A slight negative pressure inside the house will open the barometric flapper valve. Periodically inspect the duct termination for any block- age. Correct if necessary. KT145 Fig. 14 Secure the inlet collar assembly. KT145 Duct Ter- AKU reinstall...
- Page 11 UVSRCA Vent-Free Fireboxes 7435 CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. UVSRC36A, UVSRC42A Unvented Fireboxes 7435 UVSRC36/42A parts 8/04 Description UVSRC36A UVSRC42A Firescreen Rod (2 per fireplace)
-
Page 12: Replacement Parts
Servicing prices and policies covering replacement parts. Parts Repair and replacement work should only be done by a may be ordered through your Majestic Fireplaces dis- qualified service person. tributor or dealer. Always shut off the gas supply and make sure the appli- You will need the correct name, part number and model ance is cool before beginning any service operation. - Page 13 UVSRCA Vent-Free Fireboxes 20007435...
- Page 14 UVSRCA Vent-Free Fireboxes 20007435...
-
Page 15: Warranty
UVSRCA Vent-Free Fireboxes LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY •... - Page 16 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
