EXTERNAL EQUIPMENT SETUP

To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
I
This part of EXTERNAL EQUIPMENT SETUP mainly use pictures for the LCD TV models.
I

HD RECEIVER SETUP

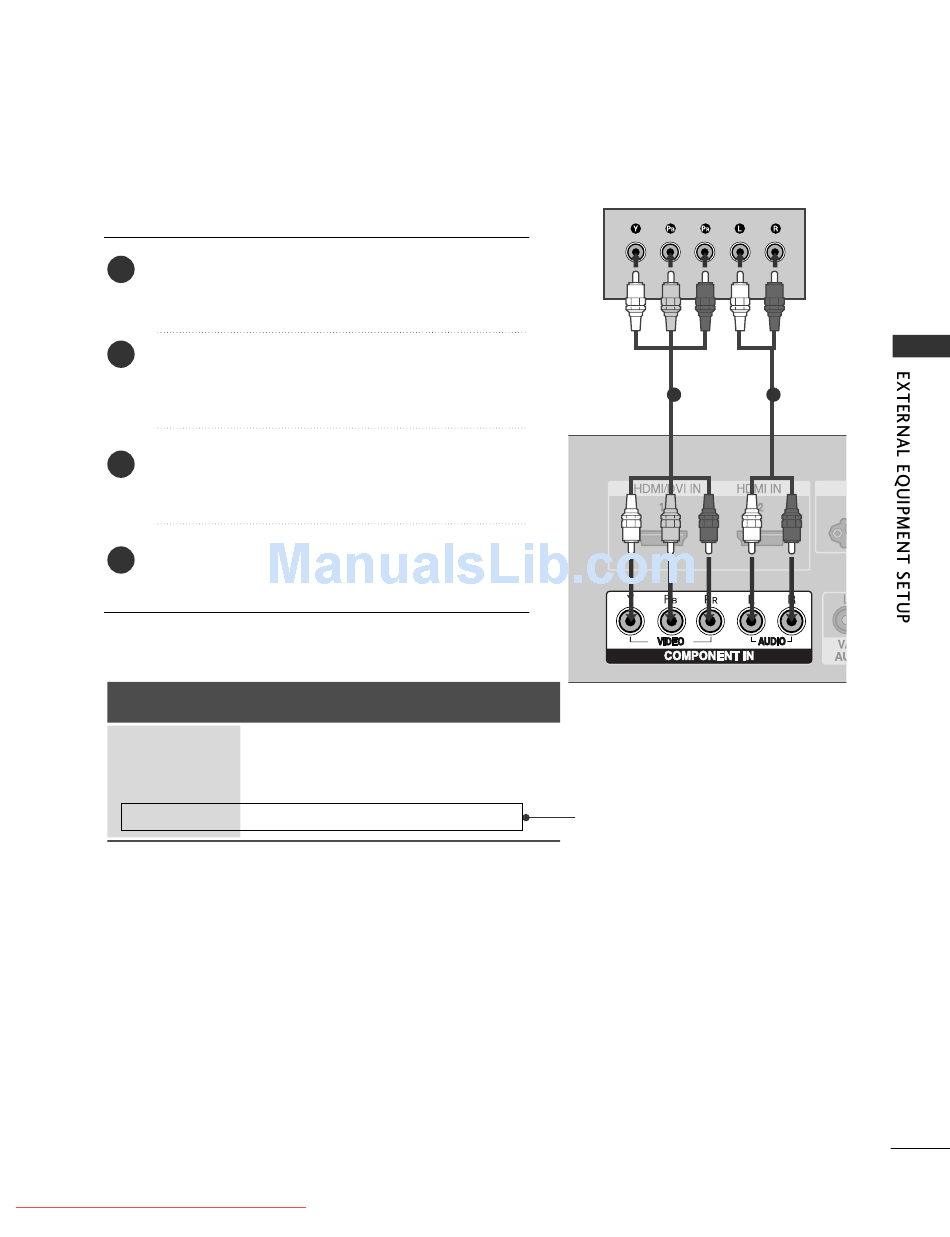

When connecting with a component cable
Connect the video outputs ( Y, P
1
top box to the C C O O M M P P O O N N E E N N T T I I N N V V I I D D E E O O jacks on the
set.
2
Connect the audio output of the digital set-top box to
the C C O O M M P P O O N N E E N N T T I I N N A A U U D D I I O O jacks on the set.
3
Turn on the digital set-top box.
( Refer to the owner's manual for the digital set-top box. )
4
Select
Component
I I N N P P U U T T button on the remote control.
Signal
480i/576i
480p/576p
720p/1080i
1080p
