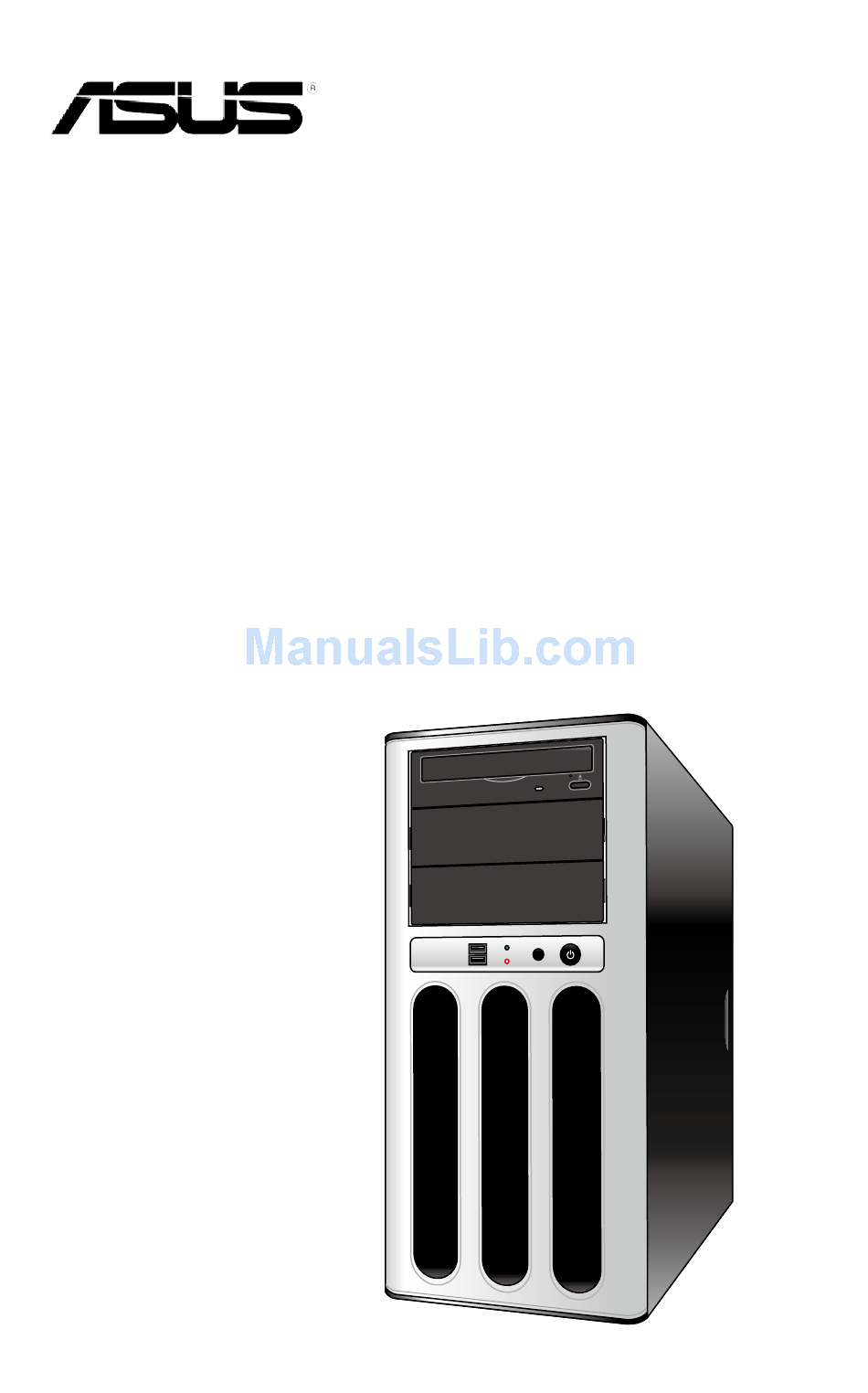

- Page 1 TS100-E8-PI4 Configuration Guide...
- Page 2 ASUSTeK COMPUTER INC. (“ASUS”). ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no...
-
Page 3: Table Of Contents
Contents Contents ........................iii Safety information ...................... iv Chapter 1: Product introduction Key features....................1-2 System overview ..................1-3 Front panel features................... 1-4 Rear panel features ..................1-5 1.5 System specifications ................1-6 Chapter 2: Components Upgrading CPU and CPU heatsink ............2-2 Upgrading system memory ............... -
Page 4: Safety Information
Safety information Electrical Safety • Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. - Page 5 Chapter 1 This chapter describes the key features of TS100-E8-PI4. It includes the product overview and general specifications.
-
Page 6: Chapter 1: Product Introduction
Key features The ASUS TS100-E8-PI4 is a pedestal barebone server system featuring the ASUS P9D-X/ MR server board. The server supports Intel ® LGA1150 Xeon ® E3-1200 v3 processors with the latest technologies through the chipsets onboard with support for up to 32GB of DDR3 1333Hz unbuffered ECC memory. -
Page 7: System Overview
System overview Items Items 1. Central processing unit (CPU) 4. Hard disk drives 2. CPU heatsink and fan 5. VGA card (optional) 3. System memory 6. Front Panel Cover ASUS TS100-E8-PI4... -
Page 8: Front Panel Features
Front panel features Power LED HDD access LED Optical drive Empty 5.25-inch bays Power button Reset button USB 2.0 ports Chapter 1: Product introduction... -
Page 9: Rear Panel Features
Rear panel features 300W Bronze 80PLUS Single power supply Power connector PS/2 keyboard/mouse port USB 2.0 ports USB 3.0 ports Serial port 120mm x 25mm system fan VGA port Gigabit LAN port 1 Gigabit LAN port 2 Expansion slots ASUS TS100-E8-PI4... -
Page 10: System Specifications
1.5 System specifications Model Name TS100-E8-PI4 1 x socket LGA1150 Processor / System Bus Intel ® Xeon ® Processor E3-1200 v3 Product Family Intel C222 PCH Core Logic ® 4 UDIMM (2 Channels) Total Slots Maximum up to 32GB (UDIMM) Capacity Memory DDR3 1333/1600 ECC UDIMM Memory Type... - Page 11 Enterprise Linux AS 5.8/6.2/6.3 64-bit CentOS 5.6/6.2/6.3 64-bit Ubuntu 12.04 64-bit Anti-virus Software Optional Anti-Virus CD Pack Management ASUS ASWM Enterprise Software Solution Dimension (HH x WW x DD) 436.8 mm x 200 mm x 478.8 mm Net Weight Kg (CPU, DRAM &...
- Page 12 Chapter 1: Product introduction...
- Page 13 Chapter 2 This chapter lists the key components and optional accessories for the server system.
-
Page 14: Chapter 2: Components
Upgrading CPU and CPU heatsink The ASUS TS100-E8-PI4 supports Intel LGA1150 Xeon E3-1200 v3 processors. ® ® Upgrading system memory The motherboard comes with four (4) Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets. DIMM_B2 DIMM_B1 DIMM_A2... -
Page 15: Upgrading Hard Disk Drives
Install the DDR to the A2 or B2 (blue slot) when installing only one memory module to the motherboard. Upgrading hard disk drives The server system supports four (4) Serial ATA hard disk drives with plastic HDD rails. We recommend that you install identical drives of the same model and capacity for RAID configuration. ASUS TS100-E8-PI4... -
Page 16: Os Support List
OS support list OS Support list Windows ® Server 2012 64-bit Windows Server 2008 Enterprise SP2 64-bit ® Windows ® Server 2008 R2 Enterprise SP1 64-bit RedHat ® Enterprise Linux AS 5.8/6.2/6.3 64-bit CentOS 5.6/6.2/6.3 64-bit Ubuntu 12.04 64-bit (Subject to change without any notice.) Chapter 2: Components...
