Klipsch Reference Series RS-10 Specifications

4'' Two-Way Surround Loudspeaker
Part of the new entry-level Reference 10
family, the RS-10 surround loudspeaker offers
the same advanced technology and world-class
materials as the Reference III surrounds but
from a smaller enclosure and at a lower price
point.

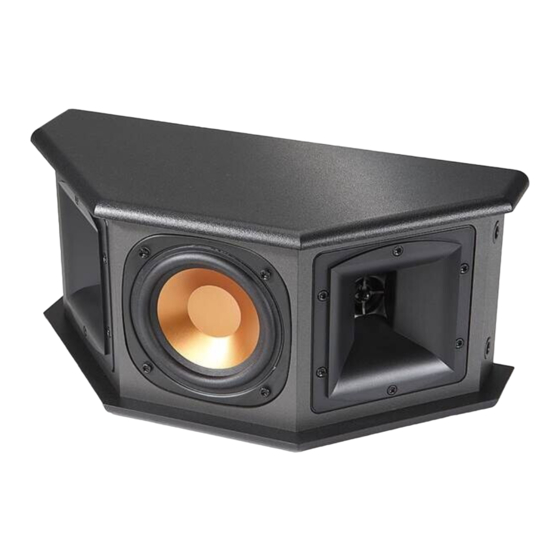

The RS-10 delivers precise sonic detail through
the careful positioning of two Tractrix
loaded titanium-dome tweeters and one 4-
inch woofer. By aligning the two horns at 90˚
with respect to each other, along with the
front-firing woofer, the RS-10 smoothly covers
a 180-degree horizontal arc, allowing
maximum placement flexibility. This unique
Wide Dispersion Surround Technology™
delivers a new dimension of reality and
convenience, and produces a smooth,
seamless broad distribution of sound, which
is the perfect vehicle for every surround
format.
The woofer on the RS-10 still features
Klipsch's distinctive,
Cerametallic™ material. Made with an
anodized aluminum, this cone is strong with
low mass. The anodizing process converts its
inner and outer surfaces to ceramic. The
outcome is a rigid cone with superb damping
characteristics that will not flex or resonate at
frequencies within the woofer's operating
range.
As in all Reference Series speakers, the RS-10
crossover network is constructed using
extremely high-quality components including
top-of-the-line internal wiring, polyester film-
type capacitors and an air-core inductor to
ensure signal purity and proper driver
integration.
The RS-10 comes with a back-panel keyhole
for on-wall mounting and a threaded insert for
attachment to popular adjustable wall and
ceiling brackets. Available in a black ash vinyl
finish, the RS-10 features an elegant fit and
finish.
RS-10
Back-panel keyhole and threaded insert for wall or ceiling mounting
I
WDST design for superior surround envelopment and effect localization
I
Dual Tractrix Horn titanium dome compression driver tweeters
I
Cerametallic cone woofer
I
High sensitivity and power handling
I
Horn
®
S P E C I F I C A T I O N S
BANDWIDTH
SENSITIVITY
IMPEDANCE
CROSSOVER FREQUENCY
POWER HANDLING
ENCLOSURE TYPE
DRIVE COMPONENTS
copper-colored
WEIGHT
HEIGHT
WIDTH
DEPTH
FINISH
MOUNTING
*All dimensions include grille and binding posts
82Hz-20kHz ± 3dB
91dB @ 2.83 volts/1 meter
8 ohms compatible
2000Hz
50 watts (200 watts peak)
Sealed
Two-way system using two 1" (2.5cm) titanium
dome compression drivers with 4" (10.2cm)
square 90° x 60° Tractrix Horns and one
4" (10.2cm) Cerametallic cone woofer
5 lbs. (2.3kg)
5.75" (14.6 cm)
12.7" (32.3cm)
5.8" (14.7cm)
Black Ash vinyl
Keyhole mount with threaded insert
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2004
