Installation Instructions; Figure 3: Usb Connector On Rdx Drive Connector Panel - Fujitsu RDX USB 3.0 QuikStor Drive Operating Manual

Quick Start Installation
2.1.4

Installation instructions

Proceed as follows to mount an RDX QuikStor drive:
Ê Carefully unpack the drive and accessories.
Ê Switch off the computer.
Ê Open the computer cover, using a screwdriver if necessary.
Ê Slide the RDX drive into an unused drive bay until the bezel is flush with the
front of the computer.
Ê Mount the drive as appropriate for your server.
V
CAUTION!
Do not over-tighten the screws!

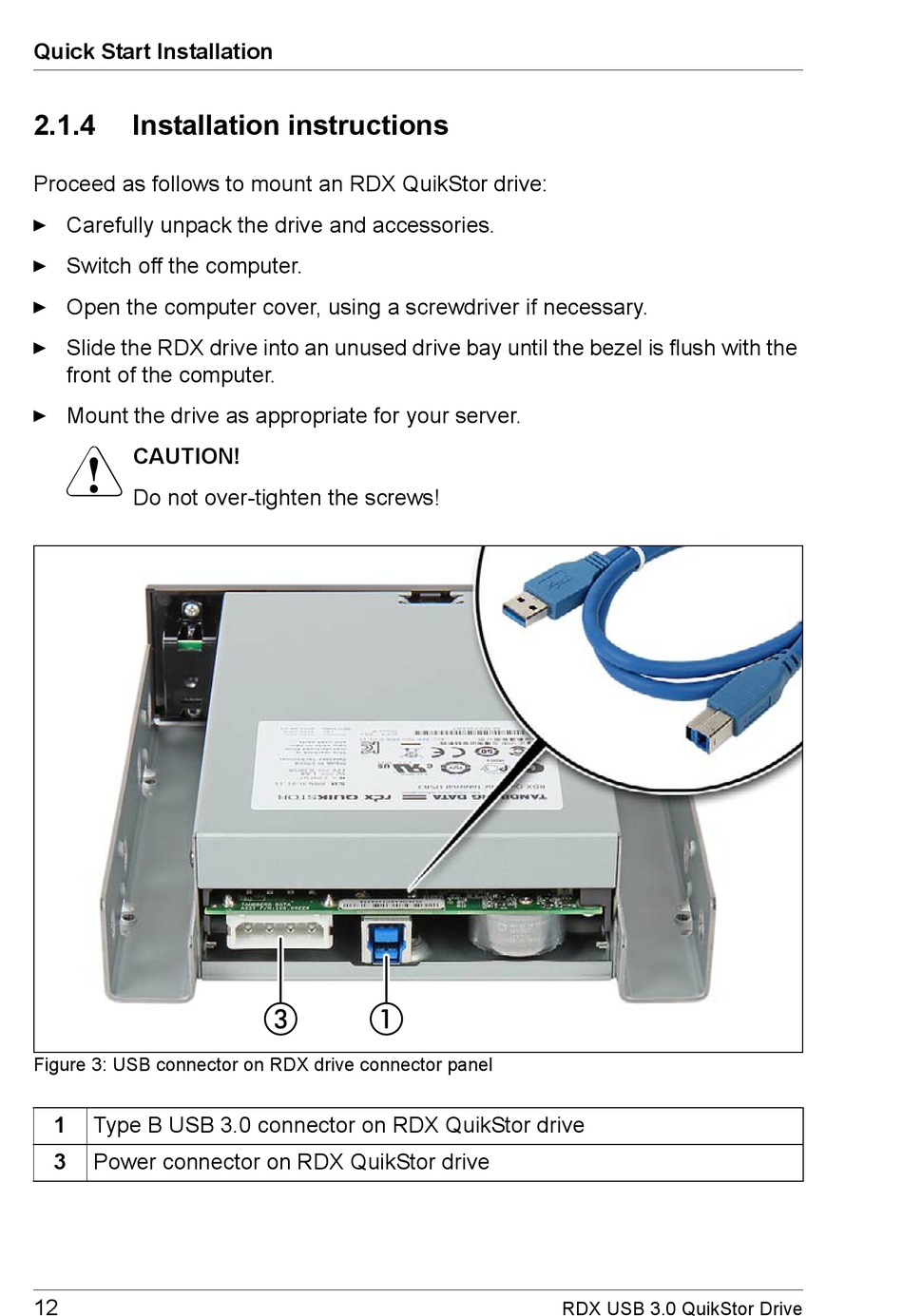

Figure 3: USB connector on RDX drive connector panel

1 Type B USB 3.0 connector on RDX QuikStor drive
3 Power connector on RDX QuikStor drive
