CR-W402UA
CR-W402U
1
2
3
4
5
¡Please read these instructions (including "Limited Warranty" and "Customer Services Directory") carefully before using this product
and keep this manual for future reference.
A M
A
P
P
M
P
P
O
O
W
W
E
E
R
R
B
B
A
A
N
N
D
D
P R
P
W
W
R
T
T
U
U
N
N
E
E
S
S
E
E
E
E
K
K
6

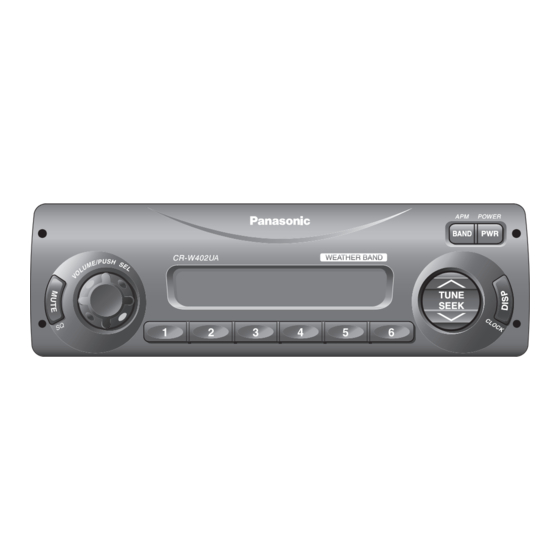

Heavy Duty Weather Band Receiver
CR-W402UA
Model:
Operating Instructions
Advertisement
Table of Contents
Related Manuals for Panasonic CR-W402UA
Summary of Contents for Panasonic CR-W402UA
-
Page 1: Operating Instructions
Heavy Duty Weather Band Receiver CR-W402UA Model: CR-W402U CR-W402UA Operating Instructions ¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference. -
Page 2: Safety Information (Part 15 Of The Fcc Rules)
They contain instructions about how to use the sys- from improper connections and operations. The meanings of tem in a safe and effective manner. Panasonic assumes no the pictographs are explained below. It is important that you responsibility for any problems resulting from failure to fully understand the meanings of the pictographs in order to observe the instructions given in this manual. -
Page 3: Accessories
Installation of this unit requires special skills and experience. For maximum safety, have it installed by the shop where you power connector until the whole wiring is purchased it. Panasonic is not liable for any problems completed. resulting from your own installation of the unit. -
Page 4: Customer Services Directory
TTY : 1-877-833-8855 Accessory Purchases: (United States and Puerto Rico) Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@panasonic.com You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday- Friday 9 am to 8 pm, EST.) -
Page 5: Limited Warranty
If your product does not work properly because of defects in materials and Dealer’s workmanship. Panasonic Consumer Electronics Company or Panasonic Sales Company (col- Code lectively referred to as “the warrantor”) will, for the length of the period indicat- ed in the chart below, which starts with the date of original purchase (“warran- ty period”), at its option either (a) repair your product with new or refurbished... -
Page 6: Table Of Contents
Troubleshooting tips, product servicing ❑ Maintenance................16 Care of the unit ❑ Speaker Connections ..............16 ❑ Installation Guide .................17 Installation hardware, overview, required tools, dashboard specifications, preparation, to remove the unit ❑ Electrical Connections ..............20 Cautions, wiring diagram ❑ Specifications ................21 CR-W402UA... -
Page 7: Power And Sound Controls
Power on: Press [PWR] (POWER). Power off: Hold down [PWR] (POWER) for more than 1 second. A C C P WR CR-W402U CR-W402UA Display Change Press [DISP] to switch to the clock display. When the power is off: Volume Turn the knob clockwise to increase volume, and counterclockwise to decrease volume. - Page 8 Power and Sound Controls (Continued) CR-W402U CR-W402UA SQ (Sound Quality) SQ is a function that can call up various sound types at the touch of button in accordance with your listening music type. Press [SQ] for more than 2 seconds to select the sound type as follows: (FLAT) flat frequency response: does not emphasize any part.
-
Page 9: (Bass/Treble/Balance/Fader)
(2 seconds in volume mode), the (Bass/Treble/Balance/Fader) display returns to the regular mode. Push [SEL] to select the audio mode. Push CR-W402U CR-W402UA Turn [VOLUME] clockwise or counterclockwise to change each level. Volume (Setting Range: 0 to 40, Default: 18) q : UP... -
Page 10: Clock Adjustment
Clock Adjustment Selecting the Clock Display Press [DISP] to change the display. Radio mode display (default) Clock display The 12-hour system is used for the clock. CR-W402 CR-W402UA TUNE SEEK [{TUNE] [}TUNE] (Hours, Minutes) Initial Time Time Readjustment When you want to readjust the time, repeat steps w to y. -
Page 11: Radio
Radio Band Press [BAND] to change the band. (Weather Band) CR-W402 CR-W402UA TUNE SEEK FM stereo indicator, lights while receiving an FM stereo signal. Manual Tuning [}TUNE]: Higher frequency [{TUNE]: Lower frequency Seek Tuning Press and hold for more than 0.5 seconds and release it. - Page 12 Band Press [BAND] (APM) to select a desired band. page 11) BAND CR-W402 CR-W402UA Preset buttons from [1] to [6] Auto Preset Memory (APM) Press and hold [BAND] (APM: auto preset memory) for more than 2 seconds. • The 6 stations with good reception will be automat- ically saved in the memory under preset buttons from [1] to [6].
-
Page 13: Weather Band Station
CR-W402 CR-W402UA Tuning in a Weather Band Station • Press [BAND] (APM) to select WB (Weather Band). page 11) • Press any of the buttons [1] to [6] to monitor the preset station. Weather Band Frequency (channel) Number Note: The weather band (CH1-6) has been preset. CH7 is selected by pressing [{] or [}]. -
Page 14: Troubleshooting
¡ Do not use the unit in an irregular condition, for If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic example, without sound, or with smoke or a foul Servicenter. -
Page 15: Sound Setting
Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician. CR-W402UA... -
Page 16: Maintenance
Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest author- ized Panasonic Servicenter. Speaker Connections Caution Please follow the instructions given below. -
Page 17: Installation Guide
This unit operates with a 12 V DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage. Before you begin installation, look for the items which are packed with your unit. CR-W402UA... - Page 18 This unit can be installed in any dashboard having an opening as shown below. The dashboard should be Mounting Bolt 4.75 mm {3/16”} – 5.56 mm {7/32”} thick in order to be (5 mmø) able to support the unit. qMounting Collar 53 mm "} 182 mm "} CR-W402UA...
- Page 19 Mounting Spring ❐ To Remove the Unit from the vehicle’s dashboard Insert each Removal Tool i and pull. i Removal Tool (U-shaped) Note: Do not lose Removal Tools. They will be needed to remove the unit from the vehicle’s dashboard. CR-W402UA...
-
Page 20: Electrical Connections
❐ Wiring Diagram *Fuse (15 A) Refer fuse replacement to 10 12 14 16 your nearest authorized Heavy Duty Weather Band Receiver 11 13 15 Panasonic Servicenter. CR-W402UA Do not try fuse replacement by yourself. Antenna (Rear Side) Detail of power connector... -
Page 21: Specifications
16 W RMS x 4 Channels at 4 Ω and ≤ 1% THD+N Signal to Noise Ratio: 70 dBA (reference: 1 W into 4 Ω) Note: Specifications and the design are subject to modification without notice due to improvements in technology. CR-W402UA... - Page 22 MEMO CR-W402UA...
- Page 23 MEMO CR-W402UA...
- Page 24 ©Panasonic Corporation 2008 YFM264C170CA PTW0808-1128 Printed in China...
