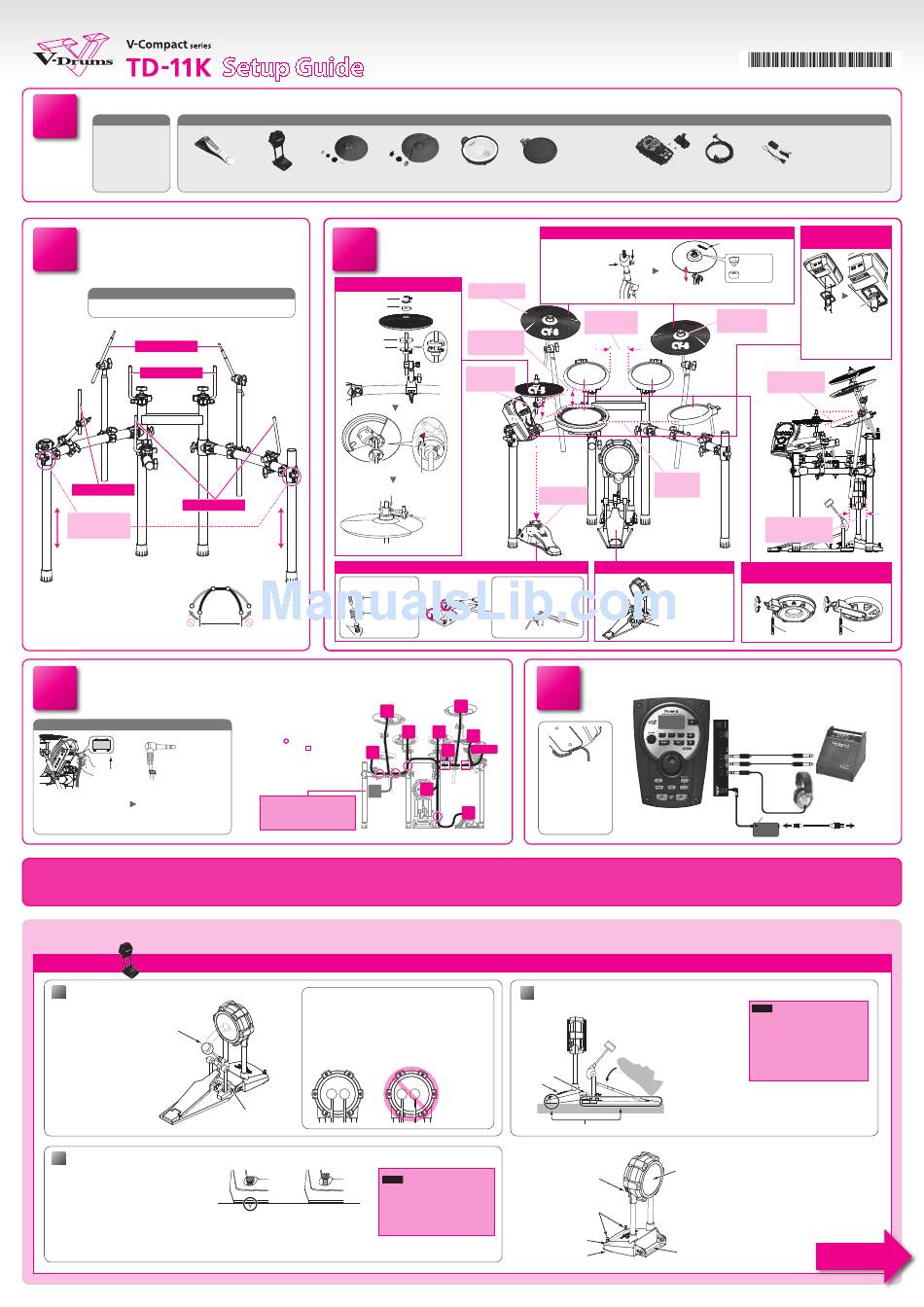

Roland V-Drums V-Compact TD-11K Setup Manual

Check the included items
01
Stand (MDS-4V)
The parts required to as-
semble the stand (MDS-4V)
are listed in the MDS-4V
Owner's Manual.
Check the owner's manual
and make sure that you
❏ Hi-hat control
have all of the parts.
pedal (FD-8)
Assemble the stand
02
* The tip of the mount is sharp. Handle it with care.
* When setting up or storing the stand, be careful not to pinch the fingers you use to
handle the stand.
Assembly procedure
Assemble the stand using the procedure described in the MDS-4V Owner's Manual.
Cymbal mounts
Pad mounts
Hi-hat mount
Pad mounts
If the stand wobbles, loosen
this hand knob and adjust
the height.
* For reasons of safety, do not spread the
stand wider than 1.0 meters (40 inches).
Connect the pads to the drum sound module
04
Connection procedure
* Insert the plug
firmly, making sure
Knob it's all the way in.
1. Connect the cable to the 2. Labels indicating the pad to
TD-11 as shown in the be connected are attached
illustration. to the cable.
Insert the connector all the Connect the cable to the
way, then turn the knobs OUTPUT jack of each pad as
to fasten it securely. shown in the illustration.
This completes assembly and connections.
Detailed explanation of each part
■ ■ KD-9 (Kick)
* Use a commercially available kick pedal.
Attach the kick pedal.
01
Position the beater so that it strikes
the center of the head, then secure the
kick pedal and KD-9 firmly in place.
Beater
* A variety of commercially available beaters
can be used, including felt, plastic, or
wood types.
However if a felt beater is used, the felt
may leave marks on the striking surface.
Adjusting the Anchor Bolts.
03
When using the kick pedal on a carpet or on a
drum mat (TDM series), the slip-prevention tape
that's on the base should prevent the KD-9 from
moving around.
However, if that's not enough to keep the KD-9
in a fixed position, you can adjust things so that
the tips of the anchor bolts protrude through the
base. That should keep it in place and make it
easier for you to play.

Setup Guide

As soon as you open the package, check to see that all items are included. If anything is missing, please contact your dealer.
* Use a commercially available kick pedal.
❏ Kick pad (KD-9) ❏ Cymbal pad for
hi-hat (CY-5)
* Use the drum key included with the MDS-4V to assemble the parts and make adjustments.
Attach the parts
03
Attach the hi-hat (CY-5)
Upper clutch
Clutch felt (small)
Clutch felt (large)
Lower clutch
While pressing
Assemble the hi-hat control pedal (FD-8)
Attach the anchor bolt
(if installing on a drum mat)
Anchor bolt
Spring for the
anchor bolt
1.0 m
RD
* Fasten the cables so that they
will not obstruct your playing;
use cable clips at locations
marked , and cable ties at
locations marked .
T3
Make sure to wrap the cable
ties around the pipes.
RDB
* Do not connect the RDB cable (for
extension). Leave the cap in place,
and fasten the cable so that it will
not hinder your performance.
When Using a Twin Pedal
Position the two beaters equally apart from the center of the pad as
shown in the figure at left. If one of the beater is further away from
the center than the other, the sound from the further beater will be
lower in volume, or will not sound as desired.
Using a twin pedal will result in lower sensitivity as compared to when
a single pedal is used. Raise the sensitivity on the sound module.
For details, see "Setting the Pad Sensitivity [F2] (BASIC)" in the owner's
manual.
Install the kick pedal
securely.
NOTE
* When used on flooring, the anchor bolts
* The tips of the anchor bolts are sharp.
When using on the carpet or When using on
drum mat the floor
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES. "
These sections provide important information concerning the proper operation of the unit. Additionally, in order
to feel assured that you have gained a good grasp of every feature provided by your new unit, Setup Guide and
Owner's Manuals should be read in its entirety. The setup guide and manuals should be saved and kept on hand
as a convenient reference.
TD-11K parts
* The PD-8A is a new unit
❏ Cymbal pad for ❏ V-Pad for snare ❏ Pad for tom
crash/ride (CY-8 x 2) (PDX-8) (PD-8A x 3)
Attach the stopper so that
the bolt is on the right-hand
side, from the performer's
Tilt it forward slightly.
perspective.
CY-8
Position so there is
12–15 cm of space
between the snare and
tom.
The hi-hat should
be placed about
20 cm higher than
the snare. CY-5
TD-11
Align with indentation
Place directly
below the hi-hat.
Use Drum Key
to tighten
FD-8
Adjusting the pedal depth
Loosen with the drum key,
Anchor bolt
and tighten after adjusting
Deeper
Slide the arm
Shallower
05
As seen from the front
CR1
T2 T1
HH
TD-11
SNR
To prevent the inadvertent
disruption of power to
your unit (should the plug
KIK
be pulled out accidentally),
and to avoid applying
undue stress to the DC IN
HHC jack, anchor the power
cord using the cord hook,
as shown in the illustration.
When you've finished making connections, turn on the power as described
in the TD-11 Owner's Manual, and verify that you can hear sound.
Step on the kick pedal and make sure that it's properly attached and in a stable position.
02
Check to make sure that the base of the KD-9 and the kick pedal both make
contact with the floor.
Bolt
Base
Check to be sure they're making contact with the floor
Component names
Output jack
may damage the floor. Adjust the anchor
bolts correctly.
Handle with care
Slip-prevention tape
designed specifically
for the TD-11K.
It does not support the
use of the rim-shot
technique.
❏ Drum sound ❏ Connection cable
module (TD-11) (special for TD-11)
Attach the crash cymbal (CY-8) and ride cymbal (CY-8)
"Roland" logo on the farther side
Tighten the bolt with a drum key.
Wing nut
Stopper
Felt washer
Tighten the wing nut to obtain an appropriate
amount of sway.
Place at a slightly
Allow for 10–12 cm
lower position than
of space between
the crash symbol.
tom 1 and tom 2.
CY-8
PD-8A PD-8A
PD-8A
PDX-8
KD-9
The snare and tom
3 should be at the
same height.
Attach the kick pedal (KD-9)
Install the kick pedal
securely.
Connect the AC adaptor and speakers
* To prevent malfunction and/
or damage to speakers or other
devices, always turn down the
volume, and turn off the power
on all devices before making any
connections.
AC adaptor
Head
Anchor bolts
Mounting plate for the kick pedal
Base
* 5 1 0 0 0 4 4 9 7 7 - 0 2 *
Manual set
❏ Setup Guide (this document)
❏ TD-11 Owner's Manual
❏ AC adaptor
Attach the drum sound
module (TD-11)
Bolt
* After attaching the drum sound
module to the stand, use the
drum key to loosen the sound
module mounting plate, and
adjust the angle of the TD-11.
Tilt it downward
slightly, so the stick
doesn't contact the rim.
Position things so the strik-
ing surface of the kick drum
is approximately 10–12 cm
in front of the pipe.
Attach the snare (PDX-8) and
toms (PD-8A)
Tighten Tighten
Loosen Loosen
Rod Rod
Amplified speakers, etc.
1/4" plug (mono)
Stereo
1/4" plug
Stereo
headphones
Indicator
To AC outlet
NOTE
* Install the kick pedal securely.
* Take care not to pinch your fingers.
* Depending on how you're using the unit,
the bolts that attach the pedal to the plate
could become loose, causing the pedal to
rattle during performance.
In such cases, use commercially available
tools to tighten the bolts.
Other side
