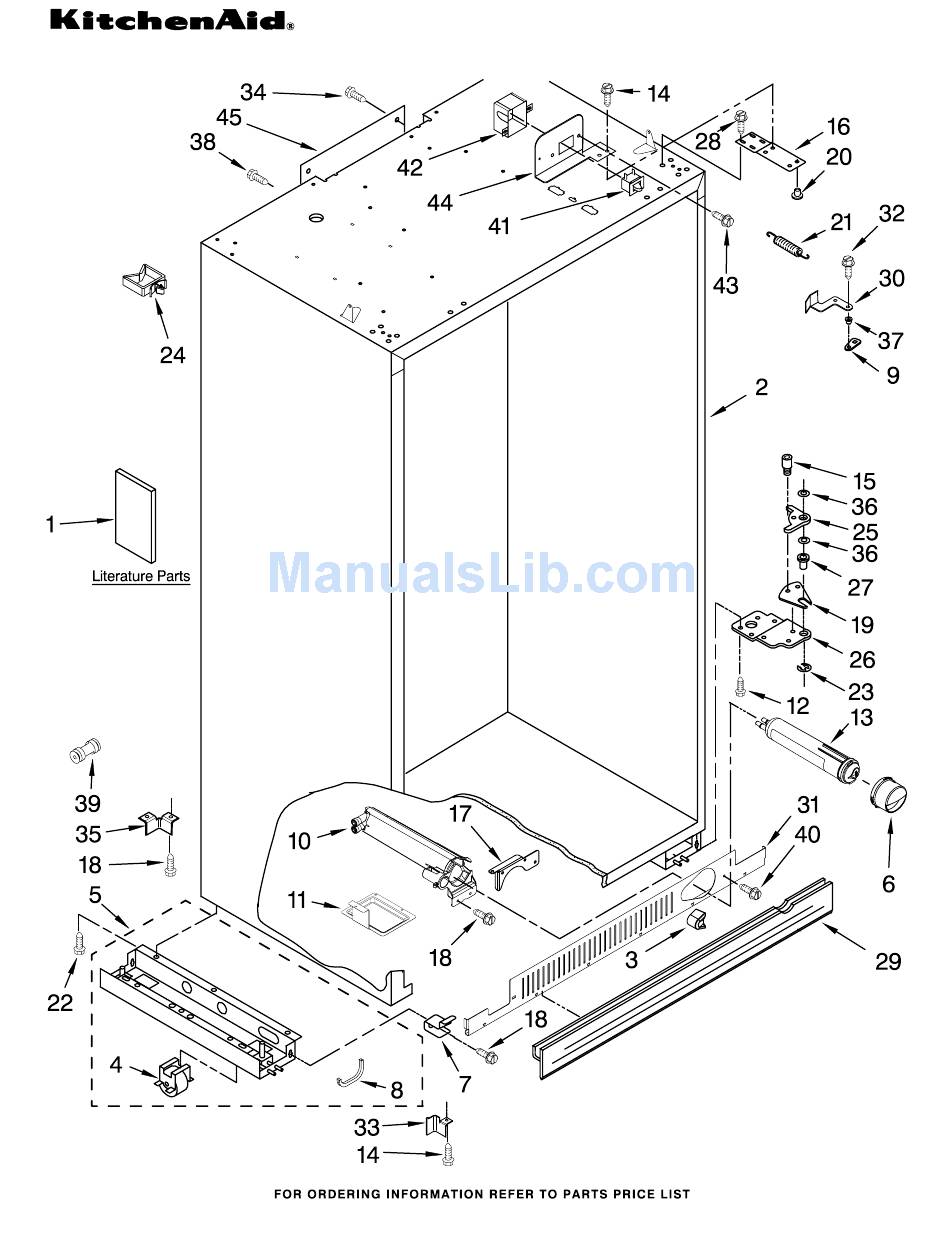

- Page 1 CABINET PARTS 36" BUILT IN For Model: KSSC36QTS02 REFRIGERATOR (Stainless Steel) 11−07 Litho In U.S.A. (mat) Part No. W10174663 Rev. A...
-
Page 2: Cabinet Parts
2260518B Black 2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer 2260526 Housing, Water Filter CABINET PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2318189 Tray, Drip Filter 3400525 Screw 4396841 Filter, Water 489399 Screw 3400230 Screw, Door Stop... - Page 3 W10174663 CABINET TRIM PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316686 Cabinet, Trim (Bottom) 486194 Screw 2314016 Cabinet, Trim Top Cabinet Trim (Left Side) W10132541 Stainless Steel 8 W10121451 Screw (4) 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2302882 Wire, Shelf (2) 2302867 Shelf, Fixed (4) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10174663... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10174663 For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2316544 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36QTS02 Illus. Part 2316736S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2317923S Badge, Kitchen Aid 489348 Clamp 2004333 Nut...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2302841 Assembly, Meat Pan Cover 2302834 Assembly, Crisper Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663...
- Page 12 489214 Screw 2182119 Scroll, Fan 2259465 Wedge, Air Duct 2307773 Air Duct 2198643 Lens Block, Fan Scroll 2209481 Right 2209066 Left For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2215650 Cover, Emitter Liner (Not A Serviceable Part) 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part 1 W10134781 Ice Bin 2222960 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 18 FREEZER DOOR PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 1 W10157901 Freezer Door (Includes #8) 2252354 Spacer 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222813 Door Gasket, Magnetic Handle, Door 2316868 Stainless Steel Spacer, Door−Skin...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2)
- Page 21 UPPER UNIT PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663...
- Page 22 2203075 Spacer (5) 2256328 Bracket, Inverter 1157158 Screw 2307998 Condenser 2309431 Grommet (2) 2310207 Wire, Jumper 489399 Screw UPPER UNIT PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 2155774 Wire Tie 2317982 Drier 22 W10136614 Bracket, Fan Motor (Condenser Fan)
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION 9791833 Clip, Thermistor 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC36QTS02 (Stainless Steel) W10174663... - Page 26 Valve 2302756 Tube, Water Inlet 2221232 Cover 488500 Screw 16 W10122510 Mold & Heater (Also Order 542638 Silicone Grease) ICEMAKER PARTS For Model: KSSC36QTS02 (Stainless Steel) Illus. Part DESCRIPTION Motor, (Not Serviceable Order Item 28) 628356 Cup−Water Fill 2212320 Ejector...
