- Page 1 CABINET PARTS 36" BUILT IN For Model: KSSC36QMS01 REFRIGERATOR (Stainless Steel) 6−04 Litho In U.S.A. (mek) Part No. 8199090...
-

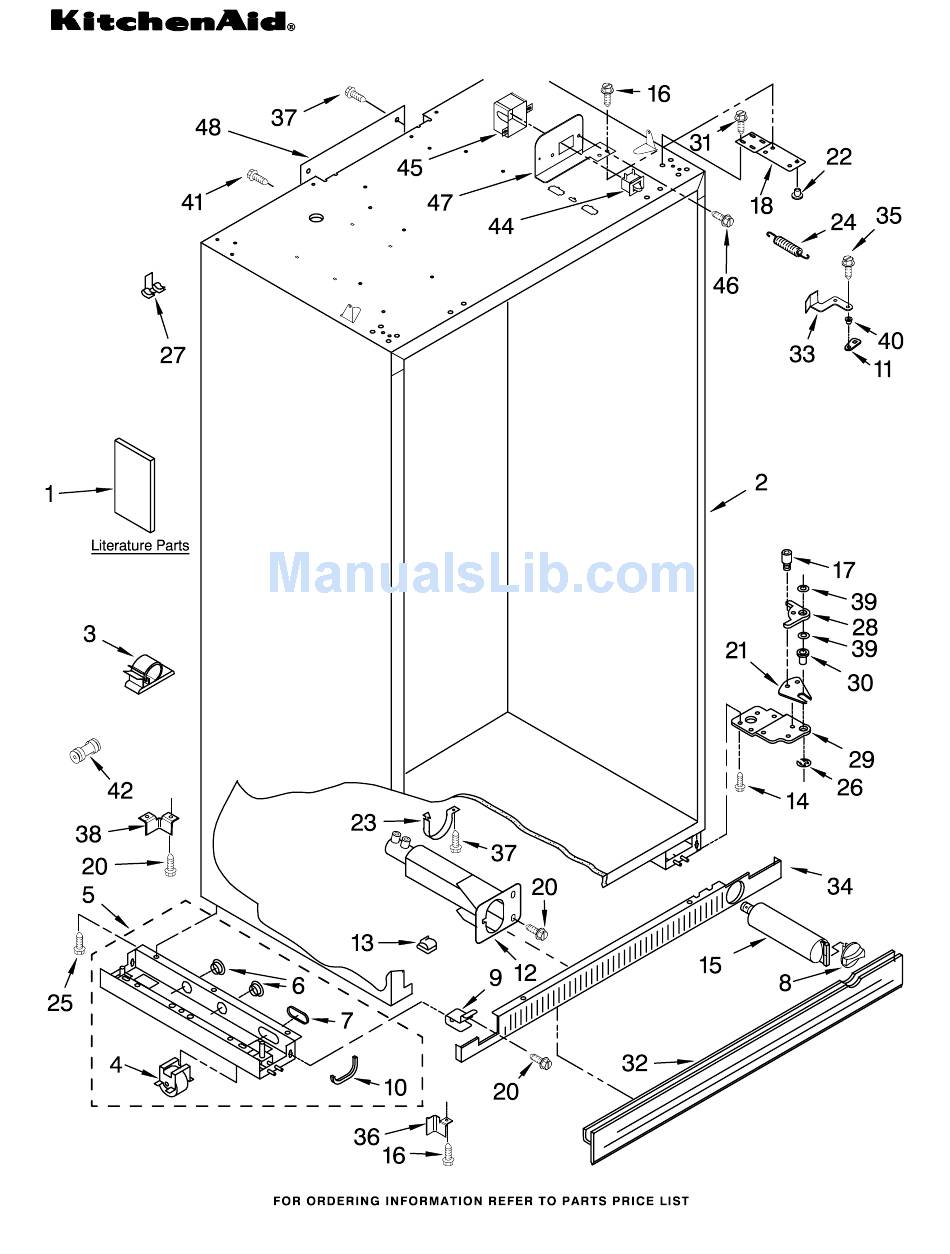

Page 2: Cabinet Parts
Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill 2005004 Grommet, Crossover Tube 2005783 Cam, Door Closer CABINET PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2209022 Housing, Water Filter 934011 Clip, Water Tube 3400525 Screw 2255709 Filter, Water... - Page 3 8199090 CABINET TRIM PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552S Stainless Steel Screw 1163283 Stainless Steel 2254724 Cabinet, Trim (Bottom) 486194 Screw 2257366 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553S Stainless Steel 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8199090... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
8199090 CONTROL PANEL PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2302771 Control Box 2215670 Insert, Control 2266951 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2302727 Shield, Light 2221121 Support, Control 489006 Screw (2) 2306086 Display Board,... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36QMS01 Illus. Part 2257410S Stainless Steel 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2005292 Badge, Kitchen Aid 489348 Clamp 2004333 Nut 2254759 Bracket, Louver...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257611 Trim, Glass Rear Side 2169935 Cover 2257581 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090...
- Page 12 2259446 Spacer, Light Bracket 2306045 Air Duct 2198643 Lens Block, Fan Scroll 2209481 Right 2209066 Left 2215650 Cover, Emitter For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306055 Pad, Air Duct 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QMS01 Illus. Part 2222960 Ice Bin 2222959 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket,...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 18 FREEZER DOOR PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2252323B Black 2252354 Spacer 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Handle, Door 2005290 Stainless Steel 2309060 Spacer, Door−Skin...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187755 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2256199 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180353 Door, Ice...
- Page 21 UPPER UNIT PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090...
- Page 22 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2187629 Wire, Jumper 487522 Screw 2155774 Wire Tie 2252363 Drier UPPER UNIT PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2206036 Motor, Fan 2190685 Blade, Fan 2003169 Orifice, Fan 2300190 Tube, Drier...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 9791833 Clip 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2300191 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC36QMS01 (Stainless Steel) 8199090... - Page 26 2221070 Clamp, Tube 2198641 Bracket, Icemaker Cover 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2302756 Tube, Water Inlet 2257538 Cover ICEMAKER PARTS For Model: KSSC36QMS01 (Stainless Steel) Illus. Part DESCRIPTION 2212351 Mold & Heater (Also Order 542638 Silicone Grease) 628398 Motor 628356 Cup−Water Fill...
