REFRIGERATOR SHELF PARTS

For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black)
4
(Stainless) (Monochromatic Stainless)

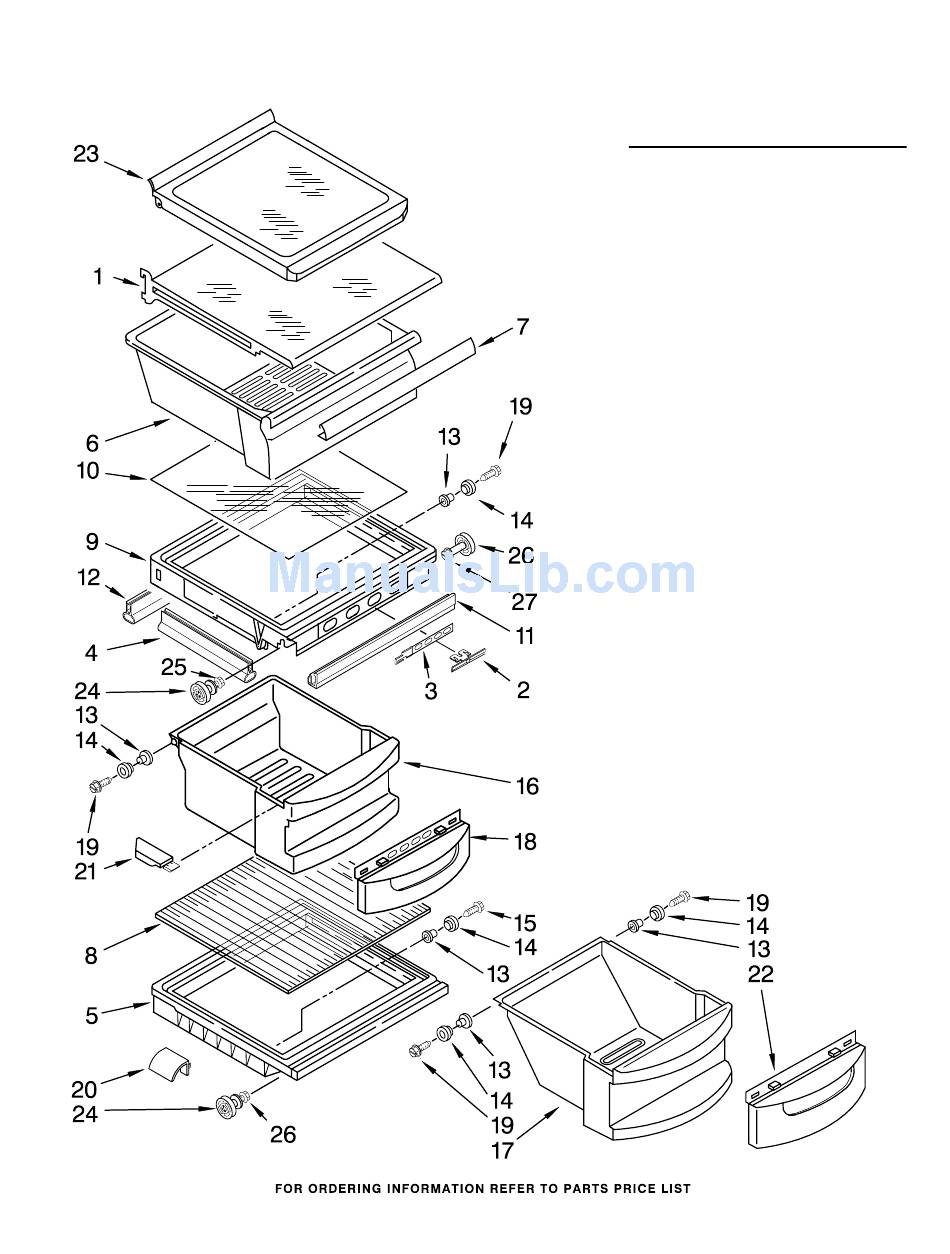

Illus. Part
No. No. DESCRIPTION
1 2309560 Shelf, Snack Pan
2 2319720 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Slide (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2309518 Snack Pan
7 2309519 Trim, Hamdle
8 W10160481 Glass Cover
9 W10160317 Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14 & 19)
10 W10160480 Glass Cover
11 2223361 Gasket, Front
12 2223362 Gasket, Rear
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 W10142714 Crisper Pan
17 W10149982 Meat Pan
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2327180 Shelf & Roller
Assembly
24 2196485 Stud Assembly
25 3400894 Screw
26 2196483 Stud Assembly
27 8281158 Screw
W10246564
