- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) 04−08 Printed In U.S.A. (jdc)(bay) Part No. W10202609 Rev.A...
-

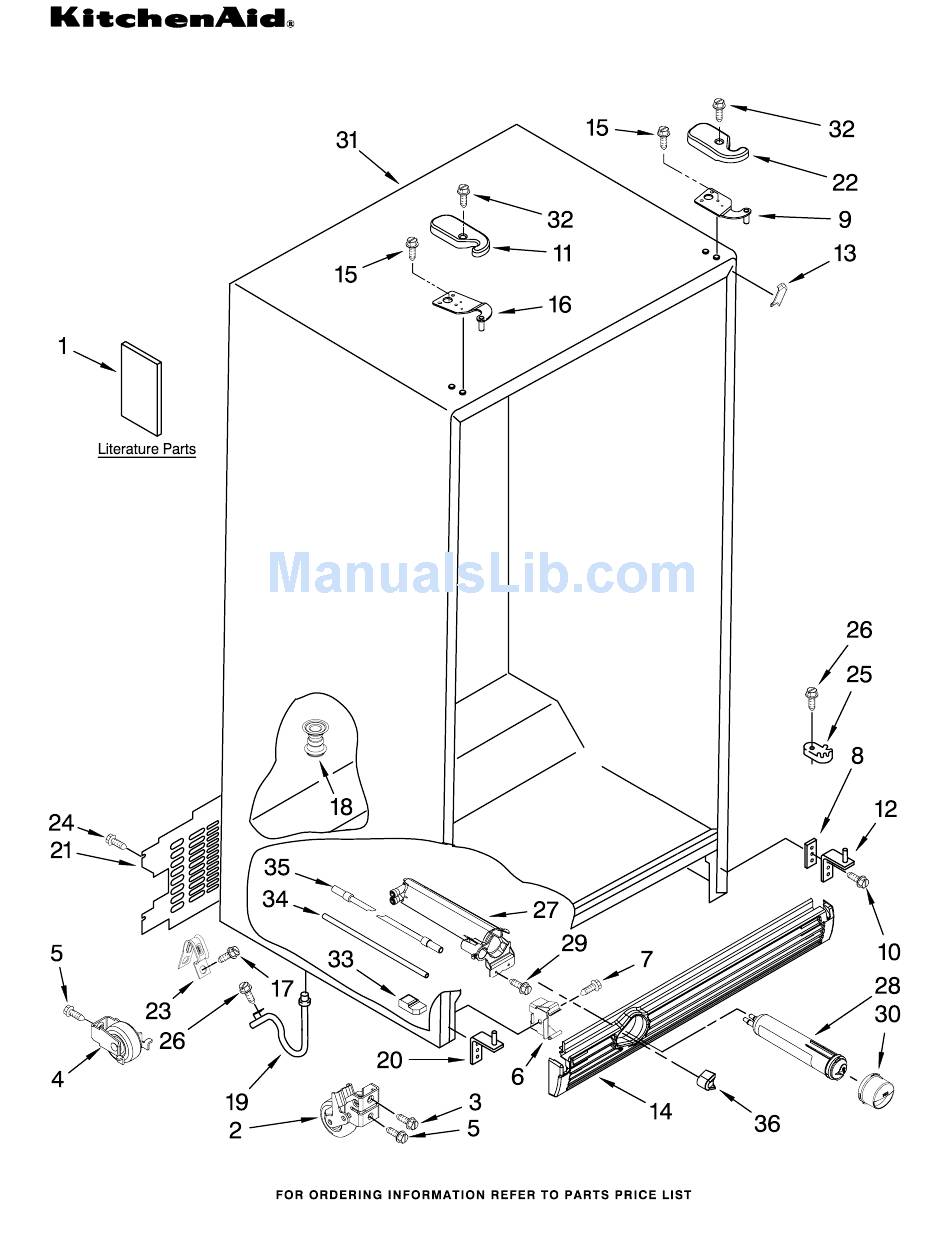

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Filler, Wrapper 489483 Screw W10162446 Use & Care Guide W10143043 Apollo Grey 2260507 Housing, Water W10180857 Service & Wiring Grille Filter Sheet... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper Lights 2311637 Wire Harness, Dual Crisper Lights 2319866 Ladder, Shelf (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 2195975 Frame Assembly, Slide Out (2) 2319720 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 6 W10142718 Snack Pan (Includes #7) 2179243 Trim, Handle... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 6 FREEZER LINER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 3400893 Screw 2211742K Shelf, S/O Track, Basket−Dual 2301291 Right Side 2301292 Left Side 2211746K Shelf, Slide Out Upper Track, Basket 2301289 Right Side 2301290 Left Side 2205837K Shelf (2) 2182971 Basket, Sloped...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 2198573 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Refrigerator Door (Includes #3) 2301184SAP Mono Stainless 2301184LAP Mono Satina Handle 2319727S Stainless Steel Door Gasket, Magnetic 2326338 Apollo Grey Set Screw W10010140 Chrome Nameplate W10046610 Grey 2219698 Stud 488208 Screw 2182178 Door Closer,...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10137580 Mono Stainless W10178079 Mono Satina Handle 2319727S Stainless Steel Screw W10010140 Chrome 2219698 Stud 3400012 Screw 488208 Screw 2171070K Shelf Bin (3) Door Gasket, Magnetic...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow W10171993 Nickel One 2304317 Water Fitting Assembly (Includes...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2321799 Bi−Metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evap Cover (2) 2176759 Fan Grommet (2) 12 W10129815 Harness, Fan... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2161466 Slide, Thermostat 2181738 Control Box 2161308 Connecting Rod 489084 Screw (2) 2196001 Tube Barrier, 489391 Fastner, Push−On Thermostat 2179920 Light Bar (RC) 25 W10165408 Escutcheon, 489214 Screw (3) 2161306 Arm, Pivot... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 18 UNIT PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2169104 Insulation−Sound 24 W10139462 Compressor 12825802 Fan, Blade Following Parts Not Illustrated (Includes Items 3 W10121484 Condenser 12, 13, 23, & 31) and Optional Parts Not Included Assembly (Also Order...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) W10202609... - Page 20 ICEMAKER PARTS For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 628379 Clip, Fuse 489084 Screw 2303216 Tube, Water 489478 Screw 2315534 Valve, Solenoid 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold & Heater Assembly (Also Order 542638 2304969 Cup, Water Fill 627843 Ejector...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRG25FVMS00, KSRG25FVMT00 (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 799340 Black 350942 Primer, White 799344 White ACCESSORIES 350939 Black...
