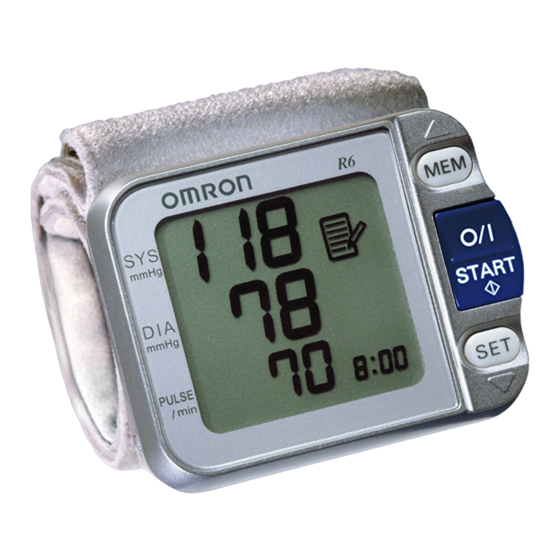

Digital Automatic Wrist Blood Pressure Monitor
Model R6
Instruction Manual
Fabricado en China
Geproduceerd in China
Сделано в Китае
Check following components!
Vérifier les composants suivants !
Controleer de volgende onderdelen!
Prüfen Sie folgende Teile des Lieferumfangs!
Проверьте следующие компоненты!
Controllare i componenti indicati di seguito!
¡Compruebe los siguientes componentes!
English
Français
Deutsch
Italiano
Espanõl
Nederlands
Русский
IM-HEM-6052-E-03-10/2011
5328089-1C
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Omron R6
Summary of Contents for Omron R6
- Page 1 OMRON SANTÉ FRANCE SAS Espanõl Digital Automatic Wrist Blood Pressure Monitor 14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, FRANCE Uniquement pour le marché français: OMRON Service Après Vente Nederlands Model R6 Nº Vert 0 800 91 43 14 consommateurs@omron-sante.fr Русский...
-
Page 2: Table Of Contents
Thank you for purchasing the OMRON R6 Digital Automatic Wrist Blood Pressure Monitor. The OMRON R6 is a compact and easy to use blood pressure monitor, operating on the oscillometric principle. This well designed wrist monitor comes with memory for two users and a easy to read Blood pressure level indicator allowing you to easily see if your readings are with in the Guidelines set by the World Health Organization. -
Page 3: Important Safety Information
Important Safety Information Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis. Please read this section carefully before using the unit. Warning: • Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. - Page 4 Important Safety Information • Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit. • Do not operate unit in a moving vehicle (car, airplane). (Battery Usage) •...
-
Page 5: Overview
1. Overview Open the rear cover page to read following: The alphabet in the rear cover page correspond to those in the body page. Main unit Diastolic blood pressure Memory symbol Display Average value symbol Battery compartment cover Irregular heartbeat symbol Wrist cuff Movement error symbol MEM (Memory) button... -
Page 6: Preparation
2. Preparation 2.1 Installing/Replacing the Batteries Remove the battery cover. Push the hook on the bottom of the battery cover. Pull the cover off the main unit. Insert two 1.5V “AAA” alkaline (LR03) batteries as indicated in the battery compartment and set the date and time (refer to section 2.2). - Page 7 2. Preparation Replace the battery cover. Notes: • If the battery low symbol ( ) appears on the display, turn the unit off then replace both batteries at the same time. • The measurement values continue to be stored in memory even after the batteries are replaced.
-
Page 8: Setting The Date And Time
2. Preparation 2.2 Setting the Date and Time Set the monitor to the correct date and time before taking a measurement for the first time. Press the button. Push the button to Year change. Month • Hold down to advance the digit rapidly. -
Page 9: Setting The Advanced Positioning Sensor
2. Preparation 2.3 Setting the Advanced Positioning Sensor The Advanced Positioning Sensor will assure you the unit is in the correct position level with the user’s heart before the monitor starts to take the measurement. Selecting the User ID Before setting the Advanced Positioning Sensor, select your User ID. User A User B... -
Page 10: Setting The Positioning Indicator
2. Preparation Setting the Positioning Indicator Push the button. Push the button to choose which mode of Positoning indicator you wish to have. While setting the Positioning indicator the blue light flashes. on1: After the Positioning indicator lights in blue for more than 2 seconds, or in orange for more than 5 seconds, measurement starts automatically, even though the monitor is not in proper position. -
Page 11: Setting The Buzzer
2. Preparation Setting the Wrist for Measurement Push the button to toggle between “ ” (Left) and “ ” (Right). : Taking a reading on the left wrist. : Taking a reading on the right wrist. Push the button to confirm your choice and move onto the next step. Setting the Buzzer Push the button to... - Page 12 2. Preparation Push the button to confirm. Blue light will flash. Press the O/I START button to save settings and turn the monitor off. Resetting to the Default Setting The positioning indicator is set “on1”, the wrist for measurement is set “ ”, and the buzzer is set “on1”...
-
Page 13: Using The Unit
• The blood pressure can differ between the right arm and the left arm, and therefore also the measured blood pressure values can be different. Omron recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please... -
Page 14: How To Sit Correctly
3. Using the Unit 3.2 How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. No eating, smoking or exercising 30 minutes before taking a measurement. • Sit on a chair with your feet flat on the floor. •... -
Page 15: Taking A Reading
3. Using the Unit 3.3 Taking a Reading Notes: • This section is the example for the measurement with the default setting. To change the section 2.3 setting refer to • To cancel a measurement, press the O/I START button at any time during measurement. •... - Page 16 3. Using the Unit Press the O/I START button. While your position is improper, the Positioning indicator lights in orange, when you are in proper position the buzzer beeps “beep beep beep” and the Positioning indicator turns to blue. The blue light The orange light Lower than Higher than...
- Page 17 3. Using the Unit Undo the wrist cuff and remove the unit. Press the O/I START button to turn the monitor off. The monitor automatically stores the measurement in its memory. It will automatically turn off after 2 minutes. Important: •...
- Page 18 3. Using the Unit • Your blood pressure monitor includes an irregular heartbeat feature. Irregular heartbeats can influence the results of the measurement. The irregular heartbeat algorithm automatically determines if the measurement is usable or needs to be repeated. If the measurement results are affected by irregular heartbeats but the result is valid, the result is shown together with the irregular heartbeat symbol ( ).
-
Page 19: Using The Memory Function
3. Using the Unit 3.4 Using the Memory Function The monitor automatically stores the result up to 90 sets each for both user A and B. It can also calculate an average reading based on the measurements from the last three readings taken within 10 minutes. -
Page 20: To Delete All The Values Stored In Memory
3. Using the Unit To delete all the values stored in memory The values stored in the memory are deleted by user ID. You cannot partially delete values stored in the memory. All values for the user you select will be deleted. When the memory symbol ( ) appears, first press the MEM button. -
Page 21: Troubleshooting And Maintenance
4. Troubleshooting and Maintenance 4.1 The Icons and Error Messages Error Display Cause Remedy Remove the wrist cuff. Wait 2-3 minutes and then take another measurement. Irregular or weak pulses are detected. Repeat the steps in section 3.3. If this error continues to appear, contact your doctor. - Page 22 The user ID has changed during Do not change the user ID during measurement. measurement. An Er mark with a code/number Consult your OMRON indicates the device has a hardware retail outlet or distributor. failure. Note: The irregular heartbeat symbol (...
-
Page 23: Troubleshooting
Movement or talking during during measurement. Refer measurement. to section 3.3. Wrist cuff pressure does not Air is leaking from the wrist Consult your OMRON retail rise. cuff. outlet or distributor. Apply the cuff correctly so that Wrist cuff deflates too soon. - Page 24 (+/-) polarity. • Press the O/I START button and repeat measurement. • If the problem continues, try replacing the batteries with new ones. Other problems. If this still does not solve the problem, contact your OMRON retail outlet or distributor.
-
Page 25: Maintenance
4. Troubleshooting and Maintenance 4.3 Maintenance To protect your unit from damage, please avoid the following: • Subjecting your unit to extreme temperatures, humidity, or direct sunlight. • Washing the cuff or exposing the cuff or unit to water. • Disassembling the unit. •... - Page 26 • It is generally recommended to have the unit inspected every two years to ensure correct functioning and accuracy. Please consult your authorised OMRON dealer or the OMRON Customer Service at the address given on the packaging or attached literature.
-
Page 27: Technical Data
5. Technical Data Product Description Digital Automatic Wrist Blood Pressure Monitor Model OMRON R6 (HEM-6052-E/ HEM-6052-E7/ HEM-6052-E8) Display LCD Digital Display Measurement Method Oscillometric method Measurement Range Pressure: 0 mmHg to 299 mmHg Pulse: 40 to 180 beats/min. Pressure: ±3 mmHg Accuracy Pulse: ±... - Page 28 Part 1: General Requirements and Part 3: Supplementary requirements for electromechanical blood pressure measuring systems. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood pressure monitors, which is the...
- Page 29 EN60601-1-2:2007 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions.
-
Page 30: Some Useful Information About Blood Pressure
6. Some Useful Information about Blood Pressure What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle. The highest pressure in the cycle is called the Systolic Blood Pressure;... - Page 31 6. Some Useful Information about Blood Pressure Why is it a Good Thing to measure Blood Pressure at Home? Many factors such as physical activity, anxiety, or Upper curve: systolic blood pressure Lower curve: diastolic blood pressure the time of day, can influence your blood pressure.
