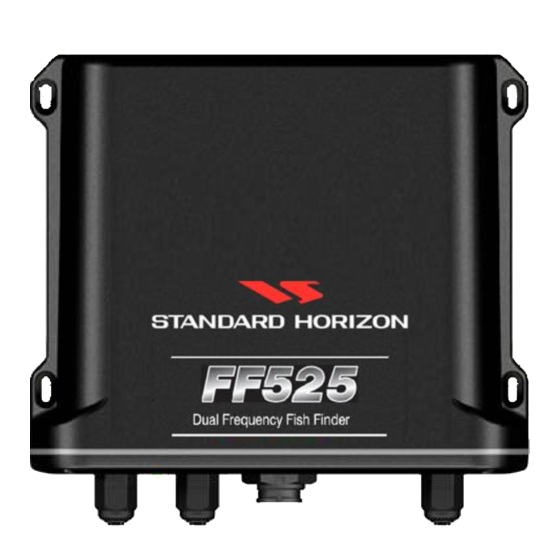

Standard Horizon FF525 User Manual
Cpn series chart plotters
Hide thumbs
Also See for FF525:
- Installation and operation manual (45 pages) ,
- Operation manual (32 pages) ,
- Installation manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Standard Horizon FF525
Summary of Contents for Standard Horizon FF525
- Page 2 When plugging in or unplugging a transducer to the FF525 make sure power is turned off. Copyright 2011. VERTEX STANDARD CO., LTD. All rights reserved. Printed in Italy.
-
Page 3: Table Of Contents
1 - INTRODUCTION ........................7 CONVENTIONS USED ..................7 GENERAL INFORMATION ................7 1.1.0 PRODUCT SUPPORT INQUIRIES ............. 7 2 - CONNECTING THE FF525 ....................8 CPN700i ......................8 CPN1010i ......................9 3 - OPERATION ........................10 UNDERSTANDING THE FISH FINDER PAGE ..........10 FISH FINDER DISPLAY ................. - Page 4 4.9.0 Shallow Water ..................26 4.9.1 Deep Water ..................26 4.9.2 Fish ..................... 26 4.9.3 Temperature Upper ................27 4.9.4 Temperature Lower ................27 4.9.5 Temperature Rate ................27 4.10 SAVE SETTINGS TO USER SD CARD ............27 4.11 LOAD SETTINGS FROM USER SD CARD ..........27 4.12 RESTORE CURRENT PRESET DEFAULTS ..........
-
Page 5: Introduction
1 - INTRODUCTION This manual provides basic information in becoming familiar with the advanced functions of the FF525 before you start using it combined with the STANDARD HORIZON CPN Series Chart Plotters. 1.0 CONVENTIONS USED Any menu operation and functions activation in this Operation Manual is related to the 7inch CPN700i and 10inch CPN1010i Multimedia Chart Plotters models with software capable to operate with FF525. -
Page 6: Connecting The Ff525
The FF525 must be properly installed according the following instructions to get the best possible performance. For more information on installation please see the FF525 Installation Manual. 2.0 CPN700i Gray and White wires should not be connected to other devices when the FF525 is connected. Page 8... -
Page 7: Cpn1010I
2.1 CPN1010i Gray and White wires should not be connected to other devices when the FF525 is connected. CPN and FF525 Operation Manual Page 9... -
Page 8: Operation
3 - OPERATION 3.0 UNDERSTANDING THE FISH FINDER PAGE The display on CPN Series Chart Plotters shows a history of time of the echoes received by the transducer. The CPN Series Chart Plotters have a menu that allows adjustments to receiver sensitivity, depth range and scrolling speed of the Fish Finder display. - Page 9 Colored scale located on the left side of the screen that shows the colors used in the Fish Finder page to represent the echoes strength. The color on the top of the bar FF525 represents the maximum echo strength, while the color on the bottom of the bar represents the minimum echo strength.
-
Page 10: Fish Finder Display
Generally, the term “structure” is used to identify objects like wrecks and weeds rising from the bottom. Bottom Echo Profile Bottom profile recorded by the FF525. When the echo sounder is set in Auto Range mode, the bottom is kept in the lower half in the display. Page 12... -
Page 11: Displaying The Fish Finder Page
3.2.0 AUTO FULL PAGE When this page is selected, the FF525 automatically changes the transmit frequency to show depths. Automatic switching occurs when depth of water is less than 400Ft (200kHz) and greater than 400Ft (50kHz). -
Page 12: 200 Khz And 50 Khz Zoom
3.2.2 200 kHz AND 50 kHz ZOOM PAGES Allows the user to zoom into the 200kHz or 50kHz Fish Finder display to show detail of the area selected by the VDM (Variable Depth Marker). Referring to the image below, the left display shows the zoomed display and the right display shown the unzoomed display. - Page 13 Tapping the Soft Key shows the Interference Rejection window: Tap on to reach the desired value, than tap on (the Interference Rejection window disappears). Soft Key Tapping the Soft Key shows the Range window: CPN and FF525 Operation Manual Page 15...
- Page 14 The range window allows to adjust the Shift and Depth value. Tap on the relative to reach the desired value, than tap on (the Range window disappears). Soft Key Tapping the Soft Key shows the Frequency window: Tap on to reach the desired value, than tap on (the Frequency window disappears).
-
Page 15: Fish Finder Setup Menu
Allows you to choose the Fish Finder color between 16 and 256 colors. Select the Fish Finder page then follow the procedure below: 1. Tap anywhere on the screen. 2. Tap on the Soft Key. CPN and FF525 Operation Manual Page 17... -
Page 16: Presets
4. When the item you want has been selected, press the key to exit. 4.1 PRESETS To simplfy menu selections, the FF525 has two presets that can be easily selected for Fishing or Cruising. Select the Fish Finder page then follow the procedure below: 1. Tap anywhere on the screen. -
Page 17: Gain Mode
Allows the Fish Finder to automatically adjust receiver Gain depending on water depth. · Manual Mode Allows the user to change the Gain manually to fine tune the FF525’s receiver. 4. When the item you want has been selected, press the key to exit. -
Page 18: Range Mode
4. Tap on the desired item. 5. When the item you want has been selected, press the key to exit. 4.4.0 RANGE MODE · Manual Mode Used to set the depth Range (from the surface) the Fish Finder display will show. ·... -
Page 19: Sensitivity Menu
(reading shallow, example 3Ft). Its default value is SHORT for the 200 kHz frequency and MID for the 50 KHz frequency. Such values are good in most conditions. However when navigating in very shallow waters CPN and FF525 Operation Manual Page 21... - Page 20 it may be necessary to switch it to OFF, while in very deep waters with a lot of Surface Clutter it may be better to increase it to MID or LONG. In some situations it may be necessary to adjust the STC so the sounder can read through the surface noise and show the bottom.
-
Page 21: Surface Noise Filter
5. When the item you want has been selected, press the key to exit. 4.7.0 COLOR SETTINGS Allows you to change the color of the Fish Finder display from Blue (default), White, Black, CPN and FF525 Operation Manual Page 23... -
Page 22: Scrolling Speed
Gray scale. 4.7.1 SCROLLING SPEED Controls the rate the Fish Finder scrolls and updates the Fish Finder display. 4.7.2 WHITE LINE Controls how the bottom type (hard or soft) is shown on the display. When the White Line is Off the bottom return will display as red. When the White Line is On it can be used to determine bottom hardness. -
Page 23: Transducer Setup
4.8.2 CALIBRATE WATER TEMP Used to calibration on the Water Temperature sensor in the transducer. 4.8.3 CALIBRATE AUX TEMP Allows the calibration of the Aux Temperature sensor connected to the Optional Connection wires. CPN and FF525 Operation Manual Page 25... -
Page 24: Set Defaults
4.8.4 SET DEFAULTS Restores the factory settings. 4.9 ALARMS The Alarms menu allows you to define alarm settings for Shallow Alarm, Depth Alarm and Temperature Upper/Lower/Rate. To set an Anchor Alarm, enter in a shallow water and deep water value above and below your actual anchoring depth. The alarm will sound when the depth becomes shallower or deeper than the settings. -
Page 25: Temperature Upper
3. Tap on SAVE SETTINGS TO USER SD CARD. 4. When saving is complete tap on 4.11 LOAD SETTINGS FROM USER SD CARD This option loads the complete set of Fish Finder settings from the User SD CARD (memory CPN and FF525 Operation Manual Page 27... -
Page 26: Restore Current Preset Defaults
Card that may be used to backup the User Points and Tracks too). Select the Fish Finder page then follow the procedure below after inserting a SD CARD into the slot. 1. Tap anywhere on the screen. 2. Tap on the Soft Key. -
Page 27: Operation Tips
Auto Range to hook to the second or third echo from the bottom (since in shallow waters the sound bounces more times back and forth the CPN and FF525 Operation Manual Page 29... - Page 28 surface to the bottom). Try decreasing the STC value to SHORT in shallow waters or to switch it to VERY SHORT or OFF. Auto Range fails, and the digital depth readout displays a very shallow reading. What should I do? This usually happens if the STC is off or is set to a low value causing disturbance from Surface Clutter to be stronger than bottom echoes.
- Page 29 The CPN Series Chart Plotter shows no data when viewing the Fish Finder page This may be due to the FF525 having an issue. To confirm, listen to the depth transducer for the transmit pulse. If the pulse is not heard the FF525 is defective.
-
Page 30: Index
INDEX 200 kHz ............14 Fish Symbols ........... 24 200 kHz Full ............ 13 Fish/Chart ............14 200kHz & CHART ........... 13 fishes ............... 30 256 colors .......... 18, 19, 21 Fishing ............. 18 50 kHz ............. 14 FREQUENCY ..........18 50 kHz Full ............ - Page 31 STC ........... 15, 21, 30 White Line ............12 Structures ............12 Surface Clutter ......... 12, 30 Surface Noise Filter ......... 23 ZOOM 200kHz ..........13 ZOOM 50kHz ..........13 Temperature Lower ......... 27 CPN and FF525 Operation Manual Page 33...
- Page 32 Products shall be limited solely to repair or replacement, at its option, of the Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with or reconditioned parts and subassemblies.
