CAUTION: DO NOT INSTALL OEM INK BEFORE INSTALLING ChromaBlast-R INK.
Do not power ON the printer before installing the cartridges

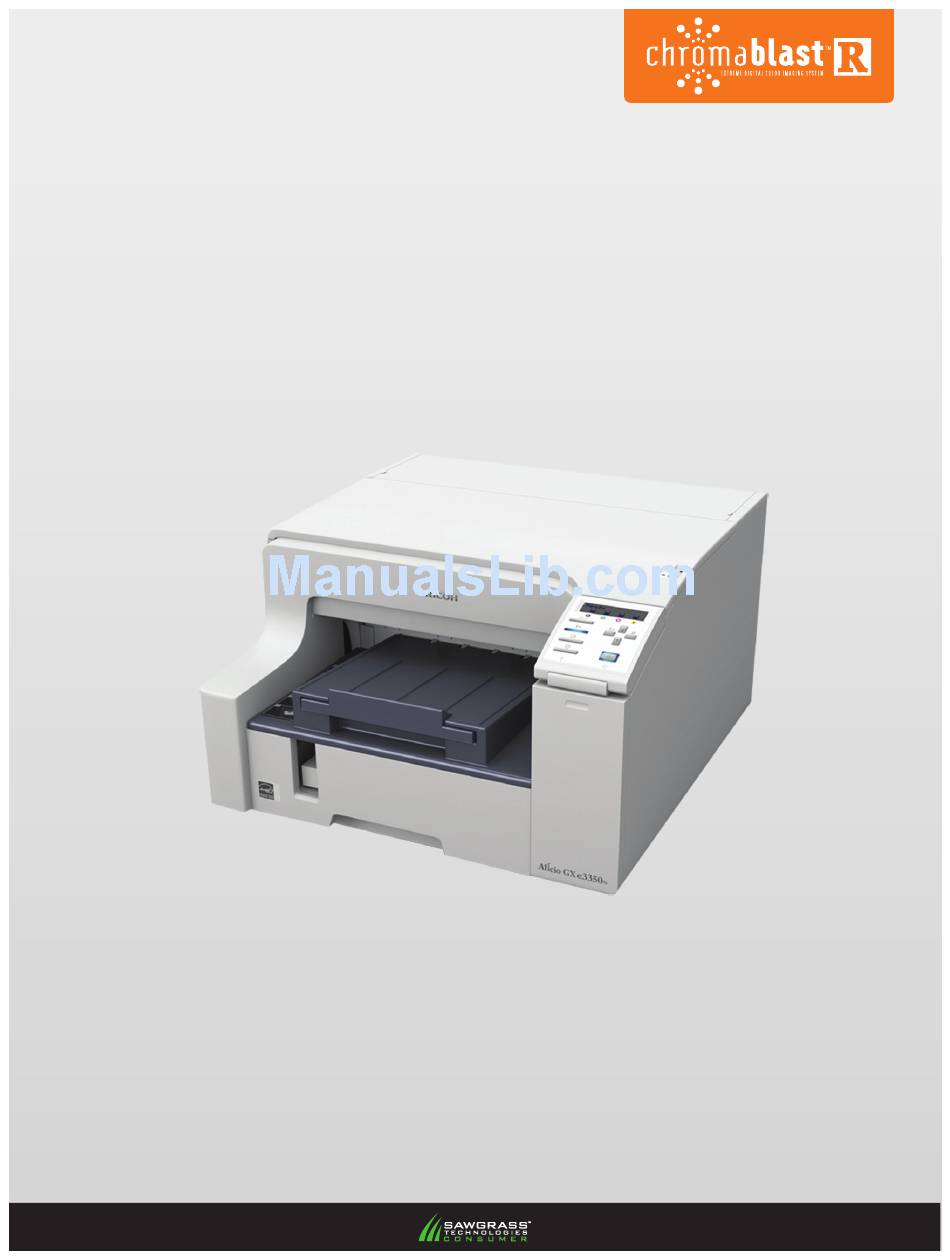

Ricoh GX e3300N

INsTAllATION GUIde

Note: If you experience any communication errors, a powered USB Hub may be required.

Advertisement

loading

Related Manuals for Ricoh GX e3300N

Summary of Contents for Ricoh GX e3300N

  • Page 1: Installation Guide

    CAUTION: DO NOT INSTALL OEM INK BEFORE INSTALLING ChromaBlast-R INK. Do not power ON the printer before installing the cartridges Ricoh GX e3300N INsTAllATION GUIde Note: If you experience any communication errors, a powered USB Hub may be required.
  • Page 2 SECTIONS: Printer Setup & OEM Driver Installation (2 pages) OEM Driver Initialization (2 pages) ChromaBlast GXe3300N Installation & Registration (7 pages)
  • Page 3 3.) Remove the paper tray, pull the cover straight up, and adjust the guides for the paper size you will be using. Load the paper, put the cover back on, and reinsert the tray into the printer. For larger paper sizes, refer to the documentation provided with your Ricoh printer for extending the paper tray. PAGe 1 of 2 >>...
  • Page 4 ON THe PRINTeR AT THIs TIMe. 5.) Start your computer, wait until Windows is fully operational, and then insert the Ricoh CD in the CD-ROM drive. The CD contains the printer driver, and the program will start automatically. Follow the on-screen instructions, beginning with the selection of the language.
  • Page 5 FIGURE 1 FIGURE 2 2.) Right-click on the Ricoh GX e3300N printer icon (see Figure 2 > 1) and select Properties (see Figure 2 > 2). This will open the Gelsprinter GX e3300N Properties window (see Figure 3). NOTE: If you are running Widows 7, you will need to select Printer Properties.
  • Page 6 FIGURE 3 Congratulations! The Ricoh e3300N OEM Driver has now been initialized and is ready to use in conjunction with ChromaBlast GXe3300N. Please proceed to the ChromaBlast GXe3300N Installation portion of your Installation Guide.
  • Page 7 Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration ChromaBlast GXe3300N Installation NOTE: Your screens and menus may differ depending on the version of software and operating system you are using. However, the settings will be the same. 1.) Visit the Sawgrass Technologies web site at www.sawgrassink.com and navigate to the Download Chromablast Drivers page (http://www.sawgrassink.com/v.php?pg=365).
  • Page 8 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 2:7) 3.) On your desktop, double-click on the executable icon to begin the installation (see Figure 3). This will open the ChromaBlast GXe3300N Setup window (see Figure 4). When you are ready to begin the installation, click Install (see Figure 4).
  • Page 9 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 3:7) 5.) Click Install and setup will install ChromaBlast GXe3300N in the specified Destination Folder (see Figure 8). To install in a different folder, click Browse and select another folder. Once you click Install, you will see the installation progress bar (see Figure 9).
  • Page 10 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 4:7) 7.) You will use your Product Id to register your product. A Registration Code can be obtained in any of the following ways: a. On-line: Receive your Registration Code via E-mail.
  • Page 11 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 5:7) 9.) Type in the Registration Code you receive and click Apply Code (see Figure 14). Next, click OK to complete the registration process (see Figure 15). During the installation you will be asked to disable the color management in your graphics software.
  • Page 12 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 6:7) 11.) Once your computer has been restarted, click your start icon and click Printers and Faxes (see Figure 18). This will open the Printers and Faxes window (see Figure 19).
  • Page 13 ChromaBlast-R: Ricoh GXe3300N ChromaBlast GXe3300N Installation & Registration (cont’d 7:7) drop-down arrow and select the Gelsprinter GX e3300N as the OEM Printer. Once you 13.) Click the have selected your printer, click Apply to finalize the initialization process (see Figure 21).
