NETWORK CAMERA

User Manual

SNB-8000/SNV-8080

Advertisement

Table of Contents
loading

Related Manuals for Samsung SNB-8000

Summary of Contents for Samsung SNB-8000

  • Page 1: Network Camera

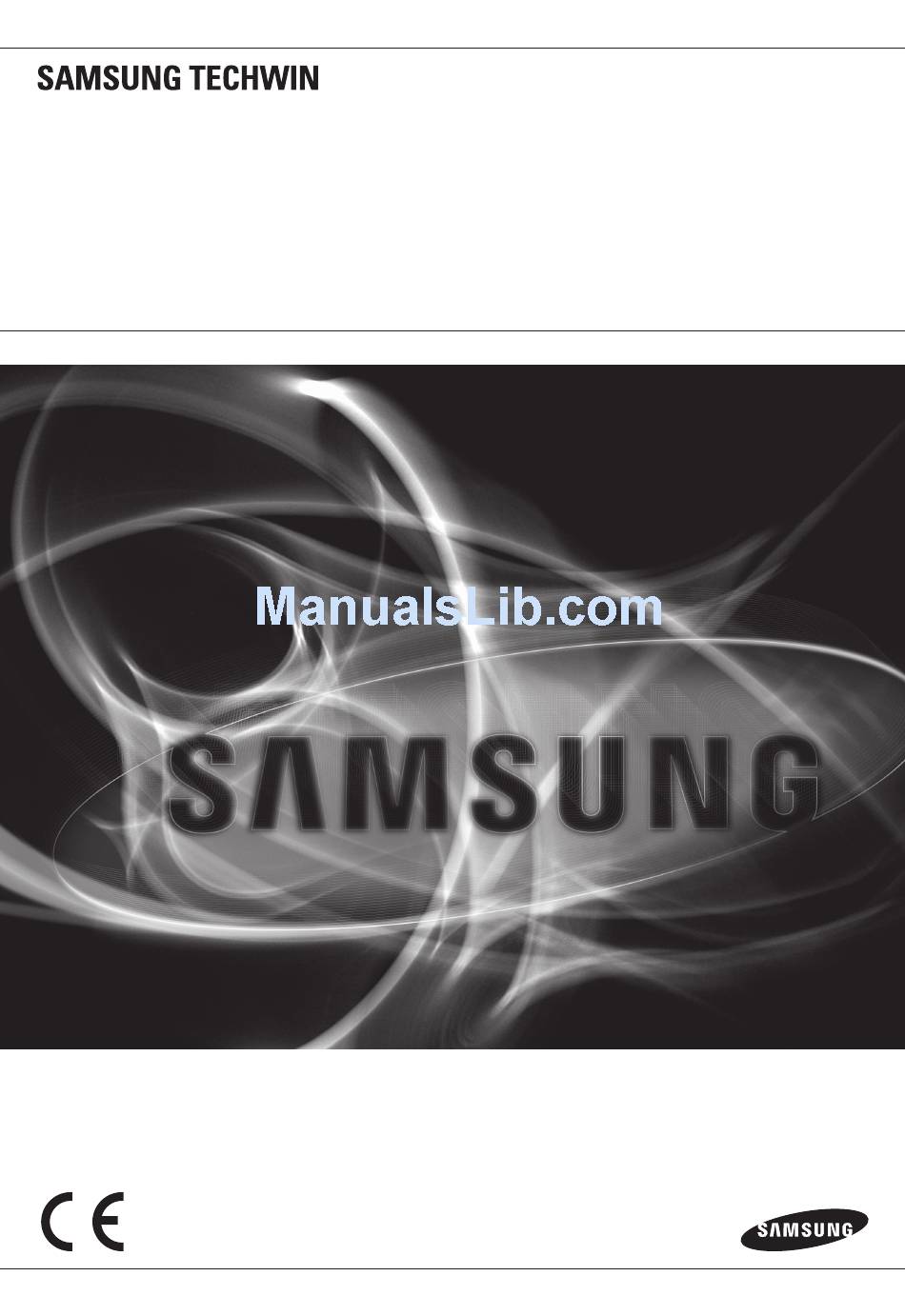

    NETWORK CAMERA User Manual SNB-8000/SNV-8080...
  • Page 2 Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

  • Page 3: Important Safety Instructions

    overview important Safety inStructionS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

  • Page 4: Explanation Of Graphical Symbols

    overview warninG TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 class construction An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection. Battery Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnection Device Disconnect the main plug from the apparatus, if it’s defected.
  • Page 6 overview Please read the following recommended safety precautions carefully. y Do not place this apparatus on an uneven surface. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area. y Do not place this apparatus near conductive material.

  • Page 7: Table Of Contents

    Product Features Recommended PC Specifications Recommended Micro SD/ SDHC/SDXC Memory Card Specifications NAS recommended specs What’s Included At a Glance (SNB-8000) At a Glance (SNV-8080) iNSTALLATioN & Mounting the Lens (SNB-8000) CoNNeCTioN Installation (SNV-8080) Inserting/Removing a Micro SD Memory Card...

  • Page 8: Web Viewer

    overview web vieweR Connecting to the Camera Password setting Login Installing STW WebViewer Plugin Using the Live Screen Playing the recorded video SeTup SCReeN Setup Basic Setup Video & Audio setup Network Setup Event Setup NAS (Network Attached Storage) guide System Setup Viewing profile information AppeNDix...

  • Page 9: Product Features

    proDuct featureS • full HD video Quality • multi-Streaming This network camera can display videos in different resolutions and qualities simultaneously using different CODECs. • web Browser-based monitoring Using the Internet web browser to display the image in a local network environment. •...

  • Page 10: Recommended Pc Specifications

    overview recommenDeD pc SpecificationS • CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps) Intel Core i7 2.8 GHz or higher (for using 1920x1080 60 fps) Web Plug-in is optimized to SSE 4.1 Instruction Set. •...

  • Page 11: Nas Recommended Specs

    Please check if your camera and accessories are all included in the product package. Appearance Item Name Quantity Description Model Name SNB-8000 or Camera SNV-8080 Instruction book, SNB-8000 Installer S/W CD SNV-8080 English _11...
  • Page 12 Appearance Item Name Quantity Description Model Name Quick Guide SNB-8000 (Optional) SNV-8080 Warranty card SNB-8000 (Optional) SNV-8080 Used to test the camera Cable for the testing SNB-8000 connection to a portable display monitor SNV-8080 device Power Terminal Block Plugged in the power plug...
  • Page 13 Appearance Item Name Quantity Description Model Name 6-position Terminal Block Used for alarm in/out terminals SNB-8000 Used for dome cover L Wrench disassembly, assembly and SNV-8080 camera installation. Power Cable Used to plug into the power port SNV-8080 Used to connect with the...
  • Page 14 Used for dome cover Drill bit disassembly, assembly and SNV-8080 camera installation. Options (not included) Optional lens to be inserted in CS/C Lens SNB-8000 a camera Housing for installing indoor Indoor Buried Housing SNV-8080 buried type cameras 14_ overview...

  • Page 15: At A Glance (Snb-8000)

    GLance (SnB-8000) front Side Item Description Used to fix the camera on a mounting bracket. The screw size : It is the specification for the screws used to fasten the Mounting Bracket camera to the support. Screw Hole 1/4"...
  • Page 16 overview rear Side Item Description Micro SD Memory Compartment for the Micro SD memory card. Card Compartment AUDIO OUT Used to connect to speakers. Audio terminal AUDIO IN Used to connect to a microphone. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system.
  • Page 17 Item Description Lightning protective Used to discharge the lightning current safely outside in order to protect the grounding port camera. Power Port Used to plug the power cable. Network Port Used to connect the PoE or Ethernet cable for network connection. Used to connect the alarm input sensor or external day/ ALARM IN night sensor.

  • Page 18: At A Glance (Snv-8080)

    overview at a GLance (Snv-8080) appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. 18_ overview...
  • Page 19 components Item Description Lens Lens for the camera. Power Port Port for power terminal block. Output port for test monitoring the video output. Use the test monitor cable Test Monitor Out to connect to a mobile display and check the test video. The button restores all camera settings to the factory default.
  • Page 20 overview Item Description Zoom in (Tele) Zoom out (Wide) Zoom/Focus Control Focusing on a near object (Near) Button Focusing on a far object (Far) Focus Control Press this button for automatic focus control. Micro SD Memory Compartment for the Micro SD memory card. Card Compartment Audio and alarm Plug in the audio and alarm cable to this port to connect with external alarm...

  • Page 21: Installation & Connection

    & connection mountinG tHe LenS (SnB-8000) Disconnect the power before proceeding. The C lens and CS lens are not included in the product package. It is recommended that megapixel lens are use on this camera to optimise performance. mounting the cS lens on a camera Turn the CS lens clockwise to attach it.

  • Page 22: Connecting The Auto Iris Lens Connector

    installation & connection connecting the auto iris Lens connector Plug the iris connector of the lens in the camera connecting groove. focusing Select a target to film, turn the zoom lever of the lens to adjust the magnification and then focus the lens so that target is clearly displayed.

  • Page 23: Installation (Snv-8080)

    inStaLLation (Snv-8080) This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 24 installation & connection installation 1. Using the template provided as an accessory, drill the screw installation hole(diameter of 6mm, minimal depth of 55mm) and firmly insert the plastic anchor provided as an accessory to the end. 2. Fit the bottom hole to the anchor hole and insert and fix the taping screw (M4.5xL50).
  • Page 25 connecting waterproof power cable and Lan cable 1. Remove the dome cover and the case. 2. Pull out the long projected part of the rubber plug on the bottom and remove it as shown in the figure. Use an appropriate cable bush for the LAN cable to be connected.
  • Page 26 installation & connection 5. Insert the LAN cable into the large hole made by removing the projected part of the rubber plug in step 2 above. 6. Remove the sheath with a cable cutter, and align the cables. 7. Connect the LAN cable with a LAN connector, and insert it into the LAN tool.
  • Page 27 connecting alarm cable 1. Remove the dome cover and the case. 2. Pull out the rubber plug on the bottom as shown in the figure. 3. Insert the alarm cable into the hole made by removing the rubber plug in step 2, and connect the cable with the PCB alarm terminal.

  • Page 28: Outdoor Installation

    installation & connection attaching to the unbundled adapter Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation site or for your convenience. 1. Remove the dome cover from the case by referring to the “Disassembling”...

  • Page 29: Optional Accessories For Installation

    optional accessories for installation For your easier installation, you can purchase appropriate optional accessories available. 1. WALL MOUNT ADAPTOR(SBP-300WM or SBP-300WM1)/HANGING MOUNT (SBP-300HM6) This adaptor is used when installing the dome camera onto a wall. 2. CEILING MOUNT ADAPTOR(SBP-300CM)/ HANGING MOUNT(SBP-300HM6) This adaptor is used when installing the dome camera on a concrete ceiling.
  • Page 30 installation & connection 3. POLE MOUNT ADAPTOR(SBP-300PM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on a pole whose diameter is bigger than 80mm. 4. CORNER MOUNT ADAPTOR (SBP-300KM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on the corner of wall joint.

  • Page 31: Adjusting The Monitoring Direction

    adjusting the monitoring direction for the camera (Snv-8080) Tilt Lens rotation ` adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

  • Page 32: Inserting/Removing A Micro Sd

    Do not insert the Micro SD memory card while it’s upside down by force. Otherwise, it may damage the Micro SD memory card. inserting a micro SD memory card Push the Micro SD memory card in the direction of the arrow shown in the diagram. <SNB-8000> <SNV-8080> 32_ installation & connection...

  • Page 33: Removing A Micro Sd Memory Card

    Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. <SNB-8000> <SNV-8080> Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably from the slot when released.

  • Page 34: Memory Card

    installation & connection memory carD information (not incLuDeD) what is a memory card? The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Selecting a memory card that’s suitable for you Your camera supports Micro SD/SDHC/SDXC memory cards.

  • Page 35: Connecting With Other Device

    Device Monitor to install Grounding cable Power Ethernet <SNB-8000> English _35...
  • Page 36 installation & connection Monitor to install Ethernet Power <SNV-8080> The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes. 36_ installation & connection...

  • Page 37: Ethernet Connection

    Connect the Ethernet cable to the local network or to the Internet. power Supply (SnB-8000) Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera. If you turn on PoE and DC12V and AC24V at the same time, the first applied one will be used as the power source.
  • Page 38 Max Distance 100M PoE Support IEEE 802.3af Grounding the product (SnB-8000) Connect the ground wire to the ground terminal which is located above the power input terminal by using a screwdriver. Grounding protects the product from a surge or lightning.

  • Page 39: Connecting To Audio Input/Output

    connecting to audio input/output Speaker Microphone Microphone Microphone Network Speaker Speaker Speaker Microphone Speaker Microphone English _39...
  • Page 40 As a microphone is built in, you can use the built-in microphone instead of an external one. (It is applicable only to the SNB-8000 model.) 2. Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the speaker is connected to.
  • Page 41 (SnB-8000) Connect the camera with an external device using the [rS-485 +, -] ports. You can control the pan/tilt operations of the camera via RS-485 communications. The GND connection is recommended for RS-485 communications. If you encounter a communication failure, connect the GND pin as appropriate to correct the GND level between camera and external device.
  • Page 42 installation & connection to connect the external sensor Connect one strand of each signal line (2-strand) of the sensors to the [aLarm in] port, and connect the other strand to the [GnD] port. alarm in wiring Diagram External Inside of the camera VCC_3.3V connection RESISTOR...

  • Page 43: Network Connection And Setup

    network connection and setup You can set up the network settings according to your network configurations. connectinG tHe camera DirectLy to LocaL area networKinG connecting to the camera from a local pc in the Lan 1. Launch an Internet browser on the local PC. 2.

  • Page 44: Connecting The Camera Directly To A Dhcp

    network connection and setup connectinG tHe camera DirectLy to a DHcp BaSeD DSL/caBLe moDem INTERNET DSL/Cable Modem Camera External Remote PC DDNS Server (Data Center, KOREA) 1. Connect the user PC directly with the network camera. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.

  • Page 45: Modem

    connectinG tHe camera DirectLy to a pppoe moDem INTERNET PPPoE Modem Camera External Remote PC DDNS Server (Data Center, KOREA) 1. Connect the user PC directly with the network camera. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.

  • Page 46: Connecting The Camera To A Broadband Router With The

    network connection and setup connectinG tHe camera to a BroaDBanD router witH tHe pppoe/caBLe moDem This is for a small network environment such as homes, SOHO and ordinary shops. Camera INTERNET PPPoE or PPPoE or Broadband Cable Modem Cable Modem Router External Remote PC Camera...

  • Page 47: Buttons Used In Ip Installer

    ButtonS uSeD in ip inStaLLer e f g Item Description Model name of the connected camera. Device Name Click the column to sort the list by model name. However, search will be stopped if clicked during the search. Alias This function is not currently implemented. Displays either <Static>, <Dynamic>...

  • Page 48: Static Ip Setup

    Exits the IP Installer program. For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download the latest version from the Samsung web site (www.samsungcctv.com). Static ip Setup manual network Setup Run <ip installer_v2.XX.exe>...
  • Page 49 3. In the <address> pane, provide the necessary information. • MAC (Ethernet) Address : The MAC address imprinted on the camera label is automatically displayed and requires no user setting. IP related parameters can be set only when DHCP is not checked. if not using a Broadband router For setting <ip address>, <Subnet mask>, and <Gateway>, contact your network administrator.
  • Page 50 network connection and setup if using a Broadband router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. ex) 192.168.1.2~254, 192.168.0.2~254, 192.168.XXX.2~254 • Subnet Mask : The <Subnet mask> of the Broadband Router will be the <Subnet mask>...

  • Page 51: Auto Network Setup

    auto network Setup Run <ip installer_v2.XX.exe> to display the camera search list. At the initial startup, both [auto Set] and [manual Set] will be grayed out. For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

  • Page 52: Dynamic Ip Setup

    network connection and setup Dynamic ip Setup Dynamic ip environment Setup • Example of the Dynamic IP environment - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server - If connecting the camera directly to modem using the DHCP protocols - If IPs are assigned by the internal DHCP server via the LAN checking the Dynamic ip 1.

  • Page 53: Port Range Forward (Port Mapping)

    port ranGe forwarD (port mappinG) Setup If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it. manual port range forwarding 1.
  • Page 54 Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, set <Quick connect> of <Samsung DDNS> to <On> in the “Setup  Network  DDNS” menu.

  • Page 55: Connecting To The Camera From A Shared Local Pc

    connectinG to tHe camera from a SHareD LocaL pc 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera's IP address in the address bar of the Internet browser.
  • Page 56 web viewer web viewer connectinG to tHe camera normally, you would 1. Launch the Internet browser. 2. Type the IP address of the camera in the address bar. ex) • IP address (IPv4) : 192.168.1.100  http://192.168.1.100 - the Login dialog should appear. •...
  • Page 57 To register your device to the <DDnS> server, visit www.samsungipolis.com and register your device first, and then set the Web Viewer’s <network> - <DDnS> to <Samsung DDnS>, as well as providing <product iD> that had been used for DDNS registration.

  • Page 58: Password Setting

    web viewer paSSworD SettinG When you access the product for the first time, you must register the login password. When the “password change” window appears, enter the new password. For a new password with 8 to 9 digits, you must use at least 3 of the following: uppercase/lowercase letters, numbers and special characters.
  • Page 59 inStaLLinG Stw webviewer pLuGin If connecting to a camera for the first time, you will see the installation message. Then, install the required WebViewer Plugin to access the camera and control the video from it in real time. 1. When the monitoring page is accessed for the very first time, the installation page is displayed.
  • Page 60 web viewer 5. Click [oK]. The old version of Web Viewer Plug-in is deleted. 6. Click [install] to begin installation of the Web Viewer Plug-in. 7. Click [finish]. STW Web Viewer Plug-in installation is completed. In your internet explorer, if you need to move to the installation screen after installing the STW webviewer plugin, check whether webviewer_...

  • Page 61: Using The Live Screen

    uSinG tHe Live Screen Item Description Monitoring Move to the monitoring screen. Move to the screen where you can search for the video recording saved in your Micro Playback SD memory card or NAS. Setup Move to the Setup screen. Profile access You can read the profile information.
  • Page 62 Connect the external PTZ to the RS-485 terminal and control the PTZ camera lens direction with the arrow keys. External PTZ Only for SNB-8000. The pan/tilt operations will be enabled only if the camera is connected to a pan/ tilt-compliant receiver.

  • Page 63: To Capture The Snapshot

    to capture the snapshot 1. Click [capture ( )] on the scene to capture. 2. When a captured video is saved, a notification message appears. When using Internet Explorer, the captured video is saved in My Computer / My Documents / Pictures. In Mac OS, it is saved in “~/Pictures”...
  • Page 64 web viewer to use audio 1. Click [audio ( )] icon to activate audio communication. 2. Use [ ] bar to control the volume. If there is no sound from pulling in and out the audio jack while it is in operation, click the [Audio ( )] icon to enable it again.
  • Page 65 pLayinG tHe recorDeD viDeo Before you can play the video, you must configure the record settings. For details on record settings, refer to “Storage”. (page 111) name of event search screen and its function Item Description Set the search date and time range for data saved in your Micro SD memory Search range setting card or NAS.

  • Page 66: To Play The Content After Searching By Event

    web viewer to play the content after searching by event 1. Click the [playback ( )] button. 2. Specify the start time and end time of your search. 3. Select an event type for your search within the specified period. 4.
  • Page 67 name of time search screen and its function Item Description Time bar The section in the specific period is played by moving the time bar. Set the search date using the calendar. Search date setting If there is data saved in your Micro SD memory card or NAS on the day, it is marked as a box on the calendar.

  • Page 68: To Play After Searching By Time

    web viewer Item Description Video information Time data of the replayed video is displayed on the screen. Set the desired date to make a backup copy of video data saved in your Backup Micro SD memory card or NAS. Can be set as up to 5 minutes. to play after searching by time 1.
  • Page 69 6. Move [time bar ( )] to a desired time point of the video before playing it. The time containing a normal recoding file will be highlighted in blue; the time with the event recording will be highlighted in red. to back up the searched video 1.
  • Page 70 web viewer to play an avi file (1) micro SD memory card 1. Separate the Micro SD memory card from the camera. Before separating the Micro SD memory card, set the <Device> to <Off> in the “Setup  Event  Storage” menu. 2.
  • Page 71 (2) naS (network-attached Storage) 1. In Windows browser, use \\<ip address>\ to access. ex)\\192.168.20.31\defaultfolder\ch01\ img\2013_07_02\AVI 2. Go to <computer>  <network drive connection>  Enter 1. 3. Connected to the NAS. The directory structure is same as the directory structure for a Micro SD memory card.

  • Page 72: Basic Setup

    setup screen Setup On the network, you can set up basic information on the camera, video and audio, network events and system. 1. In the Live screen, click [ Setup ( ) ] . 2. The Setup screen appears. The setting page for preview video requires the STW web viewer plug-in to be installed on the PC. If it is not intalled properly, the installation page automatically apprears.
  • Page 73 4. Configure <ptZ mode>. PTZ mode can be activated by selecting it while the camera is in 5m mode and outside. When connecting to the camera from external NVR, ISV, our SmartViewer, and if the PTZ control command is sent from them, the PTZ mode the administrator already selected will be the one used for operation.
  • Page 74 setup screen 8. According to your situation, set ATC (Auto Transmit Control) mode. • ATC mode : It adjusts the video properties according to the variance in the network bandwidth, controlling the bit rate. Adjusting the bit rate depends on the ATC mode. - Control framerate : Reduce the frame rate if the network bandwidth drops down.

  • Page 75: To Add/Change The Video Profile

    to add/change the video profile The profile setup can be added or modified to accommodate various profiles depending on the recording conditions. 1. Select one from the <video profile> options. 2. Provide the name and select a codec. 3. Specify the conditions under which the codec will be applied. 4.
  • Page 76 setup screen • Multicast(SVNP) : Specify the use of the SVNP protocol. - IP address : Enter an IPv4 address with which you can connect to the IPv4 network. - Port : Specify the video communication port. - TTL : Set the TTL for the SVNP packet. •...
  • Page 77 user 1. From the Setup menu, select the <Basic ( )> tab. 2. Click <user>. 3. Provide the necessary user information. • Administrator password change : Change the password for the administrator. For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and special characters for your password.
  • Page 78 setup screen If the existing password is not matched, when you change the admin password, you cannot change the password. After changing your password, if there is a camera connected to a CMS or NVR client, then you need to re-register it with the newly changed password. If the camera is still connected with the same password, then the account may be locked because a client uses the previous password.

  • Page 79: Date & Time

    Date & time 1. From the Setup menu, select the <Basic ( )> tab. 2. Click <Date & time>. 3. Specify the time and date that will be applied to the camera. • Current system time : Displays the current time settings of your system. •...
  • Page 80 setup screen ip & port 1. From the Setup menu, select the <Basic ( )> tab. 2. Click <ip & port>. 3. Set the <ipv4 setup>. • IP type : Select an IP connection type. - Manual : Specify the IP address, Subnet mask, Gateway, DNS1, and DNS2.

  • Page 81: Event Setup

    • Use timeout : When connecting to RTSP, this function resets the connection if there’s no response for a certain time. • Device port : Set a port used to transfer video signals with the Samsung protocols. If changed the HTTP port, the browser exits.
  • Page 82 setup screen DptZ setup Use this settings page to move the camera view and perform the digital zoom. 1. Select the <Basic ( )> tab from Setup menu. 2. Click <DptZ setup>. 3. Click [▼ Show]. 4. Click the cursor [ ] on the screen moving pad to control movement of the screen.
  • Page 83 To add the home position 1. Move to a desired start screen point and press [ The point will be set to the home position. 2. Click [ ] in the home position. You will move to the predetermined home position. 3.
  • Page 84 setup screen To set a group The group function enables you to group various presets before calling them in sequence. Six groups can save a total of 128 presets each. 1. Select a group setting mode. 2. Press the [ ] button.

  • Page 85: Video Setup

    viDeo & auDio Setup video setup 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <video setup>. 3. Select a <video source> mode. • Flip mode : Turn upside down the image that is captured by the camera.

  • Page 86: Audio Setup

    - Internal microphone : Microphone that is built-in in the camera. (It is applicable only to the SNB-8000 model.) - External microphone : 3.5 pi(¢) jack type external MIC. • Apply power to Ext. Mic. : If the external microphone connected has no separate power supply, check this option to set camera to supply power to the connected external microphone.

  • Page 87: Camera Setup

    camera setup You can change the camera settings according to the environment where the camera is located. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <camera setup>. 3. Configure the settings as necessary of : Sensor, SSDR, White balance, Back light, Exposure, Special, Day/Night, OSD 4.
  • Page 88 Set SSDr (Samsung Super Dynamic range) In a scene where the difference between bright and dark is severe, you can increase the brightness of the dark area alone to regulate the overall brightness. 1. Select <SSDr>. 2. Set <mode> to <on>.
  • Page 89 To prevent malfunction at the time of BLC setup, the vertical space of the BLC area should be over 40 and below 60 while the horizontal space over 30 and below 60. to Set exposure (SnB-8000) You can adjust the exposure level of the camera.
  • Page 90 setup screen • SSNR : Select Able or Disable for the video noise elimination function. • SSNR level : Adjust the noise reduction level. • Lens : Select to set the lens mode of the camera to Manual or Auto. - DC(Auto) : Select this if you use the DC lens.
  • Page 91 to Set exposure (Snv-8080) You can adjust the exposure level of the camera. 1. Select <exposure>. 2. Select each item and set it properly. • Brightness : Adjust the screen brightness. • Minimum shutter : The limit of the longest exposure time. Shutter is the mode to set up the range of the sensor exposure time which will specify the upper and lower limits for the electronic shutter movement.
  • Page 92 setup screen to Setup Special 1. Select <Special>. 2. Select each item and set it properly. • Sharpness mode : Adjust the overall sharpness of the image. If selecting <on>, you can adjust the sharpness of the image. • Sharpness level : The higher the level is, the sharper and clearer the outline of the image becomes.
  • Page 93 Set Day/night (SnB-8000) 1. Select <Day/night>. 2. Select each item and set it properly. • Day/Night : Mode is used to adjust the color of Color or Black and White. - Color : The video is always output in color.
  • Page 94 setup screen to Set Day/night (Snv-8080) 1. Select <Day/night>. 2. Select each item and set it properly. • Day/Night : Mode is used to adjust the color of Color or Black and White. - Color : The video is always output in color.
  • Page 95 to Set oSD 1. Select <oSD>. 2. Select each item and set it properly. • Camera title : It specifies the name of the camera to be displayed on the screen. • Camera title X, Y : It specifies the position of the camera name on the screen.
  • Page 96 (SnB-8000) You can adjust the focus of video image. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <focus setup>. 3. Set up the focus in the following sequence. 1) Focus initialize : Click [...
  • Page 97 focus setup (Snv-8080) You can adjust the focus and zoom ratio of video image. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <focus setup>. 3. Set up the focus in the following sequence. 1) Focus initialize : Press the [ ] button to reset the lens.
  • Page 98 (SnB-8000) Configure the connection settings to the external pan/tilt receiver so that you can control the PTZ operations via the receiver connected to the RS-485 port of the camera. 1. Select the <video & audio ( )>...
  • Page 99 P control movement T control movement movement control Preset Remarks control control speed speed speed speed SAMSUNG-T O (1~6) O (1~6) O (1~4) O (1~4) SAMSUNG-E O (1~6) O (1~6) O (1~4) PELCO-D O (1~6) O (1~6) PELCO-P O (1~6)
  • Page 100 setup screen To add a preset 1. Select the preset number to add. 2. Set the name for the preset. 3. Press the [ ] button. To delete a preset 1. Select the preset number to delete. 2. Press the [ ] button.

  • Page 101: Network Setup

    - User name : Enter the user name for the DDNS service. - Password : Enter the password for the DDNS service. 5. When done, click [apply ( If selected <Quick connect>, be sure to select Samsung DDNS service. English _101...

  • Page 102: Registering With Ddns

    DDnS to register your product with the Samsung DDnS 1. Visit the iPOLiS web site (www.samsungipolis.com) and sign in with a registered account. 2. From the top menu bar, select <DDnS Service> - <my DDnS>. 3. Click [proDuct reGiStration].
  • Page 103 Samsung DDnS in camera setup 1. From the DDNS setup page, set <DDnS> to <Samsung DDnS>. 2. Provide the <product iD> that you registered product ID with the DDNS site. 3. Click [apply ( When the connection is successfully made, you will see the message of <(Success)>...
  • Page 104 setup screen ip filtering You can create a list of IPs that you want to grant or deny access to them. 1. From the Setup menu, select the <network ( )> tab. 2. Click <ip filtering>. 3. Select <filtering type>. •...
  • Page 105 You can select a secure connection system or install the public certificate for this purpose. 1. From the Setup menu, select the <network ( )> tab. 2. Click <SSL>. 3. Select a secure connection system. To access the camera using HTTPS mode, you have to type the IP address for the camera in the form of “https://<Camera_IP>”.
  • Page 106 setup screen 802.1x When connecting network, you can choose whether using 802.1x protocol, and then install the certification. 1. From the Setup menu, select the <network ( )> tab. 2. Click <802.1x>. 3. Set the <ieee 802.1x setting(eapoL using eap-tLS)>. •...
  • Page 107 You can specify the priority to secure a stable transfer rate for a specific IP. 1. From the Setup menu, select the <network ( )> tab. 2. Click <QoS>. 3. Click the [add ( )] button. The IP list will be created. 4.
  • Page 108 setup screen • Enable SNMP Trap : SNMP trap is used to send important events and conditions to the Admin. - Community : Enter the trap community name to receive messages. - IP address : Enter the IP address to which messages will be sent. - Authentication failure : It specifies whether an event shall be generated when the community information is invalid.
  • Page 109 • UPnP discovery : It specifies Able or Disable for UPnP Discovery. • Friendly name : Display the camera name. Friendly name is displayed in the format of SAMSUNG-<Model Name>-<MAC Address>. In the Windows operating system which basically supports UPnP, the cameras connected to the network are displayed.
  • Page 110 setup screen event Setup ftp / e-mail You can configure the FTP/E-mail server settings so that you can transfer the images taken with camera to your PC if an event occurs. 1. From the Setup menu, select the <event ( )>...
  • Page 111 • E-mail configuration - Server address : Enter the IP address of the email server that you transfer the alarm or event images to. - Use authentication : Select whether to use authorization. - Use SSL : Specify the use of SSL. - ID : Enter the user ID for logging into the email server.
  • Page 112 • Record file type : It specifies the file format of the recorded images. - STW : It is Samsung Techwin’s unique file format. - AVI : It is the conventional avi format.
  • Page 113 4. Specify the <normal record setup>. • Always : Always save recorded video in the Micro SD memory card. If set to Always, the activation time cannot be changed. • Only scheduled time : Records only on the specified time of the specified day of week. •...
  • Page 114 setup screen Confirm that the NAS IP address and the camera IP address are in the same format. ex) The NAS & camera subnet mask initial value is 255.255.255.0. If the IP address is 192.168.20.32 then the NAS IP address should be in the range of 192.168.20.1~192.168.20.255.
  • Page 115 naS (network attached Storage) guide Since data may not be saved after a temporary network interruption when using NAS, it is recommended that you use SD at the same time to prevent loss of recorded images. If the setting allows a Micro SD memory card and the NAS to be simultaneously connected for use, the higher priority for recording goes to the NAS.
  • Page 116 setup screen 2. If you access it as an admin, the following screen will be displayed. Click the [control panel]. 3. Click the <Shared folder> in the file sharing and privilege menu. 4. Click the [create] button. 5. After entering the shared folder name(ID), click the [oK] button to create a shared folder.
  • Page 117 8. After clicking the [create] button, enter name(ID) and password. In this example, name(ID) is set to [testiD] and password is also set to [testiD]. According to the NAS recommendations, when you use Netgear’s NAS equipment, do not allocate the capacity for use. 9.

  • Page 118: Alarm Output

    setup screen alarm output 1. From the Setup menu, select the <event ( )> tab. 2. Click <alarm output>. 3. Set the camera’s type of alarm output. If you change the alarm output type, the alarm out button on the monitoring page and alarm output type displayed on Event Setup page will be changed accordingly.

  • Page 119: Alarm Input

    alarm input You can set the alarm input type, activation time, and operation mode. 1. From the Setup menu, select the <event ( )> tab. 2. Click <alarm input>. 3. Set whether or not to <enable>. 4. Select the type. •...
  • Page 120 setup screen 6. Specify an operation that will perform if an alarm occurs. • FTP : Specify the use of FTP transfer in the alarm input setup. Refer to “FTP / E-mail” for more details. (page 110) • E-mail : Specify the use of email transfer in the alarm input setup. Refer to “FTP / E-mail”...

  • Page 121: Time Schedule

    time schedule You can set to save the video data at a certain interval as scheduled regardless of the actual occurrence of the event. 1. From the Setup menu, select the <event ( )> tab. 2. Click <time schedule>. 3. Set whether or not to <enable>. 4.

  • Page 122: Tampering Detection

    setup screen tampering detection You can set to detect tampering attempts and trigger events, such as sudden change of camera’s framing direction, blocked lens and other overall change of scenes from the video. 1. From the Setup menu, select the <event ( )>...

  • Page 123: Motion Detection

    motion detection Events of motion detection can be set to trigger event signal output. 1. From the Setup menu, select the <event ( )> tab. 2. Click <motion detection>. 3. Set whether or not to <enable>. 4. Set <Sensitivity>, <Size> and <area>. 5.
  • Page 124 setup screen Before using, set the minimum and maximum motion sizes to suit desired motion range to be detected. Detected size of an object may have difference with the actual size according to its shape. Up to 16 objects from the top side of the screen can be displayed. In the following cases, effective functioning of motion detection may be degraded or cause improper detection.

  • Page 125: To Use Motion Detection

    to use motion detection It detects a motion that meets all conditions specified by sensitivity, size and area. 1. Select <Sensitivity> tab to set the sensitivity level. You can set the sensor’s sensitivity to detect a motion out of the background from the monitoring video.
  • Page 126 setup screen 3. Select <area> tab. You can specify an area on the screen to include or exclude the area to/from detection. You can specify up to 4 areas. • Detection area : Sets the entire screen as excluded from detection, and adds specified area as motion detection area.

  • Page 127: Audio Detection

    audio detection You can set to detect sound over the specified level and trigger an event accordingly. 1. From the Setup menu, select the <event ( )> tab. 2. Click <audio detection>. 3. Set whether or not to <enable>. 4. Set the audio detection’s sound level. The lower the level, the smaller the sound change is detected.
  • Page 128 setup screen network disconnection When the network is physically disconnected, it is considered as an event to be saved. 1. From the Setup menu, select the <event ( )> tab. 2. Click <network disconnection>. 3. Set whether or not to <enable> . 4.

  • Page 129: System Setup

    SyStem Setup product information 1. From the Setup menu, select the <System ( )> tab. 2. Click <product information>. 3. Check the camera information, or provide details according to your network environment. • Model : Model name of the product. •...
  • Page 130 setup screen upgrade / reboot 1. From the Setup menu, select the <System ( )> tab. 2. Click <upgrade / reboot>. 3. Select a desired item and set it appropriately. • Upgrade : Performs upgrading the system. • Factory default : Resets the system to the factory default.
  • Page 131 If you forcibly terminate the upgrade process, upgrade will not be completed properly. During restarting the system, accessing with web viewer will not be made. You can download the latest version from the Samsung web site (www.samsungcctv.com). English _131...
  • Page 132 setup screen to back up the current settings 1. Click [Backup]. The Save As dialog should appear. 2. Specify the backup path with a proper file name, and click [Save]. The backup file will be saved to the specified path in the format of “.bin”. to restore the backup settings 1.
  • Page 133 You can check the system log or event log. 1. From the Setup menu, select the <System ( )> tab. 2. Click <Log>. 3. Select a log type. • System : You can check the system logs where any system changes are recorded including the time information.
  • Page 134 setup screen open SDK A user can install an application on their camera to execute additional functions. 1. From the Setup menu, select the <System ( )> tab. 2. Click <open SDK>. 3. Click the [Browse ( button to select the *.cap file from the user folder.
  • Page 135 viewinG profiLe information profile access You can check the profile information. 1. Click [Status ( )] on the live screen. 2. The profile information screen is displayed. • Profile access : Show the information of the newly added profile. - Profile : Show the information of the newly added codec.
  • Page 136 Specification Description Items SNB-8000 SNV-8080 Imaging Device 1/1.8” 6M PS CMOS Total Pixels 6M (3096 x 2094) Effective Pixels 2592(H) x 1944(V) Scanning System Progressive Color : 0.2 Lux (1/20, F1.2, 50IRE), 0.005 Lux (2sec, F1.2, 50IRE) Video Color : 0.1 Lux (1/20, F1.2, 30IRE), 0.0025 Lux (2sec, F1.2, 30IRE) Min.
  • Page 137 Off / BLC Compensation Wide Dynamic Range 60dB SSDR (Samsung Super Dynamic Range) (Off / On) Digital Noise Reduction SSNR (2D+3D Noise Filter) Operational Motion Detection Off / On (Up to 4 square motion detection area can be set with 4 points.) Privacy Masking Off / On (Up to 32 square privacy area can be set with 4 points.)
  • Page 138 2K Ohm Line out (3.5mm stereo mini jack) Audio out Max output Level : 1Vrms Operational RS-485 - Samsung-T/E, Pelco-D/P, Sungjin, Serial Interface Panasonic, Vicon, Honewell, AD, GE, Bosch Motion detection, tampering detection, audio detection, alert input, Alarm Triggers network disconnection.
  • Page 139 Description Items SNB-8000 SNV-8080 Ethernet RJ-45 (10/100BASE-T) Video Compression H.264(MPEG-4 Part 10/AVC), Motion JPEG Format 5M Mode 2592x1944 / 1920x1080 / 1600x1200 / 1280x1024 / 1280x960 / 1280x720 / 1024x768 / 800x600 / 720x576 / 720x480 / 640x480 / Resolution...
  • Page 140 ONVIF Profile S Application SUNAPI(HTTP API) Programming Interface SVNP 2.0 Samsung Camera Application Platform English, French, German, Spanish, Italian, Chinese, Korean, Russian, Webpage Language Japanese, Swedish, Denish, Portuguese, Czech, Polish, Turkish, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norway, Finland 140_ appendix...
  • Page 141 Description Items SNB-8000 SNV-8080 Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8) Web Viewer Mozilla Firefox (Ver. 19 ~ 9) Network Google Chrome (Ver. 25 ~ 15) Apple Safari (Ver.

  • Page 142: Product Overview

    SnB-8000 Unit : mm (inch) 147(5.79") 73.1(2.88") Ø 6.5 HoLe (Ø 0.26") Ø 1/4'-20 unc-2B 14 (0.55") 71.5 (2.81") 142_ appendix...
  • Page 143 Snv-8080 Unit : mm (inch) Ø 160 (6.3") Ø 100 (3.94") English _143...

  • Page 144: Troubleshooting

    appendix trouBLeSHootinG PROBLEM SOLUTION y Check to make sure that the camera’s Network settings are appropriate. y Check to make sure that all network cables have been connected properly. I can’t access the camera from a y If connected using DHCP, verify that the camera is able to acquire web browser.
  • Page 145 PROBLEM SOLUTION Can I change an event rule if I do y Yes, it can be. You can set rules for events despite of the intelligent not use <Motion detection>? video analysis setting. No signal is found at the Alarm Output port even when an y Check alarm output port settings.
  • Page 146 Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
  • Page 147 Gnu GeneraL puBLic LicenSe The “Program”, below, refers to any such program or work, and a “work based on the Program” means either Version 2, June 1991 the Program or any derivative work under copyright law : that is to say, a work containing the Program or a portion Copyright (C)1989, 1991 Free Software Foundation, Inc.
  • Page 148 3. You may copy and distribute the Program (or a work 7. If, as a consequence of a court judgment or allegation of based on it, under Section 2)in object code or executable patent infringement or for any other reason (not limited to form under the terms of Sections 1 and 2 above provided patent issues), conditions are imposed on you (whether that you also do one of the following :...

  • Page 149: Gnu General Public License

    no warranty You should also get your employer (if you work as a programmer)or your school, if any, to sign a “copyright 11. BECAUSE THE PROGRAM IS LICENSED FREE OF disclaimer” for the program,if necessary. Here is a sample ; CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, alter the names: TO THE EXTENT PERMITTED BY APPLICABLE LAW.
  • Page 150 Finally, every program is threatened constantly by software The “Corresponding Source” for a work in object code form patents. States should not allow patents to restrict means all the source code needed to generate, install, and development and use of software on general-purpose (for an executable work) run the object code and to modify omputers, but in those that do, we wish to avoid the special the work, including scripts to control those activities.
  • Page 151 5. conveying modified Source versions. d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer You may convey a work based on the Program, or the equivalent access to the Corresponding Source in modifications to produce it from the Program, in the form of the same way through the same place at no further source code under the terms of section 4, provided that you...
  • Page 152 7. additional terms. However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) “Additional permissions” are terms that supplement the provisionally, unless and until the copyright holder explicitly terms of this License by making exceptions from one or more and finally terminates your license, and (b) permanently, if of its conditions.
  • Page 153 14. revised versions of this License. In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, The Free Software Foundation may publish revised and/ not to enforce a patent (such as an express permission or new versions of the GNU General Public License from to practice a patent or covenant not to sue for patent time to time.
  • Page 154 openSSL combined License The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.
  • Page 155 SNMP v3 using both IPv4 and IPv6. For more additional This product includes software developed by the information, send email to help.cctv@samsung.com. Computer Science Department at University College Copyright (C) 2004, Kneschke, incremental London.
  • Page 156 3. Neither the name of the Regents of the University of 3. Neither the name of Thomas BERNARD nor the names California nor the names of its contributors may be used of its contributors may be used to endorse or promote to endorse or promote products derived from this software products derived from this software without specific prior without specific prior written permission.
  • Page 157 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 158 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT THIS SOFTWARE IS PROVIDED BY APPLE AND ITS HOLDERS AND CONTRIBUTORS “AS IS” AND ANY CONTRIBUTORS “AS IS” AND ANY EXPRESS OR EXPRESS OR IMPLIED WARRANTIES, INCLUDING, IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 159 Copyright (c) 2006 Free Software Foundation, Inc. mozilla public License Since we, at Samsung Techwin, used the Mozilla Firefox component without modifying the source code according to the MOZILLA Public license 1.1, we are not obliged to provide the source code of the corresponding component.
  • Page 160 1.11. "Source Code" means the preferred form of the Covered (d) Notwithstanding Section 2.2(b) above, no patent license is Code for making modifications to it, including all modules it granted: 1) for any code that Contributor has deleted from contains, plus any associated interface definition files, scripts the Contributor Version;...

  • Page 161: Disclaimer Of Warranty

    3.5. Required Notices. You must duplicate the notice in Exhibit 6.2. Effect of New Versions. Once Covered Code has been A in each file of the Source Code. If it is not possible to put such published under a particular version of the License, You may notice in a particular Source Code file due to its structure, then always continue to use it under the terms of that version.

  • Page 162: Limitation Of Liability

    8.3. If You assert a patent infringement claim against Participant 13. muLtipLe-LicenSeD coDe. alleging that such Participant’s Contributor Version directly or Initial Developer may designate portions of the Covered Code indirectly infringes any patent where such claim is resolved as Multiple-Licensed. Multiple-Licensedmeans that the Initial (such as by license or settlement) prior to the initiation of patent Developer permits you to utilize portions of the Covered Code infringement litigation, then the reasonable value of the licenses...
  • Page 163 the independent JpeG Group’s JpeG Software The software included in this product contains copyrighted software that is licensed under the JPEG license. • JPEG license - Code project . Generating Outline OpenGL, Libjpeg This distribution contains the sixth public release of the Permission is NOT granted for the use of any IJG author’s Independent JPEG Group’s free JPEG software.
  • Page 164 t-Kernel License - This Product uses the Source Code of T-Kernel under T-License granted by the T-Engine Forum(www.t-engine.org) t-License [License agreement for Source code of t-Kernel] established by T-Engine Forum on January 23, 2004 revised on June 17, 2004 revised on December 21, 2006 revised on March 24, 2009 article 1.
  • Page 165 article 4. License of Source code 4. The Distributor of Modification shall determine the name of the Modified Source Code subject to the rules separately 1. As provided for in this Article, T-Engine Forum shall established by T-Engine Forum and publish an appropriate notice as required by the rules on the Patch for Modification provide, and grant a license to use, the Source Code free and the Modified Source Code.
  • Page 166 article 9. indemnity distribute the Ported Source Code as the Source Code for T-Kernel. Provided, however, that the Ported Source Code 1. Neither T-Engine Forum nor the copyright holder of the may be treated in the same way as the Modified Source Code until the time of registration hereunder.

  • Page 167: End Of Terms And Conditions

    5. Submission of Contributions. Unless You explicitly state any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but otherwise, any Contribution intentionally submitted for not limited to communication on electronic mailing lists, inclusion in the Work by You to the Licensor shall be under source code control systems, and issue tracking systems the terms and conditions of this License, without any that are managed by, or on behalf of, the Licensor for...
  • Page 168 BZip2 License This program, "bzip2", the associated library "libbzip2", and all documentation, are copyright (C) 1996-2007 Julian R Seward. All rights reserved. component name License bzip2-1.0.5 Bzip2 http://www.bzip.org/ Redistribution and use in source and binary forms, with THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS or without modification, are permitted provided that the IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, following conditions are met:...
  • Page 169 pHp 3.01 License The PHP License, version 3.01 Copyright (c) 1999 - 2010 The PHP Group. All rights reserved. component name License php-5.2.17 PHP 3.01 http://www.php.net/distributions 6. Redistributions of any form whatsoever must retain the Redistribution and use in source and binary forms, with or without modification, is permitted provided that the following following acknowledgment: "This product includes PHP conditions are met:...
  • Page 170 Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
  • Page 171 memo...
  • Page 172 SALES NETWORK SAMSUNG TECHWIN CO., LTD. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA Tel : +82-70-7147-8753, 8764 Fax : +82-31-8018-3740 www.samsungsecurity.com SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 2nd Floor, No.

This manual is also suitable for:

Snv-8080

Table of Contents
