TAMPER/WIRE FAULT DEFINITIONS AND OPTIONS

When using 2 zone resistors, the panel offers four possible definitions for tamper/wiring recognition,
independent of zone definition.
"Tamper/wire" disabled
Tamper/wiring failure recognition is disabled. (Not allowed by UL listed systems, must be enabled.)
"Trouble" enabled
Tamper/wiring failure will generate an alarm, when armed. A trouble report code will be sent to the central
"Silent alarm" enabled
Tamper/wiring failure will generate a silent alarm (no siren) when the system is disarmed. Alarm and
trouble report codes will be sent to the central when the system is armed.
"Audible alarm" enabled
Tamper/wiring failure will generate an audible alarm armed or disarmed (siren). Alarm and trouble
report codes will be sent to the central.
Exception: When the zone definition is "24 hour", the tamper definition follows the audible/silent
alarm arm definition of the "24 hour" zone.
Tamper recognition addresses:
Tamper report and restoration codes should be programmed at addresses 472-478 and 510.

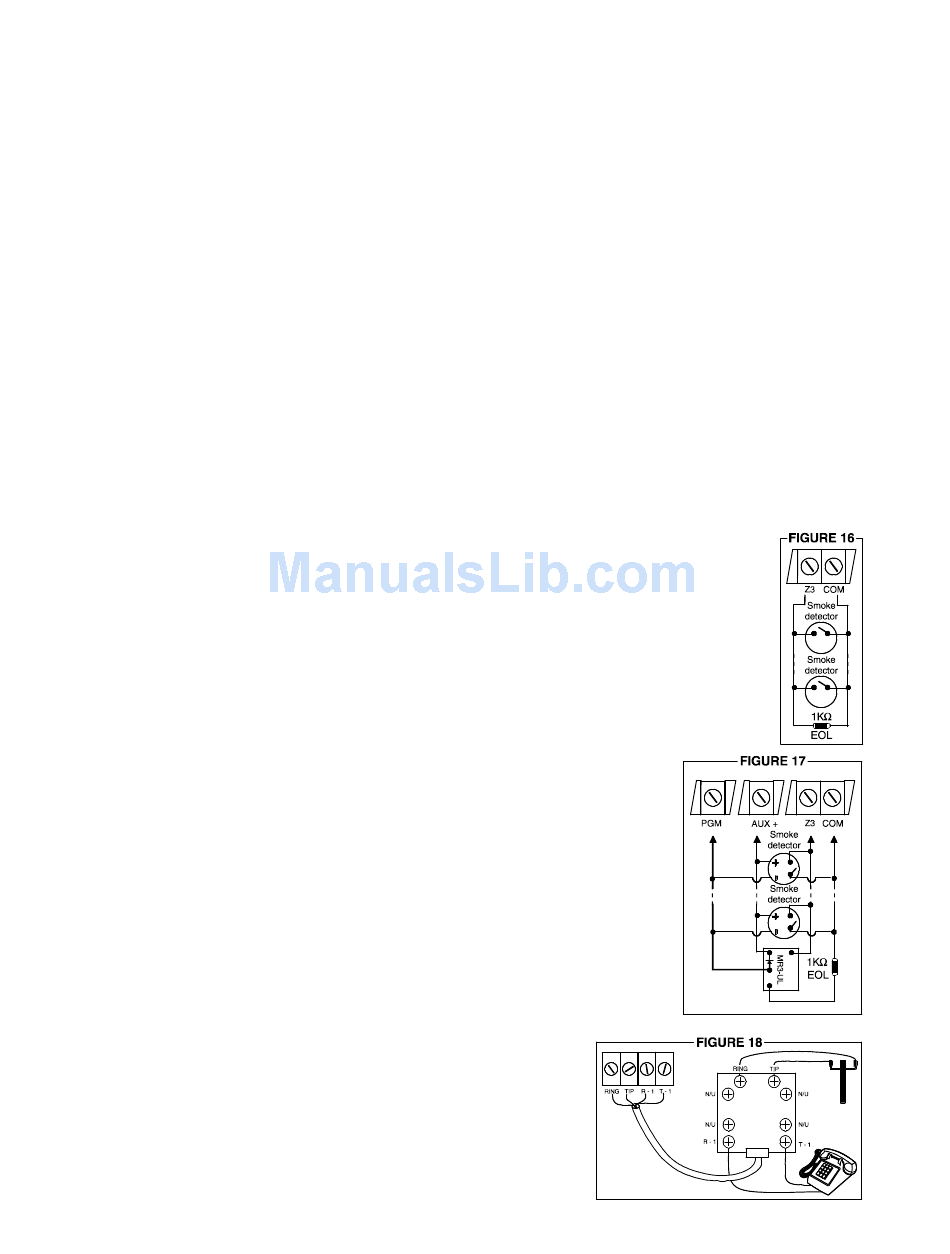

FIRE CIRCUIT

The fire zone (enabled by defining zone 3 as "24 hour") should always be connected with a
1KW W EOL resistor (PN201100200-PRT on UL systems). If there is a line short in the fire zone,
a fire alarm will be generated. If the line is "open", a "fire loop" trouble report will be sent to the
central and trouble indicator [11] will illuminate on the LED keypad.
For UL/ULC installations, a 4 wire, latching, smoke detector (UL - Falcon Model 5454, ULC -
BRK Model 2412) must be used. To supervise power supply, an "end of line" relay (Model
MR3) is installed. This relay's contacts will cause a FIRE TROUBLE in the event the power
is interrupted.
To reset (unlatch) smoke detectors after an alarm, power to detectors must
momentarily be interrupted. To do so, connect the negative (-) side of smoke
detector power to PGM1. PGM1 should then be programmed "Timed N.C." (nor-
mally closed), programmed to "open" when any two keys on the keypad are
pressed simultaneously.
Example:
To program to conduct smoke detector reset when [
1
PGM
are pressed at the same time.
Address 039 = [ ] [2
BYP ND
Address 040 = [5] [10]
Address 042 = [2 ] [6]
ND
Address 056 = [10] [10] [4]

TELEPHONE LINE CONNECTION

Connect the incoming telephone company wires into "
" ". Wires should then be run from "
RING
tion's phone system.
(Address 088, Key [10] "off", Key [11] "off")
(Address 088, Key [10] "off", Key [11] "on")
when disarmed.
(Address 088, Key [10] "on", Key [11] "off")
(Address 088, Key [10] "on", Key [11] "on")
]
1" and " 1" to the installa-
T R
] and [
CLEAR ENTER
" and
TIP
