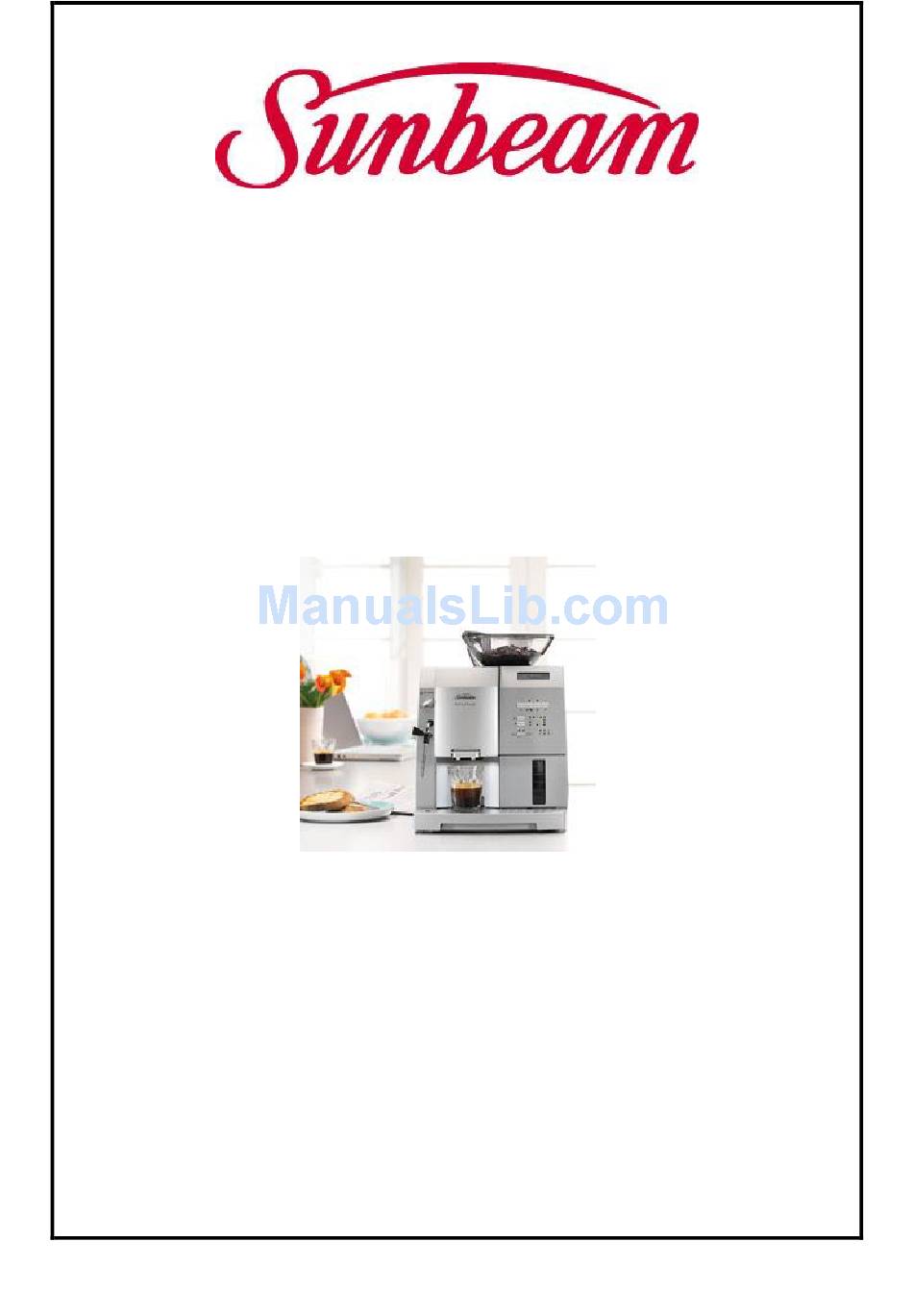

- Page 1 SERVICE MANUAL EM8910 Automatic Pump Espresso Machine with LCD ISSUE: DATE: 6/02/2007 EM8910 Automatic pump espresso machine with LCD Page 1 of 12...
-
Page 2: Spare Parts List
SPARE PARTS LIST Note: Not all parts are available as spare parts. Please check price list. Please note that some part numbers start with EM88 (common to both EM8800 and EM8910) and some with EM89 (specific to EM8910 only). Supplier’s Item Description Sunbeam Part No. - Page 3 Switch support 3190627 Felt gasket 4128505 Microswitch with lever 1120868 Washer 5107373 Spindle mount screw 5112679 Spring 4128458 EM88-4128458 Door lever 3214882 Guiding shaft assembly 9230010 330/1 Stopper 3221108 EM8910 Automatic pump espresso machine with LCD Page 3 of 12...
- Page 4 Pressure spring 4132182 400/3 Locking plate 4132229 400/4 Locking Slider red 3253589 400/5 O ring 34.5X3.5 5114299 Grinder assembly 9218682 EM88-9218682 Box of grease 1Kg 6108666 Thermo switch 1121918 EM8910 Automatic pump espresso machine with LCD Page 4 of 12...
- Page 5 Screw 5110298 filter for cord set 1121770 Flowmeter 1121190 Microswitch with lever 1121973 EM88-1121973 Drip Box rubber 3204404 Milk Beaker S/Steel 4129632 EM88-4129632 Thermofuse & wire 2MMT T90 EM88-1109286 EM8910 Automatic pump espresso machine with LCD Page 5 of 12...
- Page 6 EM88-5111042 Page 10, #37 Pressure spring 3 for brewer unit EM88-4132138 Page 10, #23 Valve bush for brewer unit EM88-3217701 Page 10, #19 Oring 2 for brewer unit EM88-5112781 EM8910 Automatic pump espresso machine with LCD Page 6 of 12...
-
Page 7: Exploded View Drawing
EXPLODED VIEW DRAWING EM8910 Automatic pump espresso machine with LCD Page 7 of 12... - Page 8 EM8910 Automatic pump espresso machine with LCD Page 8 of 12...
- Page 9 EM8910 Automatic pump espresso machine with LCD Page 9 of 12...
- Page 10 EM8910 Automatic pump espresso machine with LCD Page 10 of 12...
-
Page 11: Circuit Diagram
CIRCUIT DIAGRAM EM8910 Automatic pump espresso machine with LCD Page 11 of 12... - Page 12 EM8910 Automatic pump espresso machine with LCD Page 12 of 12...
