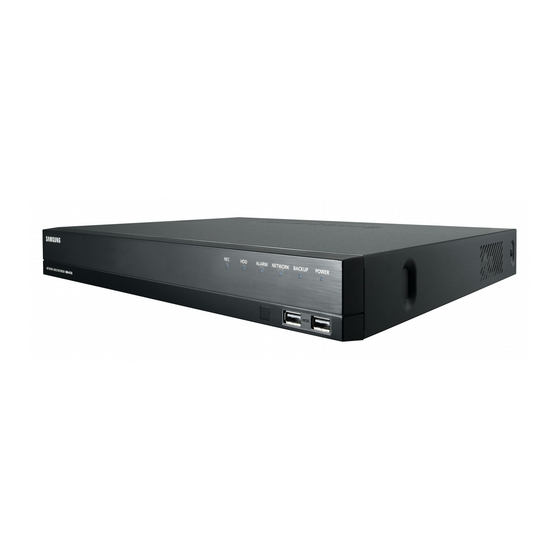

Samsung SRN-472S User Manual

Network video recorder
Hide thumbs Also See for SRN-472S:
Table of Contents

Advertisement

Quick Links

NETWORK VIDEO RECORDER
User Manual
SRN-472S

Advertisement

Table of Contents
loading

Related Manuals for Samsung SRN-472S

Summary of Contents for Samsung SRN-472S

  • Page 1 NETWORK VIDEO RECORDER User Manual SRN-472S...
  • Page 2 Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

  • Page 3: Important Safety Instructions

    overview IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water.

  • Page 4: Overview

    • SAMSUNG retains the copyright on this manual. • This manual cannot be copied without SAMSUNG's prior written approval. • We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.
  • Page 5 Operating Temperature The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period.

  • Page 6: Table Of Contents

    overview CONTENTS OVERVIEW Important Safety Instructions Before Start Contents Features Part Names and Functions (Front) Part Names and Functions (Rear) Remote Control Checking the installation environment INSTALLATION Rack Installation HDD Addition CONNECTING WITH OTHER DEVICE Connecting to an external device Connecting the USB Connecting the Alarm Input/Output Connecting the Network...
  • Page 7 Search SEARCH & PLAY Playback STARTING WEB VIEWER What is Web Viewer? Connecting Web Viewer LIVE VIEWER Live Viewer Live Screen Configuration 103 Controlling a Connected Network Camera 105 Search Viewer SEARCH VIEWER SETUP VIEWER 109 Setup Viewer 127 SEC Backup Viewer BACKUP VIEWER 129 Product Specification APPENDIX...
  • Page 8 overview FEATURES The product records video and audio from network cameras to a hard disk, and enables playback from the hard disk. It also provides remote monitoring environment for video and audio over the network using a remote computer. • User-friendly UI •...

  • Page 9: Package Contents

    Package Contents Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit. ALARM NETWORK BACKUP POWER Remote Control / Mouse Remote Control Battery (AAA) Network Viewer Software /...

  • Page 10: Part Names And Functions (Front)

    overview PART NAMES AND FUNCTIONS (FRONT) ALARM NETWORK BACKUP POWER Part Names Functions REC : Lights on when recording is in progress. HDD : Displays the normal access to HDD. LED turns on when accessing the hard disk. ALARM : Lights on when an event occurs. LED Indicator NETWORK : Displays both network connection and data transfer status.

  • Page 11: Part Names And Functions (Rear)

    PART NAMES AND FUNCTIONS (REAR) ALARM AC 100 240~IN ALARM Part Names Functions PoE 1/2/3/4 Power supply port to connect to a camera. VGA OUT VGA Video Signal Output Port. AUDIO OUT Audio Signal Output Port (RCA jack). HDMI HDMI connector port. NETWORK 2 Port used to send video to the web viewer.

  • Page 12: Remote Control

    overview REMOTE CONTROL POWER Displays the Exit pop up screen. Starts or ends the live recording. NUMBER [0~ + 10] Used as the numeric input keys, or displays a single channel. Sets the ID of the system. Select 2 digits from 0 ~ 9 while pressing the ID Key. Displays or ends PTZ.

  • Page 13: Installation

    installation Please take note of the followings before using this product. • Do not use the product outdoor. • Do not spill water or liquid in the connection part of the product. • Do not impose the system to excessive shock or force. •...

  • Page 14: Rack Installation

    installation RACK INSTALLATION Install the Bracket-Rack as shown in the figure, and then fasten the screws on both sides (2 screws on each side). Fix the screws not to be loosened by vibrations. HDD ADDITION Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage. Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.
  • Page 15 When you mount an HDD 1. Unfasten the screws on the side and in the rear and remove the cover. 2. Unfasten the screws on the HDD bracket and remove the bracket. Press the handle on both sides of the bracket and pull it forward.
  • Page 16 installation 4. Press the bracket where the HDD is mounted and fix it in with screws. 5. Close the cover and use the screws to fix it. 16_ installation...

  • Page 17: Connecting With Other Device

    connecting with other device CONNECTING TO AN EXTERNAL DEVICE AL AR AL AR VIDEO OUT AUDIO OUT (VGA) HDMI OUT Unrated or improper power source may cause damage to the system. Ensure that you use only the rated power source before pressing the POWER button.

  • Page 18: Connecting The Usb

    connecting with other device CONNECTING THE USB 1. On the front of the product, there is a USB port. 2. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port. 3. If a USB HDD is connected to the system, recognition and settings are available in "Menu Setup > Device > Storage Device".

  • Page 19: Connecting The Alarm Input/Output

    CONNECTING THE ALARM INPUT/OUTPUT The Alarm In/Out port at the back is composed of the following. AL AR AL AR Sensors Alarm 1.2KΩ Mechanical switch Open collector output device • ALARM IN 1 ~ 4 : Alarm Input Port • ALARM OUT 1 ~ 3 : Alarm Output Port C N.C N.O C N.O ALARM IN ALARM OUT...

  • Page 20: Connecting The Network

    connecting with other device CONNECTING THE NETWORK For more information about network connection, refer to "Network Configuration". (Page 76) Network connection via Ethernet (10/100BaseT) AL AR AL AR Switch Windows Network Viewer Network connection via router xDSL or Cable Modem AL AR AL AR NETWORK...
  • Page 21 Connecting to Internet through PPPoE NETWORK Phone (PPPoE) Line AL AR AL AR PPPoE MODEM Switch Switch Windows Network Viewer Network Camera Network Camera Connecting the network camera PnP mode Network Camera ex) IP : 192.168.231.10 AL AR AL AR Network Camera ex) IP : 192.168.231.20 Network Camera...
  • Page 22 connecting with other device Manual mode AL AR AL AR Switch Network Camera Switch Network Camera Network Camera Network Camera Network Camera ex ) IP : 192.168.1.20 Network Camera ex ) IP : 192.168.1.10 22_ connecting with other device...

  • Page 23: Live

    live GETTING STARTED Starting the system 1. Connect the power cable of the NVR to the wall outlet. 2. You will see the initialization screen. The initialization process will last about 2 minute. If a new HDD is installed, the initialization process may take longer.
  • Page 24 live Shutting Down the System 1. Press the [POWER] button for your remote controller or select <Shutdown> in the live screen menu. 2. The “Shutdown” confirmation pop-up window will appear. 3. Using the directional button on your remote control, select <OK>...

  • Page 25: Live Screen Configuration

    LIVE SCREEN CONFIGURATION Icons on the Live Screen You can check the status or operation of the NVR with the icons on the live screen. 2014-01-01 00 : 00 : 01 FULL CAM 01 Name Description Current Date, Time Displays the current time and date. Login Information When you are logged in, the "LOG ON"...
  • Page 26 live Name Description It is displayed when the max permitted amount of data for each channel is exceeded. It is displayed when the network is overloaded. System It occurs when the max receiving allowance is exceeded, causing an overload to the Operation CPU.
  • Page 27 Error Information • If the built-in HDD is not connected, the “NO HDD” icon ( ) will be displayed in the top left corner. In this case, make sure you contact the service center for assistance as this may cause a failure of recording, playback or backup.

  • Page 28: Single Mode Menu

    live Single Mode Menu The single mode menu is available only in Single Mode. If the menu is displayed as <Screen Mode> in the single screen, it is displayed as a <Full Screen> in the menu where only one channel is selected in the split screen. Full Screen Scene Mode ►...
  • Page 29 Split Mode Menu In Live split mode, right-click to display this context menu as shown. The context sensitive menu in split mode differs, depending on the login/logout status. Scene Mode ► CH Info Live Status Record Status PoE Status Audio Off Freeze Stop Alarm Record...
  • Page 30 live Menu Description Play Refer to "Search & Play > Play". (Page 91) Search Refer to "Search & Play > Search". (Page 88) Searches for a backup device and runs backup for each channel or schedule backup later at a Backup more preferable time.
  • Page 31 View the Launcher Menu The Launcher menu appears on the bottom of the live screen. 1. Select <Show Launcher> in the context menu of the Live screen. 2. Move the cursor to the bottom and click a desired item in the Launcher menu.

  • Page 32: Live Screen Mode

    live LIVE SCREEN MODE Four live videos are displayed in the three split screens. Method for displaying screen mode If you want to change the split mode, select a screen mode suggested in the launcher menu or right click with the mouse button and select a split mode in the screen mode menu.
  • Page 33 Channel information Select the <CH Info> in the live screen menu to check the status of camera connection to each channel. Channel Setting You can display the channel in a desired area of a split screen. 1. Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen. 2.

  • Page 34: Live Status

    live Live Status Select <Live Status> from the live screen menu to display status and transfer information of connected camera to each channel. • Model : Displays the camera model name connected to each channel. • Status : Displays the status of camera connection set to each channel.

  • Page 35: Zoom

    ZOOM This is activated only in Live Single mode. After selecting a single screen, if you use the Magnify function, the selected area will be magnified by 2. 1. In the live screen menu, select <ZOOM>. Press the [ZOOM] button on your remote control or click < >...

  • Page 36: Poe Status

    live POE STATUS In the live screen, you can see the PoE status of each port. 1. Select the <PoE Status>. PoE status view window is displayed. • Consumption(W) : Displays the power consumption in PoE. - 0 : No device is connected to the port or a device is using its own power supply.

  • Page 37: Freeze

    FREEZE This is available only in Live mode, this pauses playing the Live image temporarily. 1. Press the [FREEZE] button on your remote control or click < > in launcher mode. Video playing is paused. 2. Press the [FREEZE] button on your remote control or click < >...

  • Page 38: Ptz Control

    Even if the connected network camera does not support the PTZ operations, you can configure the PTZ control settings (if possible) by installing the PTZ driver (physical device). It only supports a network camera with Samsung Techwin's PTZ function and a camera registered in the ONVIF. 38_ live...
  • Page 39 Using the PTZ camera You can use a single PTZ camera to perform the Pan, Tilt and Zoom operations to monitor multiple places, and configure the custom settings of the presets in a desired mode. 1. Open the <PTZ Control> menu. The <...
  • Page 40 live Preset Preset is a specific position remembered by the PTZ camera. You can use the Preset function to define up to 255 presets for a single PTZ camera. To add a preset 1. Check the preset checkbox. 2. Select < >.

  • Page 41: Menu Setup

    menu setup You can setup the system, devices, and options for recording, event and network. SYSTEM SETUP You can setup Date/Time/Language, User, System Properties and Log. Date/Time/Language Setting the Date/Time/Language You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.
  • Page 42 menu setup • Holiday : A user can select specific dates as holidays according to their own preferences. Holidays are applied in the <Recording Schedule> or <Alarm Schedule> setting too. e.g. every first day of a year is set to be a holiday if you select January 1 and check <1/1>, and every first day of a year and every first Wednesday of January are set to be holidays if you check <1/1>...
  • Page 43 User You can set permissions of each user over the NVR's specific function and settings. Setting the Administrator You can set and change Administrator's ID and password. The administrator can use and set all menu items and functions. [MENU] [ENTER] ▼...
  • Page 44 menu setup User setting You can create a group or set permissions for each group. You can add a user and edit the registered user information. [MENU] [ENTER] ▼ <Menu> [ENTER] ►▼ <System> <User> [ENTER] ▼► <User> ▲▼◄► [ENTER] If you want to add a group 1.
  • Page 45 If you want to register a user 1. Click on the [ ] button to launch the user addition popup window. To add a user, click on <OK>. 2. Select a group. When registering a user, the selected group will be automatically registered. A group can be changed after inputting all required information.
  • Page 46 menu setup • Restriction on Network Access : Restricts remote access from a <Restricted Access> network. - All Network : Restricts all access instances via Network Viewer and Web Viewer. - Web Viewer : Restricts access via the Web Viewer. •...
  • Page 47 System Management You can check the system version, update to a newer version, as well as data backup and initialization. Checking the System Information You can check the current software version and MAC address before proceeding with the upgrade. [MENU] [ENTER] ▼...
  • Page 48 menu setup To upgrade the current software version 1. Connect a device storing the software to be updated. It may take about 10 seconds to recognize the device. Upgradeable devices include USB memory, and network device. To update the network, the current NVR should have been connected to the network. Upgrade via the proxy server may not be enabled due to the restricted access.
  • Page 49 Settings You can copy and import the NVR settings by using a storage media. [MENU] [ENTER] ▼ <Menu> [ENTER] <System> ►▼ <System Management> [ENTER] ▼► <Settings> [ENTER] ▲▼◄► [ENTER] • Storage Device : Shows the connected storage device. • Export : Exports NVR settings to the connected storage device. •...
  • Page 50 menu setup Log Information You can browse logs on the system and events. Checking the system log System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings. [MENU] [ENTER] ▼ <Menu> [ENTER] <System>...
  • Page 51 Checking the event log You can search recorded events including alarms, camera events and video loss. It also shows the log and its timestamp. [MENU] [ENTER] ▼ <Menu> [ENTER] <System> ►▼ <Log Information> [ENTER] ▼► <Event Log> [ENTER] ▲▼◄► [ENTER] •...

  • Page 52: Setting The Device

    menu setup SETTING THE DEVICE You can setup Camera, Storage Device and Monitor. Camera To register a camera You can register a network camera for each channel and make connection between. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Device> ► <Camera> [ENTER] ▼...
  • Page 53 When you connect a camera in PnP mode, the initial ID, password and DHCP mode should be set in advance. Samsung cameras are registered for Samsung protocols and other cameras are registered by using the Onvif protocol. In PnP mode, you cannot connect a device that runs the DHCP server in PoE port or camera setting port. (Ex: hub) To auto-search for and register a network camera 1.
  • Page 54 The input items may differ depending on the selected protocol. • SAMSUNG : Comply with the internal network protocols adopted by Samsung Techwin. • ONVIF : Means the camera supports ONVIF protocols. When connecting a camera that its name cannot be found from the list, select <ONVIF>.
  • Page 55 • Model : Select a camera model. - Samsung Network Camera/Encoder : Means the camera/encoder supports Samsung Techwin's SVNP protocol. When connecting a camera that does not appear in the camera list, select Samsung Netowrk Camera/Encoder. However, you must select the correct model name of the camera, if it's in the list. Some of obsolete camera models may not be supported.
  • Page 56 • User Model Modification : When registering a new camera, it is named according to the device's default if user set the model to <Samsung Network Camera/Encoder>. In case if automatic registration fails, user can change the model name of camera to be registered.
  • Page 57 ONVIF Setup In the bottom of the camera addition screen, click on the <ONVIF Setup> button to set additional settings for cameras with the ONVIF protocol. You can change the information only if the user account (camera account used for camera registration) is used to read the user information and a connection is made with the admin privilege.
  • Page 58 menu setup Network You can set the details of the network. • IP Type : Select from either the IPv4/IPv6 IP types. • DHCP : Select whether to use the DHCP. • DNS / NTP Server : Only if the DHCP setting is <ON>, the DHCP checkbox will be activated. If the DHCP is checked, you can manually enter the IP address.

  • Page 59: Camera Setting

    Event You can set details of the event. • Available events (camera) : It shows the list of all the events supported by a camera by using the ONVIF protocol. • NVR supported events : You can map the list of events supported by a camera to events that the NVR can detect.
  • Page 60 In the bottom of the camera setting screen, press the <Setup> button to set your camera while watching the live video of the selected camera. SUNAPI (Samsung Unified Network API) : Camera that supports the communication protocols provided by Samsung 1. Camera supporting SUNAPI.
  • Page 61 Exposure You can adjust the exposure of your camera. Brightness control, shutter, SSNR, Sens-up, shutter/lens, and gains can be set. Day/Night You can change the mode to adjust the color and contrast. Mode, switching time, brightness change, alarm time, alarm input/output, negative color, daytime/nighttime switching and simple focus, and activation time can be set.
  • Page 62 menu setup Focus You can adjust the focus of you camera's video. Items of Simple Focus and Focus-Initialize Setting can be set. Flip You can set the mirror mode (horizontal flipping) and the flip mode (vertical flipping). After finishing with setting camera, click on the <Close> button to move back to the previous screen. 62_ menu setup...
  • Page 63 Live Setting You can change the live transfer settings of the network camera. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Device> ► <Camera> [ENTER] ▼► <Live Setup> [ENTER] ▲▼◄► [ENTER] • Live Replacement : You can select the live profile setup mode. If you select <Manual>, the profile setup items are enabled, and you can change settings manually.
  • Page 64 menu setup Channel Setting You can configure the video settings for each channel. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Device> ► <Camera> [ENTER] ▼► <Channel Setup> [ENTER] ▲▼◄► [ENTER] • Apply to CH : If you select <Apply to CH>, the "Apply to CH" confirmation window will appear. After selecting channels that the settings will be applied to, click on <OK>...

  • Page 65: Storage Device

    Storage Device You can check information on storage devices. Device/Format You can check storage devices and their capacity, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD). [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Device> ►▼ <Storage Device>...
  • Page 66 menu setup • Format : Select a device and click on format after which a format confirmation window appears. Click on the <OK> button to format the selected storage device. Formatting will delete all the recording data that has been saved. Be careful. While formatting is ongoing, you cannot record video.

  • Page 67: Monitor Settings

    Remote Devices You can adjust the ID for a remote control to be used in connection with NVR. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Device> ►▼ <Remote Device> [ENTER] ▲▼◄► [ENTER] • Remote control: Select whether to use a remote control. •...
  • Page 68 menu setup • Video Output : Select a video output type from <HDMI> and <VGA>. If your selection of <HDMI> or <VGA> does not match with the monitor setting, the video may not be output. If you press the [ STOP ( @ )]  [ ZOOM ]  [ STOP ( @ )]  [ ZOOM ]  [ MENU ] button on your remote control, the basic resolution pop up will appear.

  • Page 69: Setting The Recording

    SETTING THE RECORDING You can setup scheduled recording, event recording and other recording related settings. Recording Schedule Make your reservation on a date and time to schedule the recording on specified time. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Record> ► <Recording Schedule>...
  • Page 70 menu setup Record Setting You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, and set the transfer limit for recordings.
  • Page 71 Setting the camera recording profile You can set the video profile to perform recording on your camera connected to each channel. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Record> ►▼ <Record Setup> [ENTER] ▼► <Camera> [ENTER] ▲▼◄► [ENTER] You can configure the settings only for the profiles that are supported by the camera. If the profiles used for recording and network are different, camera's video feed may not comply with the frame rate as specified in the camera.
  • Page 72 menu setup Record Option When the HDD capacity is full, you can set whether to stop recording or start overwriting. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Record> ►▼ <Record Option> [ENTER] ▲▼◄► [ENTER] • Disk End Mode : Select a HDD repetitive recording type. - Overwrite : If the HDD is full, this will overwrite the existing data and keep recording.

  • Page 73: Setting The Event

    SETTING THE EVENT You can make the setup for record in case of sensor detection, camera event or video loss detection. Sensor Detection You can set the sensor's operating condition and connected camera, as well as alarm output and its duration. [MENU] [ENTER] ▼...
  • Page 74 menu setup Camera Event You can specify operation of events sent from your camera (motion detection, video analysis events, audio events), alarm display methods, and alarm time. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Event> ►▼ <Camera Event> [ENTER] ▲▼◄► [ENTER] •...
  • Page 75 Video Loss Detection You can set the camera so that the camera can trigger the alarm if it is disconnected or the video is lost due to unstable network connection. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Event> ►▼ <Video Loss Detection> [ENTER] ▲▼◄►...

  • Page 76: Network Configuration

    menu setup NETWORK CONFIGURATION It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can configure the network environment which enables such functions. Interface You can set the network connection route and protocol. Setting a network connection Sets the protocol and environment of the network.
  • Page 77 Connecting and Setting the Network Networking may differ from the connection method, check your environment before setting the connection mode. When no router is used • Static IP mode - Internet connection : Static IP, leased line, and LAN environments allows connection between the NVR and remote user.
  • Page 78 menu setup When a router is used To avoid IP address conflict with the NVR's static IP, check followings : • Setting the NVR with a static IP - Internet connection : You can connect the NVR to a router which is connected to an PPPoE/Cable modem or a router in a Local Area Network (LAN) environment.
  • Page 79 Port Setting [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ► <Interface> [ENTER] ▼► <Port> [ENTER] ▲▼◄► [ENTER] • Protocol Type : Select the protocol type among TCP, UDP - Unicast and UDP - Multicast. • Device Port : Enter the connectable port number. Initially, <554> is set. - TCP : It has better stability and lower speed when compared to UDP, and recommended for internet environments.
  • Page 80 menu setup DDNS If a remote user accesses the network, you can set whether or not to use DDNS and the site to be connected. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ►▼ <DDNS> [ENTER] ▼ <Network 2> ▲▼◄► [ENTER] •...

  • Page 81: Dns

    DDNS Setting DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex : www.google.com) to an IP address consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

  • Page 82: Http (Non-Secured Connection)

    menu setup You can select a security connection system or install public certificates. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ►▼ <SSL> [ENTER] ▲▼◄► [ENTER] • Secured Connection System : You can select a type of security connection system. - HTTP (Non-secured connection) - HTTPS (Secured connection using unique certificate) - HTTPS (Secured connection using public certificate) •...
  • Page 83 • ID : Enter the ID provided by the RADIUS server administrator. If the entered ID does not match the ID of the client's certificate, it won't be processed properly. • Password : Enter the password provided by the RADIUS server administrator. If the password you entered does not match that of the client's private key, it won't be processed properly.
  • Page 84 menu setup E-mail You can send an e-mail to a NVR-registered user at a specific time interval, or if an event occurs. If the camera is set to <OFF> or the channel's event is Video Loss, a notification is sent to the designated email address only in text.
  • Page 85 Event Setting You can set the interval and type of the event that will be sent to the user. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ►▼ <E-mail> [ENTER] ▼► <Event> [ENTER] ▲▼◄► [ENTER] • Event Interval : Set the event interval. If a series of events occurs, the e-mail will be sent at the specified interval, not on each event.
  • Page 86 menu setup SNMP Using the SNMP protocol, the system or network administrator can monitor the network devices remotely as well as the operating environment. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ►▼ <SNMP> [ENTER] ▲▼◄► [ENTER] • Enable SNMP v1 : SNMP version 1 is used. •...
  • Page 87 DHCP Server You can set the internal DHCP server and assign an IP address to the network camera. [MENU] [ENTER] ▼ <Menu> [ENTER] ▼ <Network> ►▼ <DHCP Server> [ENTER] ▼ <Network> ▲▼◄► [ENTER] Network Setting • Network 1 : Select <Setup>, and you can set the IP range operated by the server and time. To set the DHCP server 1.

  • Page 88: Search & Play

    search & play SEARCH You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode. Scene Mode ► CH Info Live Status Record Status PoE Status Audio Off...
  • Page 89 3. The record data on the specific date will be listed. The display bar is different according to the data type. So check the data type for the color in the left pane. If DST (Daylight Saving Time) is configured, overlapping multiple recordings may be produced for a certain moment of time. Such a time section is distinguished with red color to mark DST section.
  • Page 90 search & play Backup Search Searches for backup data in the connected backup device. Only data in the format of NVR is included in the search. 1. Select <Backup Search> in the <Search> menu. 2. Using the directional button(▲▼◄►) on your remote control, you can set the channel, the search date, and the search condition and then press the [ENTER] button.

  • Page 91: Playback

    PLAYBACK Play You can play data stored in the HDD and backup a desired portion of the data. Scene Mode ► CH Info Live Status Record Status PoE Status Audio Off Freeze Stop Alarm Record Play Search Backup Menu Quick Setup ►...
  • Page 92 search & play Using the Playback Button Name Description Play Timeline Indicates the current playback point, and can be used to move. Skip Backward Moves backward by unit time. Backward Fast Used for quick backward search while in Play. Play Backward Slow Play Used for backward frame-by-frame search while in PAUSE.

  • Page 93: Product Features

    starting web viewer WHAT IS WEB VIEWER? WebViewer is a software program with which the operator can access a remote NVR (Network Video Recorder) for real-time monitoring, PTZ control (if configured) or search. NETWORK Network Camera ALARM NETWORK BACKUP POWER NETWORK Remote PC Product Features...

  • Page 94: Connecting Web Viewer

    starting web viewer CONNECTING WEB VIEWER 1. Open your web browser and type the IP address or URL of NVR into the URL address box. You need to connect network 2 before you can access the web viewer. "192.168.2.200" is set to IP by default. You must have specified the IP address in "Network >...
  • Page 95 4. When a program installation wizard window appears, press the [Install] button to install the program. The version of the program installed may vary depending on the update version. 5. When program installation is complete, click on the [Finish] button. 6.

  • Page 96: Live Viewer

    live viewer LIVE VIEWER You can check the video from camera registered in the NVR connected from a remote PC. Also, you can adjust the camera and check the network transfer status. Live Viewer Screen Menu Description System Stauts Displays icons to display the screen or system status. Indicator Menu Selection Switches into corresponding menu screen by clicking each menu.
  • Page 97 Menu Description Channel information Shows the channel information selected. Temporarily stops the videos in all the channels or deactivates the Pause function in Pause suspending status. Stop Alarm Deactivates an alarm when it occurs. Check the OSD item to display the OSD screen information in the web viewer window. Saves the real-time video, in AVI format, from the selected channel in a designated folder on PC recording the PC.

  • Page 98: Live Screen Configuration

    live viewer LIVE SCREEN CONFIGURATION System Status You can check the status or operation of the NVR with the icons on the live screen. Item Description It is displayed when there is a problem with the fan. Displayed if the HDD is full and the NVR has an insufficient space to record.
  • Page 99 To capture a screen 1. Click < > button. When a pop-up window appears, select the saving path for captured image. 2. Select the path and name the file. And then click the [OK] button. 3. Save current camera's video image as .bmp, .jpg or .png file. If the viewer is running without the administrator's permission in Windows Vista/7, you may not save the captured image as .bmp, .
  • Page 100 live viewer Changing Split Mode If you want to maintain the current screen ratio When you change from a split screen, check <Keep Aspect ratio> to maintain the ratio and change to a different size. To go to your desired channel screen Press the <...
  • Page 101 Setting screen switching If you don't register the layout, the screen switching function will not operate. You can view the layouts one by one. Click on the < > button to launch the switching setting window. 1. Enter the desired screen switching time. 2.
  • Page 102 live viewer Auto Sequence Single mode When switching to another channel, the video may be slightly delayed depending on network status. If you perform automatic switching of a single screen, the layout setting menu will be deactivated during operation. 102_ live viewer...

  • Page 103: Controlling A Connected Network Camera

    CONTROLLING A CONNECTED NETWORK CAMERA Controlling PTZ If PTZ camera is connected, the < > icon appears on screen. When selecting corresponding camera channel, the PTZ tab is provided to allow you to control the PTZ. Item Description Camera menu Displays the camera settings menu.
  • Page 104 live viewer Item Description Group Moves in the path specified by combining the preset. Trace Moves camera's framing in the predefined path. Tour Moves in the path specified by combining multiple groups. Focus Adjusts the focus of the camera. Zoom Zooms in/out the image by controling camera's zoom.

  • Page 105: Search Viewer

    search viewer SEARCH VIEWER You can search and play the video record saved in NVR by accessing NVR remotely. Search Viewer Screen Item Description Menu Selection Switches to the corresponding menu screen by clicking each menu. Displays the video-recorded date in blue and today in red. Click the date in blue color to display Calendar the recorded video information in timeline.
  • Page 106 search viewer Item Description Sound Change the PC volume between 0 and 100. Capture Saves current video for selected channel in the designated path. Print Prints current video image for selected channel through the assigned printer. Section backup Backup the video for the selected section. Magnify/Shrink Magnify or shrink the current video for the selected channel.
  • Page 107 To adjust timeline If searched data are overlapping, you can select a desired data, move its playback time point, and zoom in/out the timeline. 1. Select the number of data to search if data is overlapping. It appears only when data are overlapped and assigns <0> to the most recent data. 2.
  • Page 108 search viewer Names and Functions of Play Buttons Item Description Back Returns to the previous event. Previous frame Move backward one sec. Backward X times Used to rewind at X times the speed. speed playing Stop After finishing playing, move to the live mode. Play/Pause Video is played and paused.

  • Page 109: Setup Viewer

    setup viewer SETUP VIEWER You can configure the NVR settings remotely on the network. To configure the NVR settings, click <Setup>. Settings Screen Item Description Menu Selection Click each menu to switch into corresponding menu screen. Parent Menu Configure the settings or select a parent item to change the existing settings. Sub-Menu Among the sub-menus of selected parent menu, select a desired item to set.
  • Page 110 setup viewer System You can configure the various settings of the NVR system. Date/Time/Language For more information, refer to "Date/Time/Language" in the "System" menu. (Page 41) Date/Time Set the date and time. Time Synchronization Setup Set the time synchronization. DST (Daylight Saving Time) During the summer, Daylight Saving Time (DST) advances clocks one hour forwards from the standard local time zone.
  • Page 111 Permission Management For more information, refer to "User" in the "System Setup" menu. (Page 43) Admin You can change the admin ID or the password.  ID allows alphanumeric characters only. If the admin ID is not used for access, you cannot change the ID. If the ID being used is changed, you will be automatically logged out.
  • Page 112 setup viewer System Management For more information, refer to "System Management" in the "System" menu. (Page 47) System Information You can see information of the current system. Check the software version and MAC address. Settings Using a storage device, you can apply the current configuration of NVR to another NVR.
  • Page 113 Event log The event log lists recorded events, such as sensor events, camera events, or image losses. Backup log You can inquire about a user who performed a backup, execution time, details (backup time, channel, backup device, backup file type). English _113...
  • Page 114 setup viewer Device You can check a list of devices that are connected to the NVR and configure the necessary settings. Click <Device> in the menu screen. For more information, refer to "Setting the Device". (Page 52) Camera Cam Registration You can add a network camera(s).
  • Page 115 Channel Setup You can configure the video settings for each channel. Storage Device You can check and change the settings related to the data storage device. Device/format You can check a storage device, amount of use, type of use and status of storage device. English _115...
  • Page 116 setup viewer HDD Alarm You can set the alarm output port and the duration in case an error occurs. Monitor Monitor You can configure the monitoring screen settings and set the output system. If the video is not played properly, refer to the troubleshooting section later in this manual.

  • Page 117: Record Setup

    Record For more information, refer to "Setting the Recording". (Page 69) Recording Schedule If you set a recording schedule for a specific date and time, the recording will start at that specific time. Record Setup Select a type of the normal/event recording frame rate for each channel.
  • Page 118 setup viewer Camera You can set the recording profile for a network camera. Record Option You can set the Disk End Mode. 118_ setup viewer...
  • Page 119 Event For more information, refer to "Setting the Event". (Page 73) Sensor Detection NVR / Camera You can set the sensor operation mode and the synchronized camera as well as the alarm output type and the duration. If the connected network camera that has configured the alarm in/out settings triggers an alarm, NVR will perform the alarm out.
  • Page 120 setup viewer Alarm Out Schedule You can schedule the alarm output according to the day of the week and the time. The default setting is Event Sync, which activates the alarm only if an event occurs. Network For more information, refer to "Network Configuration". (Page 76) Interface A remote user can access the NVR via the network to check the current mode and the IP address.
  • Page 121 DDNS Network2 You can check the DDNS settings. IP Filtering You can prepare the list of IP address to allow or block accesses to a specific IP address. You can select a security connection system or install public certificates. While using HTTPS, if you want to switch to HTTP, then abnormal operation can take place as the browser contains the setting values.

  • Page 122: Live Streaming

    setup viewer 802.1x When connecting to a network, you can select whether to use the 802.1x protocol and install corresponding certificate. Live Streaming You can configure the network transfer settings of the network camera. E-mail You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users. SMTP You can set the server that sends mails and specify if you use the authentication process.
  • Page 123 Event You can set the event interval and specify which events the server sends mails for. Recipient You can set groups and recipients to receive emails. SNMP Using the SNMP protocol, the system or network administrator can remotely monitoring the network devices and sets the environment.
  • Page 124 setup viewer DHCP Server Network You can set the internal DHCP server and assign an IP address to the network camera. Check IP You can check the IP and MAC currently used through the DHCP server, and the connected network port. 124_ setup viewer...
  • Page 125 Using the setting icons • : Display the ID of user connected. • : You can register a network camera for each channel and easily set the resolution and the number of shots in case of event occurrence or manaual recording. For more on how to register a camera, refer to "To register a camera".
  • Page 126 > to move to Device > Camera > Camera Registration. For more on camera registration, refer to "To register a camera". (Page 52) • < > : You will be immediately directed to the homepage of Samsung Techwin. (http ://www.samsungcctv.com/). 126_ setup viewer...

  • Page 127: Backup Viewer

    backup viewer SEC BACKUP VIEWER You can play a file that is backed up in the format of SEC. Backup in SEC format produces backup data file, library file and self-executable viewer file. If you run the backup file viewer, the backup data file will be played. Recommended System Requirements PCs with a lower specification than the recommended below may not fully support forward/backward and high- speed playback.
  • Page 128 backup viewer Item Description Enlarge the image by up to 100 times as big as the current one. Press the Zoom In ( ) button the enlarge the image; press the Zoom Out ) button to shrink the image. You can also use the slide bar ( ) in the pop-up window to zoom in/out.

  • Page 129: Appendix

    Display Inputs Max. 4CH Network Camera Resolution CIF ~ 5MP Protocols Samsung(SVNP), ONVIF supporting version(1.0 ~ 2.22) Local Display HDMI/VGA [Local Monitor] 1 / 4 / Auto Sequence Multi-Channel Display Live [Web] 1 / 4 / Auto Sequence [Local Monitor] 5MP(30fps), 3MP(30fps), 2MP(120fps)
  • Page 130 TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP(Server, Protocol Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF DDNS Samsung iPOLiS DDNS Transmission Bandwidth MIN 32Mbps Max Remote Users Search(3) / Live unicast(10) / Live multicast(20) IP Version...
  • Page 131 Item Details English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (24) Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Webviewer Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (24)
  • Page 132 appendix Item Details Indicator/Interface Power Status LED 1EA HDD Action LED 1EA Alarm Status LED 1EA Indicator Record Status LED 1EA Network Action LED 1EA Front BACKUP Status LED 1EA Switch 1 EA HDMI 1 EA Audio Out(1EA, RCA, Line) Serial Connectors Ethernet...
  • Page 133 Item Details Electrical Input Voltage /Current 100-240V / 3.5A 50Hz-60Hz NVR Power consumption Max. 30W Camera Power Output Max. 15.4W per channel, Total 61.6W (PoE, IEEE 802.3af) Mechanical Color / Material Black / Metal Dimension (WxDxH) W370xD44xH320mm(1U) Weight 2.73Kg(without HDD) Accessories IR remote control Included...

  • Page 134: Product Overview

    appendix PRODUCT OVERVIEW unit : mm (inches) 370 [14.57] 134_ appendix...

  • Page 135: Default Setting

    DEFAULT SETTING To reset the system, move to "System Management > Settings > Load Factory Default" and press the <Initialization> button. This returns the factory default settings. When you initialize the system without changing the <Authority Setting>, you must enter the ID and password to log into the system after it reboots.
  • Page 136 appendix Category Details Factory Default Recording Schedule CH1~CH4 Both(Cont&Evnt) Standard Full Event Full Record Setup Pre Event Record POST Event 1 min Overwrite Disk End Mode Record Option Disk End Beep Auto Delete Sensor Operation Camera No. Alarm Out None Duration 10 sec Sensor Detection...

  • Page 137: Enable Snmp V2

    Category Details Factory Default IP Type Static PnP mode : 192.168.231.200 Network 1(Camera) Manual mode : 192.168.1.200 Network 2(Viewer) 192.168.2.200 Network Subnet Mask 255.255.255.0 PnP mode : 192.168.2.1 Gateway Manual mode : Interface 192.168.1.1 168.126.63.1 Protocol Type Device Type UDP Port 8000~8159 Port Multicast IP Address...

  • Page 138: Troubleshooting

    appendix TROUBLESHOOTING Problem Action The system does not turn on and the indicator on the Check if the power supply system is properly connected. front panel does not work at all. Check the system for the input voltage from the power source. If the problem persists even after you have taken the above actions, check the power supplier and replace it with a new one if neccessary.
  • Page 139 Problem Action When an alarm occurs, I try to press the [ALARM] Press the [MENU] button on your remote control to cancel the alarm. button on my remote control to cancel it but an 1) Event monitoring screen cancellation: monitoring mode - Turn off the event alarm keeps running and it cannot be cancelled.
  • Page 140 appendix Problem Action If I press the ESC key in full screen mode of the Press the ALT+TAB keys to select 'ACTIVE MOVIE' and press the ESC key WebViewer, the system does not switch to a normal again. The system will switch to a normal split mode. split mode.
  • Page 141 Problem Action Frame rate of the actual recording does not match If multiple profiles were applied to one camera for video transmission, the that of configured to the camera. actual video stream can be serviced by the camera at a lower frame rate than specified.

  • Page 142: Open Source License Report On The Product

    Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
  • Page 143 c) If the modified program normally reads commands interactively when and conditions. You may not impose any further restrictions on the run, you must cause it, when started running for such interactive use in recipients' exercise of the rights granted herein. the most ordinary way, to print or display an announcement including an You are not responsible for enforcing compliance by third parties to this appropriate copyright notice and a notice that there is no warranty (or...
  • Page 144 LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR Preamble LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN The licenses for most software are designed to take away your freedom IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE to share and change it.
  • Page 145 Although the Lesser General Public License is Less protective of the These requirements apply to the modified work as a whole. If identifiable users' freedom, it does ensure that the user of a program that is linked sections of that work are not derived from the Library, and can be with the Library has the freedom and the wherewithal to run that program reasonably considered independent and separate works in themselves, using a modified version of the Library.
  • Page 146 You must give prominent notice with each copy of the work that the 11. If, as a consequence of a court judgment or allegation of patent Library is used in it and that the Library and its use are covered by this infringement or for any other reason (not limited to patent issues), License.
  • Page 147 LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF Preamble THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE The GNU General Public License is a free, copyleft license for software POSSIBILITY OF SUCH DAMAGES.
  • Page 148 To "propagate" a work means to do anything with it that, without 3. Protecting Users' Legal Rights From Anti-Circumvention Law. permission, would make you directly or secondarily liable for infringement No covered work shall be deemed part of an effective technological under applicable copyright law, except executing it on a computer or measure under any applicable law fulfilling obligations under article 11 of modifying a private copy.
  • Page 149 d) Convey the object code by offering access from a designated place a) Disclaiming warranty or limiting liability differently from the terms of (gratis or for a charge), and offer equivalent access to the Corresponding sections 15 and 16 of this License; or Source in the same way through the same place at no further charge.
  • Page 150 the party's predecessor in interest had or could give under the previous License and any other pertinent obligations, then as a consequence you paragraph, plus a right to possession of the Corresponding Source of may not convey it at all. For example, if you agree to terms that obligate the work from the predecessor in interest, if the predecessor has it or you to collect a royalty for further conveying from those to whom you can get it with reasonable efforts.
  • Page 151 To do so, attach the following notices to the program. It is safest to THE BASIC LIBRARY FUNCTIONS attach them to the start of each source file to most effectively state the Written by: Philip Hazel exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

  • Page 152: Openssl License

    - Redistributions of source code must retain the above copyright notice, "This product includes software developed by the OpenSSL Project for this list of conditions and the following disclaimer. use in the OpenSSL Toolkit. (http://www.openssl.org/)" - Redistributions in binary form must reproduce the above copyright 4.
  • Page 153 THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY limitation the rights to use, copy, modify, merge, publish, distribute, EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED sublicense, and/or sell copies of the Software, and to permit persons to TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS whom the Software is furnished to do so, subject to the following FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
  • Page 154 Redistribution and use in source and binary forms, with or without can be browsed and manipulated, and then written to disk or another modification, are permitted provided that the following conditions are met: output stream. You can also construct an XML document from scratch with C++ objects and write this to disk or another output stream.
  • Page 155 1. If the non-standard but common "UTF-8 lead bytes" (0xef 0xbb 0xbf) Streams begin the file or data stream, TinyXML will read it as UTF-8. With TIXML_USE_STL on TinyXML supports C++ streams (operator 2. If the declaration tag is read, and it has an encoding="UTF-8", then <<,>>) streams as well as C (FILE*) streams.
  • Page 156 Windows project file for VC6 Contributors, Contacts, and a Brief History • tinyxml: tinyxml library, non-STL Thanks very much to everyone who sends suggestions, bugs, ideas, and encouragement. It all helps, and makes this project fun. A special thanks • tinyxmlSTL: tinyxml library, STL to the contributors on the web pages that keep it lively.
  • Page 157 Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Samsung Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
  • Page 158 SALES NETWORK SAMSUNG TECHWIN CO., LTD. Samsung Techwin R&D Center, 6, Pangyo-ro 319beon-gil, Bundang-gu, Songnam-si, Gyeonggi-do 463-400, Korea TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660...

Table of Contents
