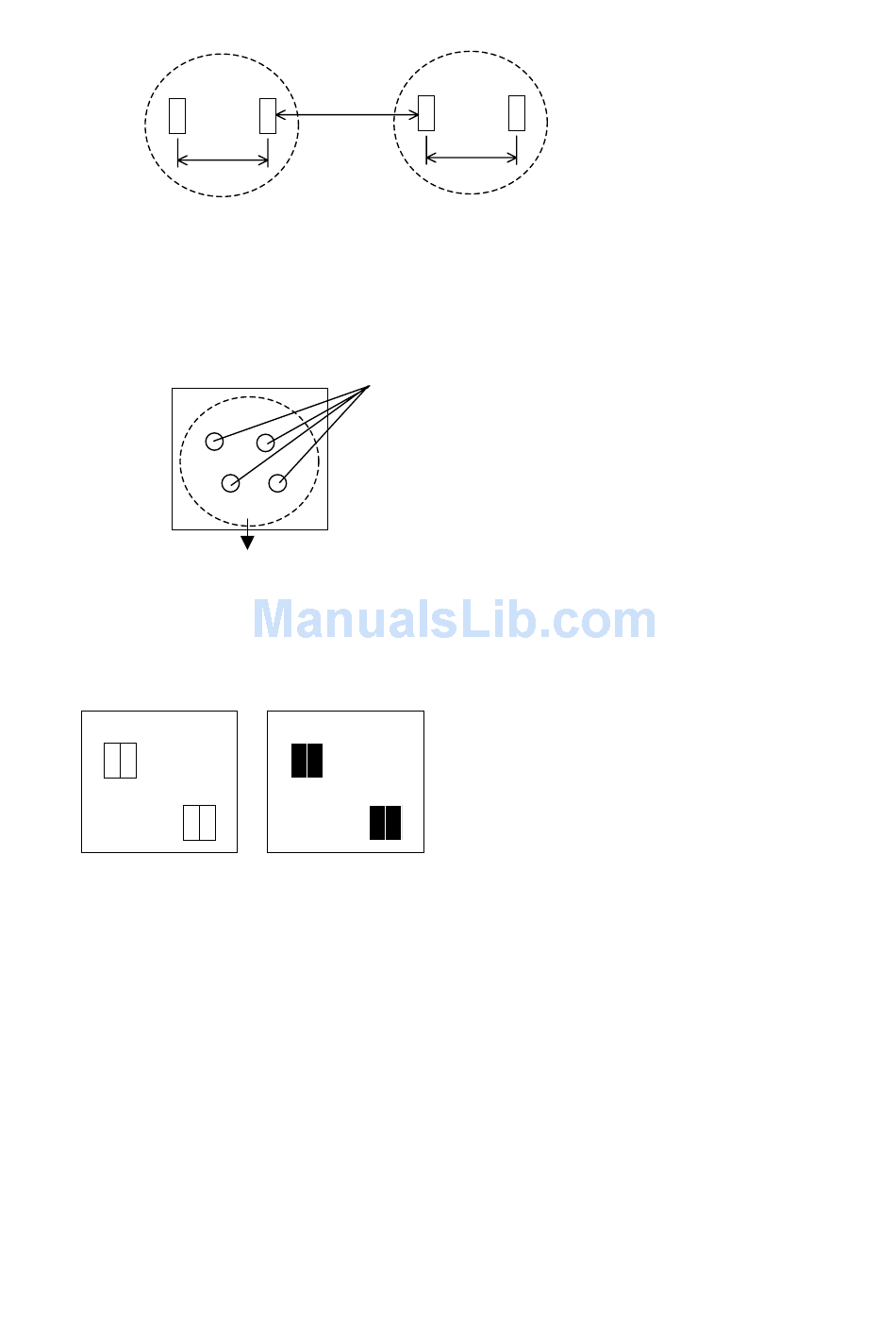

Note 6: Approach of adjacent defects
R
≤ 5.9mm
Note 7: A set of 2 or more dot defects in an area of 5×5 pixels
If there are two or more dot defects [(5)] in an area of 5×5 pixels, such a set of dot defects should
be counted as one cluster.
5×5 pixels
1 cluster
Note 8: Approach of detects of (1) or (2) in an area of 5×5 pixels
Counted as NG
5×5 pixels
R G
R G
There should be no approach of detects of (1) or (2) within an area of 5×5 pixels
R
R
> 9mm
The distance between adjacent defects should be longer than 10mm.
Dot defects [(5)]
There should be no more than 3 clusters
throughout the screen area.
5×5 pixels
R G
R G
R
≤ 5.9mm
