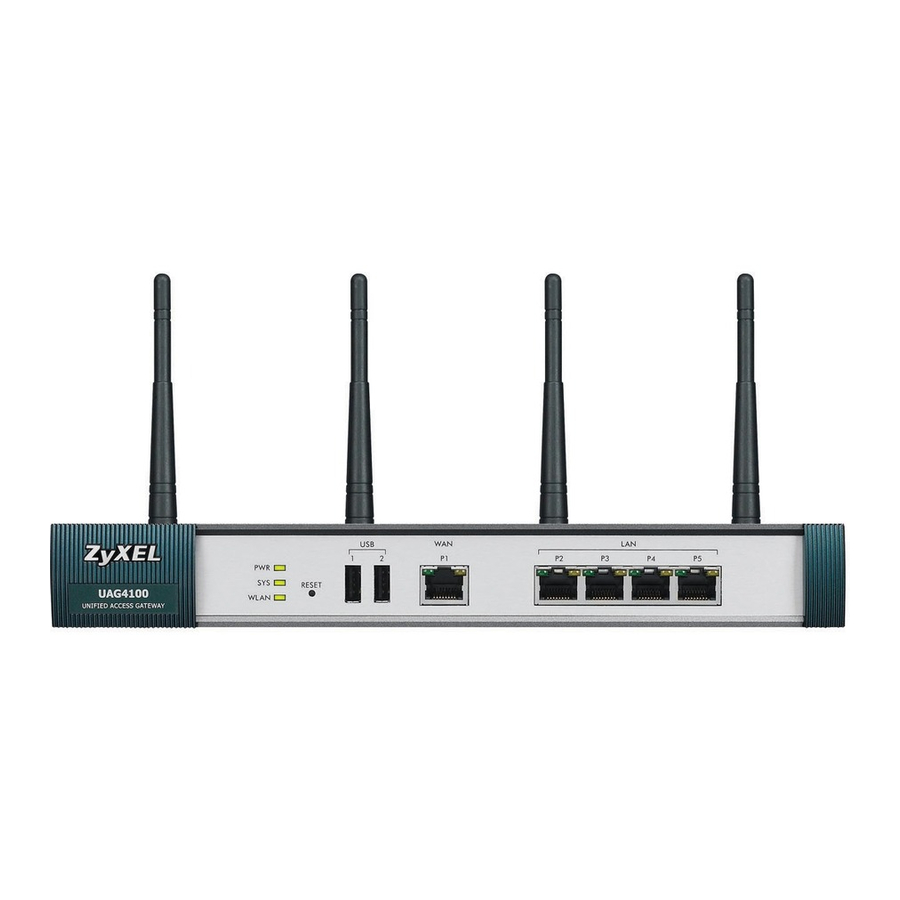

ZyXEL Communications UAG4100 Deployment Manual

Initial configurations of uag4100 and sp350e ticket printer
Hide thumbs Also See for UAG4100:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: User Manual
UAG4100 Deployment Guide
Initial Configurations of UAG4100 and SP350E Ticket Printer
Copyright © 2013 ZyXEL Communications Corp. All rights reserved.

Advertisement

loading

Related Manuals for ZyXEL Communications UAG4100

Summary of Contents for ZyXEL Communications UAG4100

  • Page 1 UAG4100 Deployment Guide Initial Configurations of UAG4100 and SP350E Ticket Printer Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 2 SP350E is the thermal ticket printer designed to work with ZyXEL’s new generation HotSpot Gateway UAG4100. It is with 3 buttons that business owners can easily print out the account and service billing information which are generated or configured in UAG4100.
  • Page 3 (4) Select your Internet Service Provider parameters (on the UAG, there are 3 types: Ethernet, PPPoE, and PPP). (5) After configuring the Internet connection setting, you can click on the “Finish” button to complete the Wizard Setup. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 4 (2) Enable the “Web Portal” check box. (3) Click on the “Apply” button. Note: If you have a printer, please refer to Step 4-1. If not please refer to Step 4-2. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.

  • Page 5: Step 4-1. Setup Your Printer

    Please (3) Go to Dashboard. Click on “DHCP Table”. Mapping the printer MAC address – this is what you have recorded in Step 4-1-(2) ). If correct, enable the “Reserve” checkbox. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 6 (7) Click on the “Add” button to add the IP address of the printer. (8) Enter printer IP address (the IP address from Step 4-1-(5)). (9) Enable the” Enabled Printer Manager” check box. (10) Click on the “OK” button. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 7 Step 4-1. Step 4-2. Setup the Free Time. (1) Go to CONFIGURATION -> Object -> AP Profile -> SSID. Confirm the SSID name. The default Profile Name is “Guest”. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 8 (1) The end user will be redirected to this page. Ask the end user to click on the link. (2) Then the user will go to the Free Time page and click on the “OK” button. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
  • Page 9 (3) The user will get the Internet service login account/ password / time period. Copyright © 2013 ZyXEL Communications Corp. All rights reserved.
